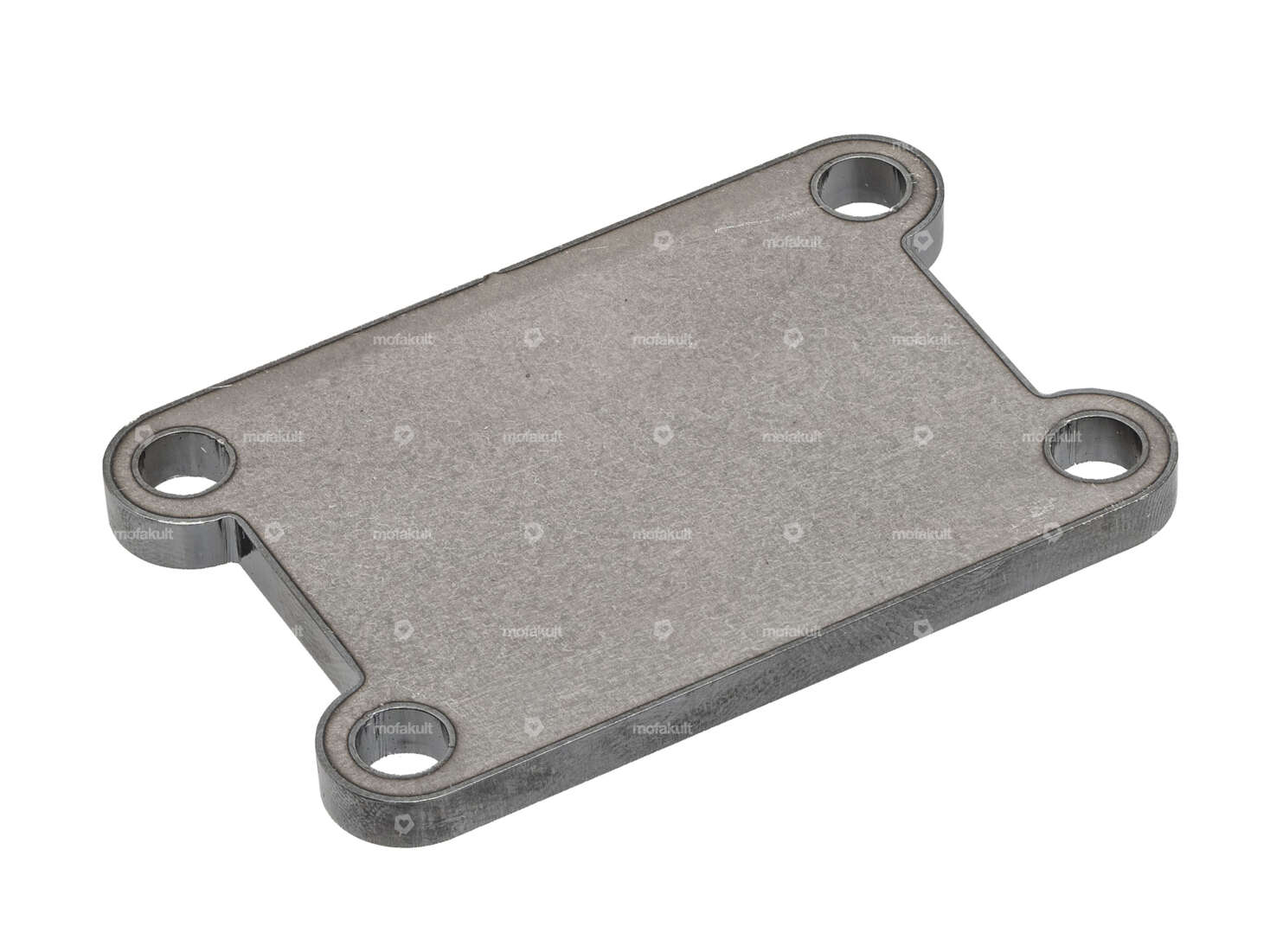

Steel cover plate for the reed valve inlet of the 47 mm Gilardoni italkit Puch cylinder kit.
The reed valve cover is used to close the reed valve system in order to convert the cylinder kit to a housing inlet (GME).
Outer dimensions: 72.5 x 48 mm
Hole pattern: 60 x 35 mm
Material thickness: 5 mm
Material: steel
You can find corresponding additional material such as seals, sealing compound etc. in the accessories section.
| Thickness | 5 mm |
| Manufacturer | MBR |
| Mounting type | Screws |
| Number of fixing points | 4 pcs |
| Ø mounting hole | 6.3 mm |
| Material | Steel |
| Area of application | Tuning |
| Width | 48 mm |
| Total length | 72.5 mm |
| Surface | raw |
| Hole pattern [mm] | 60 x 35 mm |
| Puch |
