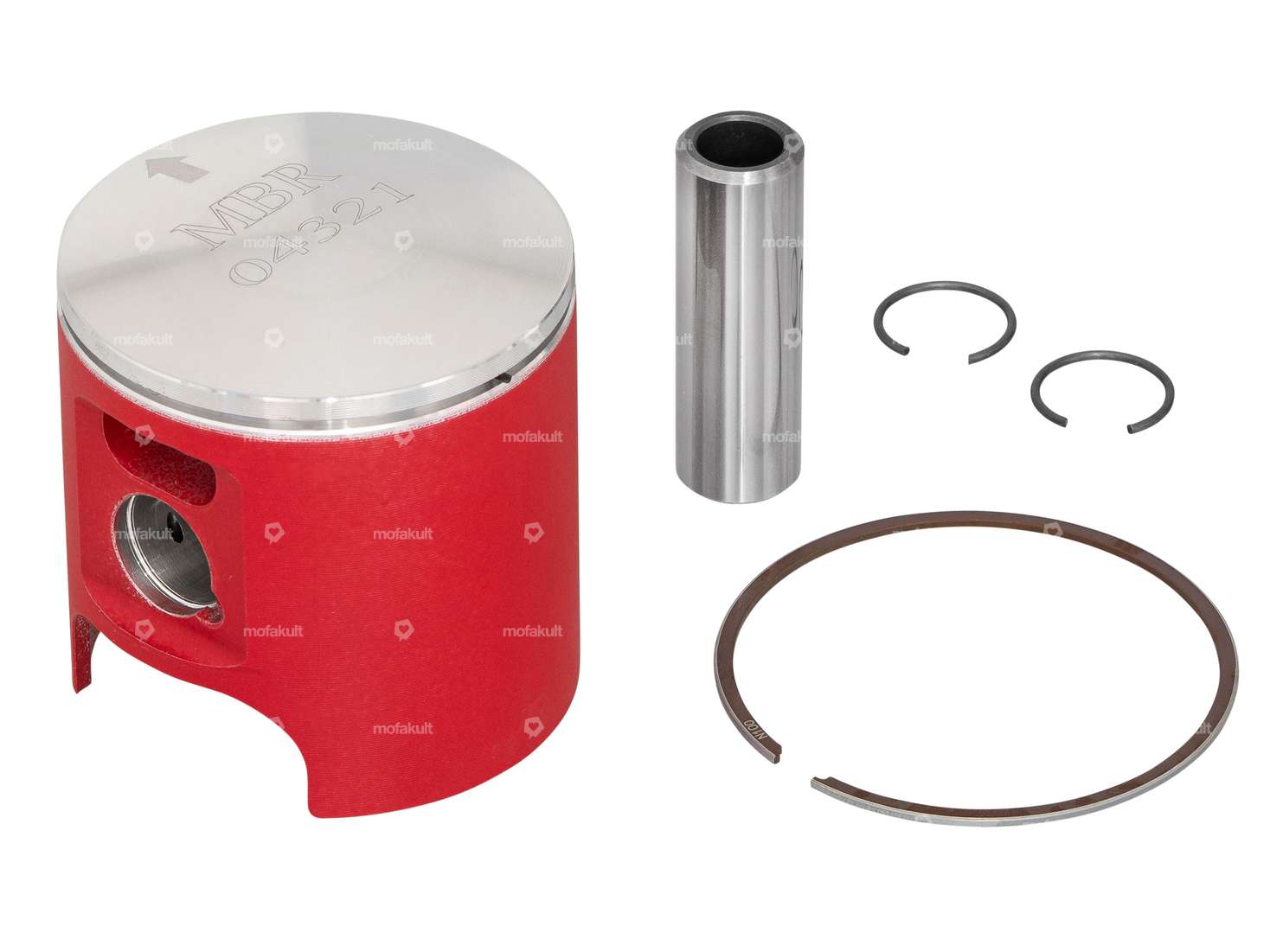

Forged Wössner high-performance piston for the 47 mm Gilardoni italkit Puch cylinder kit when operated with a housing-membrane inlet (GME).
Attention, the piston cannot be used for conventional Gilardoni italkit cylinders which are operated with cylinder diaphragm inlet (ZME).
GME forged piston developed by MBR with a 1 mm rectangular piston ring with internal locking (IS), which is very often used in the Mofacross / Mofacup scene.
Optimal material structure, flow-optimized shape and large lubrication pockets above the piston pin characterize this high-quality racing piston.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the common piston rings, their stems and locking types on the legend in the images.
The molybdenum coating in combination with oil provides technologically advanced wear protection with outstanding sliding properties.
Recommended piston size (coating corresponds to +0.01 mm to +0.02 mm):
Gilardoni italkit Cylinder A (47.00 mm): 46.94 mm piston (in exceptional cases, e.g. when using ASP®).e.g. when using ASPEN: 46.93 mm piston)
Gilardoni italkit cylinder B (47.01 mm): 46.95 mm piston
Gilardoni italkit cylinder C (47.02 mm): 46.96 mm piston
Gilardoni italkit cylinder D (47.03 mm): 46.97 mm piston
Piston ring, piston pin and piston pin retainers are included in the scope of delivery.
Matching add-on parts such as cylinder kits, needle bearings, stroke plates, carburettors, air filters etc. can be found under accessories.
| Nominal diameter | 47 mm |
| Manufacturer | Wössner, MBR |
| Surface | molybdenum-coated |
| Ø outside piston (A) | 46.95 mm |
| Compression height (C) | 21.5 mm |
| Curvature (D) | 2.63 mm |
| Total piston height (E) | 48.15 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1 mm |
| Ø piston pin (B) | 12 mm |
| Weight piston kit | 97 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Ratings
Accessories & related products
HOMOET exhaust P8 | Puch (slanted exhaust)
Manufacturer: HOMOET · Material: Steel · Color: black · Surface: varnished · Ø outside: 88 mm · Ø Silencer: 50 mm · Number of fixing points: 1 pcs · Ø Internal connection: 25 mm · Total length: 915 mm · Mounting type: Welded lug · Ø Flame tube outside: 28 mm · Exhaust type: Cone / double cone · Flame tube attachment: Flange
EUR 351.10
swiing® ingenious intake manifold Gilardoni italkit Inox
Ø inside: 21 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: No · Ø External connection: 24 mm · Total length: 80 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Height flange center hole: 42.5 mm · Area of application: Tuning · Total height: 55 mm · Hole pattern [mm]: 60 x 35
EUR 82.20

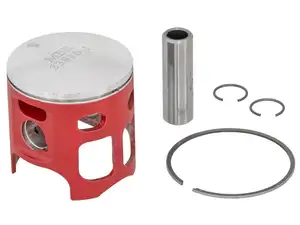

MBR piston 46.95 mm Gilardoni italkit | Puch
Nominal diameter: 47 mm · Manufacturer: MBR · Manufacturer: Wössner · Surface: molybdenum-coated · Ø outside piston (A): 46.95 mm · Compression height (C): 22 mm · Curvature (D): 2.65 mm · Total piston height (E): 48.15 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1 mm · Ø piston pin (B): 12 mm · Weight piston kit: 94 g
EUR 144.00
Moped fans also bought
Airsal 46 mm cylinder kit straight exhaust | Puch
Nominal diameter: 46 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 43 mm · Number of fixing points: 4 pcs · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No
EUR 242.10
Fortune / Merrick 2.00-2.50 x 16" / 17" inner tube
Manufacturer: Fortune · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Wheel size: 16 - 17 " · Wheel size: 17 " · Old designation: 20 x 2 " · Old designation: 20 x 2.25 " · Old designation: 20 x 2.5 " · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR4 Auto valve
EUR 12.00
Airsal gasket set 44 - 45 mm
Manufacturer: Airsal · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Area of application: Tuning · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes
EUR 12.00
swiing® revival stud bolt set M6 x 106 | Puch
Total length: 106 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Drive: External hexagon · Thread length: 13 mm · Thread length: 18.5 mm · Width across flats: 10 mm · Alternative version of the Puch OEM number: 360.1.10.034.1
EUR 8.95
Continental 2.00 - 2.50 x 16" tube
Manufacturer: Continental · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Wheel size: 16 " · Old designation: 20 x 2 " · Old designation: 20 x 2.25 " · Old designation: 20 x 2.5 " · Valve type: TR6 car valve
EUR 17.60

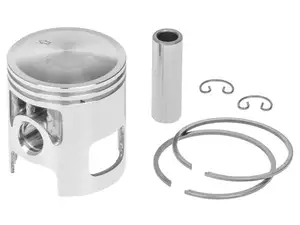

Athena piston AJH 45 mm #A | Puch
