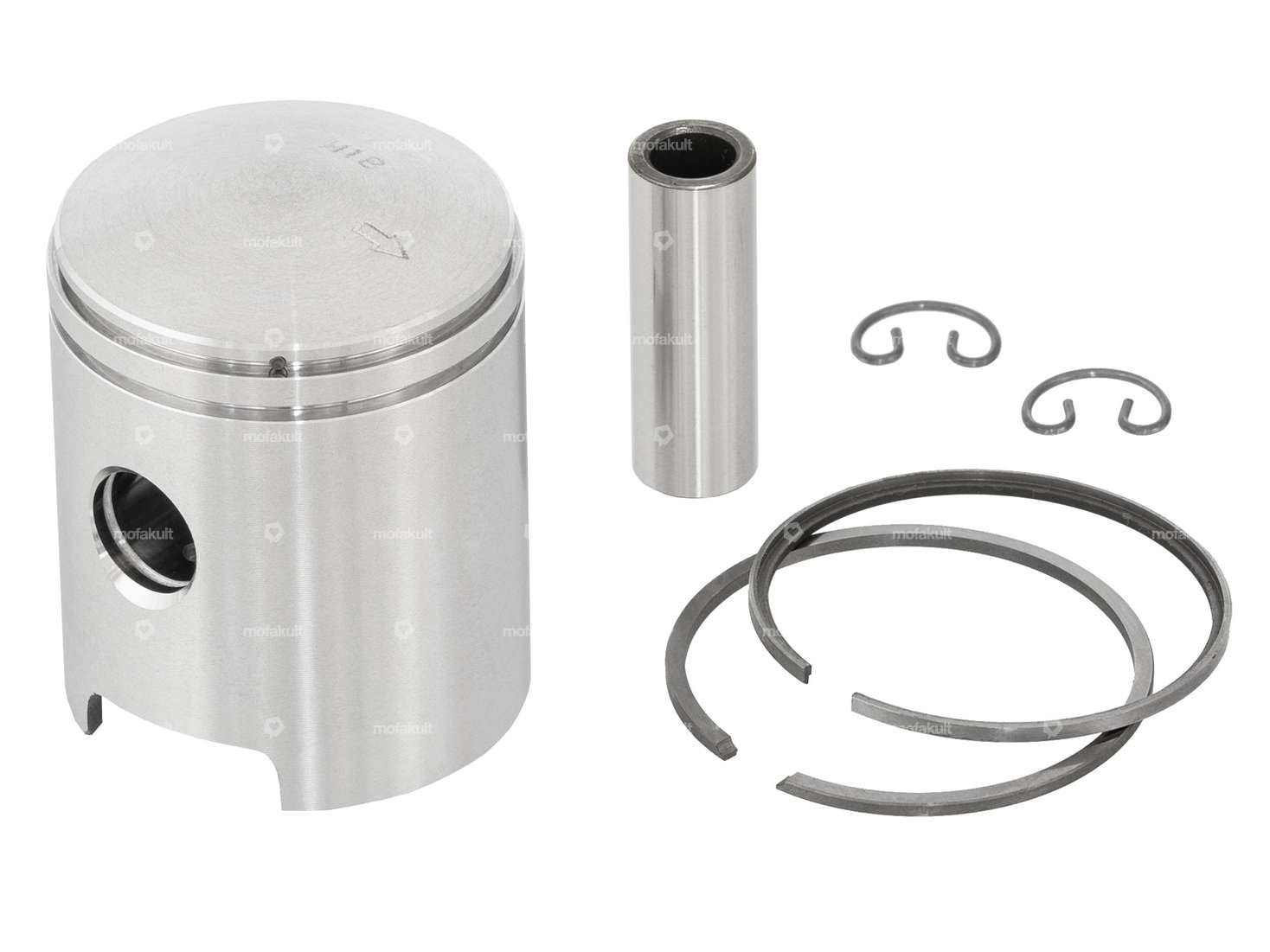

42 mm oversize piston with an L-shaped piston ring with internal circlip (IS) and a rectangular piston ring with flank circlip (FS) for blown cylinders of Puch X30 Velux mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
The piston kit is used for bored and honed cylinders.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Meteor.
| Manufacturer | Meteor |
| Ø outside piston (A) | 41.95 mm |
| Compression height (C) | 23 mm |
| Curvature (D) | 3.5 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 41 mm |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Ø piston pin (B) | 12 mm |
| Piston weight | 97 g |
| Puch | ZA50 (fan-cooled) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
Accessories & related products
Meteor piston 38 mm #1 | Puch
Manufacturer: Meteor · Ø outside piston (A): 37.95 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 1 · Piston weight: 79 g · Puch OEM number: 349.1.10.106.0/21
EUR 59.90
Meteor piston 38 mm #4 | Puch
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.98 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 4 · Piston weight: 80 g
EUR 59.90
Meteor piston 39 mm oversize | Puch Supermaxi Cat.
Manufacturer: Meteor · Ø outside piston (A): 39 mm · Compression height (C): 24 mm · Curvature (D): 2.3 mm · Total piston height (E): 55.3 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Nominal diameter: 39 mm · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Piston weight: 86 g
EUR 67.20
Meteor piston 39 mm oversize | Puch
Manufacturer: Meteor · Ø outside piston (A): 38.96 mm · Compression height (C): 22.2 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 39 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.65 mm · Ø piston pin (B): 12 mm · Piston weight: 88 g
EUR 66.00
Piston 43.7 mm Hero oversize | Puch
Ø outside piston (A): 43.7 mm · Compression height (C): 27.5 mm · Curvature (D): 2.7 mm · Total piston height (E): 57.2 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 43.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Piston weight: 97 g
EUR 72.00
Meteor piston 38.5 mm oversize | Puch
Manufacturer: Meteor · Ø outside piston (A): 38.46 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm
EUR 66.00
Not in stock
Moped fans also bought
Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing
Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Ø nipple: 3 mm · Manufacturer: Made in Germany · Material: Steel · Number of components: 1 pcs · Cable length: 2200 mm · Surface: galvanized (blue) · Nipple length: 5 mm · Area of application: Standard
EUR 2.90
Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm
Screw head: Lens head · Manufacturer: Magura · Ø Cable bushing: 1.6 mm · Material: Brass · Material: Steel · Number of components: 2 pcs · Ø outside: 5 mm · Thread type: M4x0.7 (standard thread) · Surface: nickel-plated · Thread length: 4 mm · Total length: 6 mm · Drive: Slot
EUR 2.40
Meteor piston 39 mm oversize | Puch
Manufacturer: Meteor · Ø outside piston (A): 38.96 mm · Compression height (C): 22.2 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 39 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.65 mm · Ø piston pin (B): 12 mm · Piston weight: 88 g
EUR 66.00

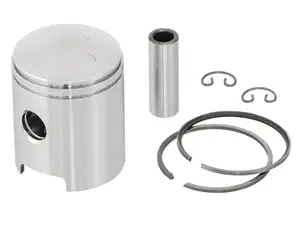

Meteor piston 40.5 mm (12 mm KoBo) | Puch X30 Velux
