For: Universal · Piaggio

38433

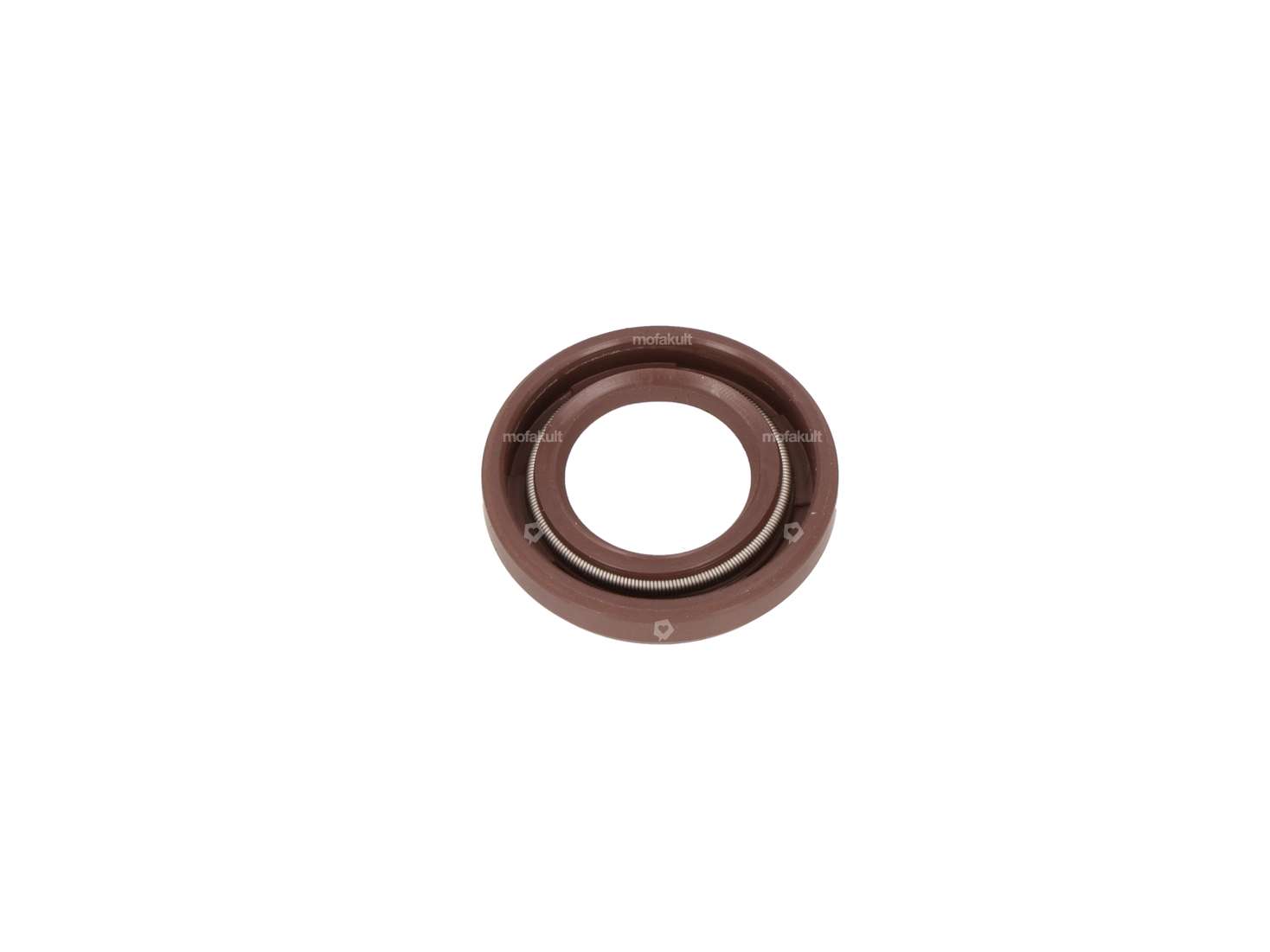

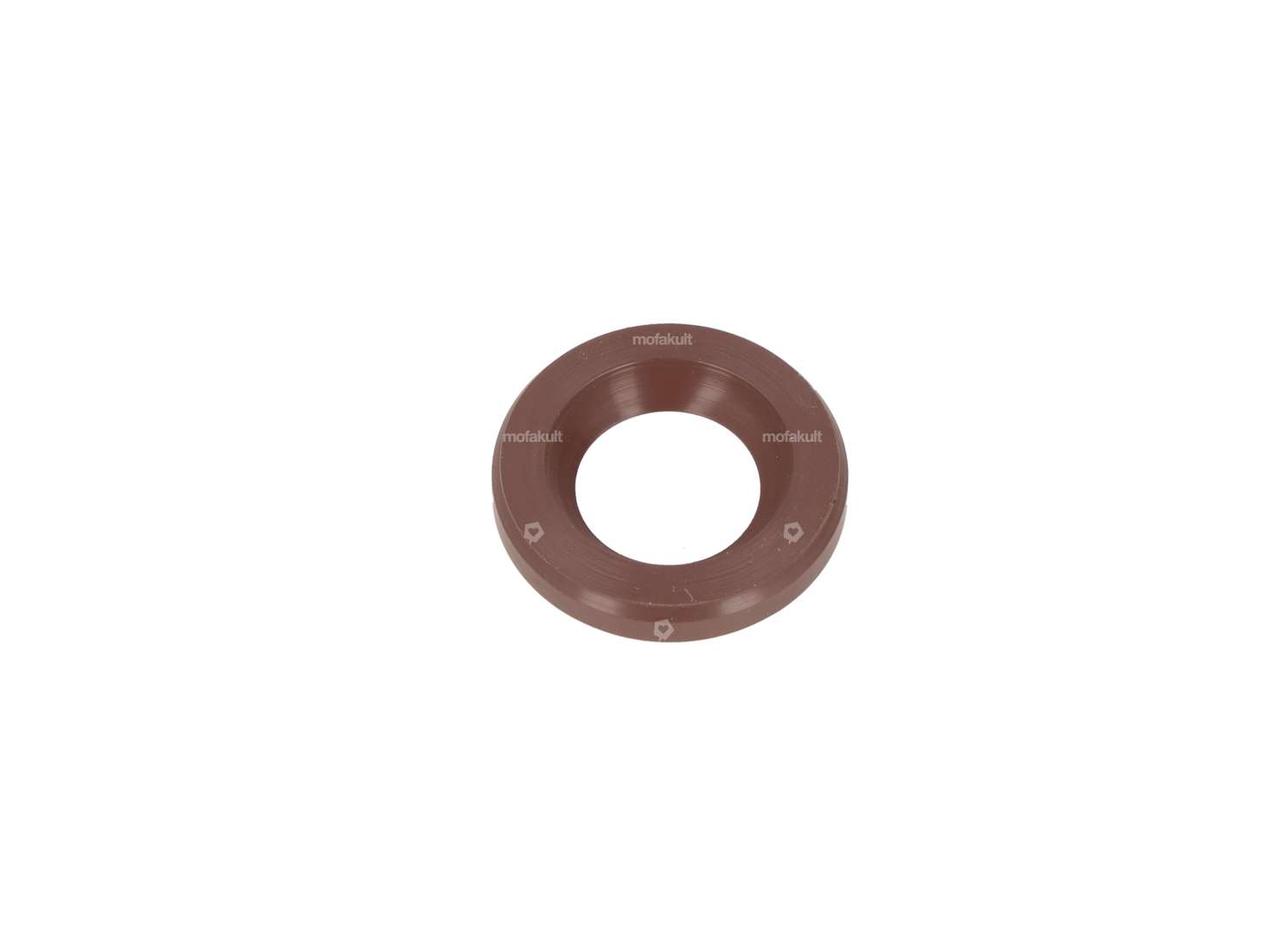

Oil seal FPM 13/22/4 A Gearbox Vario | Piaggio Ciao, SI, Bravo, Boxer

EUR 10.30

Incl. 23% VAT.

Description

Special shaft seal ring (colloquially known as oil seal) 13x22x4 mm for use on the variator gearbox of your Piaggio Ciao, Si, Bravo and Boxer moped / moped.

The radial shaft seal is mounted on the torque converter shaft (input shaft)

This radial shaft seal made of fluorine rubber is resistant up to a temperature of 200°C.
FPM or FKM shaft seals (colloquially known as Viton) are therefore particularly suitable for racing, as they are designed for higher speeds and can therefore withstand higher temperatures. Conventional NBR shaft seals are temperature-resistant up to 100 °C.

Oil seal FPM 13/22/4 A

Universal

Oil seal FPM 13/22/4 A

37016

Material: FPM / FKM (colloquially known as Viton) · Temperature resistance (min.): -30 - 200 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 13 mm · Ø outside: 22 mm · Width: 4 mm

Shaft seal typeA - With rubberized outer part / one sealing lip.
MaterialFPM / FKM (colloquially known as Viton)
Place of useHousing cover
Ø inside13 mm
Temperature resistance (min.)-30 - 200 °C
Ø outside22 mm
Width4 mm
Piaggio OEM number240222
Universal
Piaggio

Ciao - P , SC , PX , C24

Si

Bravo / Super Bravo

Boxer

Grillo

Gilera CBA

Gilera Citta
