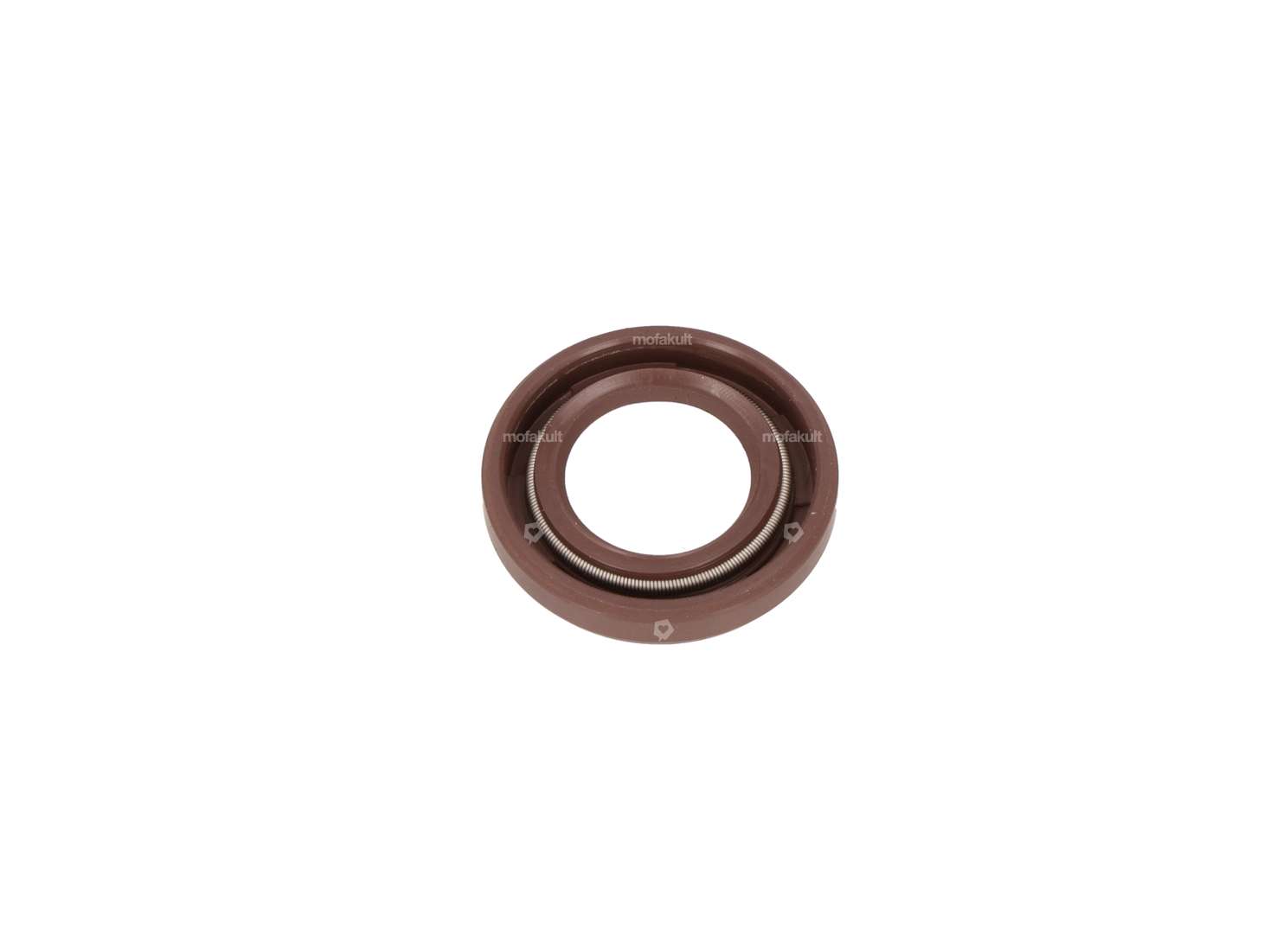

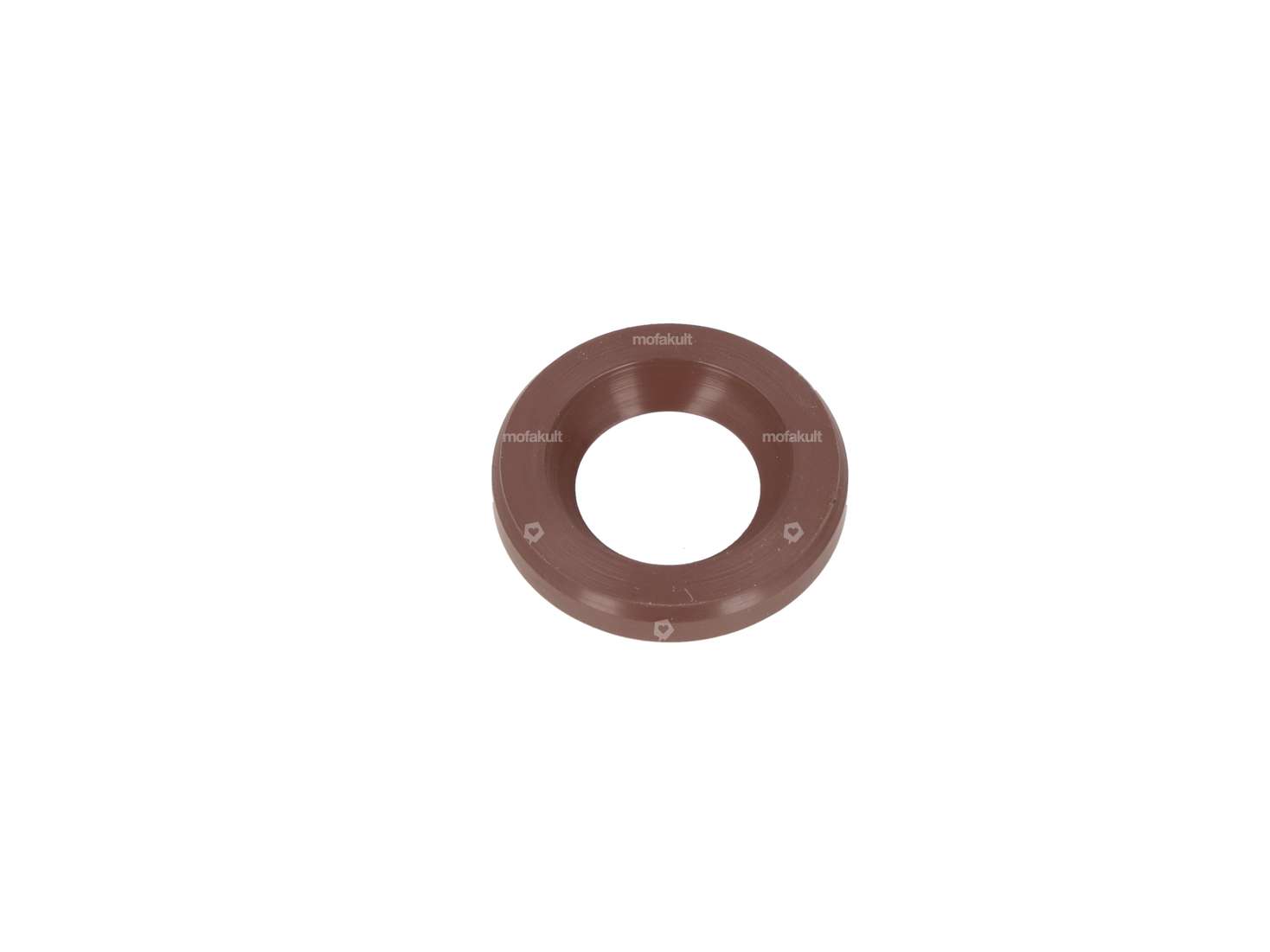

Oil seal FPM 13/22/4 A

CIF gasket set engine / gearbox with oil seals Mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Place of use: Gear hub · Gearbox type: Mono · Area of application: Standard · Piaggio OEM number: 112967 · Piaggio OEM number: 114469 · Piaggio OEM number: 124571 · Piaggio OEM number: 131511 · Piaggio OEM number: 182519 · Piaggio OEM number: 480464 · Piaggio OEM number: 482552

Oil seal 13/22/4 A NBR gearbox Vario original | Piaggio Ciao, SI, Bravo, Boxer

Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø outside: 22 mm · Manufacturer: Piaggio · Material: NBR · Surface: rubberized · Width: 4 mm · Ø inside: 13 mm · Temperature resistance (min.): -30 - 100 °C · Piaggio OEM number: 240222

Malossi SAE 75W-90 gear oil "RACING" 250 ml

Manufacturer: Malossi · Oil type: GL4 · Oil type: fully synthetic · Viscosity (SAE): 75W-90 · Contents: 250 ml · Area of application: Gearbox lubrication without clutch · Gearbox type: Automatic machine · Gearbox type: Mono · Gearbox type: Vario

Oil seal FPM 15/30/5.5 AS

Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Temperature resistance (min.): -30 - 200 °C · Material: FPM / FKM (colloquially known as Viton) · Surface: rubberized · Ø inside: 15 mm · Ø outside: 30 mm · Width: 5.5 mm

Oil seal FPM 15/24/5 AS

Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Temperature resistance (min.): -30 - 200 °C · Material: FPM / FKM (colloquially known as Viton) · Surface: rubberized · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm

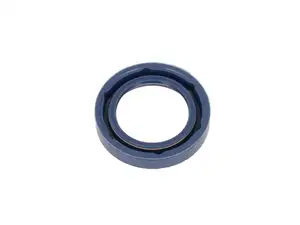

Oil seal NBR 20/30/5 A Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Made in Italy · Place of use: Gear hub · Material: NBR · Surface: rubberized · Width: 5 mm · Ø inside: 20 mm · Ø outside: 30 mm · Temperature resistance (min.): -30 - 100 °C · Piaggio OEM number: 131511

M8 sealing ring Fiber

Material: Fiber · Area of application: Standard · Surface: raw · Ø inside: 8.3 mm · Place of use: Carburetor · Place of use: Motor housing · Ø outside: 13.7 mm · Thickness: 1 mm · Puch OEM number: 26482

Screw M8x10 cylinder head slotted stainless steel

Material: Chrome steel (colloquially known as stainless steel) · Drive: Slot · Screw head: Cylinder head · Number of components: 1 pcs · Thread length: 10 mm · Thread type: M8x1.25 (standard thread) · Total length: 10 mm · Area of application: Standard

Tank cap sealing ring | Piaggio Ciao, Bravo

Ø inside: 20 mm · Material: Rubber · Color: black · Ø outside: 33 mm · Mounting type: Plug connection clamped

GPO spoke single incl. nipple (2.9 x 157 mm) rear wheel Inox | Piaggio Ciao, Bravo, Boxer

Nipple length: 14.3 mm · Manufacturer: GPO · Material: Chrome steel (colloquially known as stainless steel) · Surface: stainless · Length from hook: 157 mm · Nominal diameter (thread): 3.15 mm · Ø spoke head: 5.3 mm · Ø spoke: 2.9 mm · Thread length: 11 mm · Ø nipple head: 7.75 mm · Ø Nipple neck: 5 mm · Hook length: 9.5 mm · Hook angle: 90 °

Nut M8 SW24 crankshaft / Variomat original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Drive: External hexagon · Thread type: M8x1.25 (standard thread) · Height: 7 mm · Width across flats: 24 mm

Sealing ring 8.3/13.7/1 oil filler plug / oil drain plug | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Fiber · Ø inside: 8.3 mm · Place of use: Motor housing · Ø outside: 13.7 mm · Thickness: 1 mm · Piaggio OEM number: 000397, 485703

O-ring shift fork (Velogang) original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Ø inside: 6 mm · Ø outside: 9.4 mm · Cord thickness: 1.7 mm

Oil seal NBR 20/30/5 A Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Made in Italy · Place of use: Gear hub · Material: NBR · Surface: rubberized · Width: 5 mm · Ø inside: 20 mm · Ø outside: 30 mm · Temperature resistance (min.): -30 - 100 °C · Piaggio OEM number: 131511

Oil seal FPM 13/22/4 A Gearbox Vario | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Housing cover · Temperature resistance (min.): -30 - 200 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 13 mm · Ø outside: 22 mm · Width: 4 mm · Material: FPM / FKM (colloquially known as Viton) · Surface: rubberized · Piaggio OEM number: 240222
