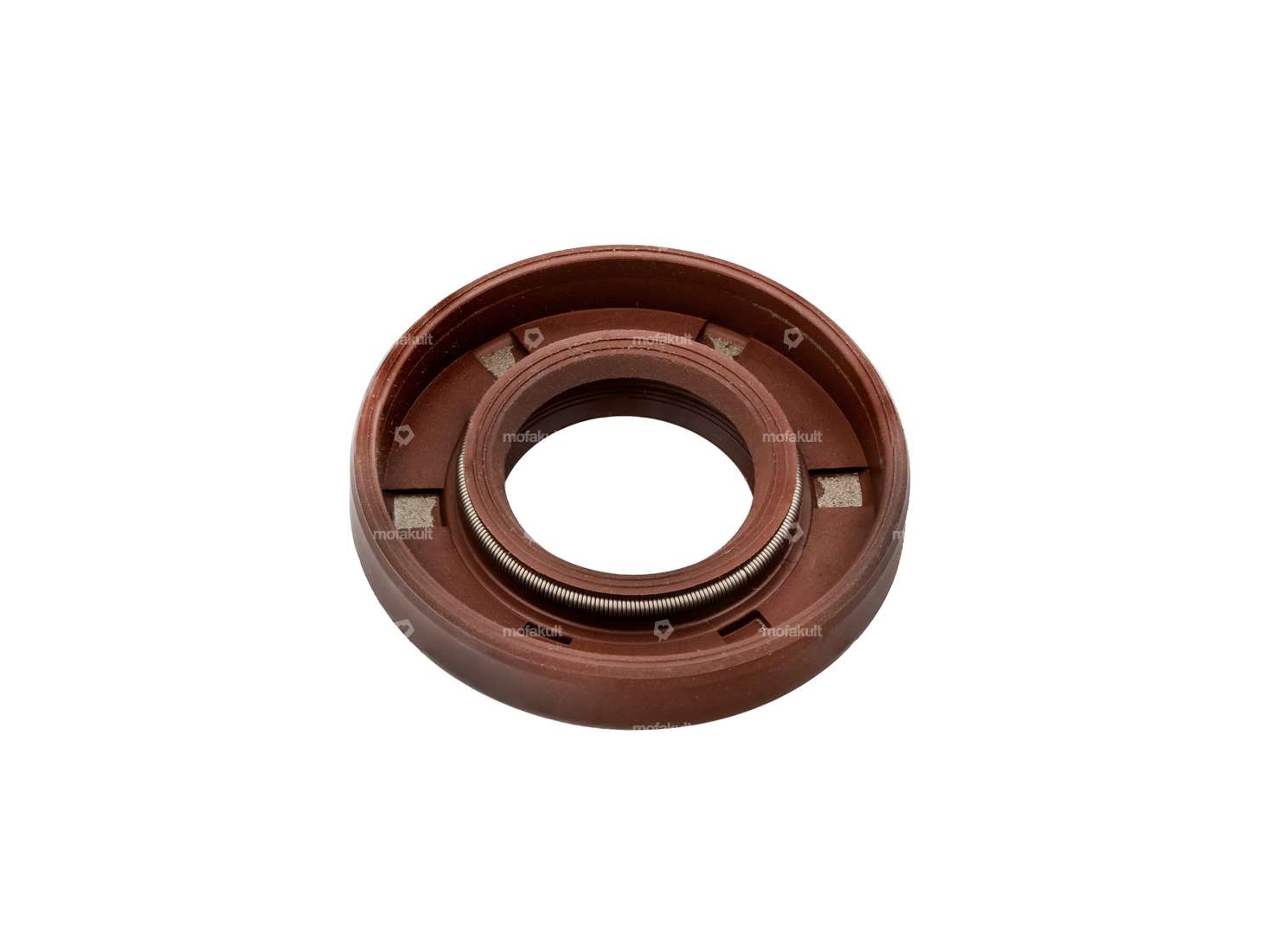

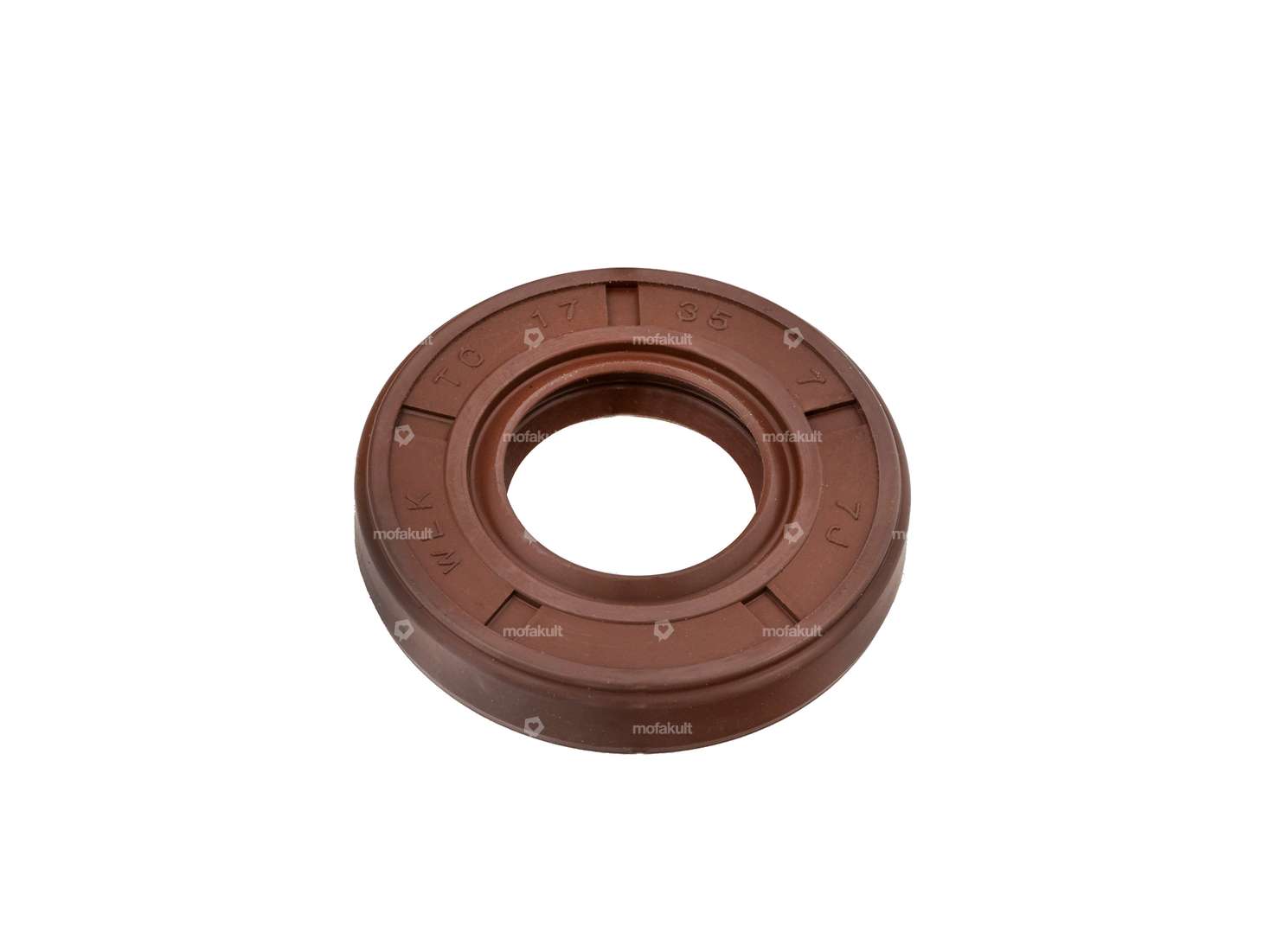

Shaft seal ring (colloquially known as oil seal) 17x35x7 mm for use on the crankshaft (on the ignition side) on your Puch moped / moped with Z50 engine.
This radial shaft seal ring with fluorine rubber outer jacket is resistant up to a temperature of 200°C.
Conventional NBR rotary shaft seals are temperature-resistant up to 100 °C.
FPM or FKM rotary shaft seals (colloquially known as Viton) are particularly suitable for racing, as they are designed for higher speeds and can therefore withstand higher temperatures.
| Material | FPM / FKM (colloquially known as Viton) |
| Surface | rubberized |
| Shaft seal type | A - With rubberized outer part / one sealing lip. |
| Place of use | Crankshaft |
| Ø outside | 35 mm |
| Ø inside | 17 mm |
| Width | 7 mm |
| Temperature resistance (min.) | -30 - 200 °C |
| Puch | Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
