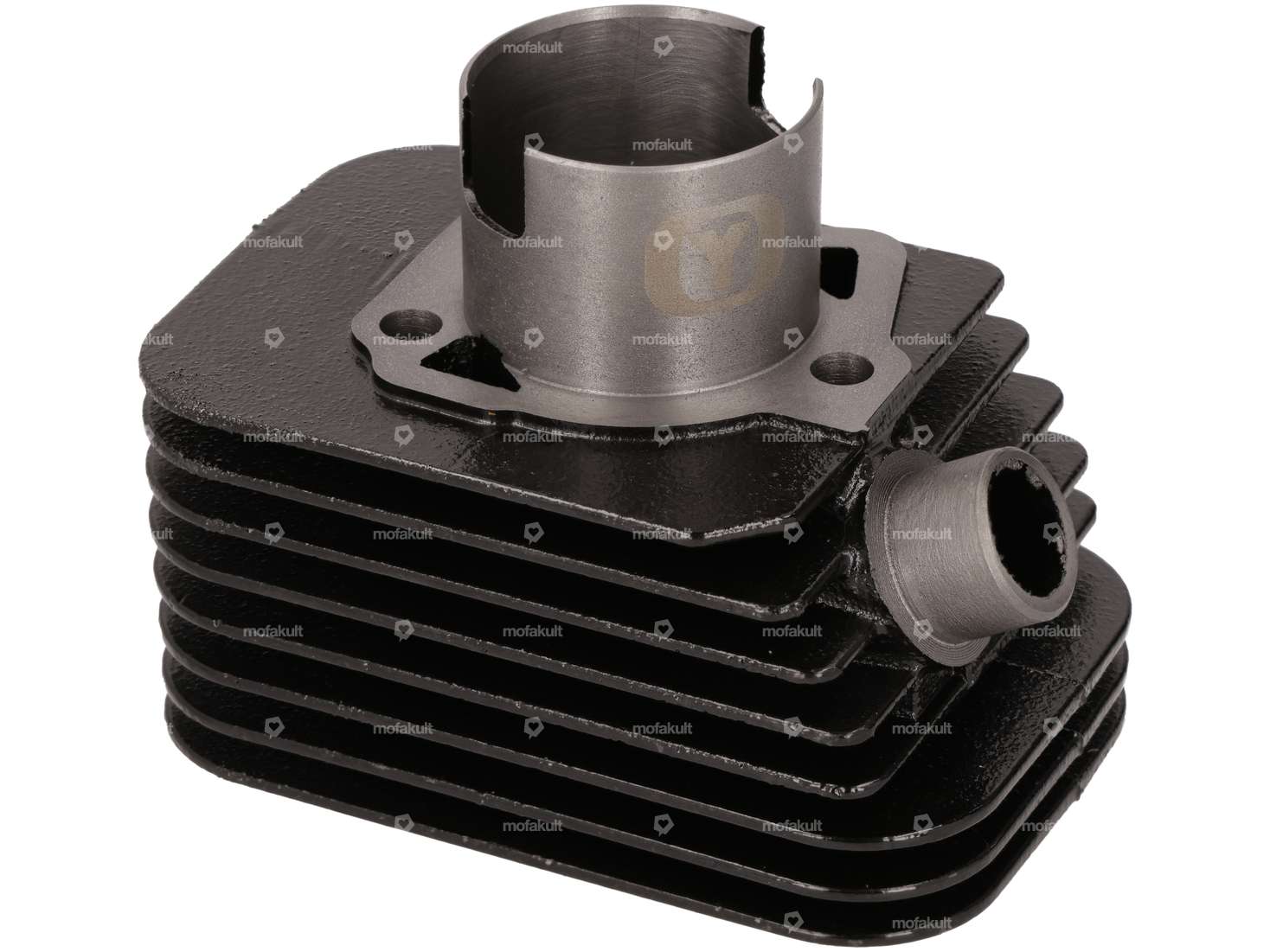

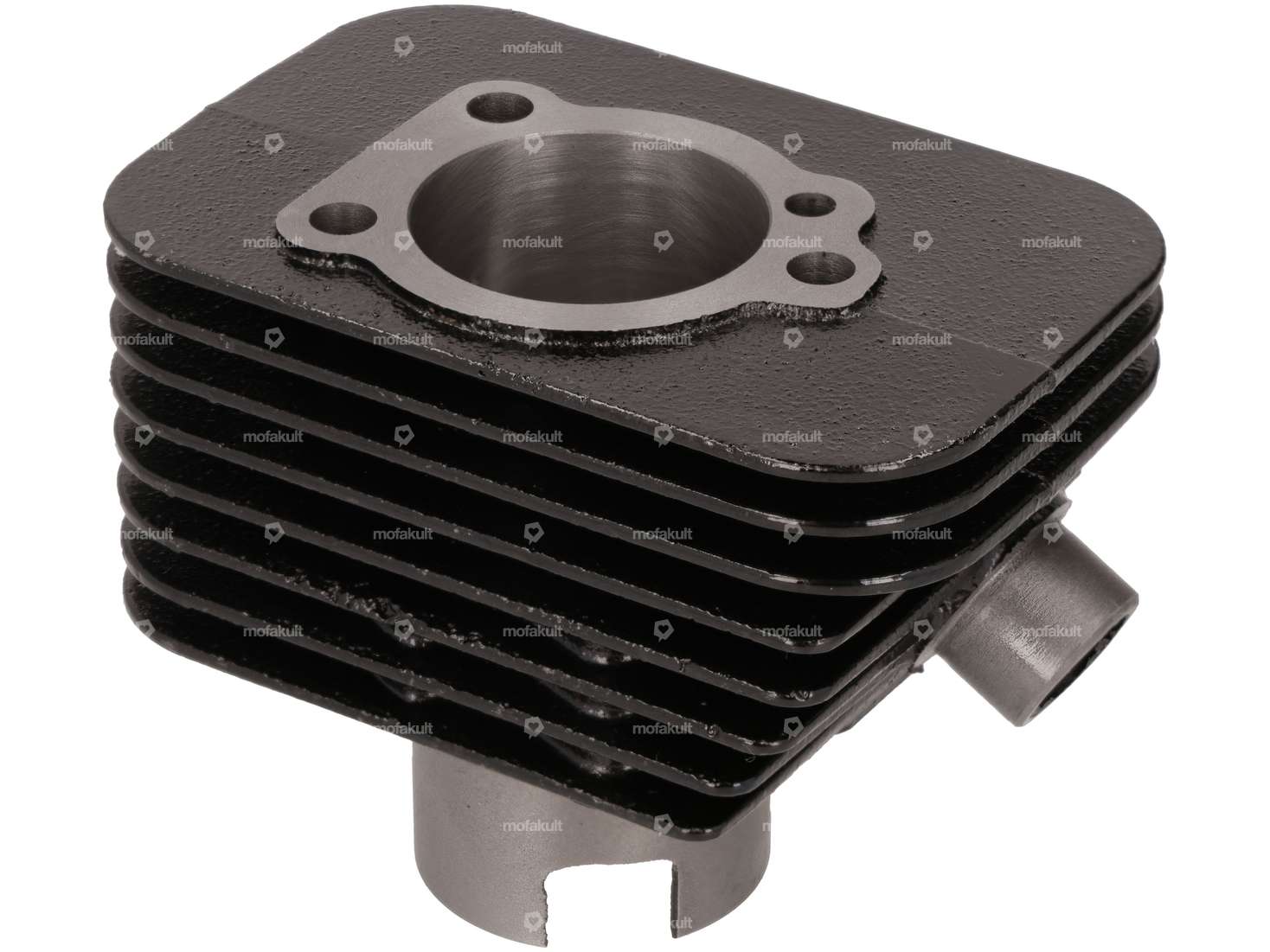

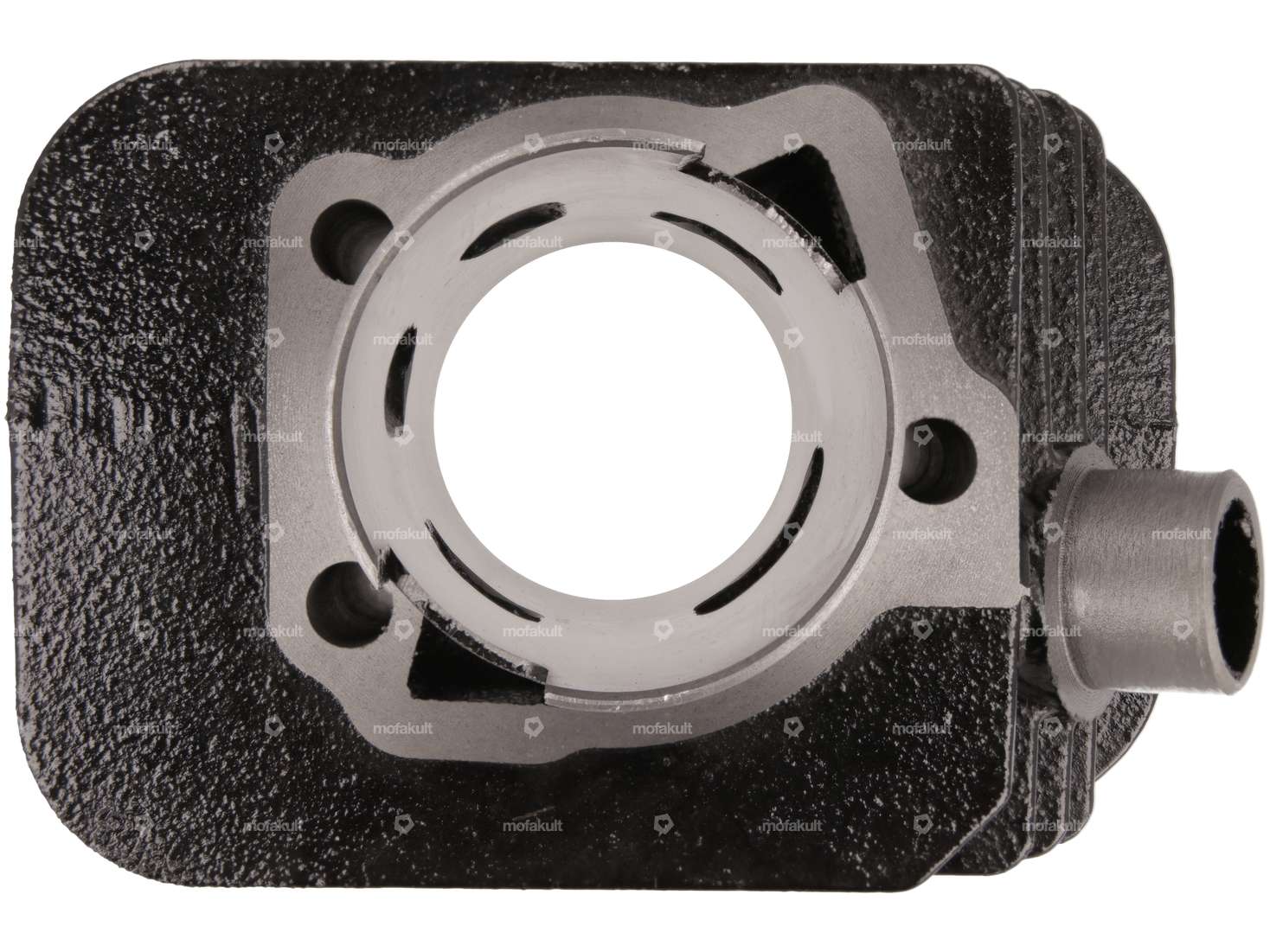

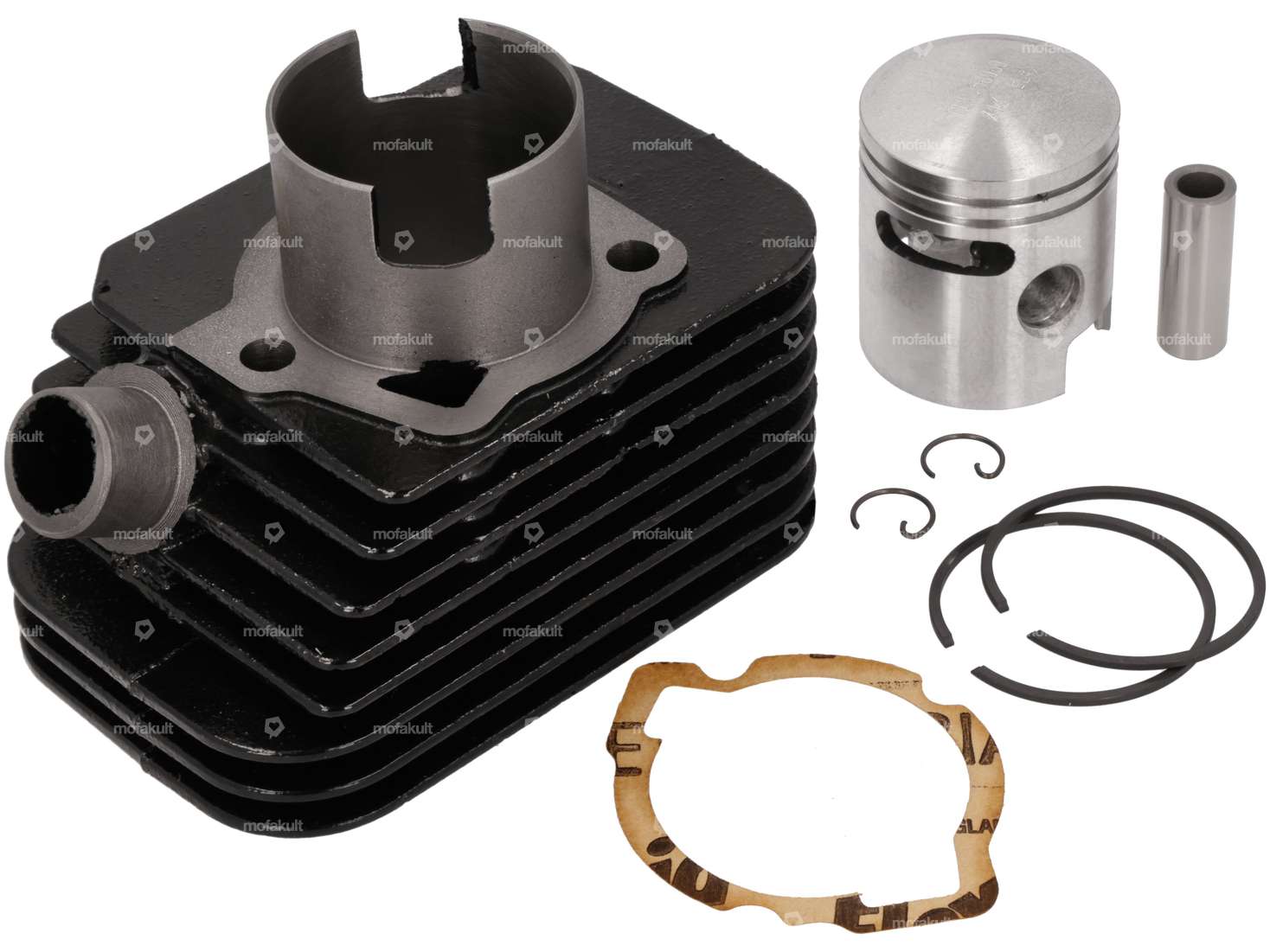

43 mm tuning cast cylinder with 63 cc and 12 mm KoBo suitable for your Piaggio moped / moped.
With the exception of the cylinder head, all parts required for assembly are included in the scope of delivery.
Notes: We recommend using this tuning cylinder in conjunction with a larger exhaust and a larger carburetor. This racing cylinder may still have residue from the manufacturing process. The cylinder should therefore be cleaned with compressed air or brake cleaner before installation. This should be between 0.15 - 0.4 mm to prevent the piston from jamming.
Details
| Nominal diameter | 43 mm |
| Manufacturer | Olympia |
| Material | Gray cast iron |
| Camouflaged | No |
| Displacement | 63 ccm |
| Crankshaft stroke | 43 mm |
| Surface | varnished |
| Ø cylinder neck | 46 mm |
| Ø Outlet outside | 22.3 mm |
| Ø piston pin (B) | 12 mm |
| Outlet type | clamped |
| Number of fixing points | 3 pcs |
| Decompressor | Yes |
| Area of application | Tuning |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products

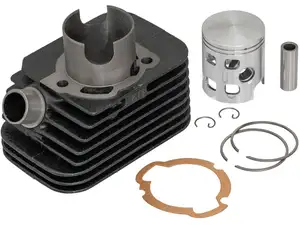

DR 43 mm cylinder kit 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: DR Racing Parts · Material: Gray cast iron · Surface: varnished · Area of application: Tuning · Displacement: 65 ccm · Nominal diameter: 43 mm · Crankshaft stroke: 43 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 22.3 mm · Ø outlet inside: 18 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No
EUR 172.00
Not in stock
Olympia cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao
Manufacturer: Olympia · Material: Aluminum · Area of application: Racing · Area of application: Tuning · Ø cylinder: 41 - 43 mm · Width: 78 mm · Height: 60 mm · Total length: 120 mm · Number of fixing points: 3 pcs · Candle thread: short
EUR 31.20
Malossi 43 mm cylinder kit 12 mm KoBo new version | Piaggio Ciao, SI, Boxer, Bravo
Material: Gray cast iron · Manufacturer: Malossi · Surface: sandblasted · Camouflaged: No · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.4 mm · Ø outlet inside: 18.3 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 55 x 34 · Number of fixing points: 3 pcs · Decompressor: Yes · Area of application: Tuning
EUR 174.40
Not in stock
Polini 43 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Gray cast iron · Surface: sandblasted · Area of application: Tuning · Displacement: 63 ccm · Nominal diameter: 43 mm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.8 mm · Ø Outlet outside: 22.6 mm · Ø outlet inside: 18.4 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No
EUR 222.50
Athena 43 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 63 ccm · Nominal diameter: 43 mm · Crankshaft stroke: 43 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Decompressor: Yes · Camouflaged: No
EUR 210.50

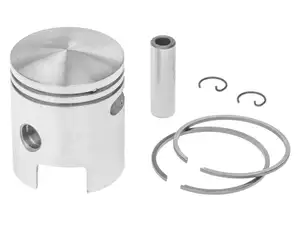

Olympia 43 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
