For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

10240

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Surface: blank · Ø outside: 12 mm · Number of sensors / lugs: 1 pcs

EUR 1.45

Hot

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Universal

10610

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

EUR 31.20

EUR 31.20/l

Buzzetti pliers for piston ring assembly

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

EUR 16.30

17313

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

EUR 1.45

- 10 %

GPO piston pin extractor Ø 10, 12, 14 mm

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp

17988

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm

EUR 24.00

EUR 21.60

For: Victoria

22696

Piston 38 mm | Victoria MS50 / MS51

Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 19.95 mm · Curvature (D): 2.1 mm · Total piston height (E): 46.05 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Weight piston kit: 70 g

EUR 67.40

For: Victoria

22698

Piston 39 mm | Victoria MS50 / MS51

Nominal diameter: 39 mm · Ø outside piston (A): 38.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 19.8 mm · Curvature (D): 2.15 mm · Total piston height (E): 46.05 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Weight piston kit: 74 g

EUR 67.40

Cylinder 38 mm | Victoria MS50/MS51 (M50)

For: DKW · Victoria

26068

Cylinder 38 mm | Victoria MS50/MS51 (M50)

Nominal diameter: 38 mm · Material: Gray cast iron · Camouflaged: No · Area of application: Standard · Surface: sandblasted · Displacement: 50 ccm · Ø Outlet outside: 28 mm · Hole spacing inlet: 33 mm · Hole pattern [mm]: 46 x 46 · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped

EUR 189.20

Universal

28647

Honing brush Ø 38 - 51 mm Cylinder

Drive shank Drill chuck: round · Grain size: 180 · Material: Silicon carbide · Area of application: Workshop accessories · Diameter: 38 - 51 mm · Number of components: 1 pcs

EUR 51.80

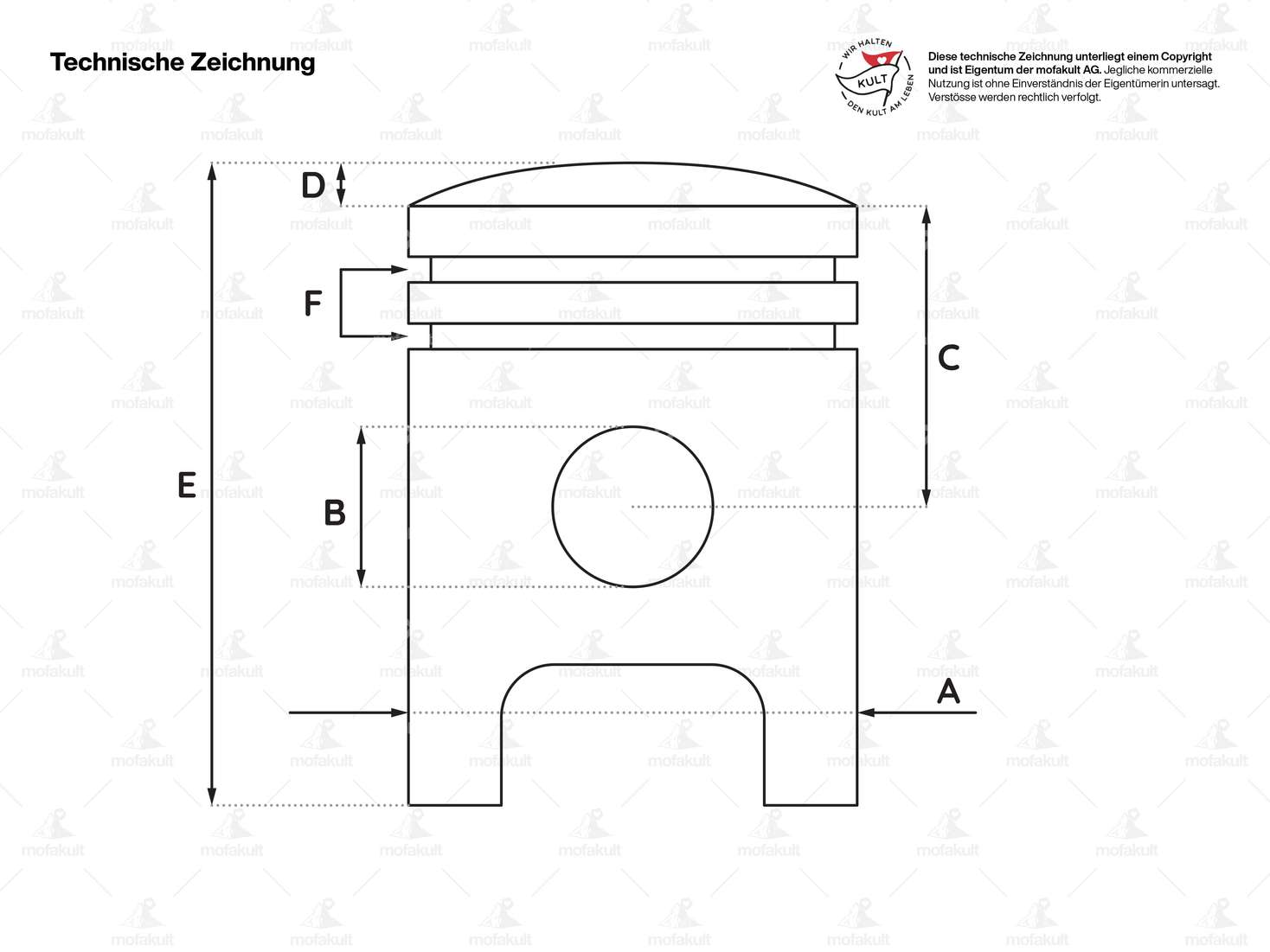

Ø outside piston (A)	38.45 mm
Compression height (C)	19.8 mm
Curvature (D)	2.2 mm
Nominal diameter	38 mm
Total piston height (E)	40.05 mm
Number of piston rings (F)	2 pcs

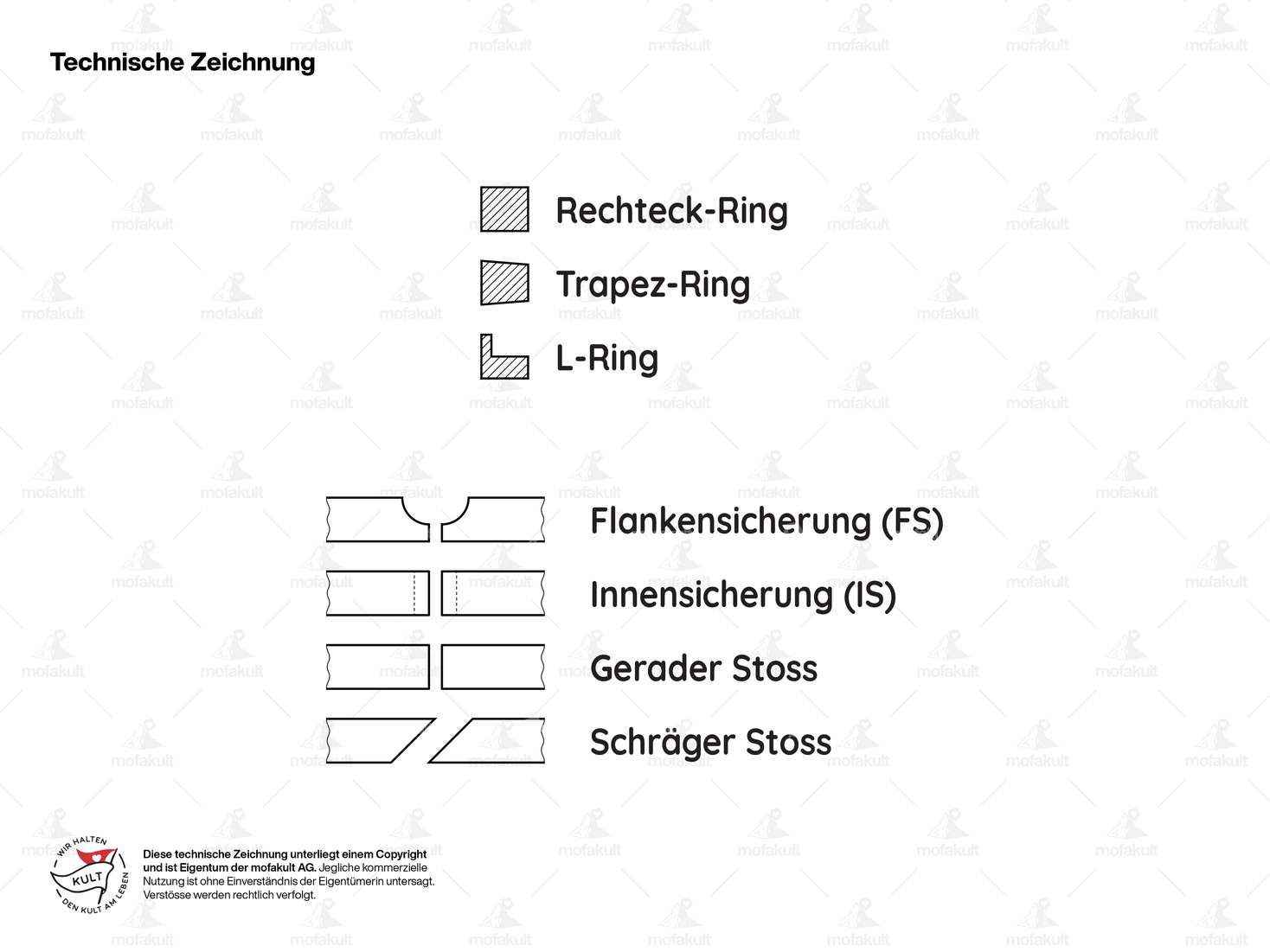

Piston ring impact	Flank safety device (FS)
Piston ring mold	Rectangular ring
Ø piston pin (B)	12 mm
Piston ring height	2 mm

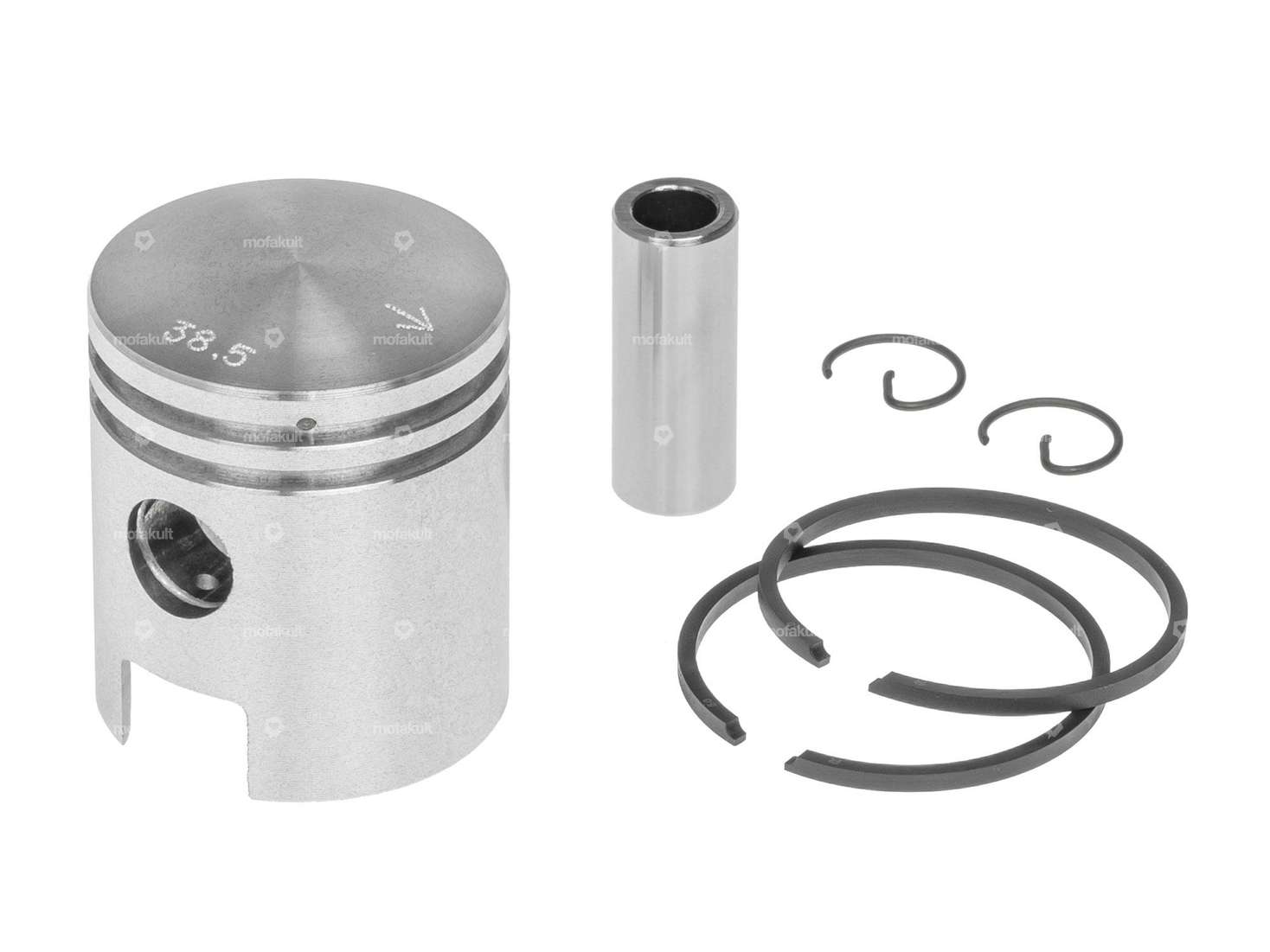

Piston 38.5 mm | Victoria MS50 / MS51
