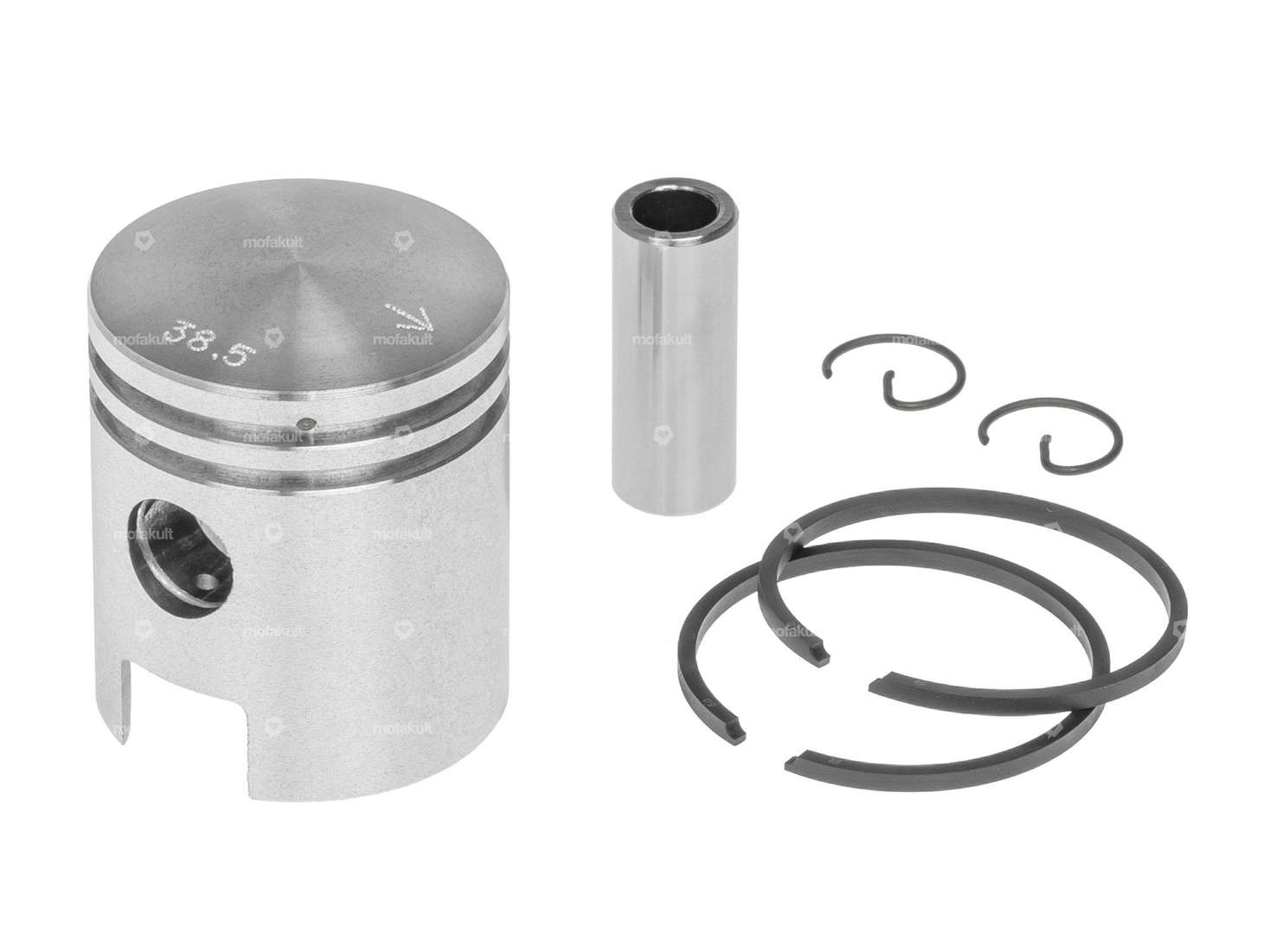

Piston with two 2 mm rectangular piston rings with flank lock (FS) suitable for Victoria MS50 / MS51 small engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their stems and locking types on the legend in the images.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin locks and, if applicable, the corresponding cylinder in the accessories section.
| Nominal diameter | 38 mm |
| Ø outside piston (A) | 37.95 mm |
| Compression height (C) | 19.95 mm |
| Curvature (D) | 2.1 mm |
| Total piston height (E) | 46.05 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 70 g |
| Victoria |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Manufacturer: GPO · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Number of components: 7 pcs · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 24.00
Piston 38.5 mm | Victoria MS50 / MS51
Nominal diameter: 38 mm · Ø outside piston (A): 38.45 mm · Compression height (C): 19.8 mm · Curvature (D): 2.2 mm · Total piston height (E): 40.05 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Piston weight: 71 g
EUR 67.30
Piston 39 mm | Victoria MS50 / MS51
Nominal diameter: 39 mm · Ø outside piston (A): 38.95 mm · Compression height (C): 19.8 mm · Curvature (D): 2.15 mm · Total piston height (E): 46.05 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Piston weight: 74 g
EUR 67.30

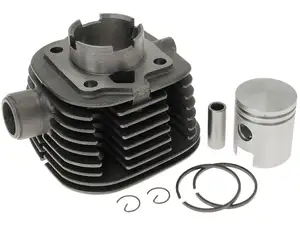

Cylinder 38 mm | Victoria MS50/MS51 (M50)
