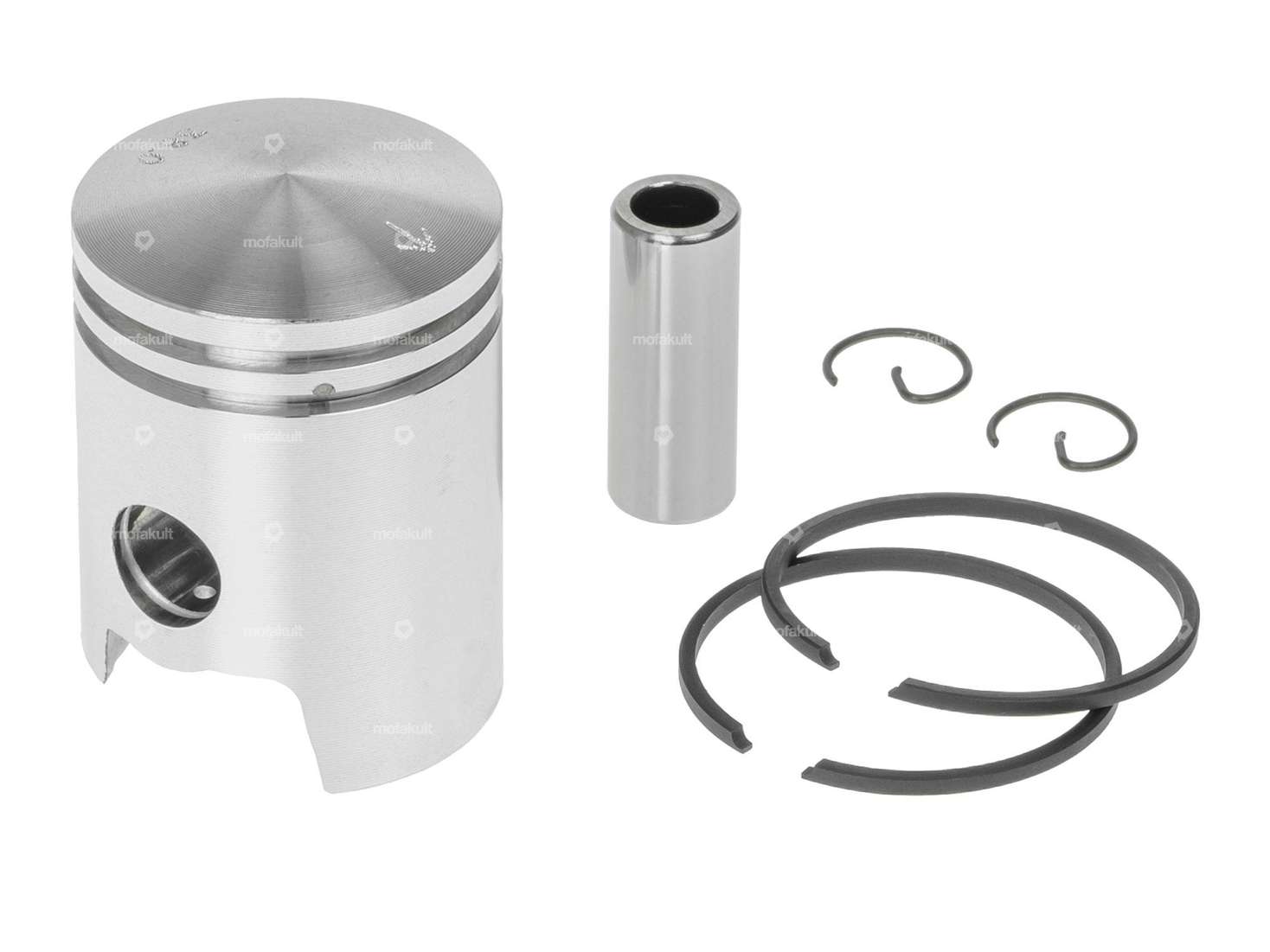

38 mm replacement piston / piston kit with two pieces of 2 mm rectangular piston rings with flank lock (FS) suitable for the windage-cooled cylinder of Sachs 50/3 & 50/4 mopeds / mopeds with square intake.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Ø piston pin (B) | 12 mm |
| Ø outside piston (A) | 37.94 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 2.95 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 38 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Weight piston kit | 73 g |
| Sachs | 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) |
