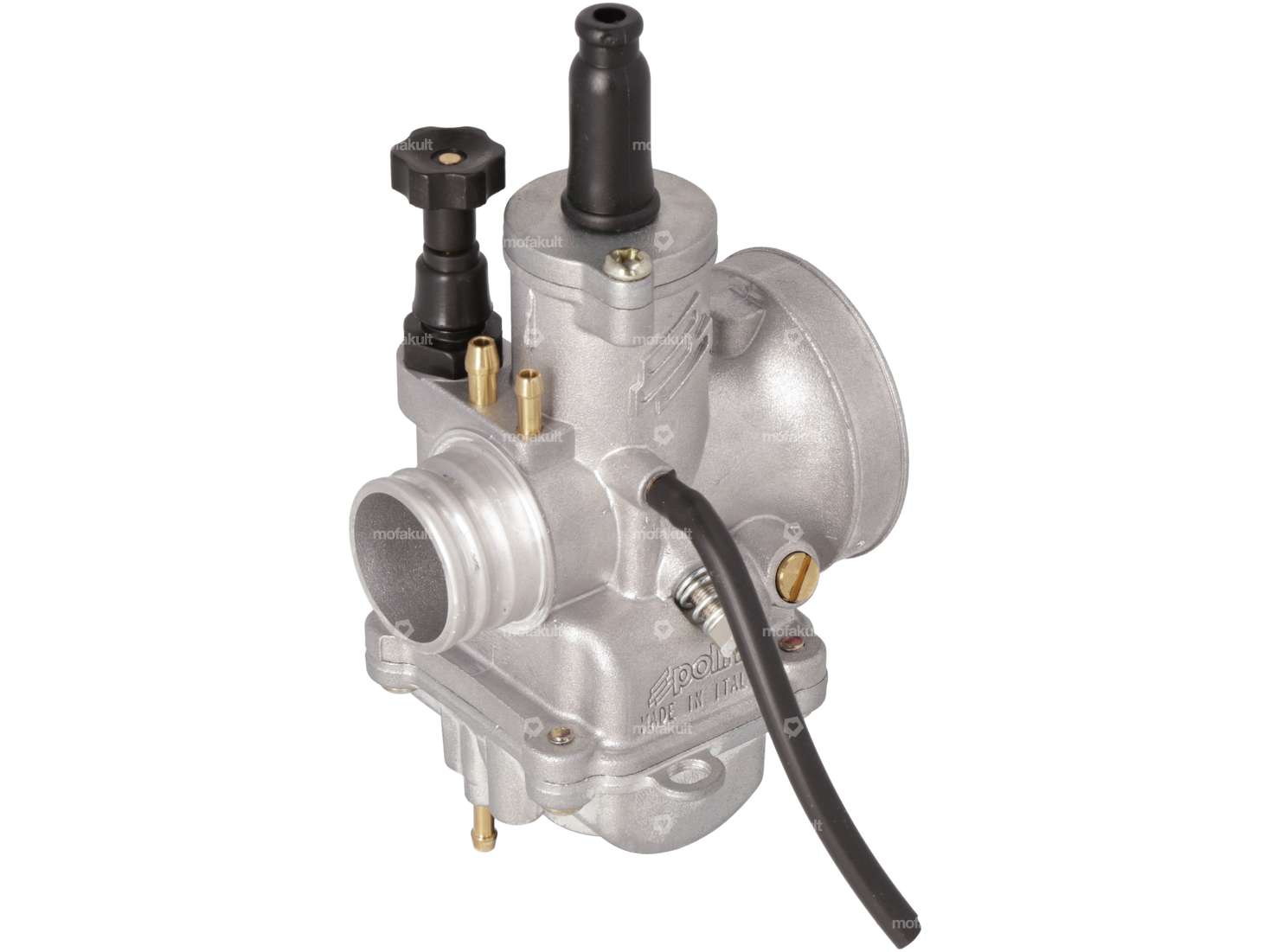

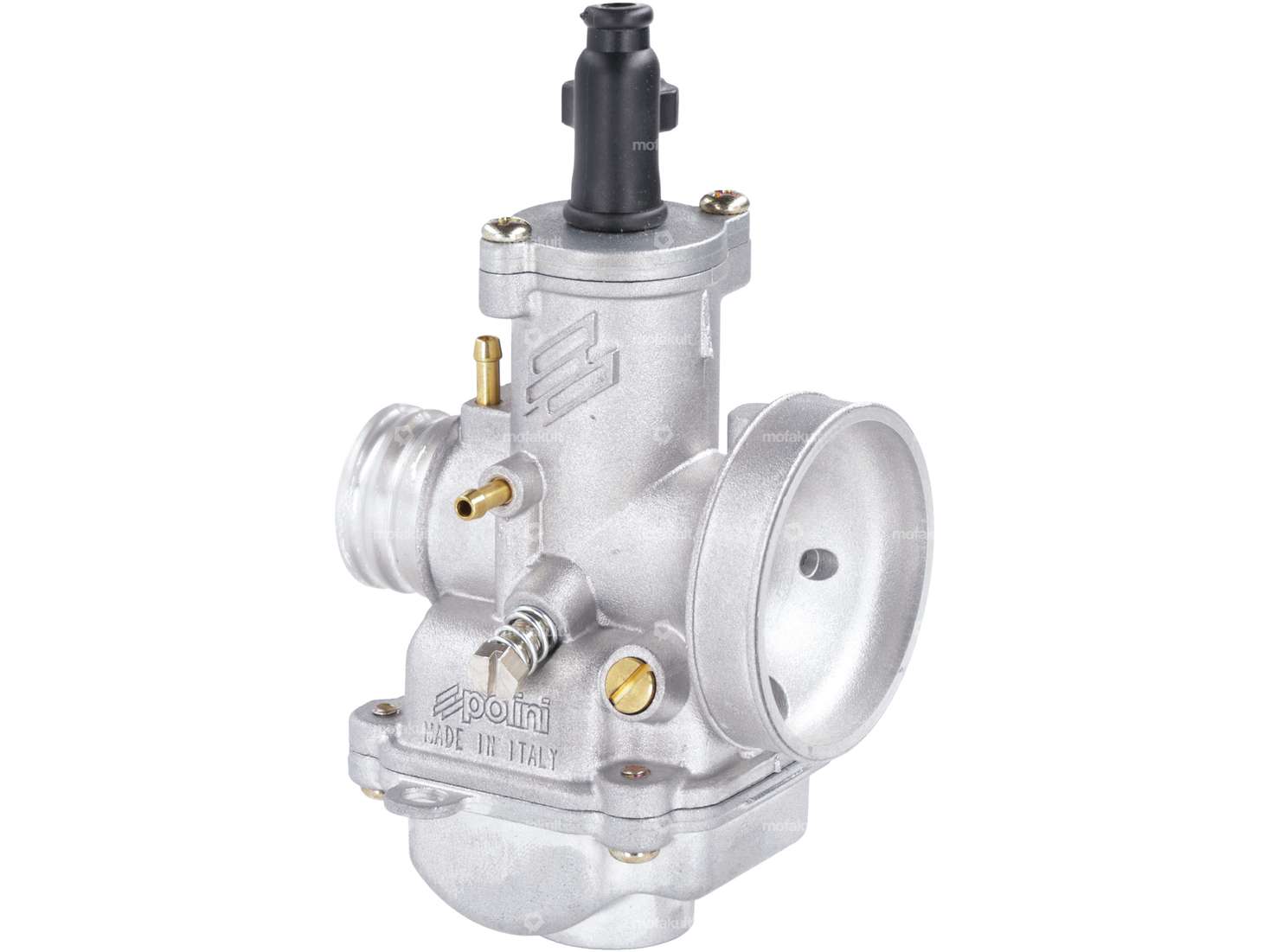

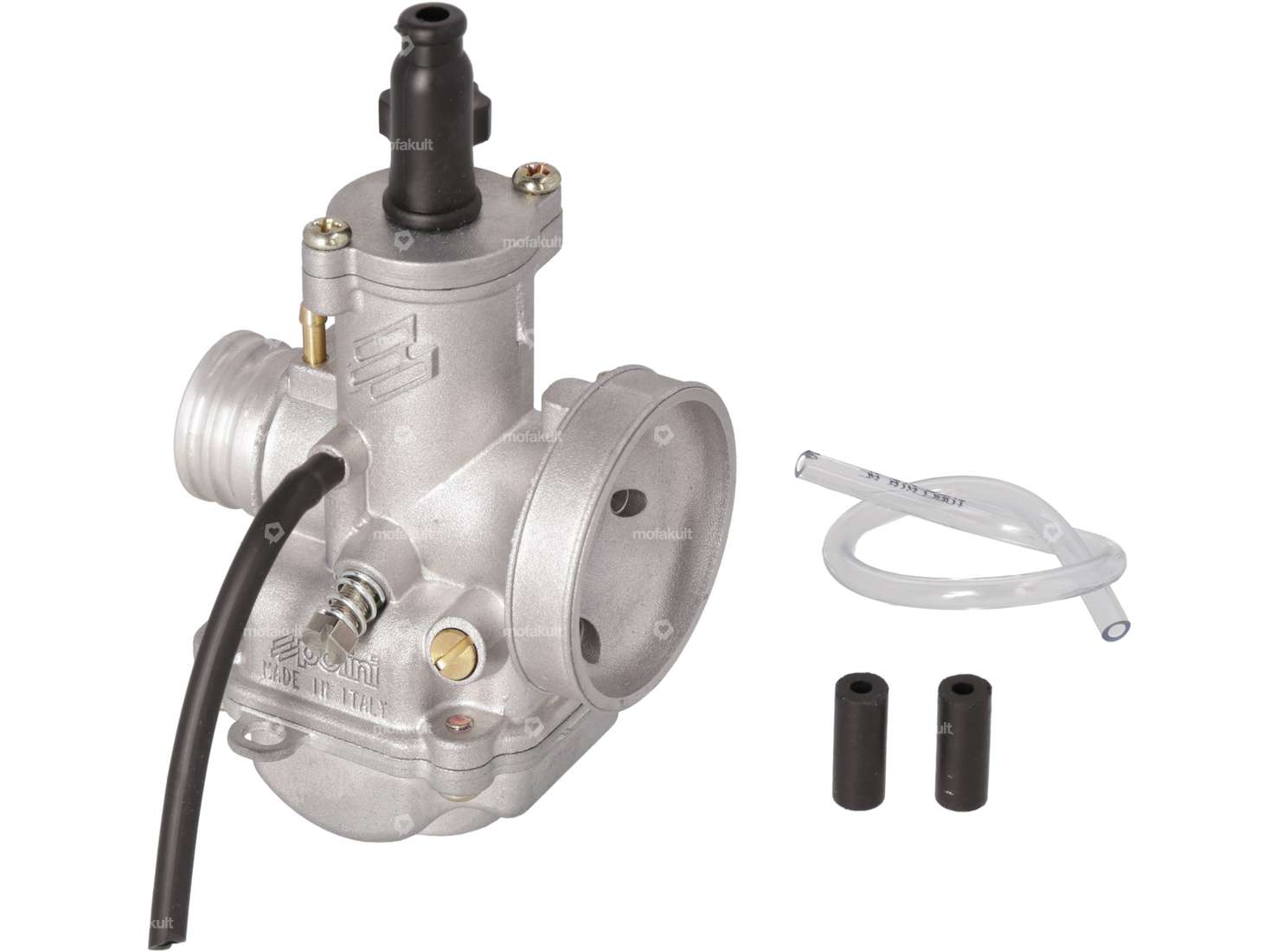

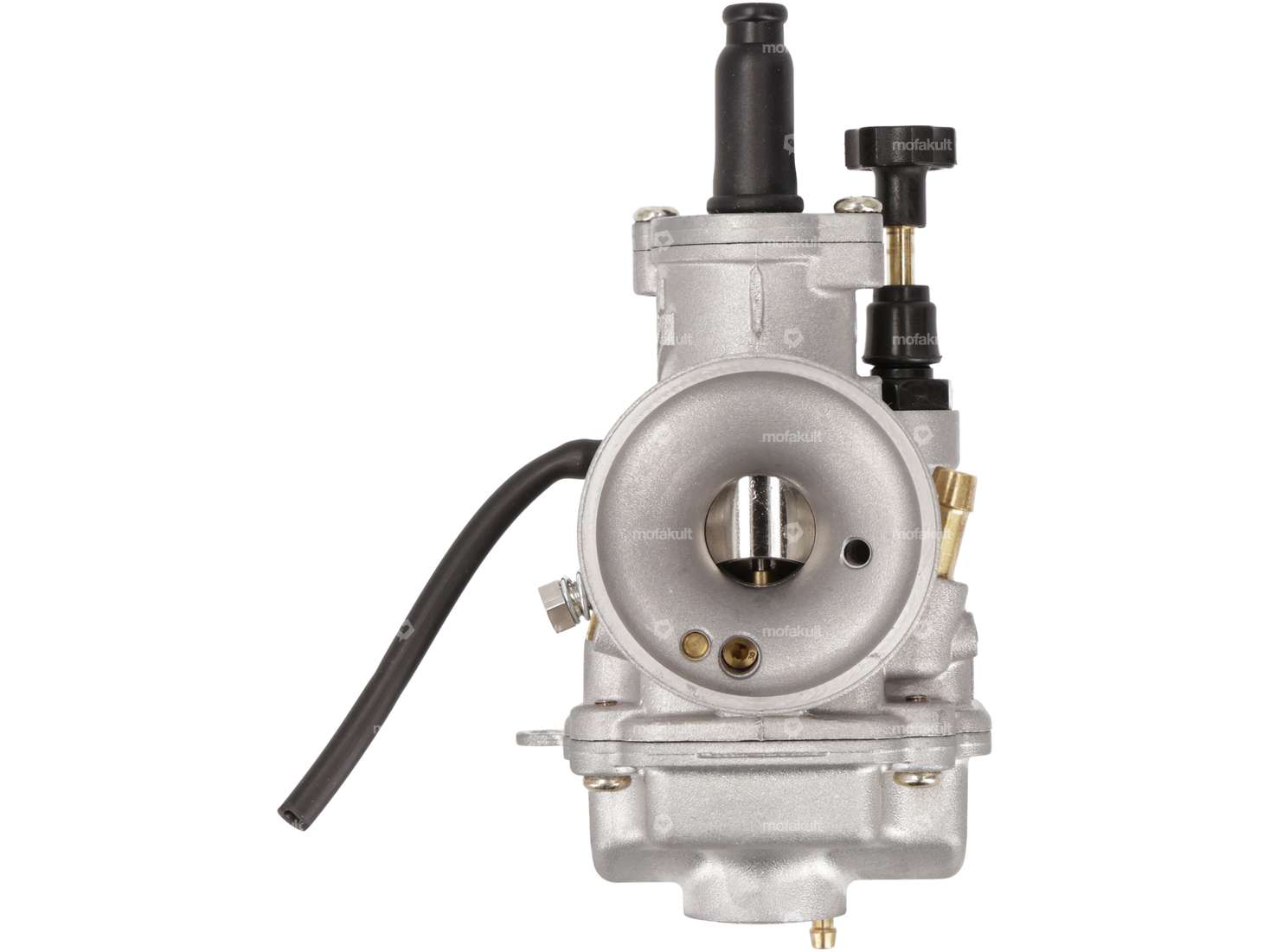

Polini CP 15 carburetor for your racing moped, moped and small motorcycle with the highest demands. The racing carburetor developed by Polini has a compact design and is around 40 % lighter than comparable carburetors. The air flow is optimized thanks to the short intake path and the circular passage. The larger needle and an adapted mixing tube support the atomization of the gas mixture. This makes it very easy to tune the carburetor. In addition, consumption is reduced even at high power levels.
Fastening to the intake manifold is by means of a rubber sleeve.
Installed main jet: 70
Installed secondary jet: 36
Ø Nominal: 15 mm
Ø Air filter connection: 46 mm
Ø Intake manifold connection: 25 mm
Alternative racing carburetors, the sleeve for installation and the matching nozzles can be found in the accessories section.
Quality product from the Italian manufacturer Polini.
| Nominal diameter | 15 mm |
| Manufacturer | Polini |
| Material | Aluminum |
| Area of application | Tuning, Racing, Performance |
| Component group Carburetor | Carburetor complete |
| Carburetor type | CP |
| Width | 66 mm |
| Choke control | Hand choke |
| Height | 132 mm |
| Ø fuel hose connection | 6 mm, 7 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Total length | 71 mm |
| Nozzle size | 70 |
| Ø Inside entrance | 42 mm |
| Ø Output inside | 21 mm |
| Ø Air filter connection | 47 mm |
| Mounting type | Rubber sleeve |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Nozzle block | 35-12 |
| Camouflaged | No |
| Size of secondary nozzle | 36 |
Accessories & related products
Polini CP 17.5 mm carburetor (hand choke)
Nominal diameter: 17.5 mm · Manufacturer: Polini · Component group Carburetor: Carburetor complete · Carburetor type: CP · Area of application: Tuning · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Plug connection clamped · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 26 mm · Nozzle size: 62 · Ø Internal connection: 24 mm · Ø Air filter connection: 46 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Size of secondary nozzle: 40
EUR 168.10
Polini jet set (80 - 98) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Component group Carburetor: Spraying · Material: Brass · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Quantity: 10 pcs · Nozzle type: Main nozzle · Nozzle size: 54 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 86 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Drive: External hexagon
EUR 47.90
Polini jet set (60 - 78) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Component group Carburetor: Spraying · Material: Brass · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Quantity: 10 pcs · Nozzle type: Main nozzle · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 74 · Nozzle size: 76 · Nozzle size: 78 · Drive: External hexagon
EUR 47.90
Polini 26 mm carburetor (hand choke)
Nominal diameter: 26 mm · Manufacturer: Polini · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: Flat slide valve · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Width: 65 mm · Choke control: Hand choke · Height: 155 mm · Total length: 83 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Nozzle size: 105 · Ø Inside entrance: 26 mm · Ø Output inside: 26 mm · Ø Air filter connection: 49 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Size of secondary nozzle: 45
EUR 174.10

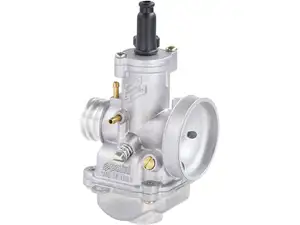

Polini CP 17.5 mm carburetor (hand choke) rubber flange
Nominal diameter: 17.5 mm · Manufacturer: Polini · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: CP · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Width: 66 mm · Choke control: Hand choke · Height: 132 mm · Total length: 71 mm · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Rubber sleeve · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Nozzle size: 80 · Ø Inside entrance: 42 mm · Ø Output inside: 21.5 mm · Ø Air filter connection: 47 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Nozzle block: 35-12 · Size of secondary nozzle: 36
EUR 168.10

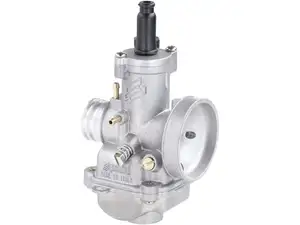

Polini CP 19 mm carburetor (hand choke) rubber flange
Nominal diameter: 19 mm · Manufacturer: Polini · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: CP · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Width: 66 mm · Choke control: Hand choke · Height: 132 mm · Total length: 71 mm · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Rubber sleeve · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Nozzle size: 90 · Ø Inside entrance: 42 mm · Ø Output inside: 21.8 mm · Ø Air filter connection: 47 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Nozzle block: 35-12 · Size of secondary nozzle: 40
EUR 180.10
Not in stock
Moped fans also bought
Airsal 44 mm cylinder kit 65 ccm camouflaged | Puch
Manufacturer: Airsal · Material: Aluminum · Area of application: Tuning · Camouflaged: Yes · Nominal diameter: 44 mm · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 48 mm · Surface: sandblasted · Ø outlet inside: 25 mm · Hole spacing inlet: 38 mm · Inlet window: 24 / 20 x 15 · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Number of fixing points: 4 pcs · Thread outlet: M6x1 (standard thread) · Decompressor: Yes
EUR 108.00
swiing® revival M8x12 oil drain plug & copper ring | Puch E50, Z50
Surface: galvanized (blue) · Width across flats Screw: 13 mm · Manufacturer: swiing® revival parts · Material: Copper · Material: Steel · Color: silver · Screw head: Hexagon · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Drive: Slot · Total length: 18 mm · Thread length: 12 mm · Puch OEM number: 901.1053
EUR 4.20
Parmakit 47 mm cylinder kit with cylinder head | Puch
Nominal diameter: 47 mm · Manufacturer: Parmakit · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 75 ccm · Hole spacing inlet: 46 mm · Ø cylinder neck: 51 mm · Ø outlet inside: 27.5 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Inlet window: 30 x 18 · Hole spacing outlet: 46 mm · Thread inlet: M6x1 (standard thread) · Decompressor: No · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44
EUR 480.40

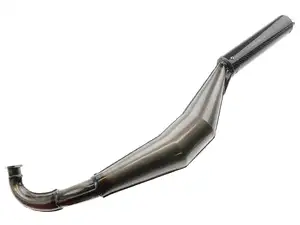

Simonini carbon exhaust | Puch
