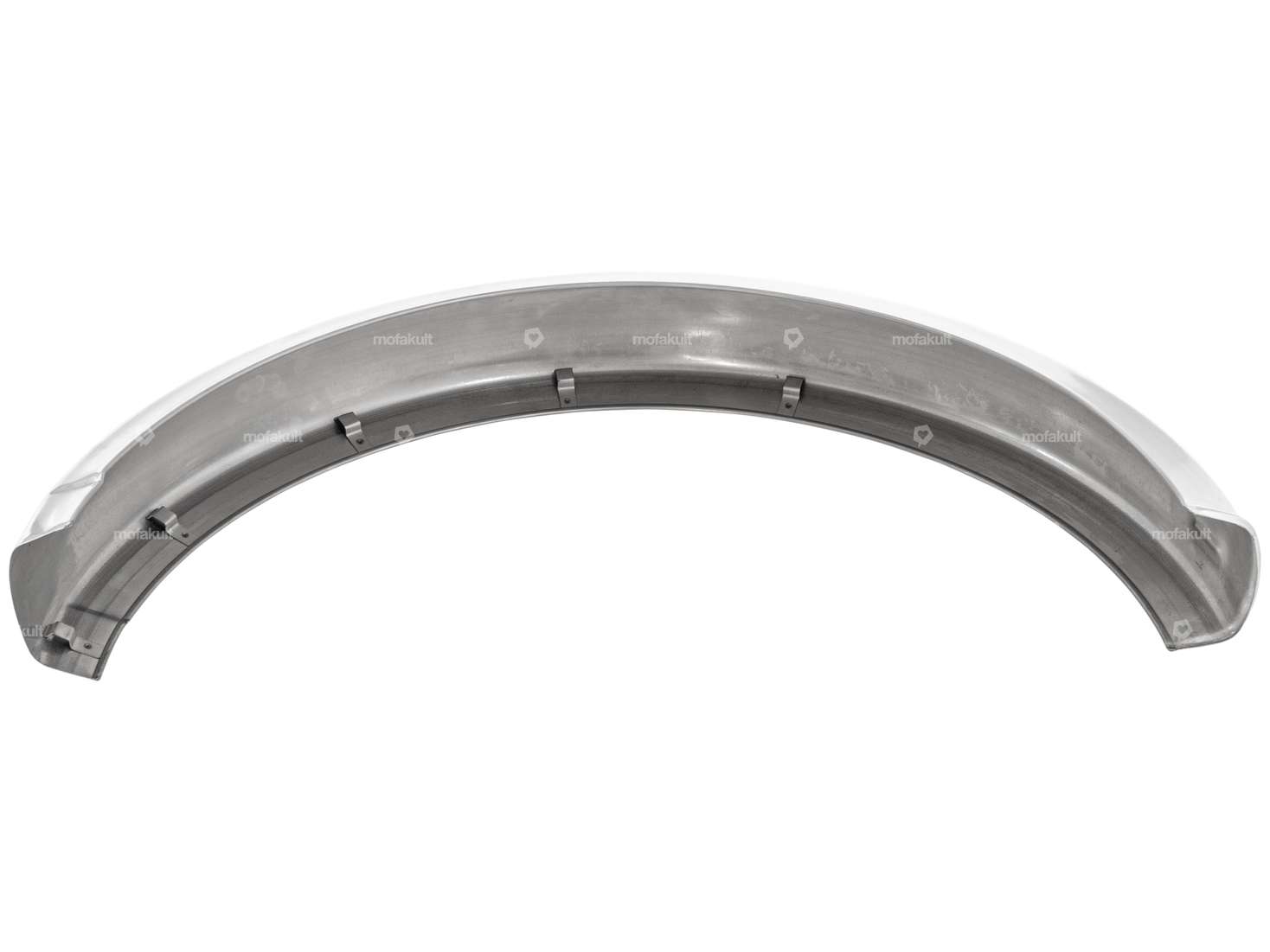

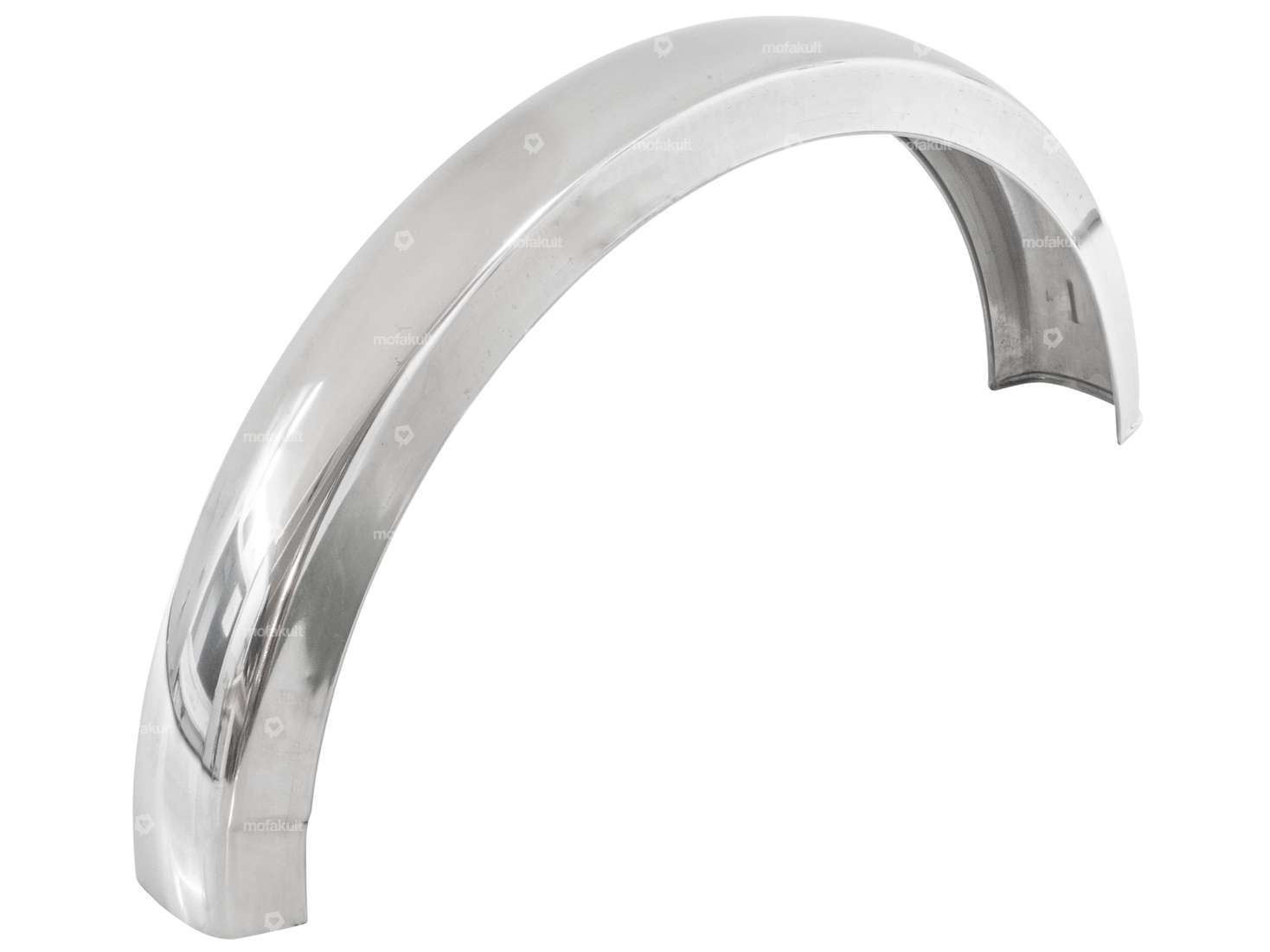

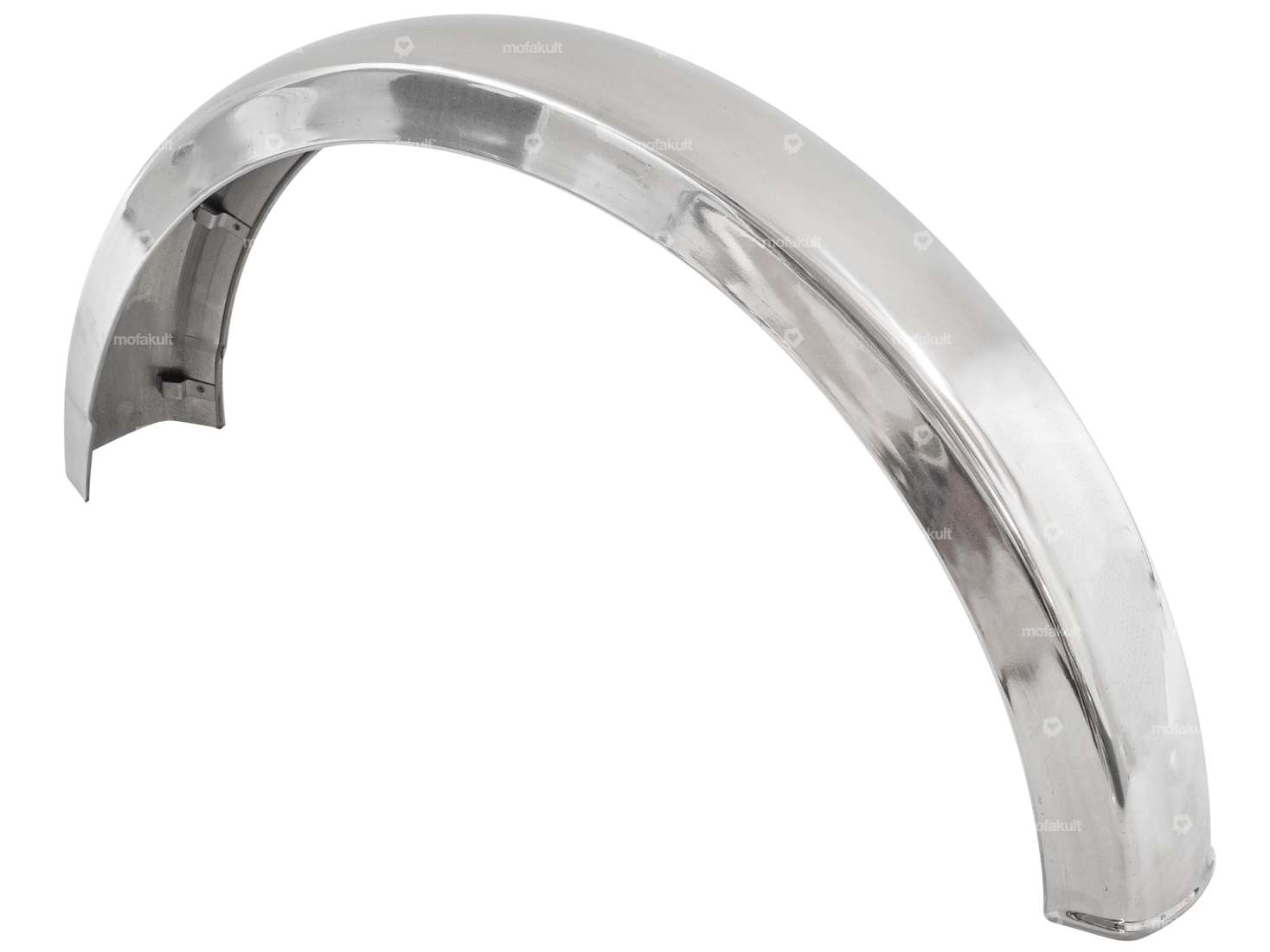

Rear fender Inox | Hercules Prima, Optima

Front fender Inox | Hercules Prima, Optima / Kreidler Flory

Material: Chrome steel (known as Nirosta®) · Surface: polished · Color: Chrome · Wheel size [inch]: 17 " · Folding the ends: not folded · Shape of the mudguard: partly round · Total length over ends: 560 mm · Scope: 740 mm · Wide mudguard profile: 84 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 205 mm · Mounting type: Nuts & bolts · Hercules OEM number: 629 110 01 02

Front mudguard struts chrome | Hercules 621, 623, Prima, Optima

Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 200 mm · Total length: 320 mm · Distance mudguard - center hole: 190 mm · Distance mudguard - center hole: 310 mm · Number of fixing points: 4 pcs · Number of fixing points: 7 pcs · Hole spacing: 42 mm · Ø mounting hole: 6.4 mm · Ø mounting hole: 11.6 mm · Wide intake: 63 mm · Wide intake: 72 mm

Upper front mudguard strut chrome | Hercules 621, 623, Prima

Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 200 mm · Distance mudguard - center hole: 177 mm · Distance mudguard - center hole: 193 mm · Outer width: 18 mm · Mounting type: Nuts & bolts · Hole spacing: 16 mm · Ø mounting hole: 7 mm · Hercules OEM number: P 20 927 962 90 70

GPO screw set front mudguard galvanized | Hercules 621, 623, Prima

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Width across flats SW: 10 mm · Thread length: 12 mm · Thread length: 16 mm · Number of components: 16 pcs

Mudguard strut 32 cm chrome | Hercules 621, 623, Prima, Optima

Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 320 mm · Distance mudguard - center hole: 310 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Hole spacing: 40 mm · Ø mounting hole: 6.5 mm · Ø mounting hole: 11.5 mm · Wide intake: 65 mm

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: vertical / vertical · Outlet direction: any · Mounting type: Union nut · Spare tube shape: straight · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 50 mm

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Number of chain links: 128 pcs · Rolling circumference: 1626 mm · Chain lock type: Spring lock · Color: gray · Ø bore: 4 mm · Ø Pin: 3.94 mm

GPO license plate holder Inox (CH version)

Manufacturer: GPO · Material: Chrome steel (known as Nirosta®) · Width: 105 mm · Thread type: M5x0.8 (standard thread) · Number of fixing points: 2 pcs · Thread length: 8 mm · Color: silver · Ø mounting hole: 5 mm · Hole spacing: 30 mm · Hole spacing: 50 mm · Total length: 145 mm · Mounting type: Nuts & bolts · Height: 5.3 mm

Black bench seat

Manufacturer: Made in Portugal · Material: Imitation leather · Ø Saddle tube holder: 22 mm · Color: black · Spring-loaded: No · Lettering: No · Number of fixing points: 1 pcs · Width: 215 mm · Total length: 300 mm · Height: 80 mm · Height: 115 mm

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø Stranded wire: 1.8 mm · Nipple shape: Pears · Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Cable length: 2200 mm · Area of application: Standard

Mudguard strut 32 cm chrome

Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 320 mm · Distance mudguard - center hole: 310 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Hole spacing: 40 mm · Wide intake: 65 mm

swiing® ingenious brake shoes Ø 90 x 17 High End

Manufacturer: swiing® ingenious parts · Ø drum: 90 mm · Width: 17 mm · Number of springs: 1 pcs · Springs included: Yes · Ø locating bolt: 10 mm · Slotted: No · Color: red · Area of application: High End

Front fender Inox | Hercules Prima, Optima / Kreidler Flory

Material: Chrome steel (known as Nirosta®) · Surface: polished · Color: Chrome · Wheel size [inch]: 17 " · Folding the ends: not folded · Shape of the mudguard: partly round · Total length over ends: 560 mm · Scope: 740 mm · Wide mudguard profile: 84 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 205 mm · Mounting type: Nuts & bolts · Hercules OEM number: 629 110 01 02

Front mudguard struts chrome | Hercules 621, 623, Prima, Optima

Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 200 mm · Total length: 320 mm · Distance mudguard - center hole: 190 mm · Distance mudguard - center hole: 310 mm · Number of fixing points: 4 pcs · Number of fixing points: 7 pcs · Hole spacing: 42 mm · Ø mounting hole: 6.4 mm · Ø mounting hole: 11.6 mm · Wide intake: 63 mm · Wide intake: 72 mm

Mudguard strut 32 cm chrome | Hercules 621, 623, Prima, Optima

Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 320 mm · Distance mudguard - center hole: 310 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Hole spacing: 40 mm · Ø mounting hole: 6.5 mm · Ø mounting hole: 11.5 mm · Wide intake: 65 mm
