For: Sachs

30438

Repair instructions | Sachs 50 Saxonette (automatic)

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 36.10

Incl. 23% VAT.

Description

Repair instructions for the Sachs 50 type Saxonette automatic engine from Fichtel & Sachs AG.

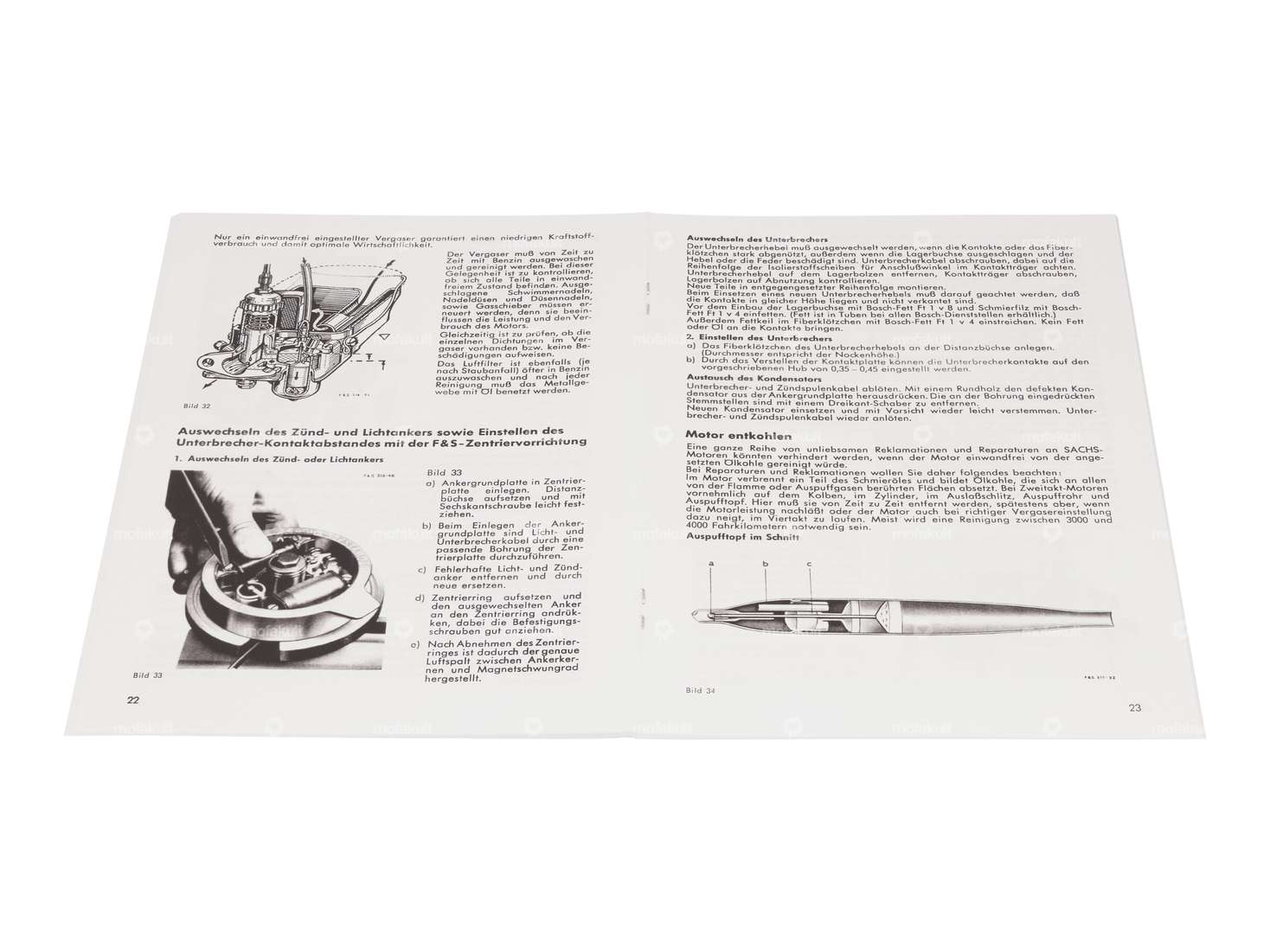

Very helpful, informative booklet. Among other things, it explains the operating elements, repair, maintenance and adjustment work. No workshop with Sachs mopeds should be without this detailed instruction manual.

Size: A5 (148 x 210 mm)
Pages: 44
Language: German

High-quality facsimile (reproduction) of the original edition.

Further workshop manuals, spare parts catalogs and repair manuals can be found in the accessories section.

MaterialPaper
Width148 mm
Height210 mm
DIN formatA5
Number of pages44 pcs
LanguageGerman
Sachs

502 (Saxonette) - AL , AML
