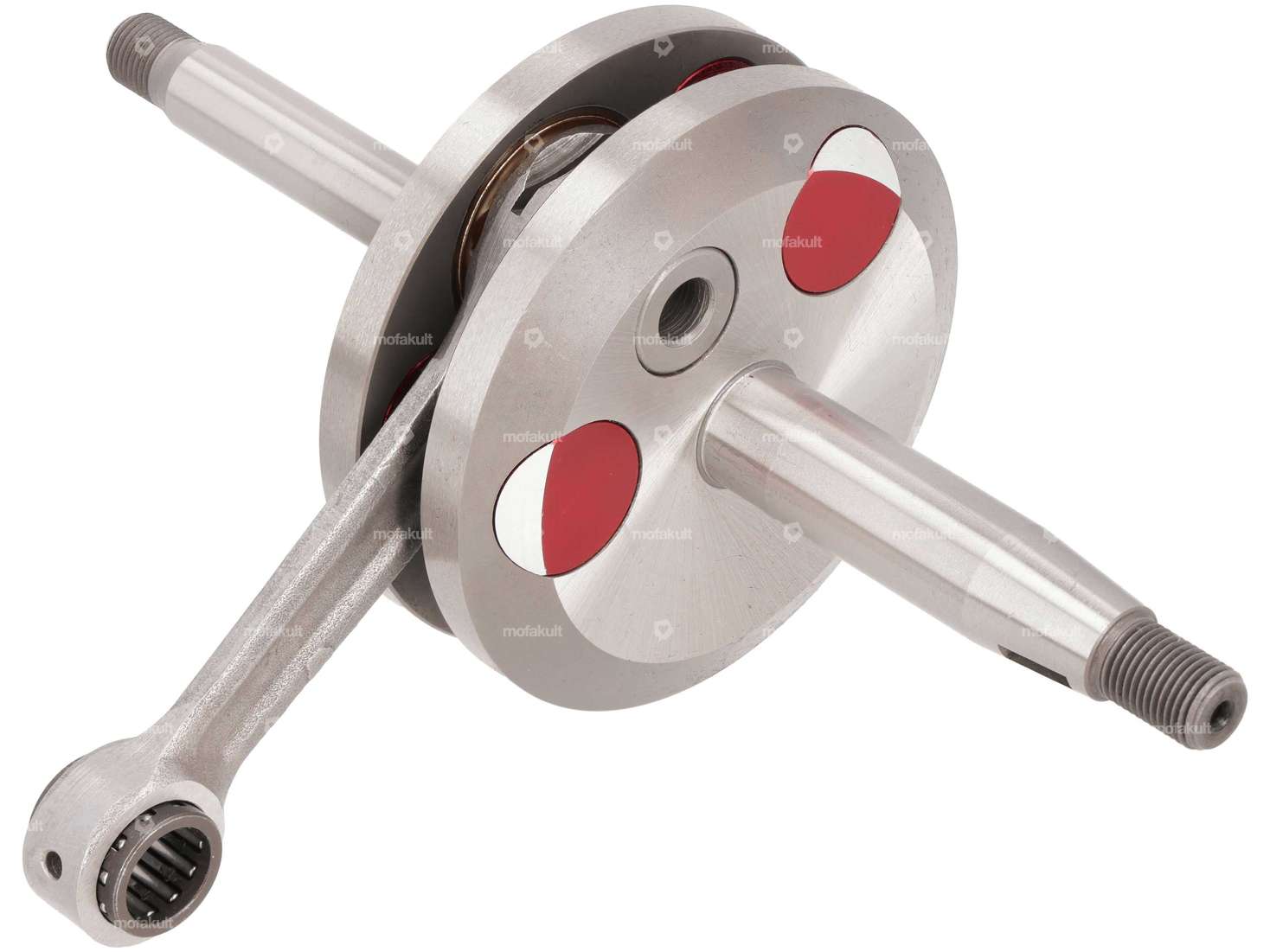

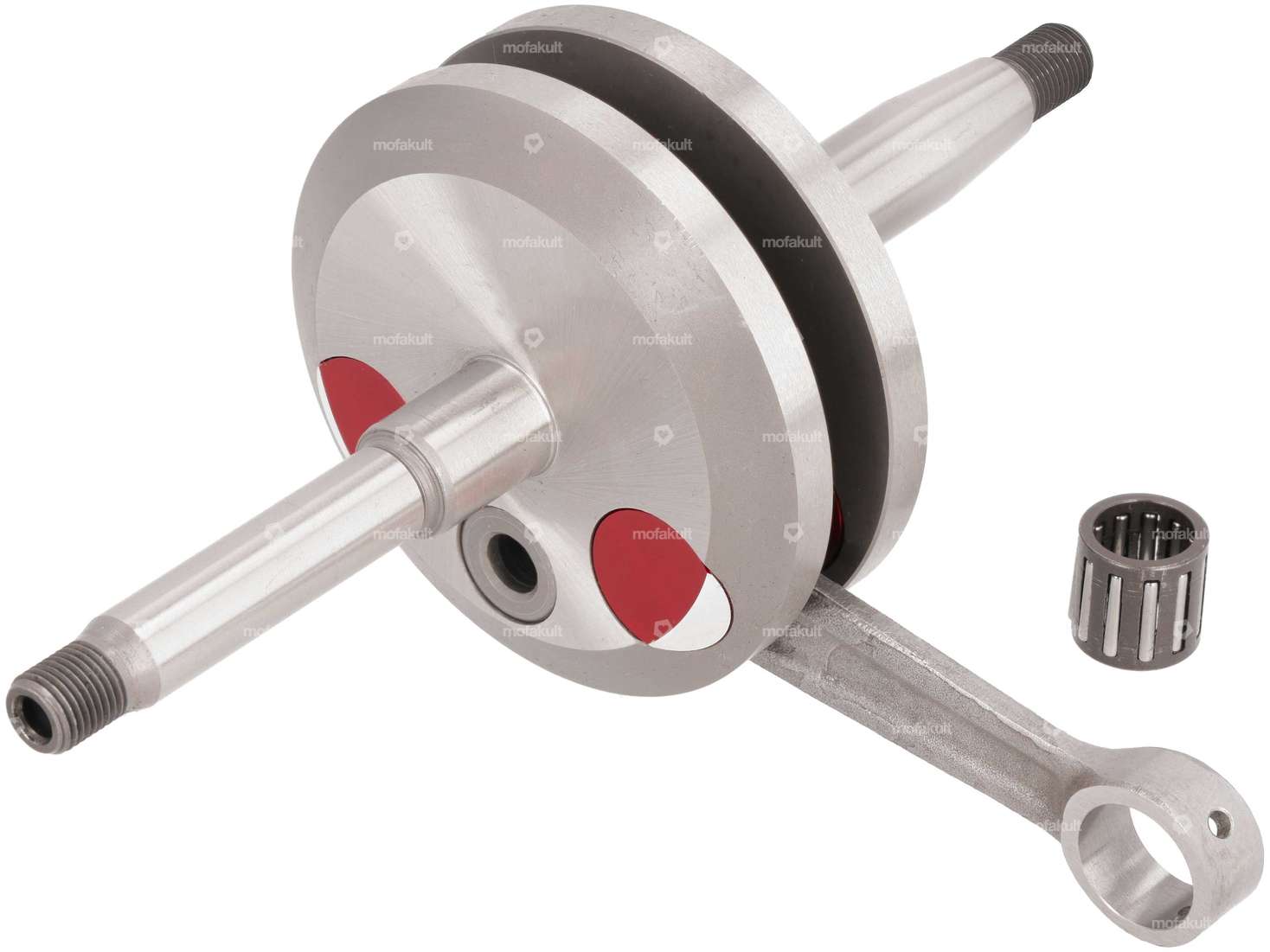

First-class full cheek crankshaft, suitable for your moped / moped with Sachs 505, 535 A1 or 535 AV engine
.This crankshaft is suitable for Hercules Prima 2, 3, 4, 5 and Optima models, among others.
For perfect balancing and pre-compression of the crankshaft, the balancing holes are sealed with aluminum plugs. The workmanship and accuracy of fit are excellent.
| Manufacturer | Rito |
| Material | Steel |
| Cheek type | Full cheeks |
| Crankshaft stroke | 44 mm |
| Connecting rod length center-center | 85 mm |
| Total length of crankpin on clutch side | 77.8 mm |
| Total length crankpin ignition side | 73.8 mm |
| Ø crank webs | 79.5 mm |
| Ø piston pin (B) | 12 mm |
| Ø Connecting rod eye | 16 mm |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Thread length | 9.5 mm, 13 mm |
| Dimension needle bearing | 12 / 16 x 15.8 (axe 12) |
| Wide crank webs | 34.2 mm |
| Length 2nd paragraph | 16.8 mm |
| Length 3rd paragraph | 15 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 11.7 mm |
| Length of shoulder (ignition side) | 42 mm |
| Weight | 878 g |
| Number of gears | 1 pcs |
| Area of application | Tuning, High End, Racing |
| Sachs | 505 (with pedal shaft) - 1A (AT), 2A (HG), 2B (HG) 535 |
| Hercules | Great - 2, 3, 4, 5, Optima |
Ratings
Accessories & related products

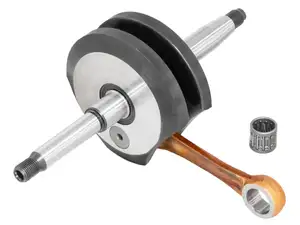

Crankshaft | Sachs 505, 535 A1, 535 AV (A4477)
Material: Steel · Crankshaft stroke: 44 mm · Connecting rod length center-center: 85 mm · Weight: 956 g · Number of gears: 1 pcs · Number of gears: 2 pcs · Total length of crankpin on clutch side: 77.5 mm · Total length crankpin ignition side: 73.5 mm · Thread length: 12 mm · Ø crank webs: 79.9 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Area of application: Standard · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34.3 mm · Length 1st paragraph: 18 mm · Length 2nd paragraph: 44 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 11.6 mm · Length of shoulder (ignition side): 42.5 mm · Pony OEM number: A4477
EUR 206.30

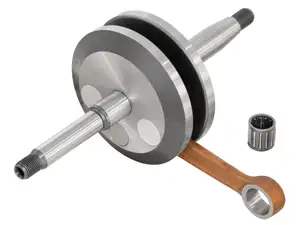

Jasil crankshaft full cheeks | Sachs 505, 535 A1, 535 AV
