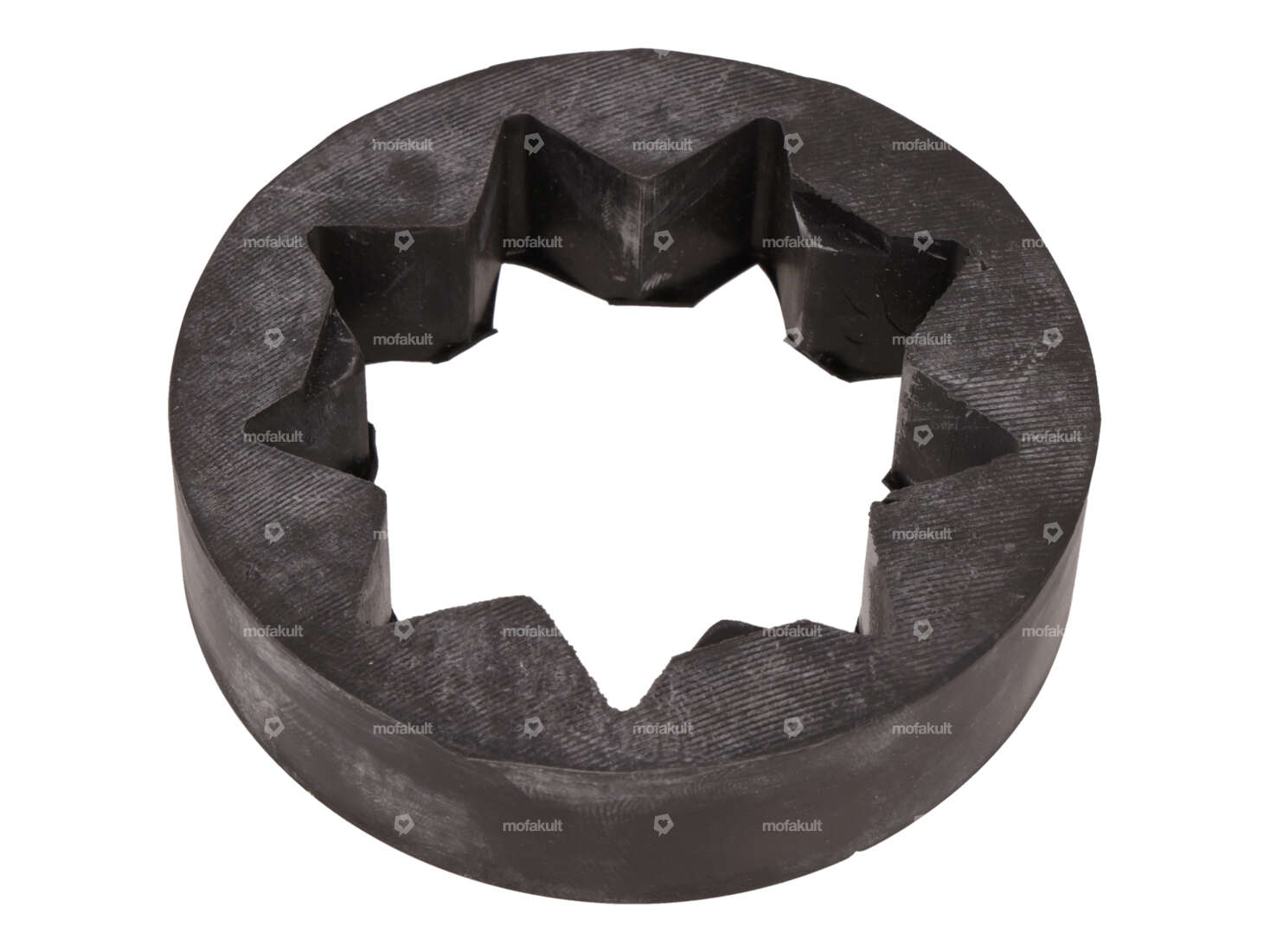

Rubber ring / vibration damper Ø 91 mm clutch | Garelli NOI, Katia, Eureka

Woodruff key 3 x 3.7 mm

Material: Steel · Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm

Oil seal NBR 17/40/7 A DUO | Puch E50

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Width: 7 mm · Ø inside: 17 mm · Ø outside: 40 mm · Area of application: Standard

M10 sealing ring Fiber

Thickness: 1.6 mm · Material: Fiber · Surface: raw · Place of use: Carburetor · Place of use: Motor housing · Ø inside: 10 mm · Ø outside: 13.8 mm · Area of application: Standard · Pony OEM number: A1817 · Pony OEM number: A5650 · Puch OEM number: 27071 · Sachs OEM no.: 0250 042 001 · Sachs OEM no.: 0650 131 000

NTN 6203 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: CM (special/noise-reduced) · Bearing cage: Sheet steel cage ball-guided · Material: Steel · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm · Ball bearing closed: No

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH

Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 1.8 mm · Manufacturer: GPO · Number of components: 4 pcs · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 22 mm · Ø cylinder: 38 mm · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Area of application: Standard

swiing® revival 38 mm cylinder kit 1.6 hp CH12 "Original" | Puch

Nominal diameter: 38 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 19 mm · Ø Inlet inside: 9 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Camouflaged: Yes · Area of application: Standard · Alternative version of the Puch OEM number: 349.7.10.105.0

Wedge flywheel | Puch / Sachs / Zündapp

Material: Steel · Width: 3 mm · Height: 3.8 mm · Total length: 9.3 mm

swiing® revival screw set for clutch cover Inox | Puch E50

Manufacturer: swiing® revival parts · Number of components: 4 pcs · Material: Chrome steel (colloquially known as stainless steel) · Screw head: Countersunk head · Screw head: Lens head · Drive: Slot · Thread type: M6x1 (standard thread) · Puch OEM number: 900.9460

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Color: sand-colored · Thickness: 1 mm · Manufacturer: swiing® revival parts · Number of components: 1 pcs · Material: Sealing paper · Ø inside: 106 mm · Ø outside: 116 mm · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

Engine & cylinder gasket set | Garelli NOI

Number of components: 6 pcs · Area of application: Standard
