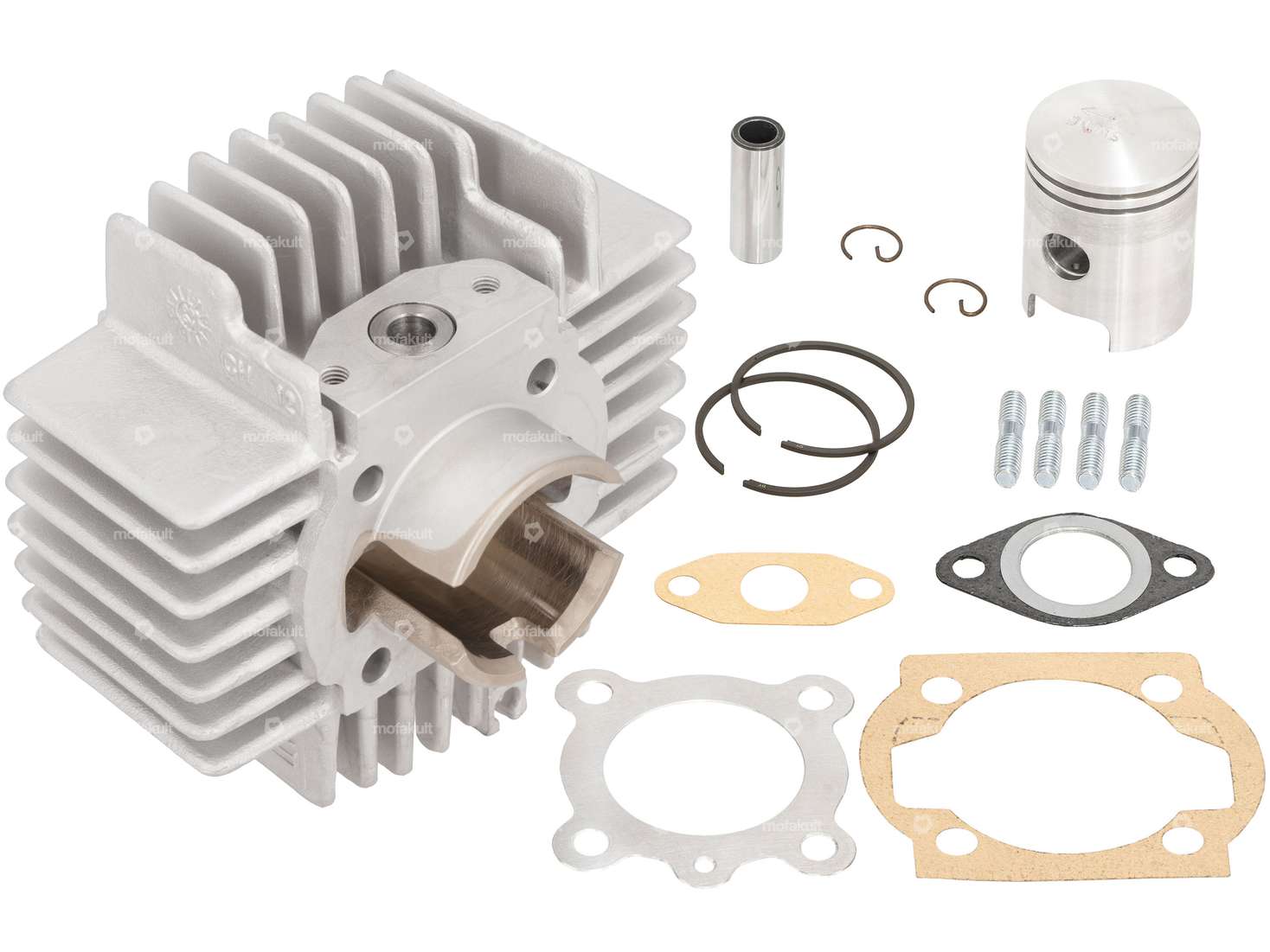

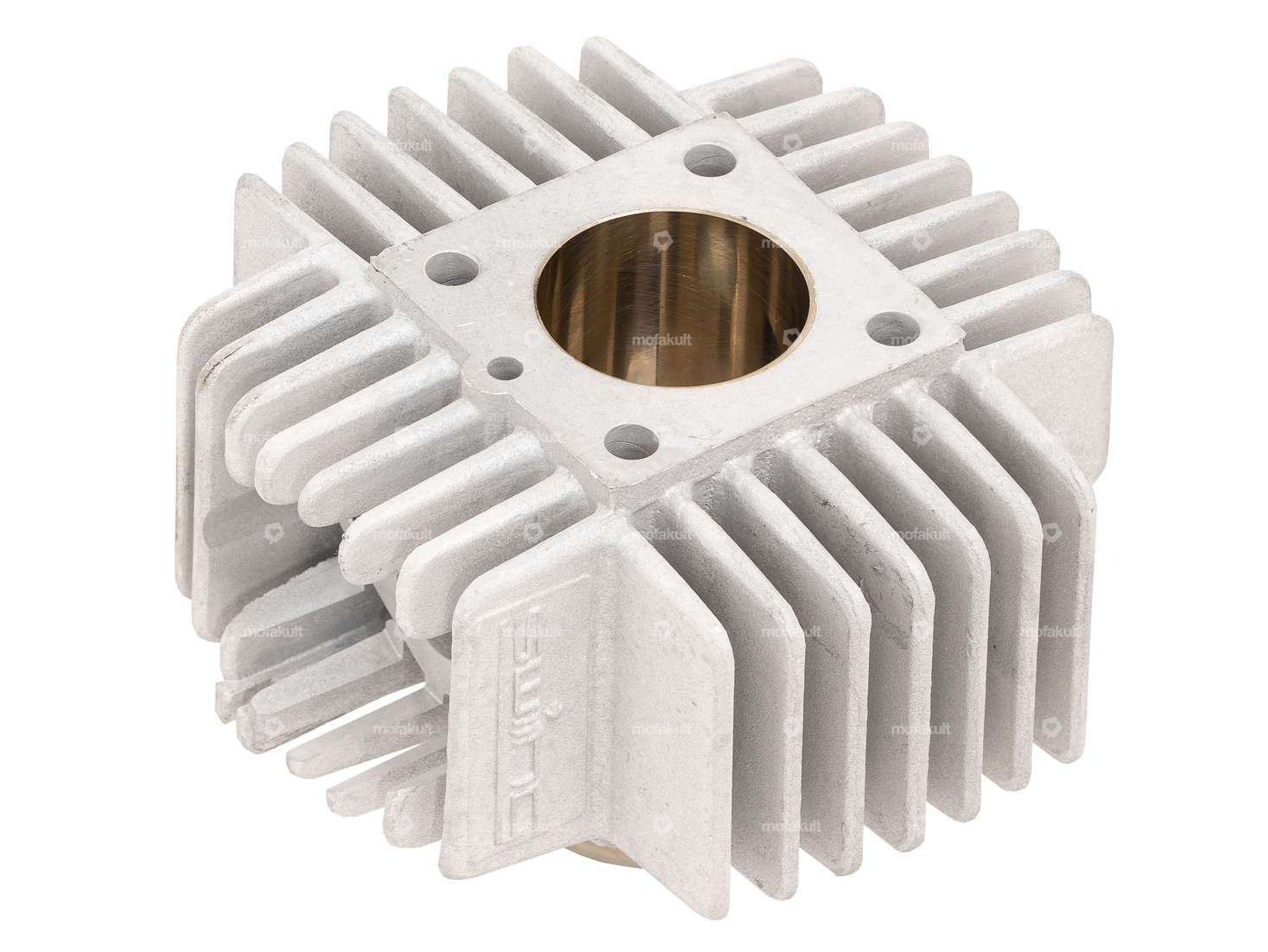

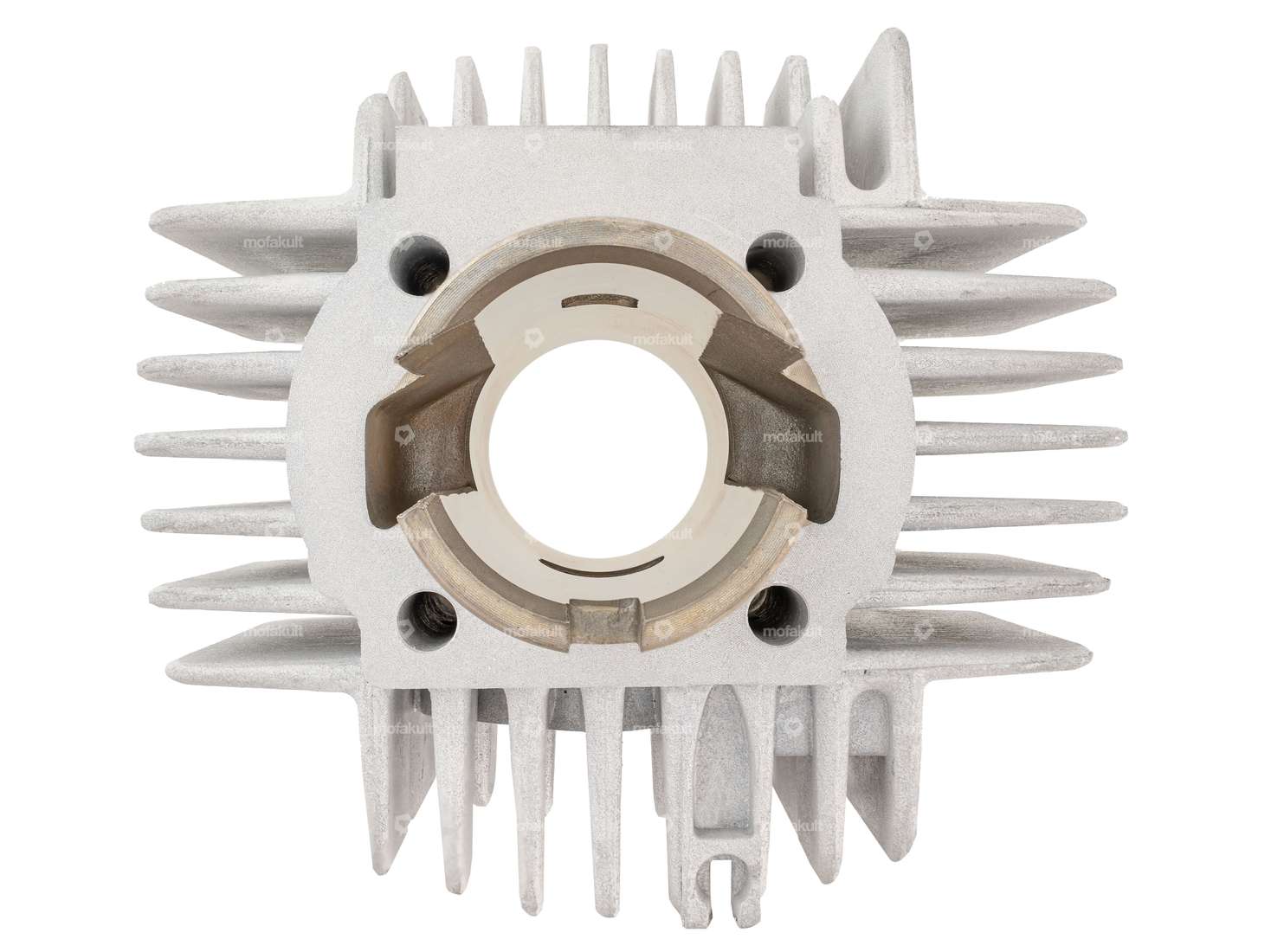

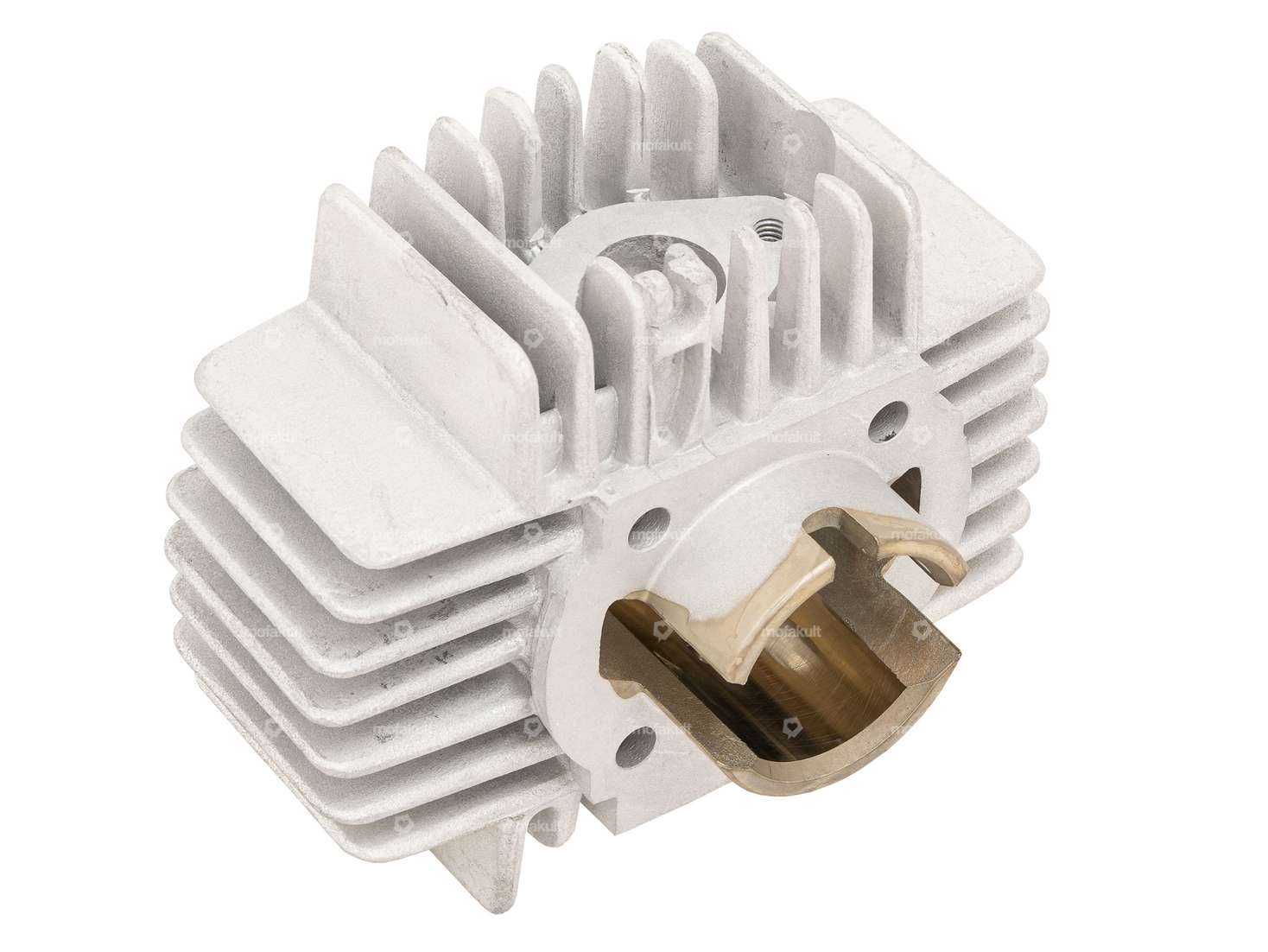

swiing® revival 38 mm cylinder kit 1.6 hp CH12 "original" | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 156.70

Incl. 23% VAT.

Description

Lightly optimized, high-quality 38 mm original cylinder suitable for various Puch mopeds / mopeds such as Maxi S / N and Puch X30 NS / NL.

With this cylinder, you can reach your destination quickly and powerfully

.
  • The intake window has been moved slightly downwards to achieve better timing
  • Lubrication holes on the piston to the piston pin.
  • The inner flats on the piston were milled flat for clean guidance of the connecting rod bearing
  • The piston skirt has been optimized
  • The inlet angles of the transfer ports have been adjusted
  • Intake and exhaust largely milled flat (exhaust and intake manifold can be fitted without any problems)

With these optimizations, the 38 mm cylinder kit delivers a whopping 1.6 hp to the rear tire with the correct setting. This makes it the most powerful 38 mm cylinder with seal for Puch ever!

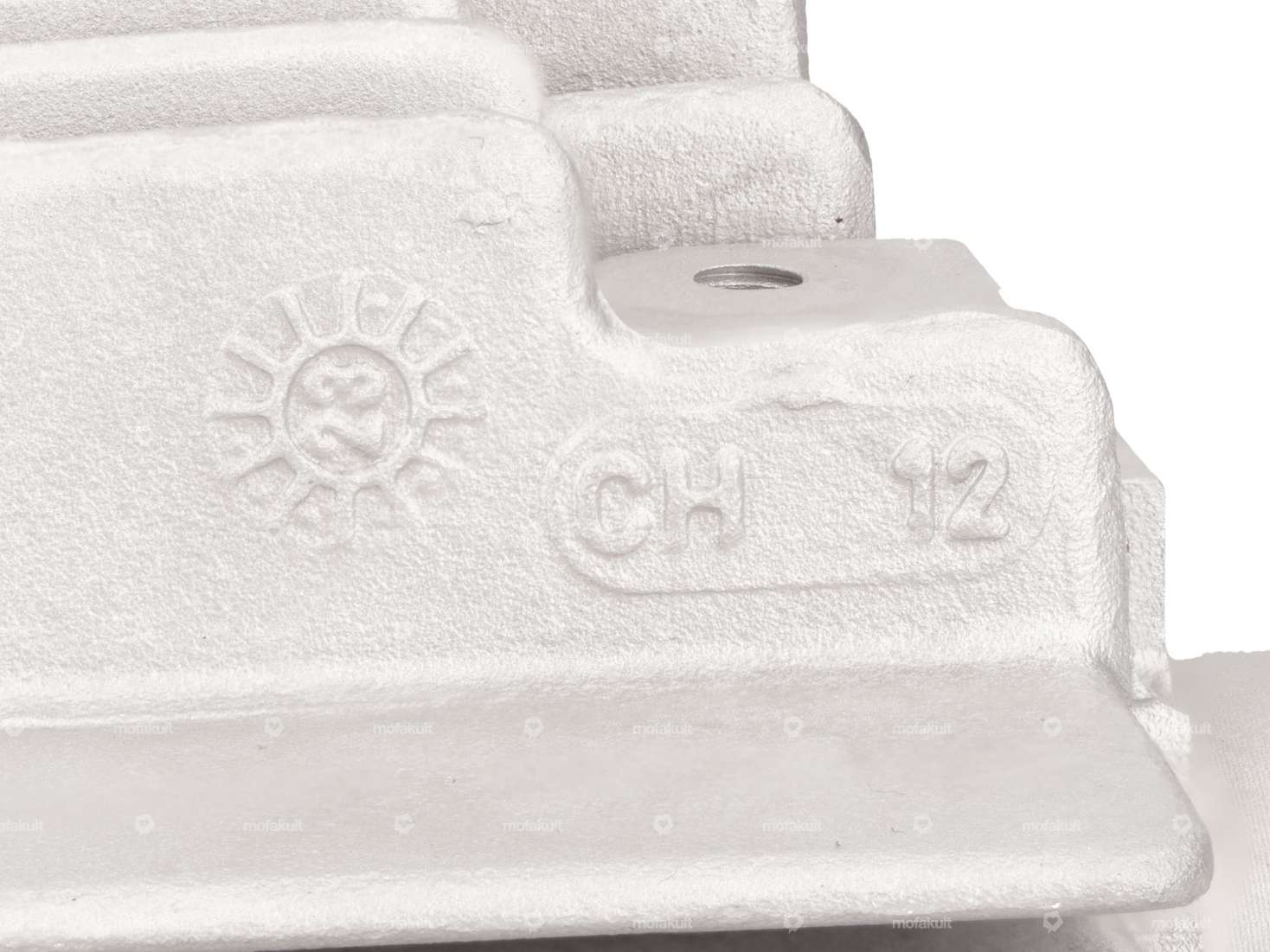

Of course, the original «CH12» is also cast in.

You can find detailed installation instructions in the video below.

Download Montageanleitung
Manufacturerswiing® revival parts
MaterialAluminum
CamouflagedYes
Surfacesandblasted
Displacement50 ccm
Nominal diameter38 mm
Crankshaft stroke43 mm
Ø piston pin (B)12 mm
Hole spacing inlet38 mm
Ø cylinder neck48 mm
Number of fixing points4 pcs
Ø outlet inside19 mm
Area of applicationStandard
Ø Inlet inside9 mm
Hole spacing outlet42 mm
Hole pattern [mm]44 x 44
Thread inletM6x1 (standard thread)
Outlet typestraight
Thread outletM6x1 (standard thread)
DecompressorYes
Alternative version of the Puch OEM number349.7.10.105.0
Puch

E50

Z50 (X30 Sport)
