For: Puch

30783

Spare parts catalog | Puch VZM 4-speed (CH, DE, NOR)

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 40.90

Incl. 23% VAT.

Description

Spare parts catalog (Switzerland, Germany, Norway) for Puch VZ 4-speed mopeds / mopeds.
The following types are described in the catalog:

  • VZ 50 MN
  • VZ 50 S
  • VZ 50 M

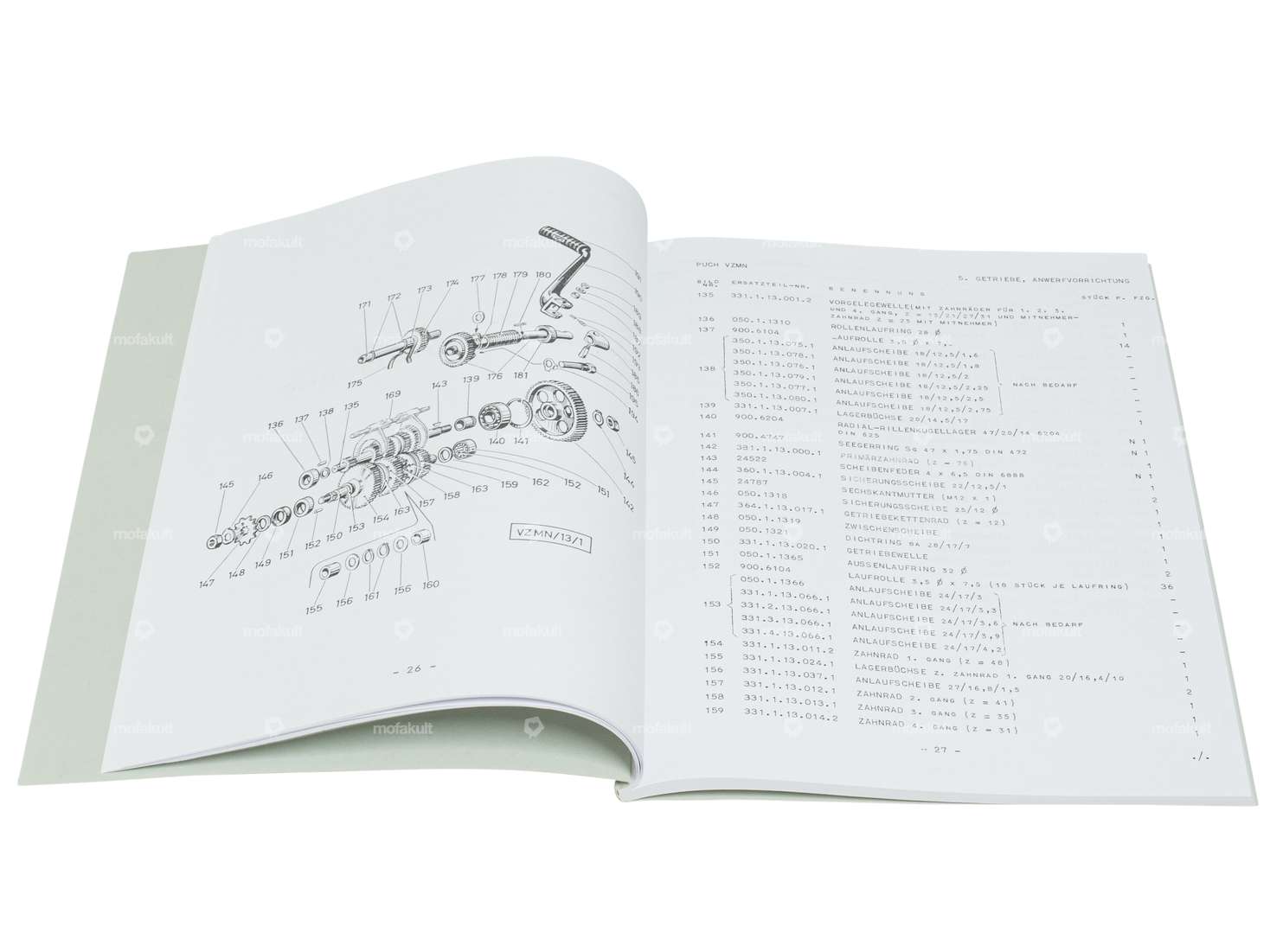

Each individual component is shown with the appropriate spare part number and the correct mounting location using many exploded drawings.

Size: A4 (210 x 297 mm)
Pages: 102
Language: German

High-quality facsimile (reproduction) of the original edition.

You can find more workshop manuals, operating and repair instructions in the accessories section.

Width210 mm
Height279 mm
MaterialPaper
DIN formatA4
Number of pages102 pcs
LanguageGerman
