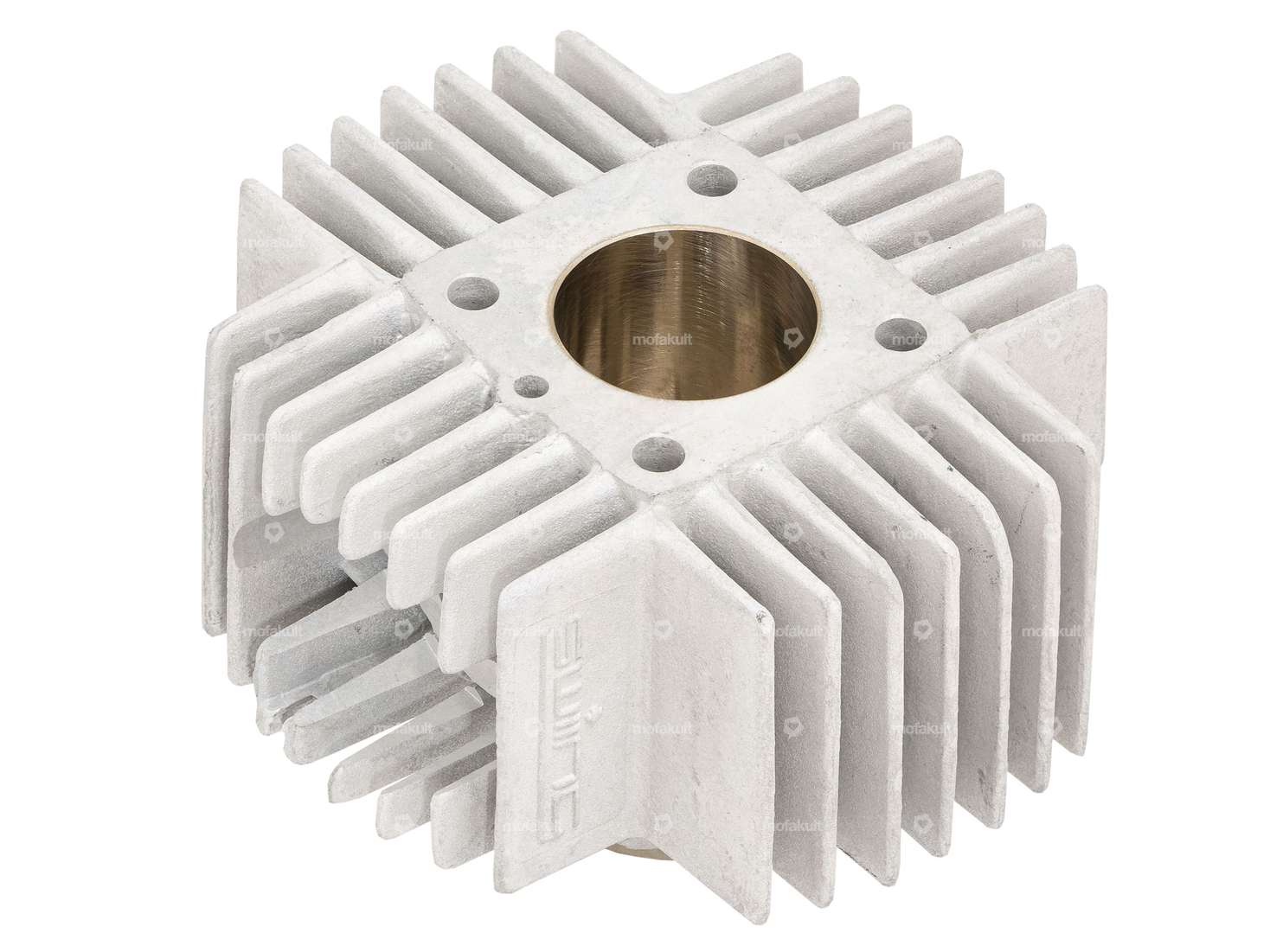

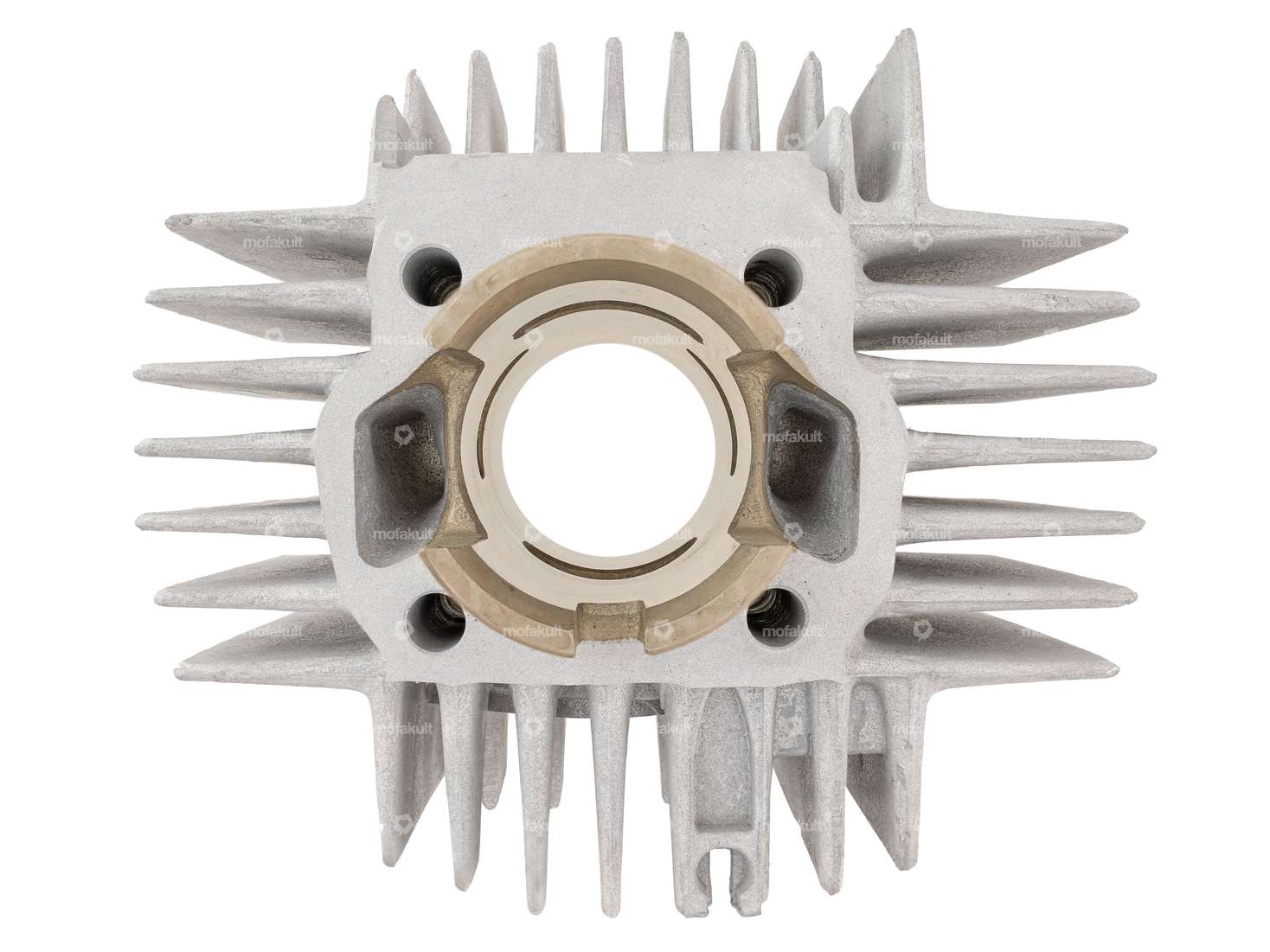

The high-quality 38 mm (50 cc) racing cylinder kit is now also available exclusively with «Vertex» pistons.
Fits Puch Maxi, X30 Sport NS/NL, X30 Sport NG-2A and Supermaxi.
The high-quality 38 mm (50 cc) racing cylinder kit is now also available exclusively with «Vertex» pistons.
Vertex pistons are world-renowned for their quality and design.

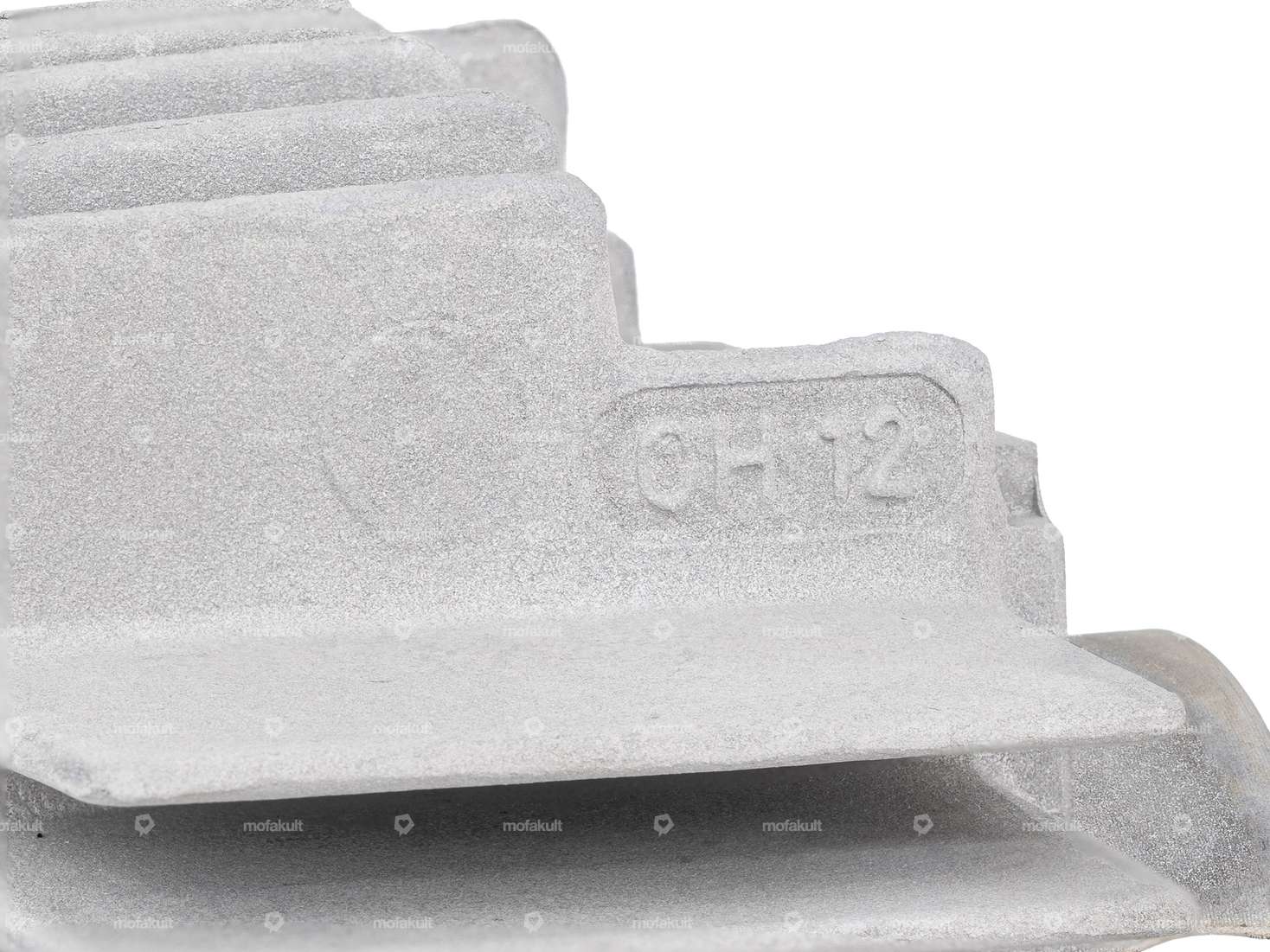

In appearance, this racing cylinder is indistinguishable from the original. The cast-in «CH12» and original-sized cooling fins ensure optimum protection from the race control.
| Nominal diameter | 38 mm |
| Manufacturer | swiing® ingenious parts, Vertex |
| Camouflaged | Yes |
| Material | Aluminum |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 48 mm |
| Surface | sandblasted |
| Ø outlet inside | 20 mm |
| Hole spacing inlet | 38 mm |
| Inlet window | 24 / 21 x 15 |
| Hole pattern [mm] | 44 x 44 |
| Thread inlet | M6x1 (standard thread) |
| Ø piston pin (B) | 12 mm |
| Decompressor | Yes |
| Number of fixing points | 4 pcs |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Area of application | Tuning |
| Alternative version of the Puch OEM number | 349.7.10.105.0 |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
