For: Sachs

27104

swiing® ingenious 41 mm cylinder kit tuning diaphragm | Sachs 50/2 (CH)

Please select a variant

EUR 188.00 EUR 198.10

Incl. 23% VAT.

Product description

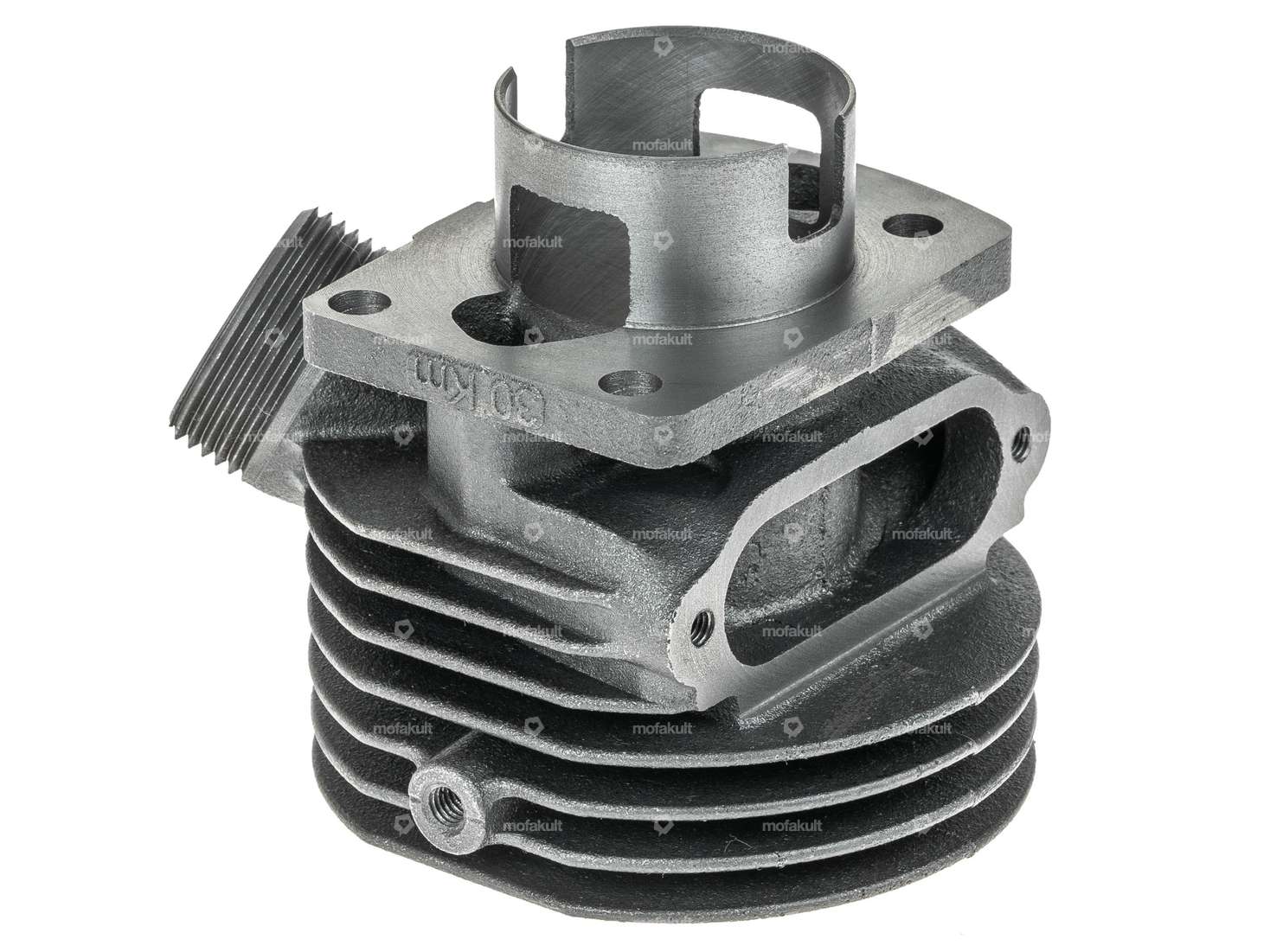

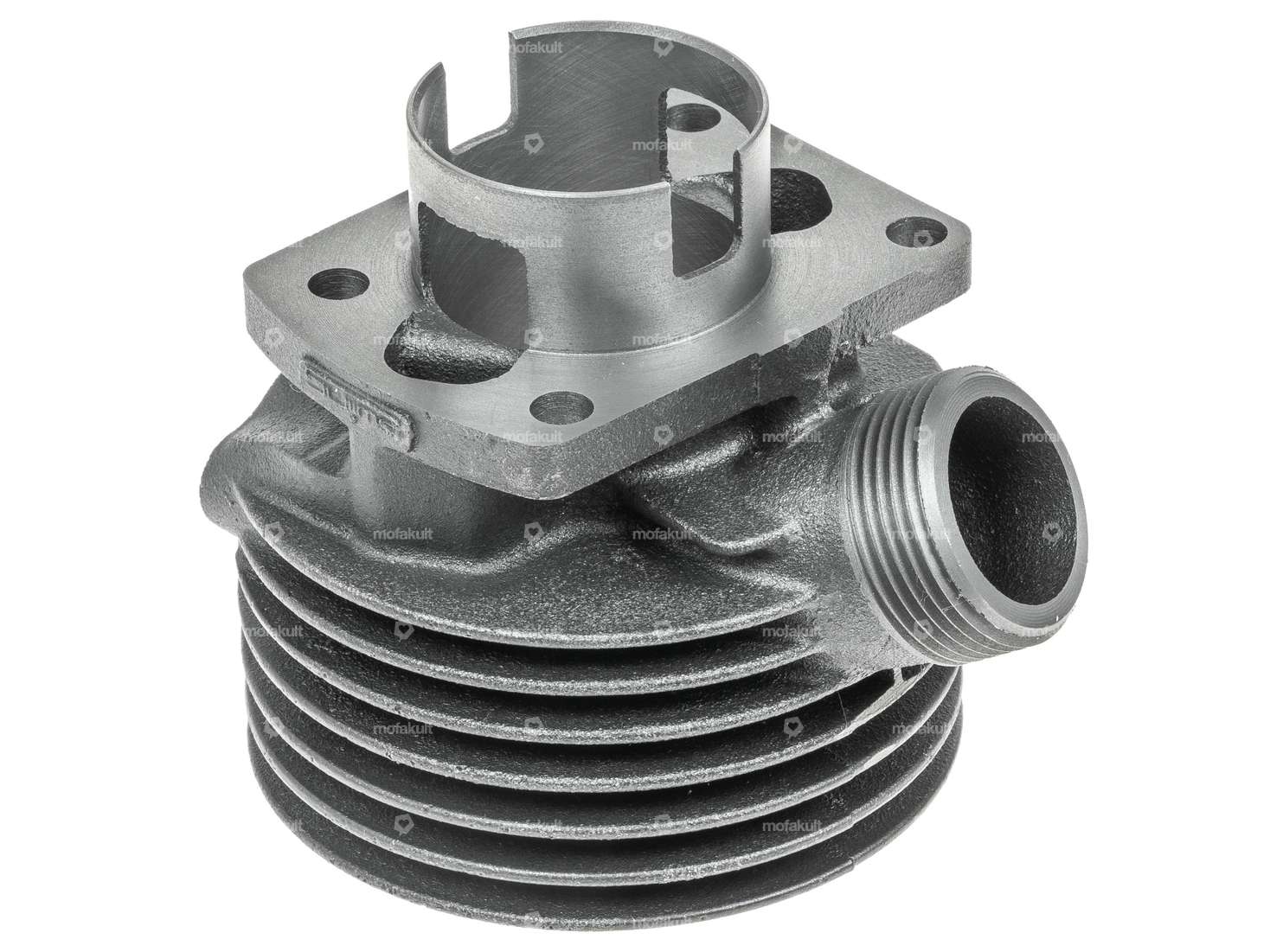

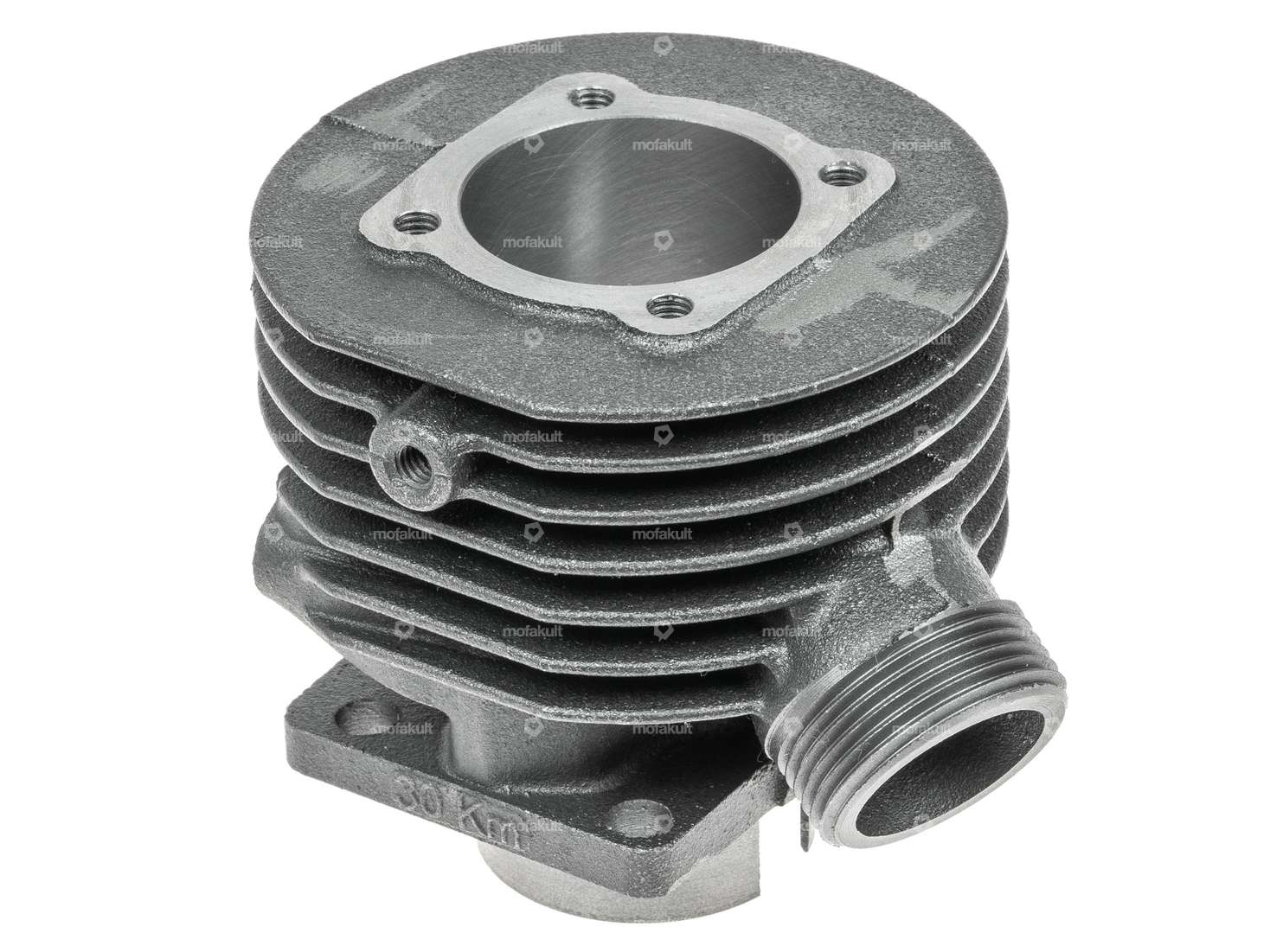

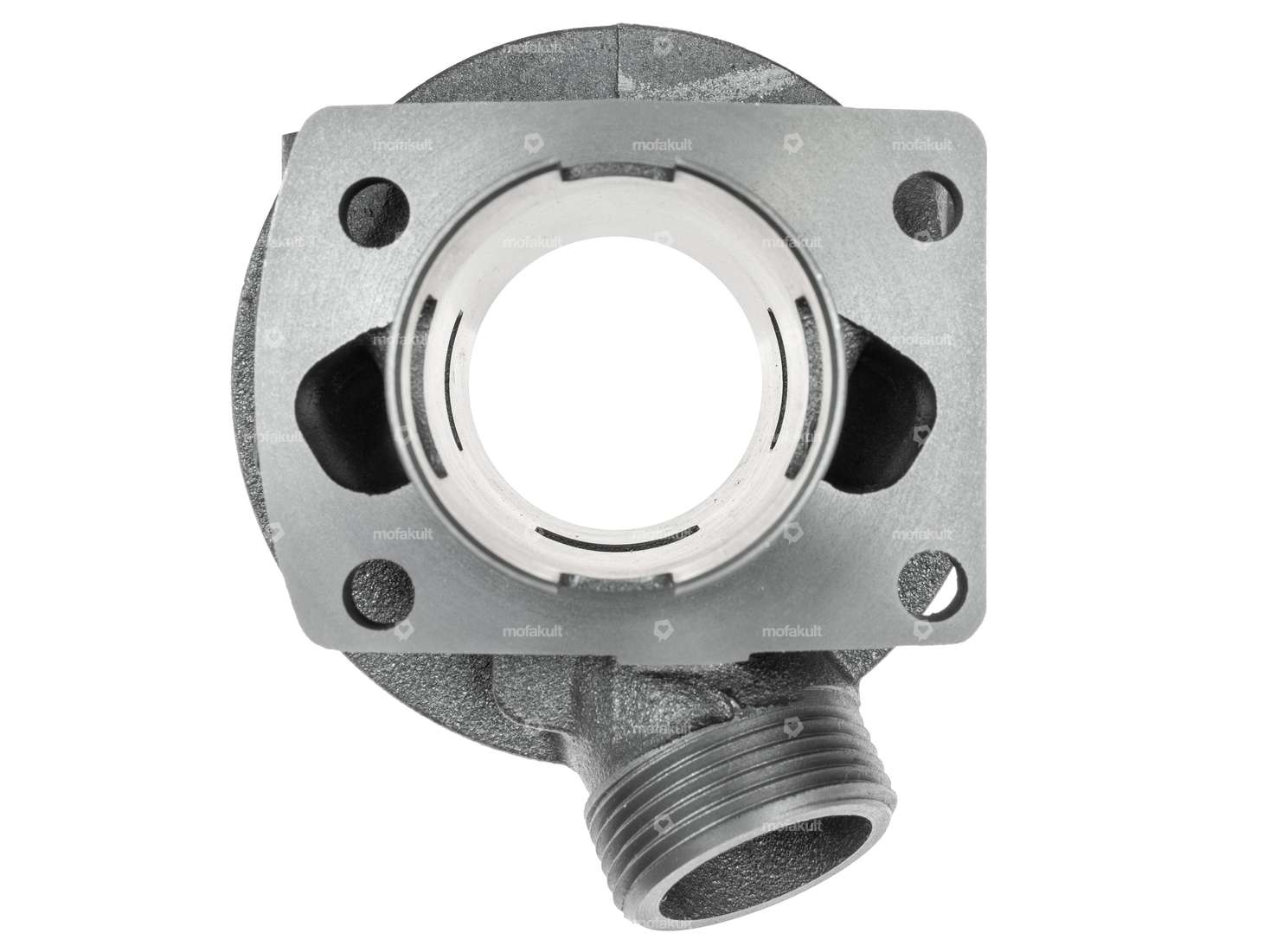

41 mm tuning cylinder kit with diaphragm intake suitable for Swiss Sachs 50/2 (502) mopeds / mopeds.
With a larger displacement and optimized timing, this tuning kit turns your oldie into a powerhouse. In addition, this racing cylinder is visually indistinguishable from the original cylinder when fitted.

The cylinder kit is characterized by the following attributes:

  • Cast iron cylinder with 41 mm bore
  • Membrane control
  • Optimized overflow channels
  • improved control times
  • pore-clean surface

Exhaust thread: M35 x 2 mm

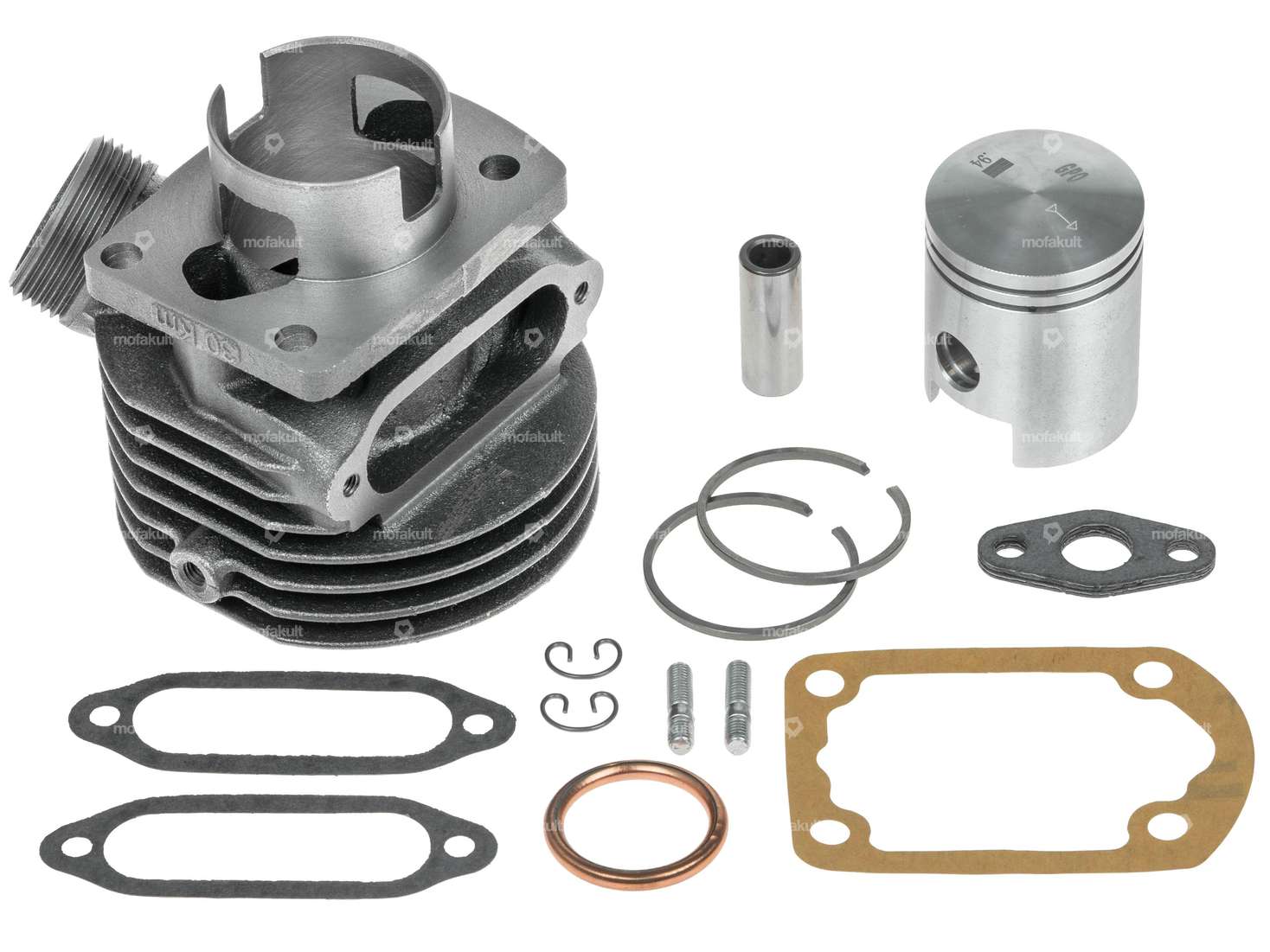

The scope of delivery includes cylinder, piston kit, gasket set and intake studs

Please note that this cylinder does not fit under the fan shroud of a slotted Sachs of the same type.

Matching add-on parts, as well as the more compact 38 mm tuning cylinder, can be found in the accessories section.

Please select in the selection field whether you would like the cylinder kit with or without gasket set.

Exceptional product for the highest demands of the quality brand swiing®.

swiing® ingenious 41 mm cylinder diaphragm | Sachs 50/2 (CH)

swiing® ingenious 41 mm cylinder diaphragm | Sachs 50/2 (CH)

27102

Hole pattern [mm]: 60 x 40 / 37 x 37 · Inlet window: 57.5 x 19 · Manufacturer: swiing® ingenious parts · Material: Gray cast iron · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 41 mm · Ø cylinder neck: 44 mm · Ø Outlet outside: 35 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 19 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 68 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Camouflaged: Yes · Area of application: Tuning

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

For: Sachs

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

16088

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Total length: 23 mm · Thread length: 6 mm, 12 mm · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101, 0640 016 102

Quantity: 2

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

For: Sachs

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

26879

Manufacturer: GPO · Nominal diameter: 41 mm · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Piston weight: 86 g

Manufacturerswiing® ingenious parts, GPO
CamouflagedYes
Area of applicationTuning
MaterialGray cast iron
Surfacesandblasted
Displacement55 ccm
Crankshaft stroke42 mm
Nominal diameter41 mm
Ø cylinder neck44 mm
Ø Outlet outside35 mm
Ø outlet inside26 mm
Ø Inlet inside19 mm
Inlet window57.5 x 19
Number of fixing points4 pcs
Thread inletM5x0.8 (standard thread)
Ø piston pin (B)12 mm
Outlet typeUnion nut
Thread outletM35x2 (standard thread)
Hole pattern [mm]60 x 40 / 37 x 37
Hole spacing inlet68 mm
Sachs

502 (Saxonette) - AML

50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS)
