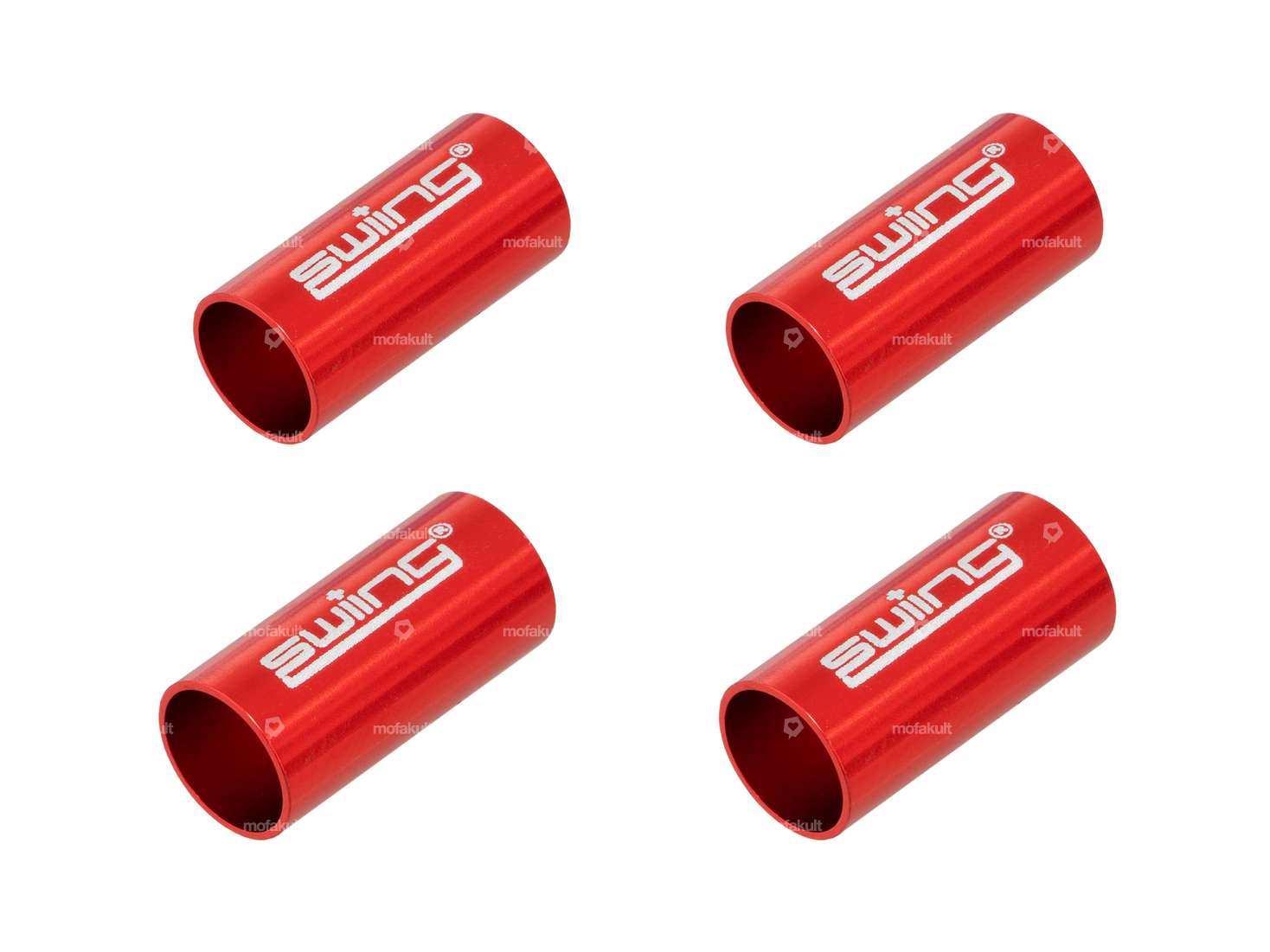

Centring bushes made of aluminium, red anodized, for clean mounting of the cylinder cover on Puch Maxi S / N, Puch X30 NS / NL, Puch X30 N-2AH mopeds / mopeds.
The bushes can be used on all Puch cylinder heads in conjunction with conventional M6 threaded studs.
They are pushed into the holes in the cylinder cover so that they protrude slightly above the sealing surface (see Figure 2 for illustration).
We recommend that you glue the guide bushes into the cylinder head with Loctite adhesive so that they do not move during assembly/disassembly.
Now the cylinder head can be pushed perfectly centered onto the stud bolts.
You can find the corresponding cylinder heads, stud bolts, cylinder head gaskets, Loctite, etc. in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.
| Nominal diameter inside | 6 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Surface | anodized |
| Total length | 15 mm |
| Ø inside | 6.25 mm |
| Ø outside | 7.4 mm |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
Hot
GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH
Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 38 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Candle thread: short · Decompressor: No · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Area of application: Standard
EUR 39.70
GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH
Surface: sandblasted · Manufacturer: GPO · Material: Aluminum · Width: 125 mm · Ø cylinder: 45 mm · Height: 55 mm · Number of fixing points: 4 pcs · Total length: 135 mm · Candle thread: short · Hole pattern [mm]: 44 x 44 · Area of application: Tuning · Decompressor: No · Camouflaged: Yes
EUR 39.70
swiing® revival stud bolt M6x106 (10.9 strength class)
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Total length: 106 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1
EUR 2.20
Loctite 638 Joining shaft-hub high-strength 10 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Contents: 10 ml · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Color: green · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Temperature resistance (min.): -75 - 150 °C · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m
EUR 26.40
EUR 2’640.00/l

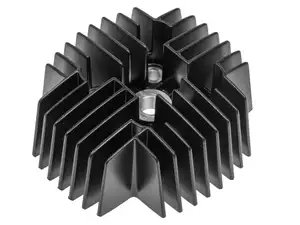

GPO 38 mm Cylinder Head, Original Black | Puch Maxi S, N / X30 NS, NL, N-2AH
