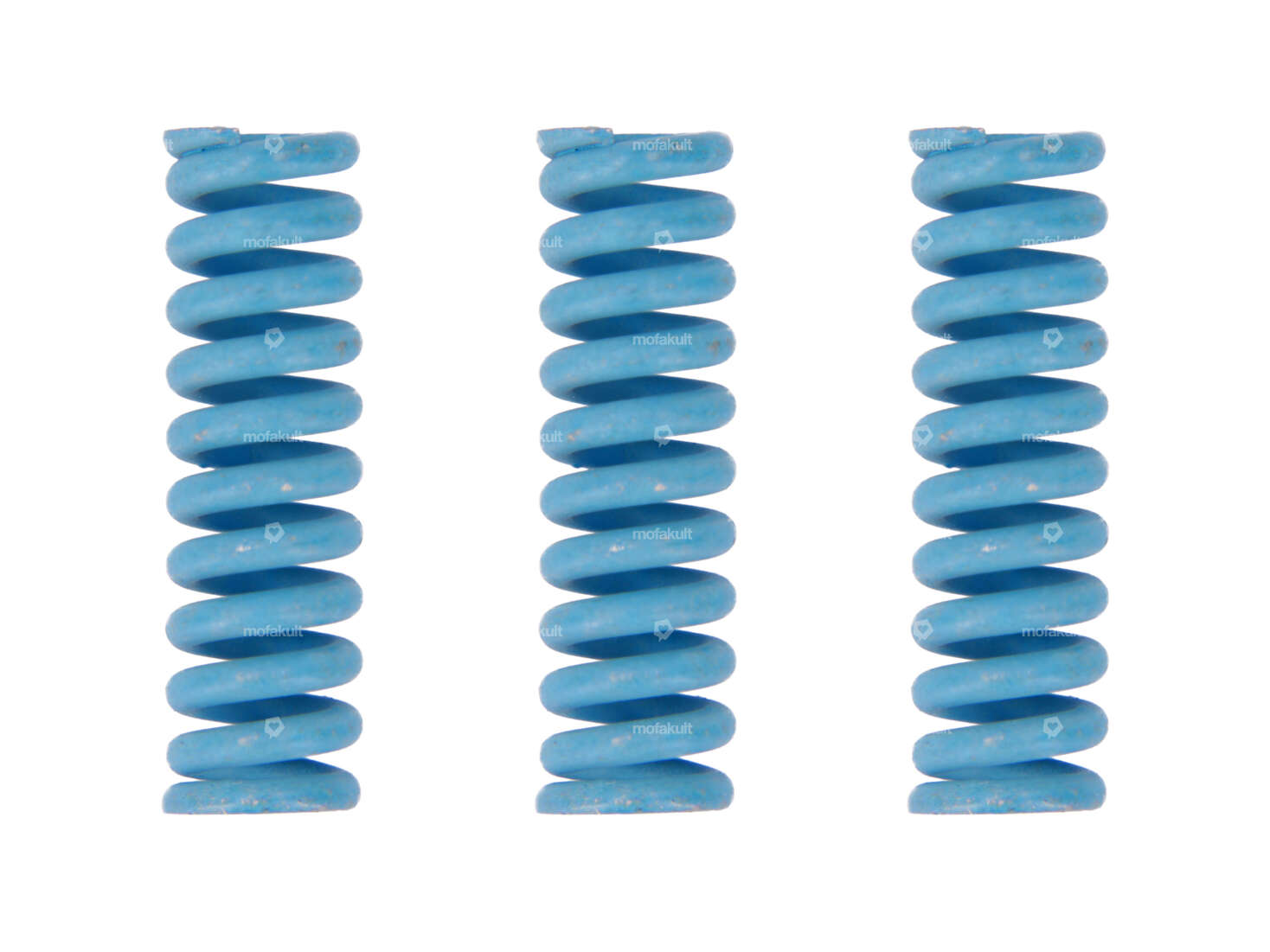

swiing® ingenious clutch springs reinforced (+20%) | Puch E50

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival gearbox cover gasket 0.3 mm engine | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Ø inside: 106 mm · Ø outside: 116 mm · Color: sand-colored · Thickness: 0.35 mm · Number of fixing points: 4 pcs · Number of components: 1 pcs · Puch OEM number: 349.1.10.349.1

swiing® revival clutch springs original | Puch E50

Spring design: Pressure spring · Ø wire: 1.6 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Total length: 28 mm · Ø outside: 8.3 mm · Area of application: Tuning · Number of components: 3 pcs

swiing® ingenious clutch springs reinforced (+50%) | Puch E50

Spring design: Pressure spring · Ø wire: 2 mm · Manufacturer: swiing® ingenious parts · Material: Spring steel · Surface: coated · Color: red · Total length: 26.6 mm · Ø inside: 4.3 mm · Ø outside: 8.45 mm · Area of application: Tuning · Number of components: 3 pcs

swiing® ingenious clutch springs reinforced (+60%) | Puch E50

Spring design: Pressure spring · Manufacturer: swiing® ingenious parts · Material: Spring steel · Surface: coated · Number of components: 3 pcs · Color: yellow · Ø wire: 2.05 mm · Ø outside: 8.45 mm · Ø inside: 4.3 mm · Total length: 26.9 mm · Area of application: Tuning

GPO clutch trigger | Puch E50

Manufacturer: GPO · Material: Steel · Surface: blackened · Area of application: (Dis)assembly tool

swiing® revival plain bearing clutch basket | Puch E50

Manufacturer: swiing® revival parts · Material: special bearing bronze · Ø inside: 15 mm · Ø outside: 17 mm · Nominal diameter inside: 15 mm · Total height: 21.75 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival nut / spring washer clutch E50 | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Height: 8 mm · Drive: External hexagon · Nominal diameter (thread): 10 mm · Thread type: MF10x1 (fine pitch thread) · Width across flats: 17 mm

swiing® ingenious 15 mm carburetor camouflaged | Puch

Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Nominal diameter: 15 mm · Width: 50 mm · Carburetor type: SRE · Total length: 66 mm · Height: 95 mm · Mounting type: Plug connection clamped · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Ø Output inside: 15 mm · Area of application: Tuning · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m · Alternative version of the Puch OEM number: 349.1.15.100.0 · Alternative version of the Puch OEM number: 349.2.15.800.0 · Alternative version of the Puch OEM number: 349.4.15.500.0 · Alternative version of the Puch OEM number: 349.4.15.000.0 · Alternative version of the Puch OEM number: 349.4.15.300.0 · Alternative version of the Puch OEM number: 349.6.15.400.0 · Alternative version of the Puch OEM number: 349.7.15.700.0 · Alternative version of the Puch OEM number: 349.8.15.400.0 · Alternative version of the Puch OEM number: 349.9.15.300.0

swiing® revival gasket gearbox cover engine 0.5 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Ø inside: 106 mm · Ø outside: 116 mm · Color: sand-colored · Thickness: 0.5 mm · Number of fixing points: 4 pcs · Number of components: 1 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Ø inside: 106 mm · Ø outside: 116 mm · Color: sand-colored · Thickness: 1 mm · Number of fixing points: 4 pcs · Number of components: 1 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Thread type: MF10x1 (fine pitch thread) · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 968 g · Number of gears: 1 pcs · Area of application: High End · Area of application: Racing · Area of application: Tuning

GPO 3-jaw clutch (Ultra Light Version) | Puch E50

Manufacturer: GPO · Material: Aluminum · Material: Steel · Area of application: Tuning · Ø outside: 93.5 mm · Recording type: Cone mounting · Thickness: 21 mm · Number of jaws: 3 pcs · Number of springs: 3 pcs
