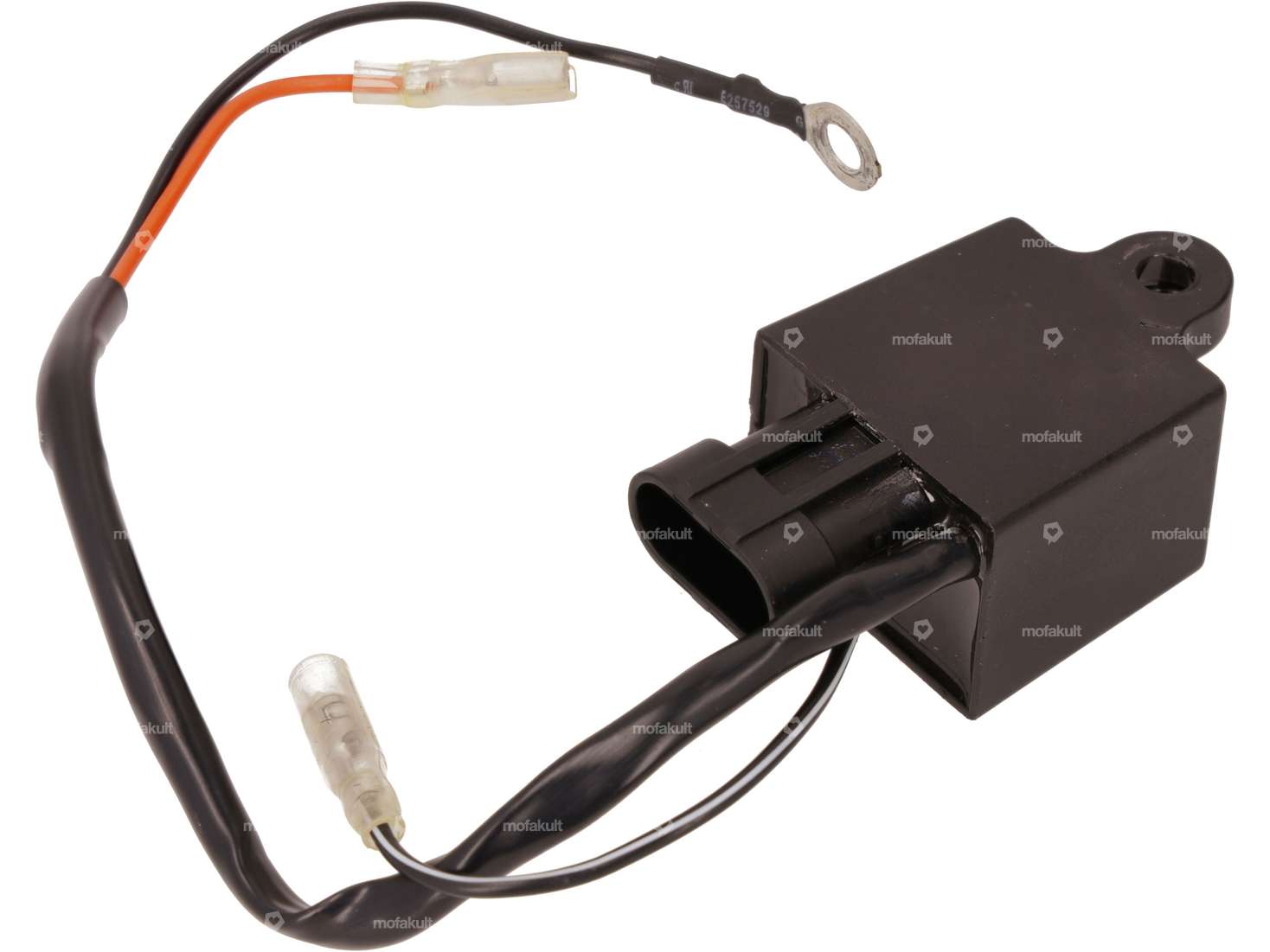

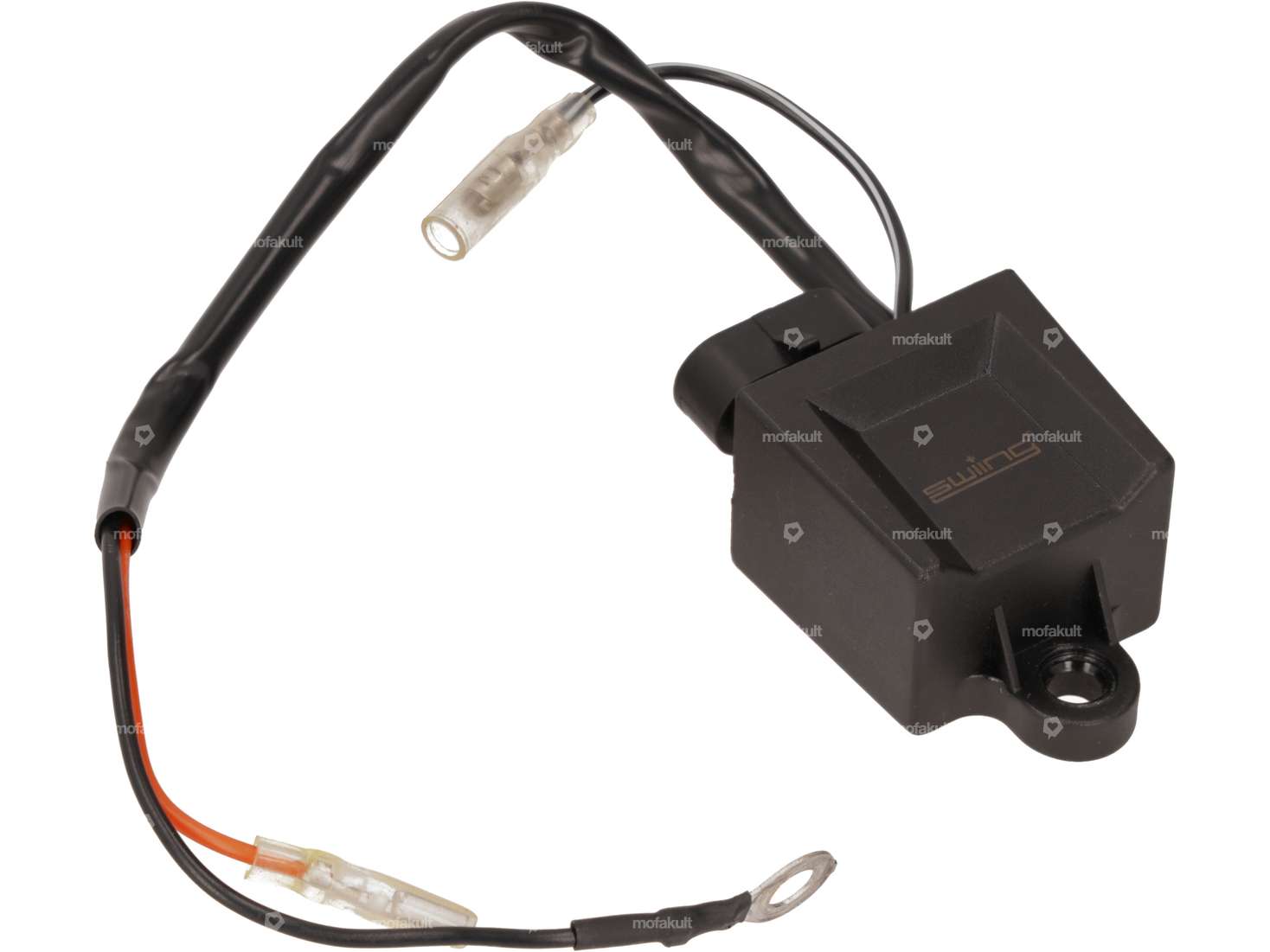

Ready-to-install CDI box suitable for your moped, moped and small motorcycle with swiing® ingenious EVO racing ignition.
The ignition box is connected using a Superseal connection. The plug for this is already on the junction box of the CDI unit. The pins of the stator cable can therefore simply be plugged in.
To attach the ignition unit, a fastening point is embedded in the housing. This allows the box to be easily mounted on the frame, side plates or other locations.
Color codes:
orange - control cable for ignition coil
black / white - kill switch
black: ground
Attention: The swiing® ingenious EVO ignition elements are not compatible with HPI components.
Matching flywheels, the stator and the complete ignition can be found under accessories.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Material | Plastic |
| Area of application | Tuning |
| Color | black |
| Ø mounting hole | 6.6 mm |
| Number of fixing points | 1 pcs |
| Total length | 75 mm |
| Width | 42 mm |
| Height | 30 mm |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs | |
| Zündapp Belmondo |
