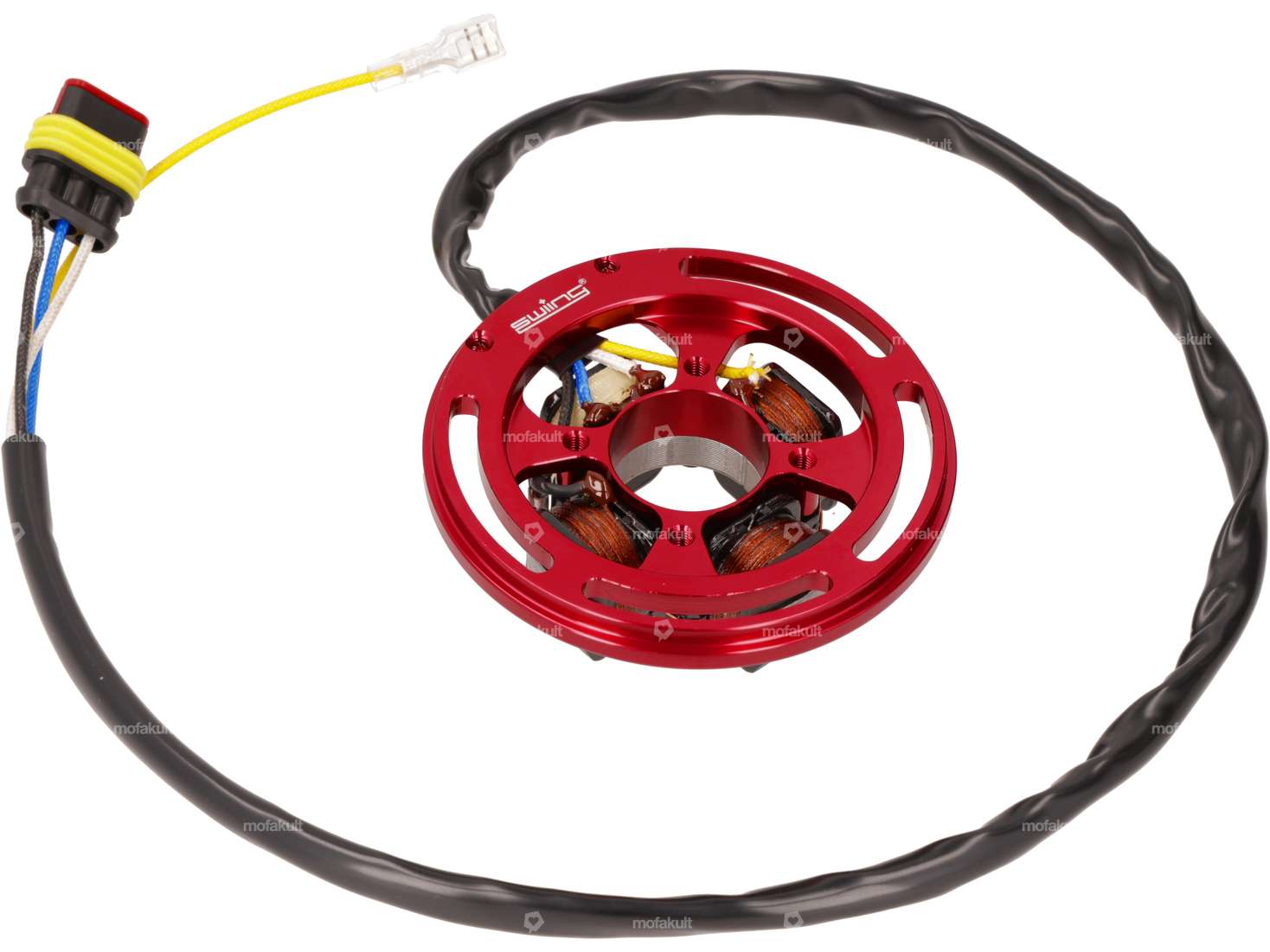

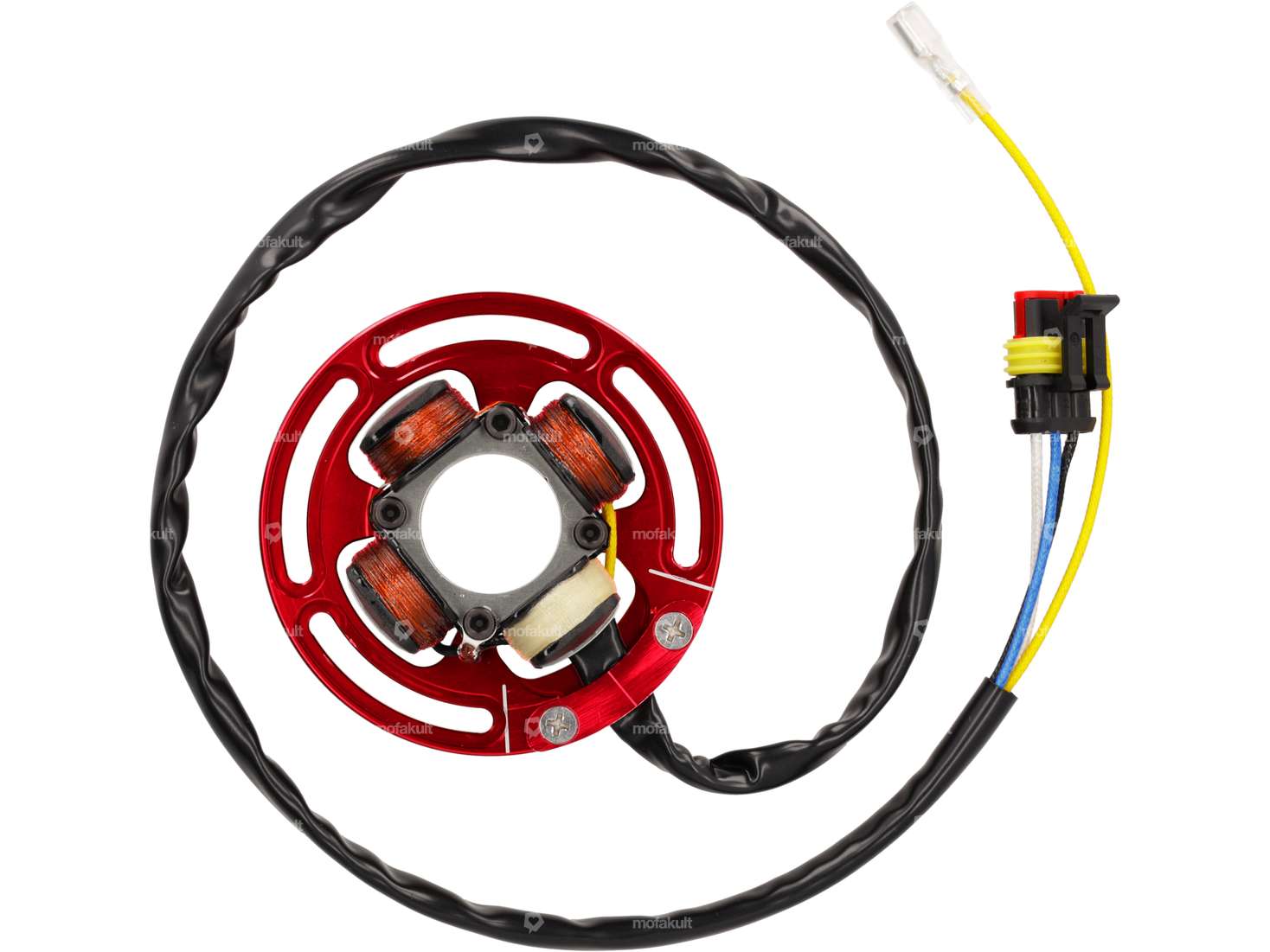

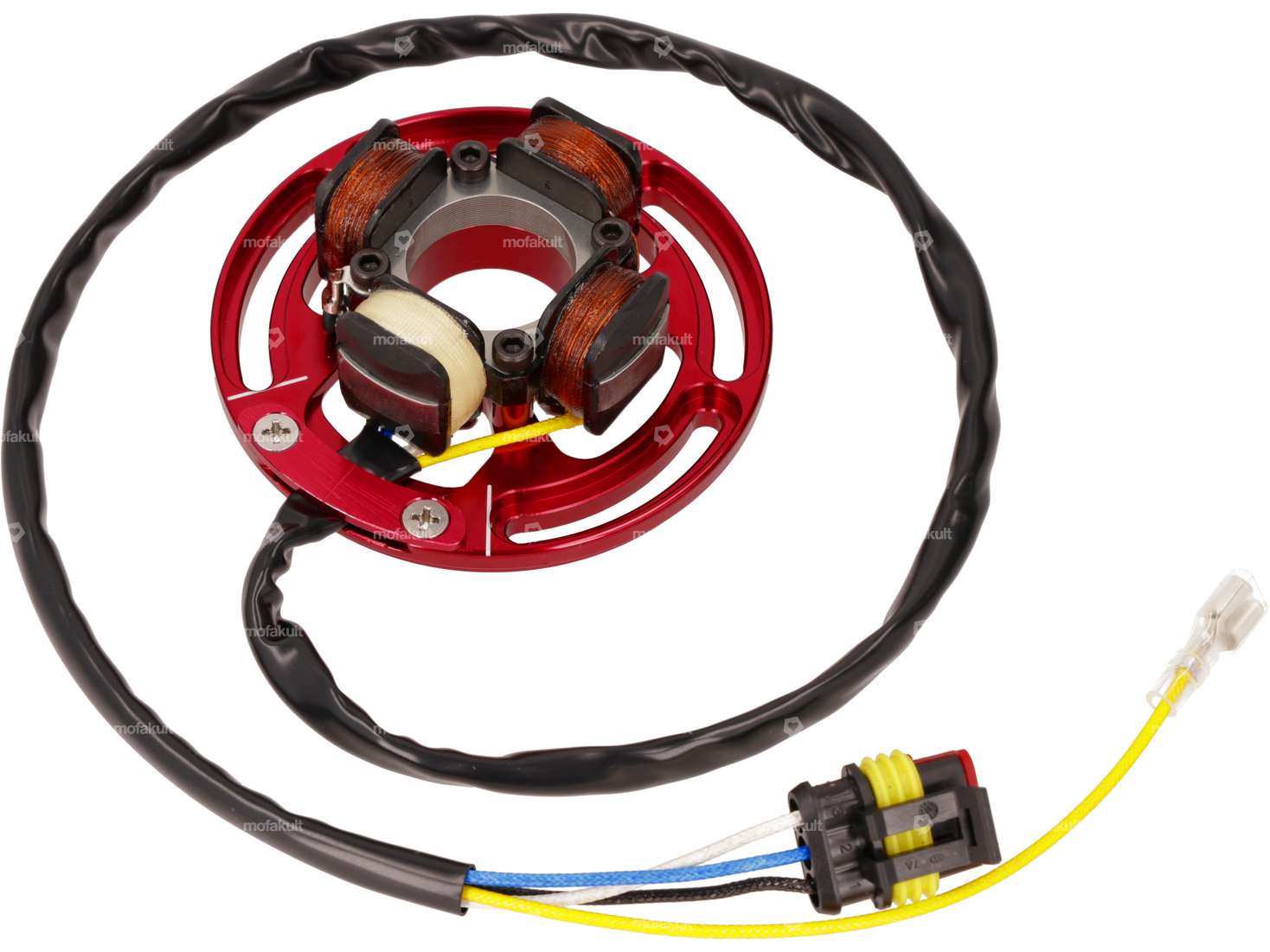

Complete ignition plate suitable for the swiing® ingenious EVO ignition on your moped, moped and small motorcycle.
The base plate is made of red anodized aluminium and has extra long mounting slots to allow the stator to be adjusted as flexibly as possible.
Ø outer: 94 mm
Ø mounting: 90 mm
Ø bolt circle: 80 mm
Ø inner: 28 mm
Height: 34 mm
Plug: Superseal
Cable length: 620 / 700 mm
Correct pinning of the Superseal plug:
1 = black
2 = blue
3 = white
Attention: The swiing® ingenious EVO connectors are not compatible with HPI components.
Matching flywheels, plugs and the complete wiring can be found in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Surface | anodized |
| Tension | 12 V |
| Performance | 60 W |
| Ø outside | 94 mm, 90 mm |
| Color | red |
| Ø bolt circle | 80 mm |
| Number of cables | 4 pcs |
| Cable length | 620 mm, 700 mm |
| Number of fixing points | 4 pcs |
| Ø inside | 28 mm |
| Area of application | Tuning |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) 503 - AAL , ABL , 2AL / 2BL , AB , AC , ADV 505 (with pedal shaft) - 1A (AT) , 2A (HG) 535 |
| Zündapp Belmondo | |
| Kreidler | Flory MF / MP |
| Zündapp | 247 Motor |
