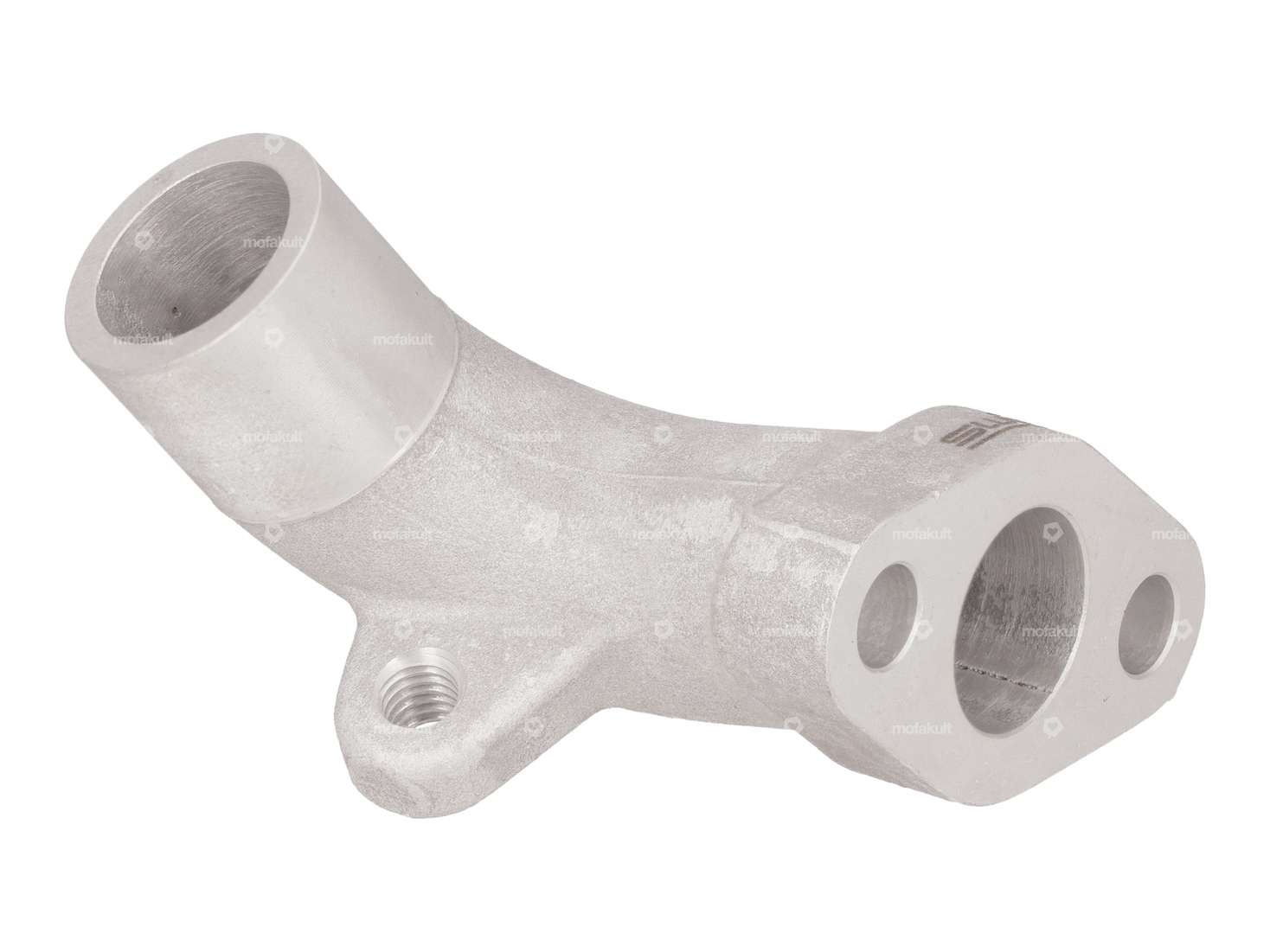

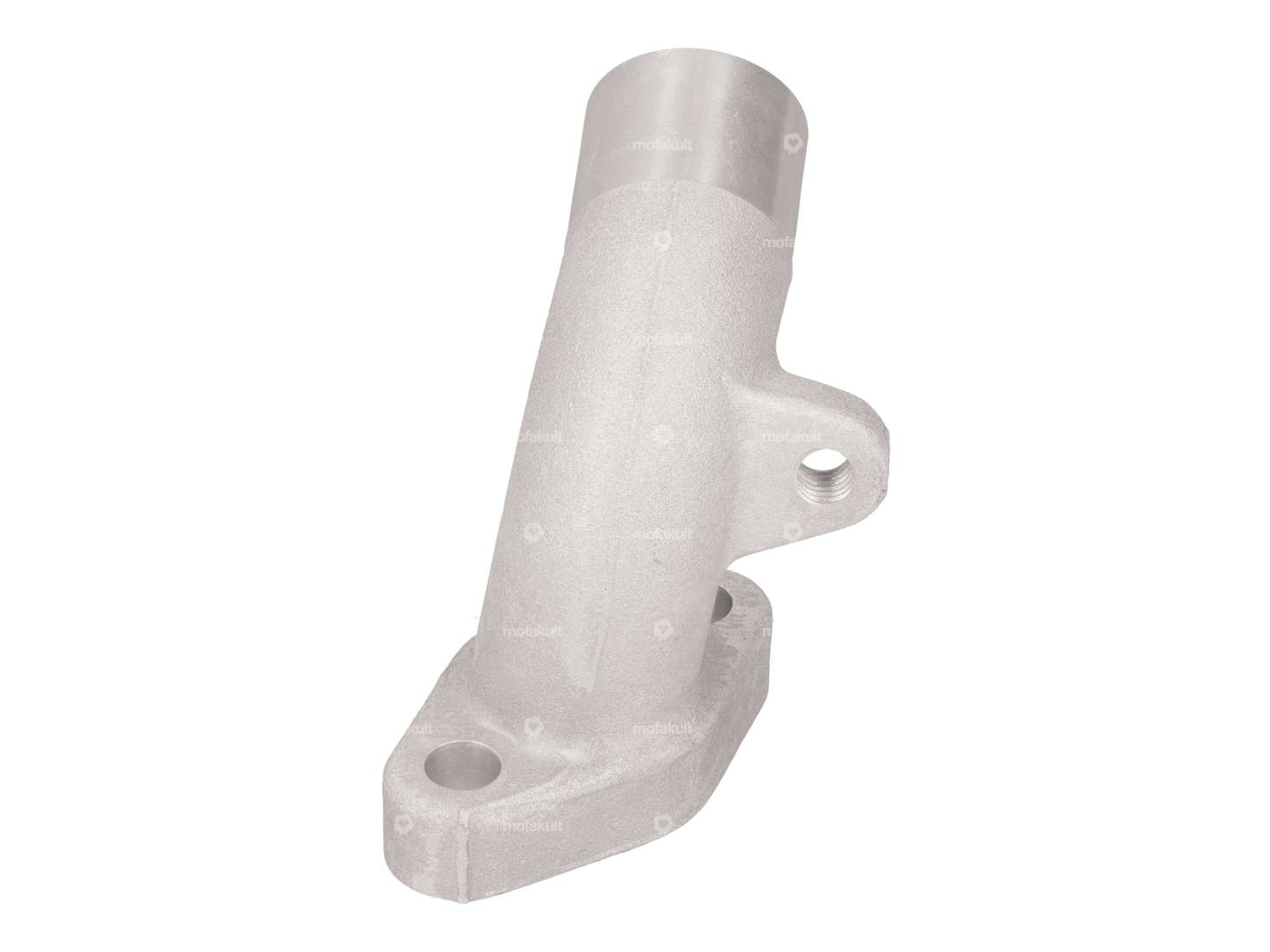

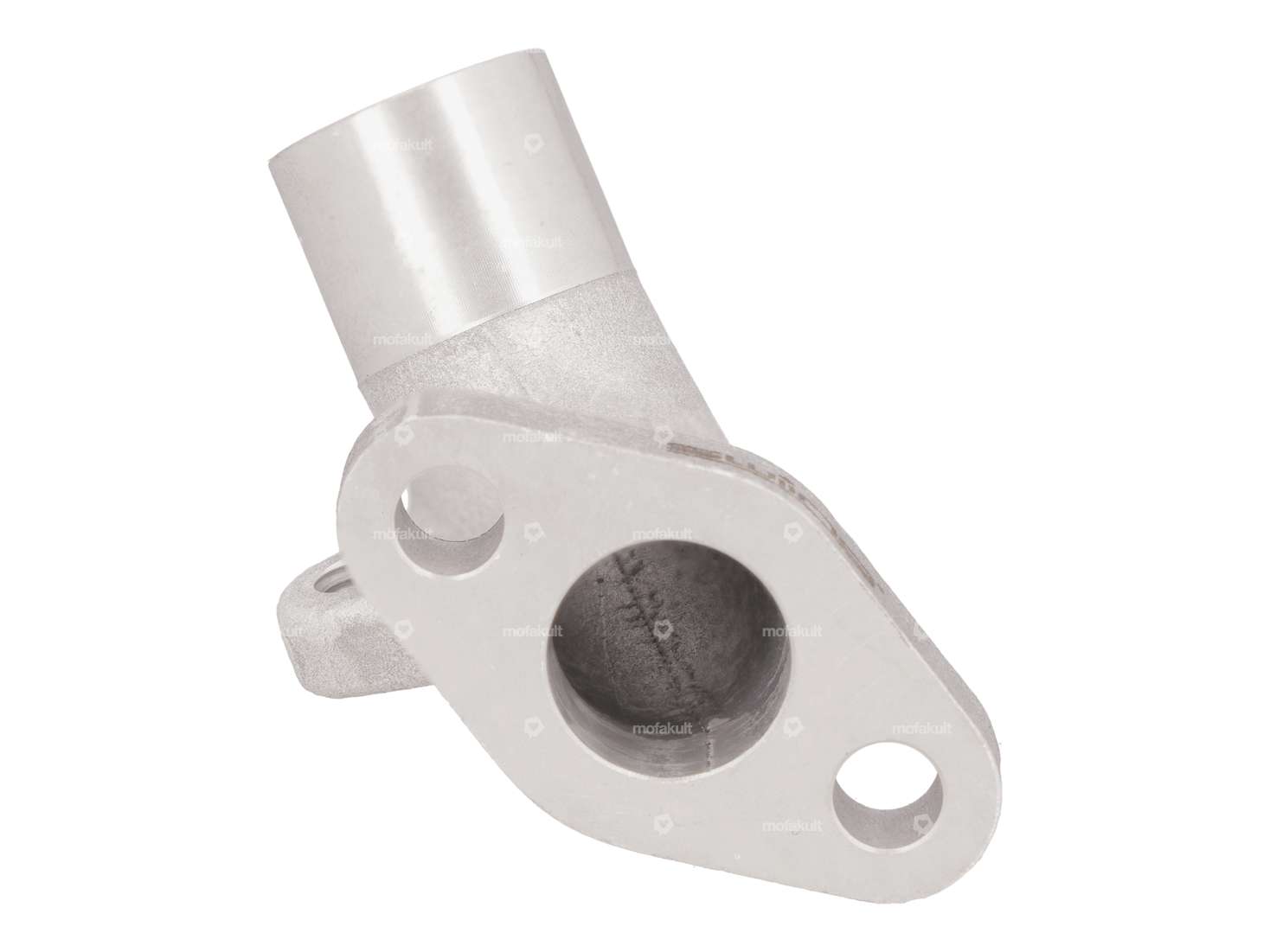

Short (50 mm) intake manifold with 17 mm diameter for mopeds / mopeds with manual Sachs 503 2AL or 2BL engine. The intake manifold also fits some AAL and ABL automatic engines, depending on where the mounting bracket for the side guard is positioned on the frame.
This tuning spigot with a connection diameter of 23 mm makes it possible to get the full performance potential out of the swiing® SRF 17 mm carburetor.

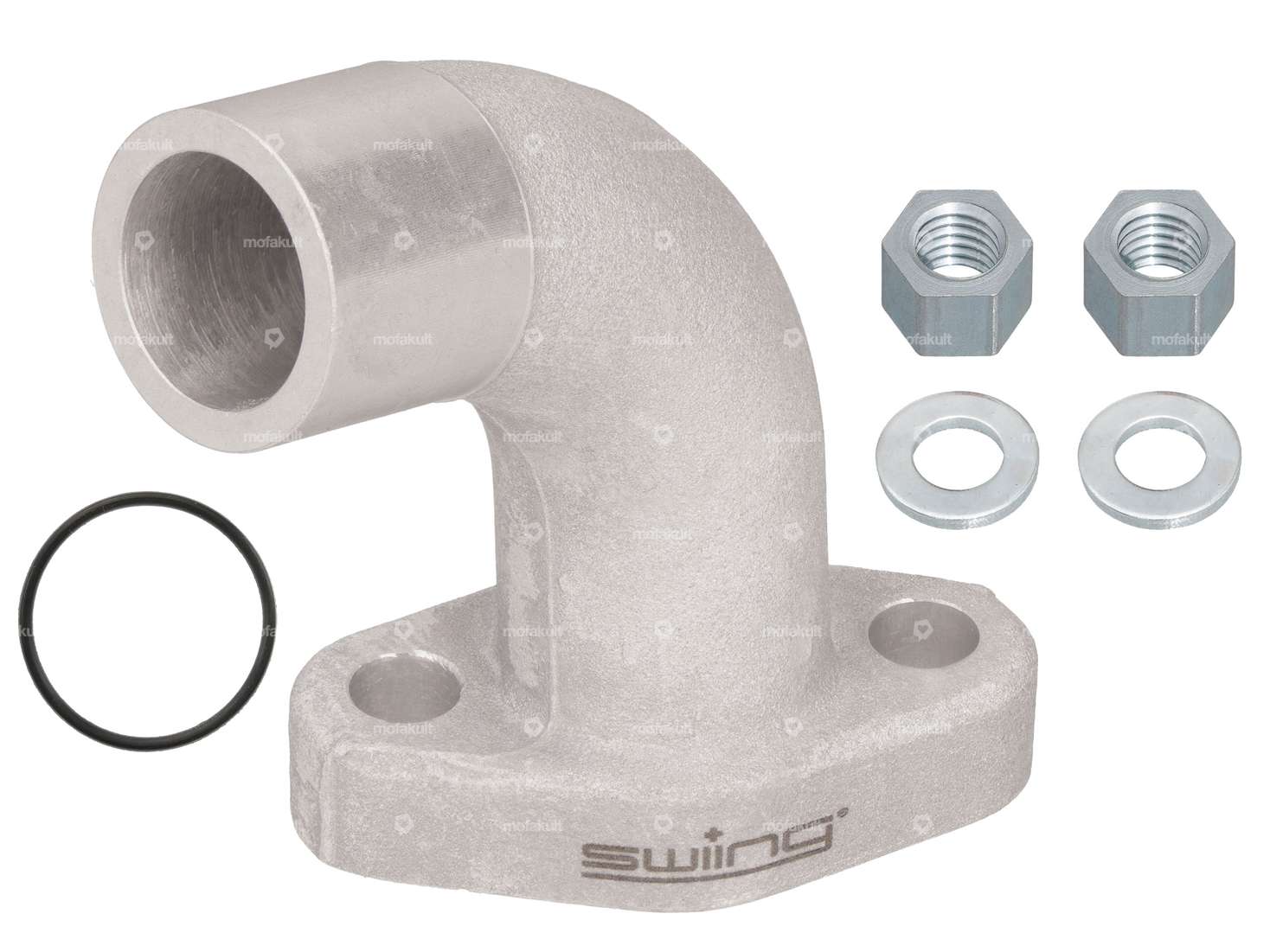

For easier installation, M6 nuts with reduced key width and matching washers are already included in the scope of delivery. An O-ring is also included to ensure a reliable seal between the carburettor and the connecting piece.
| Ø inside | 17 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Area of application | Tuning, Racing |
| Thread type | M6x1 (standard thread) |
| Total length | 50 mm |
| Ø External connection | 23 mm |
| Hole spacing inlet | 32 mm |
| Number of fixing points | 2 pcs |
| Alternative version of the Pony OEM number | A2177 |
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
