logo_swiing ingenious parts

For: Sachs

28602

swiing® ingenious piston 38 mm | Sachs 50/2

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 70.60

Incl. 23% VAT.

Description

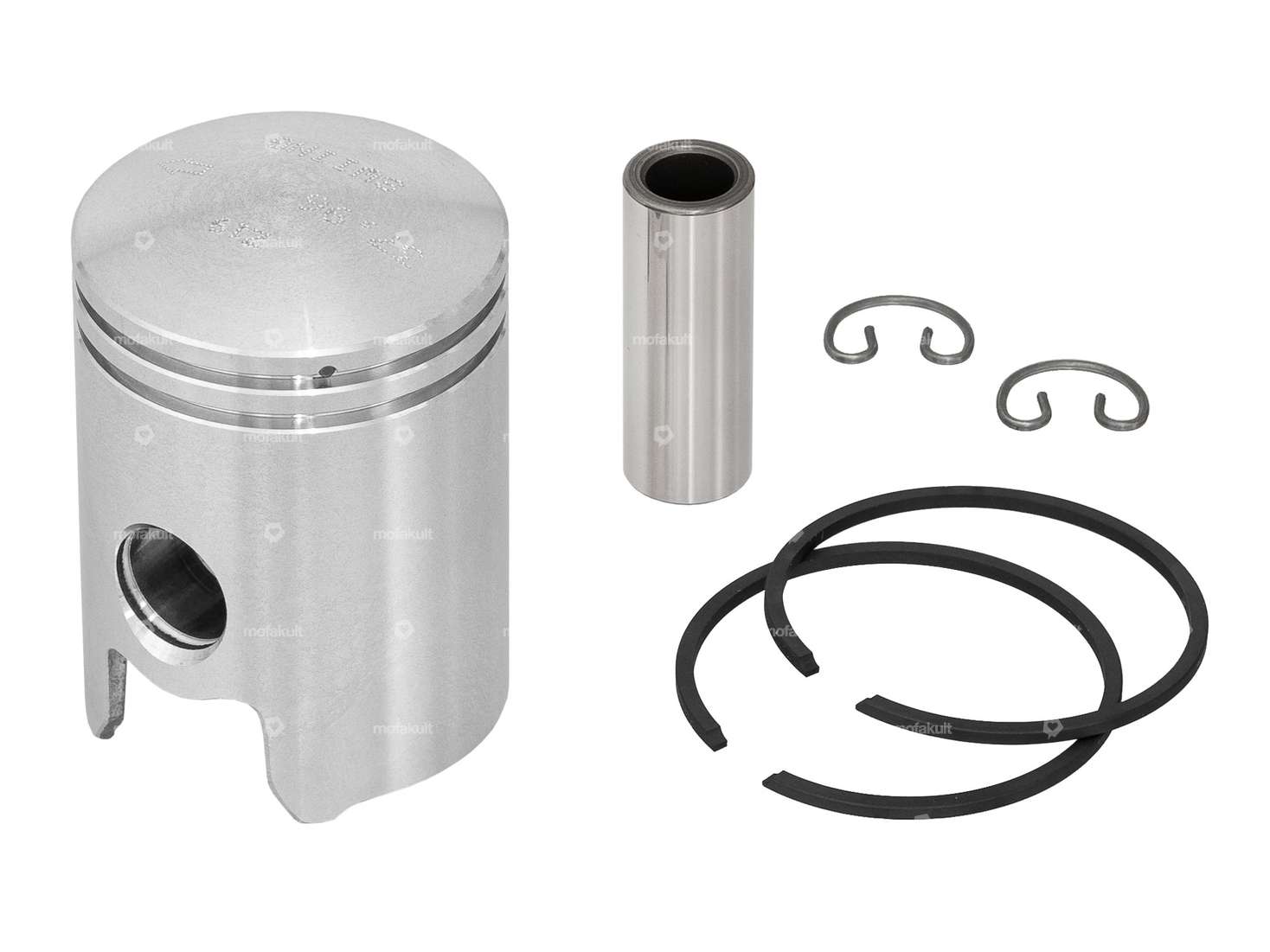

38.0 mm tuning piston with two 1.5 mm rectangular piston rings with flank lock (FS) for blown swiing tuning cylinders made of aluminum suitable for mopeds / mopeds with Sachs 502, 50/2, 50/3 and 50/4 engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter38 mm
Manufacturerswiing® ingenious parts
Ø outside piston (A)37.96 mm
Ø piston pin (B)12 mm
Compression height (C)28 mm
Curvature (D)3.4 mm
Total piston height (E)54 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Weight piston kit81 g
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

502 (Saxonette) - AL , AML

50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

50/3

50/4 - MLFB (2.6 PS) , LKH (4.5 PS)

50/5

503 - AAL , ABL , 2AL / 2BL
