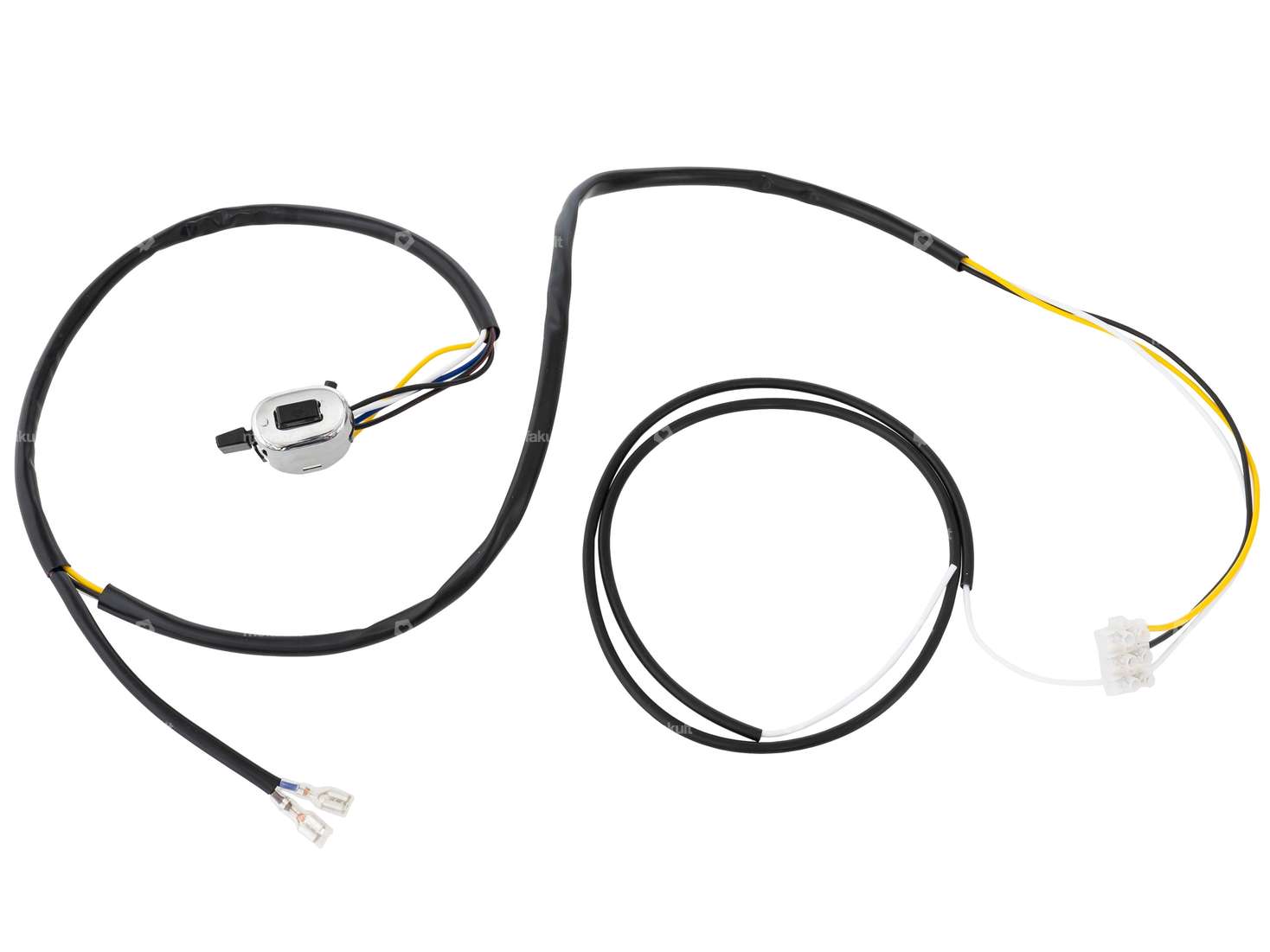

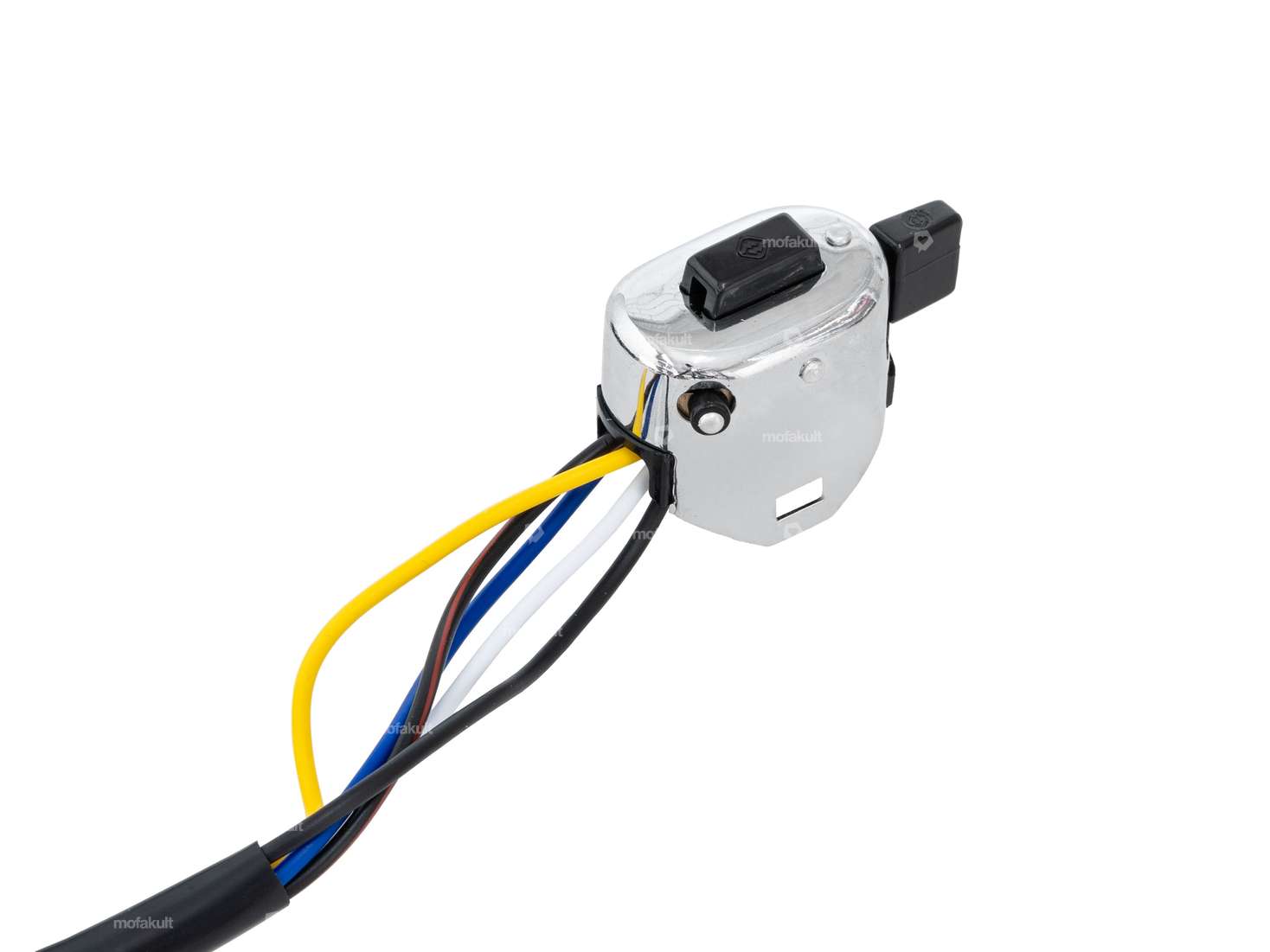

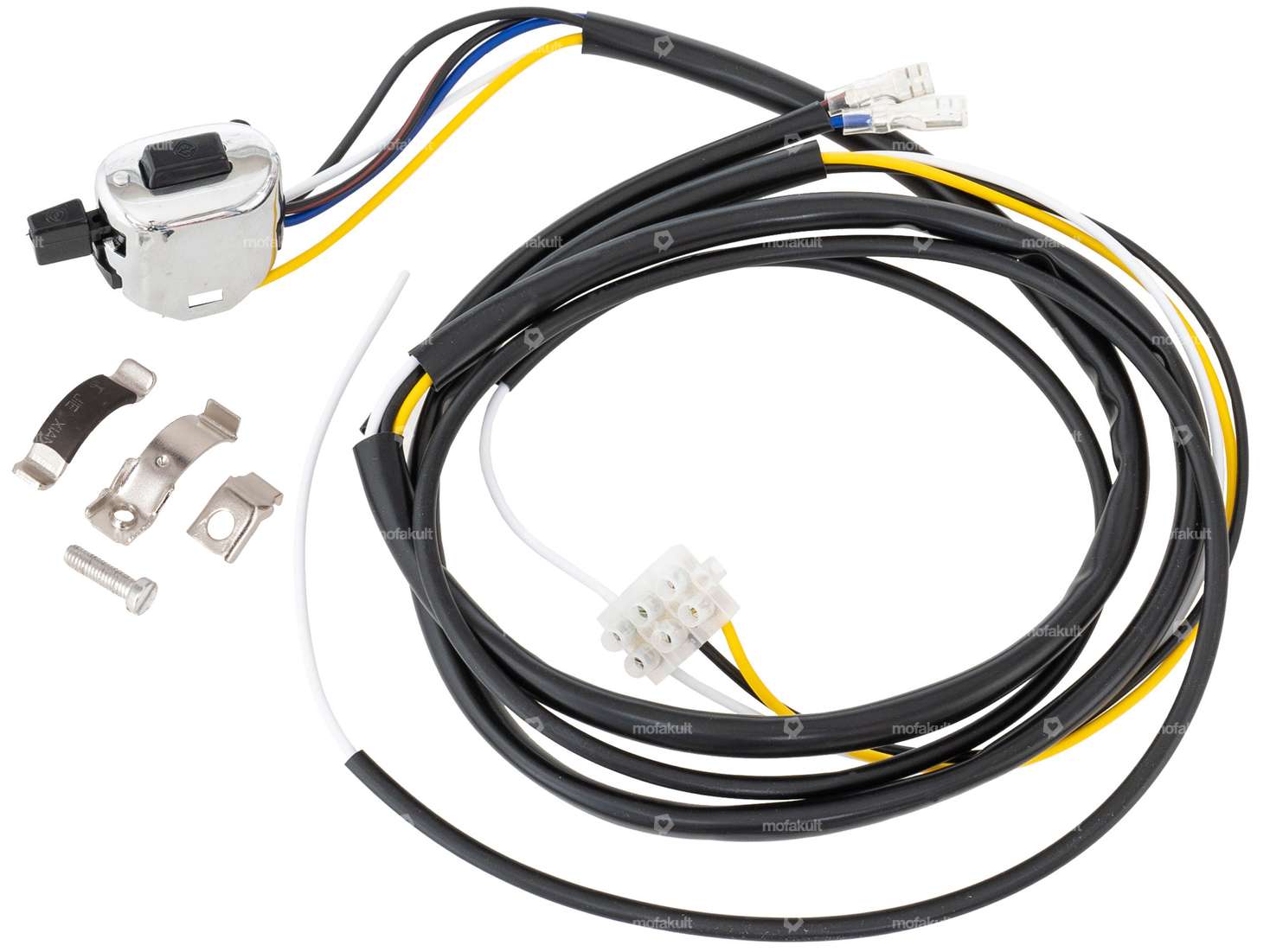

Complete wiring harness with connected MERIT light switch for your moped, moped and small motorcycle.
This wiring harness, equipped with all cable clamps and wire terminals, is a 1 to 1 replica of an original wiring harness.
The extra-long cables extend from the fork to the switch.
No adjustments are required during installation.
Cable lengths:
Cable fork to switch = 62 cm
Cable fork to lamp = 20 cm
Cable fork to end for motor = 90 cm
Length of backlight cable = 100 cm
Note: We recommend checking all stud screws in the switch and on the terminal and tightening them if necessary before installation.
The cable for the horn is not included in the scope of delivery.
| Cable cross-section | 1.5 mm² |
| Manufacturer | swiing® revival parts |
| Number of cables | 5 pcs |
| Cable bifurcation to motor | 950 mm |
| Cable bifurcation to lamp | 240 mm |
| Ø Receptacle | 22 mm |
| Area of application | Standard |
| Cable bifurcation to switch | 600 mm |
| Tail light cable length | 1000 mm |
| Switch included | Yes |
| Luster terminal | Yes |
| Universal |
| Puch |
| Sachs |
| Zündapp Belmondo |
