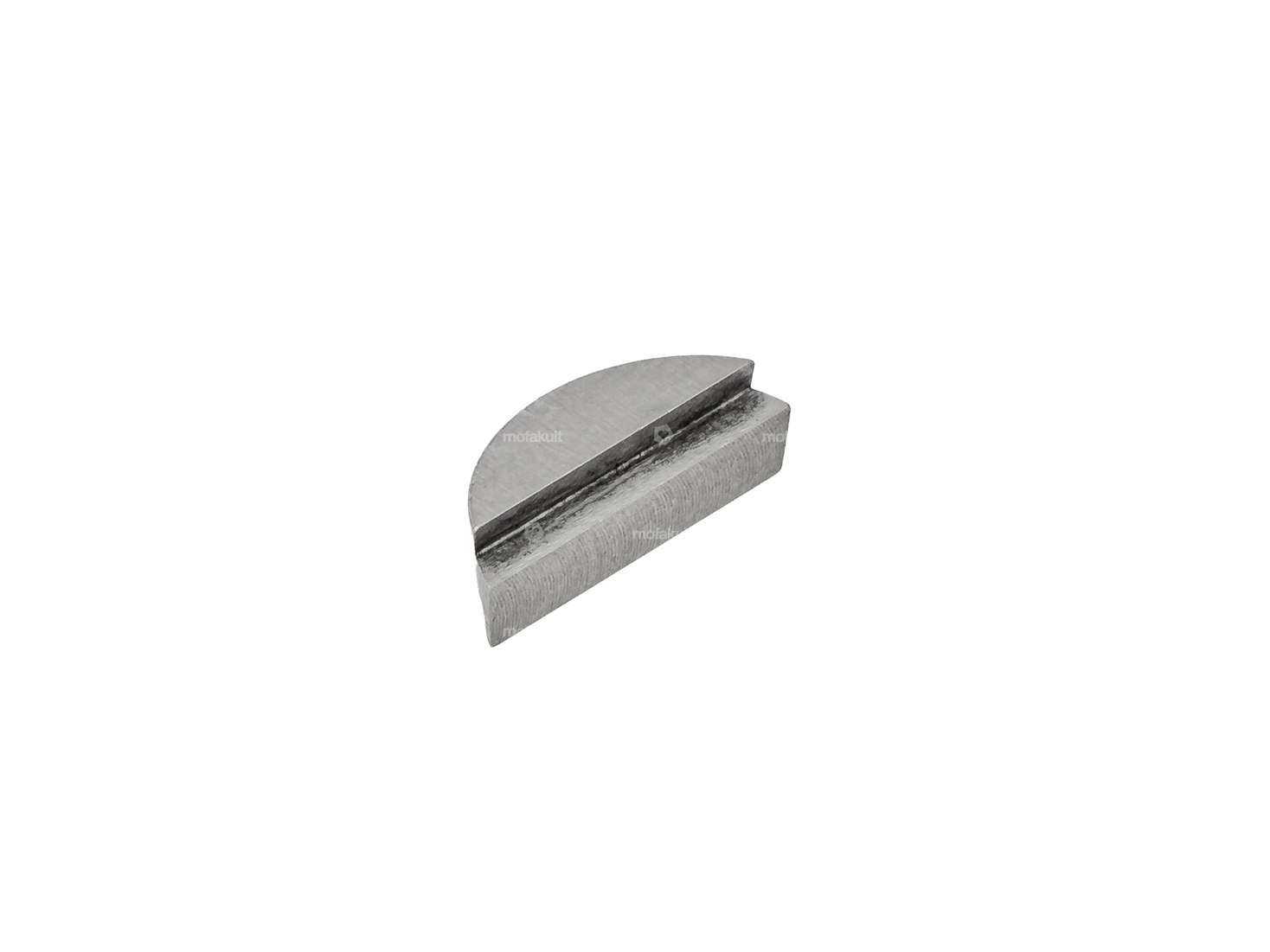

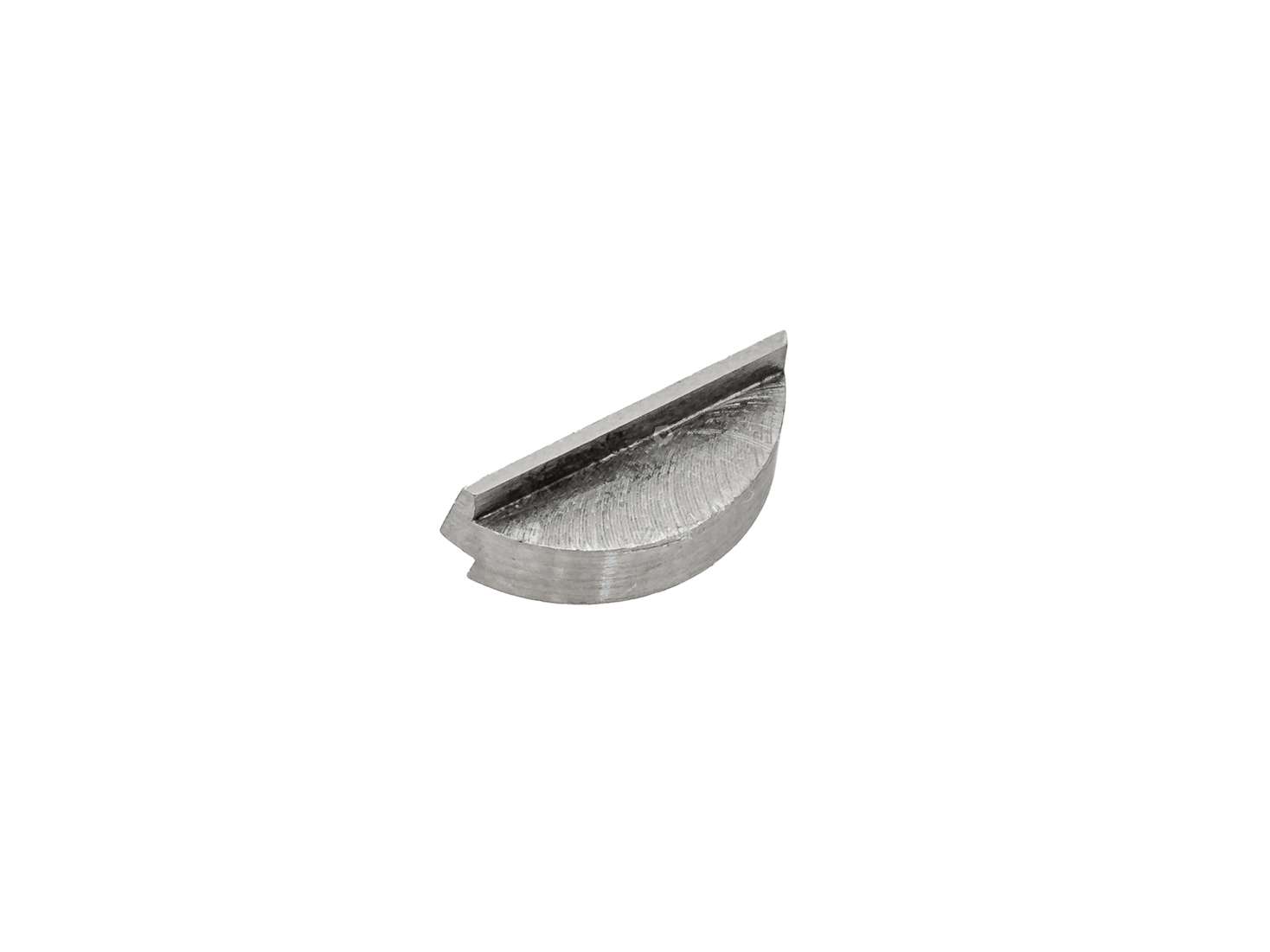

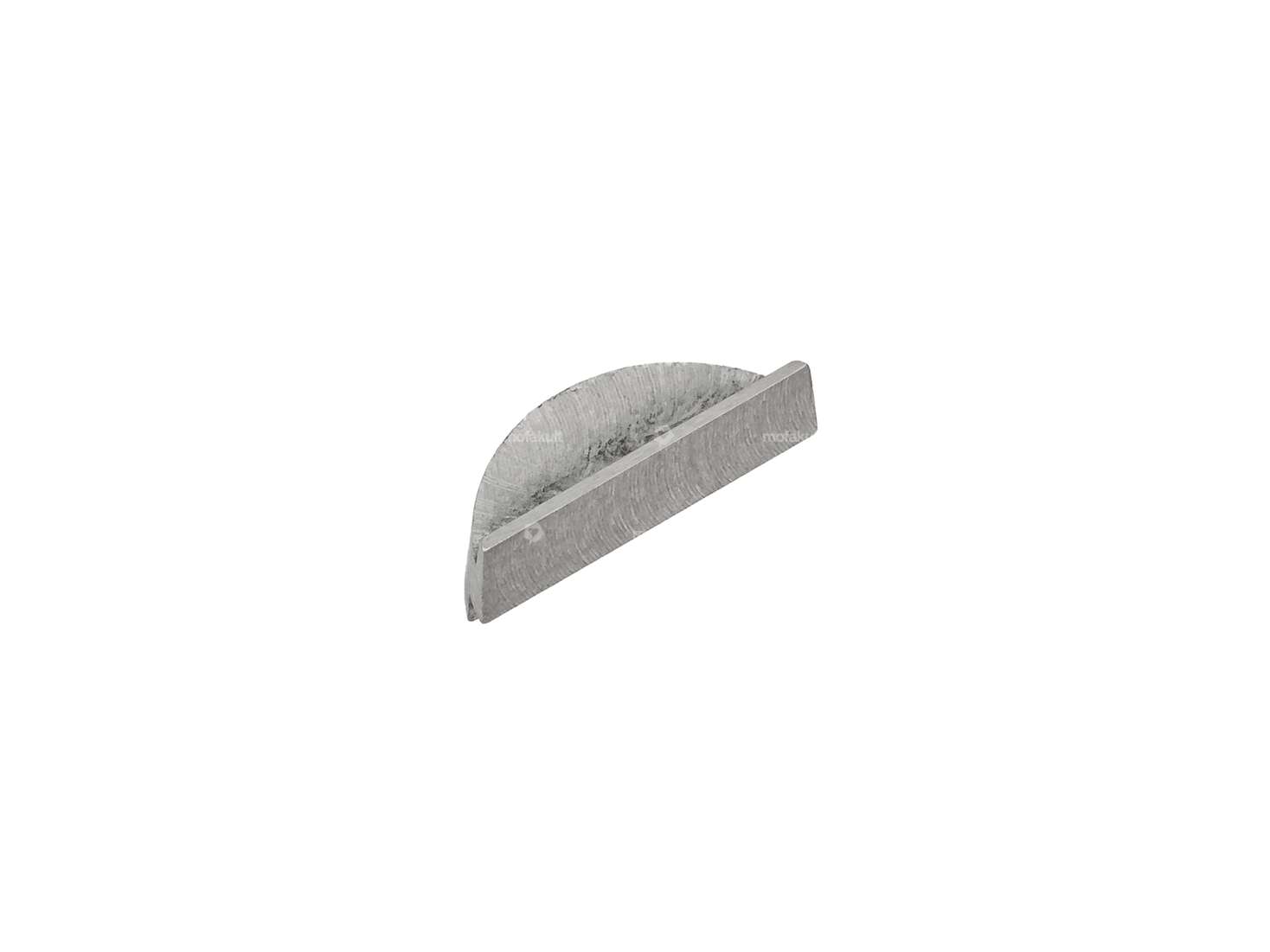

Wedge offset (1.4 mm) flywheel | Piaggio Ciao, SI, Bravo, Boxer

swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer

Width across flats (trigger): 10 mm · Width across flats (trigger): 17 mm · Width across flats Screw: 19 mm · Manufacturer: swiing® ingenious parts · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread) · Diameter: 12 mm · Diameter: 24 mm · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened · Surface: galvanized (blue) · Number of components: 2 pcs · Total length: 100 mm

NGK BR8HIX Spark plug short thread suppressed Iridium

Manufacturer: NGK · Thread type: MF14x1.25 (fine pitch thread) · Candle designation: BR8HIX · Area of application: High End · Area of application: MX · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Width across flats SW: 21 mm · Electrode material: Iridium · Suppressed: Yes

Spring washer flywheel | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Special spring · Ø inside: 14.7 mm · Ø outside: 20.5 mm · Manufacturer: Made in Italy · Material: Spring steel · Area of application: Standard · Surface: blank · Material thickness: 0.2 mm

Flywheel rubber small up to 1975 | Piaggio Ciao, Bravo, Boxer

Width: 23 mm · Manufacturer: Made in Italy · Material: Rubber · Color: black · Total length: 42 mm · Piaggio OEM number: 102931

Malossi racing ignition 12V | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Area of application: High End · Area of application: Performance · Area of application: Racing · Material: Steel · Area of application: Tuning · Ø cable: 7 mm · Light coil voltage: 12 V · Direction of rotation: right · Ø Internal flywheel: 80.5 mm · Mounting type: Screws · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 139.5 mm · Number of fixing points: 2 pcs · Performance: 90 W · Weight: 804 g · Weight: 890 g

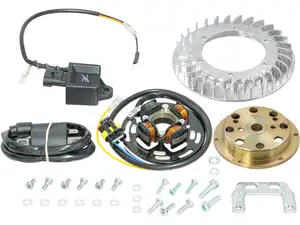

HPI racing ignition 12V with light breaker housing | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: HPI · Area of application: Tuning · Ø cable: 7 mm · Light coil voltage: 12 V · Direction of rotation: right · Ø mounting plate: 90 mm · Ø Internal flywheel: 61.5 mm · Mounting type: Screws · Ø Flywheel outside: 140 mm · Number of fixing points: 4 pcs · Performance: 60 W

HPI racing ignition 12V without light | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: HPI · Area of application: Tuning · Ø cable: 7 mm · Direction of rotation: left · Direction of rotation: right

Wedge flywheel / torque converter bell Vario | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Width: 3 mm · Total length: 12.1 mm · Height: 4.9 mm

Pinasco flywheel "Flytech" Carbon | Piaggio Ciao, SI, Bravo, Boxer

Height: 38.7 mm · Manufacturer: Pinasco · Thread type: MF16x1 (fine pitch thread) · Material: Aluminum · Material: Carbon · Surface: varnished · Direction of rotation: right · Ø cone small inside: 12.4 mm · Ø Internal flywheel: 106 mm · Ø cone large inside: 14.5 mm · Ø Flywheel outside: 135 mm · Cone length: 12.5 mm · Cone ratio: 1:5 · Weight: 650 g · Thread length: 7.5 mm

Wedge offset (1 mm) flywheel | Piaggio Ciao, SI, Bravo, Boxer

Width: 3 mm · Height: 4.9 mm · Offset: 1 mm · Material: Steel · Total length: 12.4 mm

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Color: silver · Resistance: 1000 Ω · Component group Carburetor: Spark plug connector · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Area of application: Original · Area of application: Standard · Material: Steel · Ø axle: 5 mm · Cable available: No · Number of fixing points: 1 pcs · Ø mounting hole: 4.5 mm · Piaggio OEM number: 103133

Spring washer flywheel | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Special spring · Ø inside: 14.7 mm · Ø outside: 20.5 mm · Manufacturer: Made in Italy · Material: Spring steel · Area of application: Standard · Surface: blank · Material thickness: 0.2 mm

CIF intermediate disk flywheel / clutch bell | Piaggio Ciao, SI, Bravo Boxer

Ø inside: 12 mm · Ø outside: 23 mm · Manufacturer: CIF · Material: Steel · Surface: galvanized (blue) · Nominal diameter inside: 12 mm · Ø Bundle: 16.3 mm · Total length: 5 mm

Wedge 12.1x4.9x3 mm

Width: 3 mm · Height: 4.9 mm · Material: Steel · Total length: 12.5 mm

Flywheel breaker ignition incl. coils | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Quenching · Material: Aluminum · Area of application: Standard · Material: Steel · Direction of rotation: right · Ø Internal flywheel: 92 mm · Tension: 6 V · Ø Flywheel outside: 141 mm · Weight: 1300 g

Wedge flywheel / torque converter bell Vario | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Width: 3 mm · Total length: 12.1 mm · Height: 4.9 mm

swiing® revival clamping screw rear brake | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Thread type: M7x1 (standard thread) · Material: Steel · Surface: galvanized (blue) · Number of components: 3 pcs · Width across flats SW: 11 mm · Width across flats SW: 14 mm · Ø Cable bushing: 2.1 mm · Drive: External hexagon · Screw head: Hexagon · Ø shaft: 10.5 mm · Total length: 21.5 mm · Thread length: 11 mm · Alternative version of the Piaggio OEM number: 154533

Olympia clamp cylinder cover | Piaggio Ciao, SI, Bravo, Boxer

Width: 16.25 mm · Height: 24 mm · Manufacturer: Olympia · Material: Spring steel · Surface: burnished · Color: black · Number of fixing points: 1 pcs · Total length: 23.9 mm · Piaggio OEM number: 008455 · Piaggio OEM number: 013963 · Piaggio OEM number: 139122

Wedge offset (1 mm) flywheel | Piaggio Ciao, SI, Bravo, Boxer

Width: 3 mm · Height: 4.9 mm · Offset: 1 mm · Material: Steel · Total length: 12.4 mm
