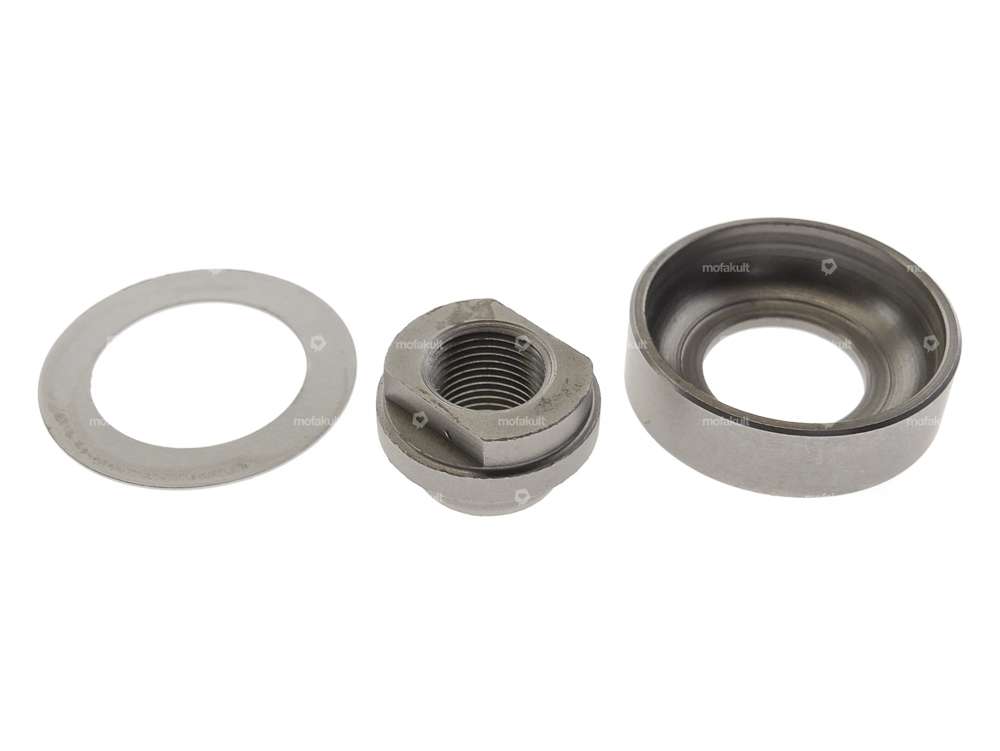

Bearing cup, cone and dust cover.
Outer diameter of cup: 34 mm
Thread: M12x1
We recommend the use of 1/4" balls (12 pcs.).
Must be ordered separately (item no. 17286).
When installed (image 4), the entire bearing is 16.7 mm high (when using the specified balls).
Details
| Ø ball | 6.35 mm |
| Bearing type | open / individual parts |
| Width | 16.7 mm |
| Thread type | MF12x1 (fine pitch thread) |
| Ø outside | 34 mm |
Suitable for the following models
| Sachs |
