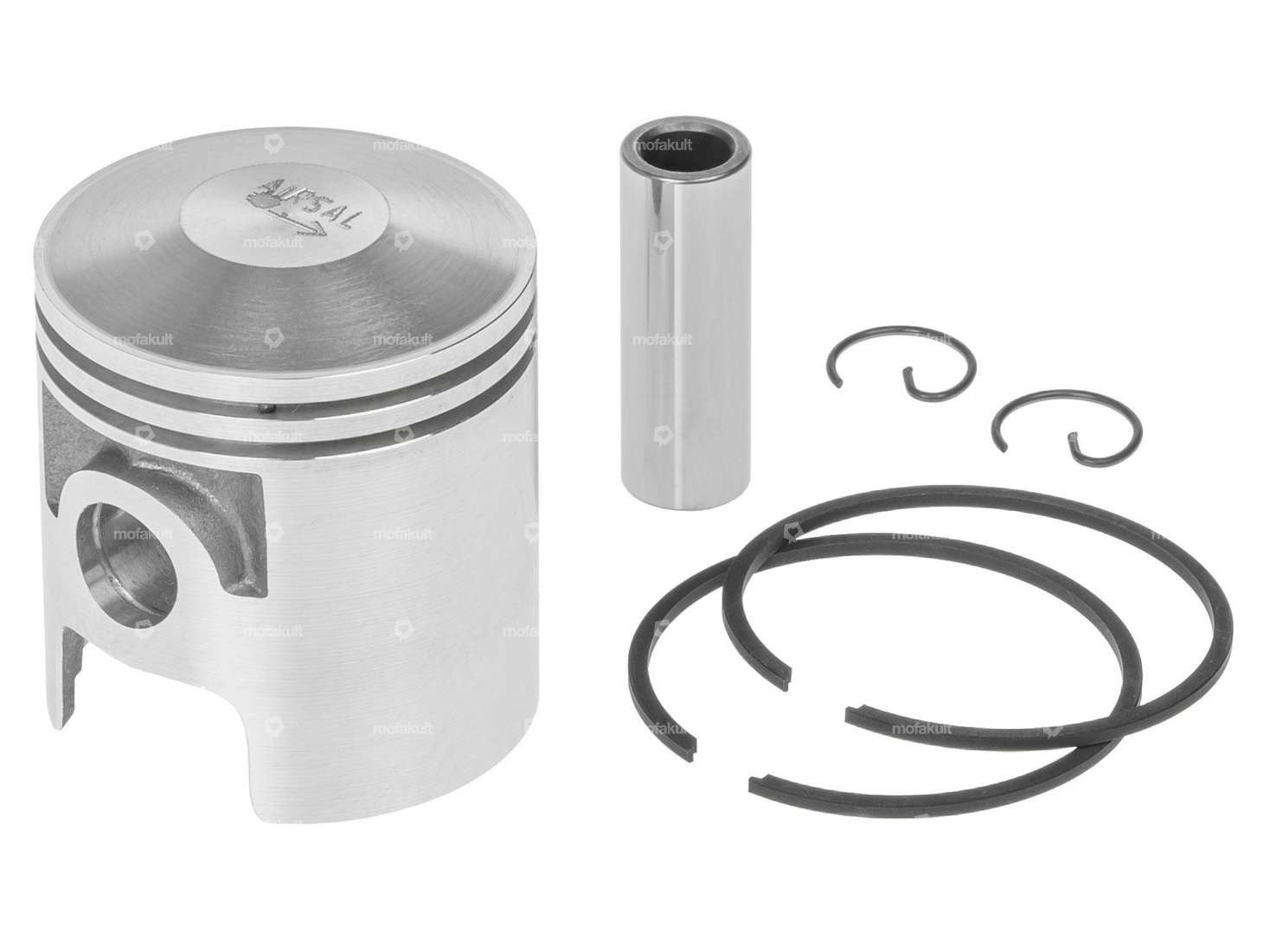

44 mm replacement piston with two 1.5 mm rectangular piston rings with internal fuse (IS) for Tomos S25/2, A38B and A35 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Nominal diameter | 44 mm |
| Manufacturer | Airsal |
| Ø outside piston (A) | 43.95 mm |
| Compression height (C) | 21.1 mm |
| Curvature (D) | 3.7 mm |
| Total piston height (E) | 49.2 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 10 mm |
| Weight piston kit | 83 g |
| Tomos |
Accessories & related products
Airsal 44 mm cylinder kit tuning 10 mm KoBo | Tomos A35
Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Displacement: 65 ccm · Nominal diameter: 44 mm · Ø cylinder neck: 47.4 mm · Ø outlet inside: 22 mm · Inlet window: 29.5 x 37.5 mm · Thread inlet: M5x0.8 (standard thread) · Ø piston pin (B): 10 mm · Number of fixing points: 4 pcs · Hole spacing outlet: 42 mm · Outlet type: slanted · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Decompressor: No · Hole spacing inlet: 31.5 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Area of application: Tuning
EUR 144.60
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Number of components: 7 pcs · Width across flats: 10 mm · Width across flats: 17 mm · Total length: 130 mm · Area of application: (Dis)assembly tool
EUR 24.00
Explore categories from Piston
Moped fans also bought
Inox
Hot
Bumm mirror round Inox
Manufacturer: Bumm · Material: Chrome steel (colloquially known as stainless steel) · Material: Steel · Color: Chrome · Surface: chrome-plated · Ø mirror surface: 107 mm · Ø mirror rod: 8 mm · Total length: 360 mm · Mirror rod length: 300 mm · Test mark: none · Clamping diameter: 22 mm · Thread type: M8x1.25 (standard thread) · Thread size: M8
EUR 33.70
Side stand black | Puch Maxi S / N, Supermaxi LG1 / LG2, X30 NS / NL / NG-2AH, P1
Manufacturer: Made in Portugal · Material: Steel · Surface: powder-coated · Adjustable: Yes · Length pivot point - floor: 220 mm · Total length: 340 mm · Color: black · Mounting type: Screwed clamp · Number of fixing points: 2 pcs
EUR 24.00
GPO piston stopper M14x1.25
Manufacturer: GPO · Area of application: Special tool · Material: Steel · Diameter: 12 mm · Diameter: 16 mm · Surface: galvanized (blue) · Width across flats: 17 mm · Thread type: MF14x1.25 (fine pitch thread) · Total length: 83 mm · Number of components: 1 pcs
EUR 11.50
EUR 10.30
Buzzetti flywheel trigger M22x1.5 / M19x1
Width across flats trigger: 22 mm · Manufacturer: Buzzetti · Material: Steel · Surface: galvanized (blue) · Thread type: MF19x1 (fine pitch thread) · Thread type: MF22x1.5 (fine pitch thread) · Width across flats Screw: 19 mm · Total length: 65 mm · Area of application: (Dis)assembly tool
EUR 20.40
Hot
swiing® revival Pedal Crank Set, Chrome | Puch
Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Thread type: FG14.3 (9/16" 20G) · Total length: 180 mm · Crank length (center-center): 156 mm · Wide intake: 28 mm · Ø Pedal wedge: 9.5 mm · Ø Pedal axle: 16 mm · Cranking (offset): 37 mm · Cranking (offset): 49 mm
EUR 90.30
NGK BR10HIX Spark plug short thread interference-suppressed Iridium
Manufacturer: NGK · Candle designation: BR10HIX · Area of application: High End · Area of application: MX · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Candle thread type: short · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: M4 · Spark plug socket: SAE · Electrode material: Iridium · Suppressed: Yes · Width across flats: 21 mm
EUR 28.30

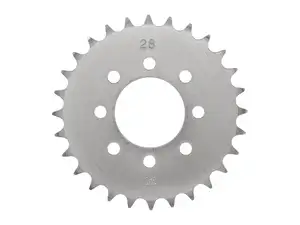

GPO sprocket 28 teeth (8 hole) galvanized | Tomos
