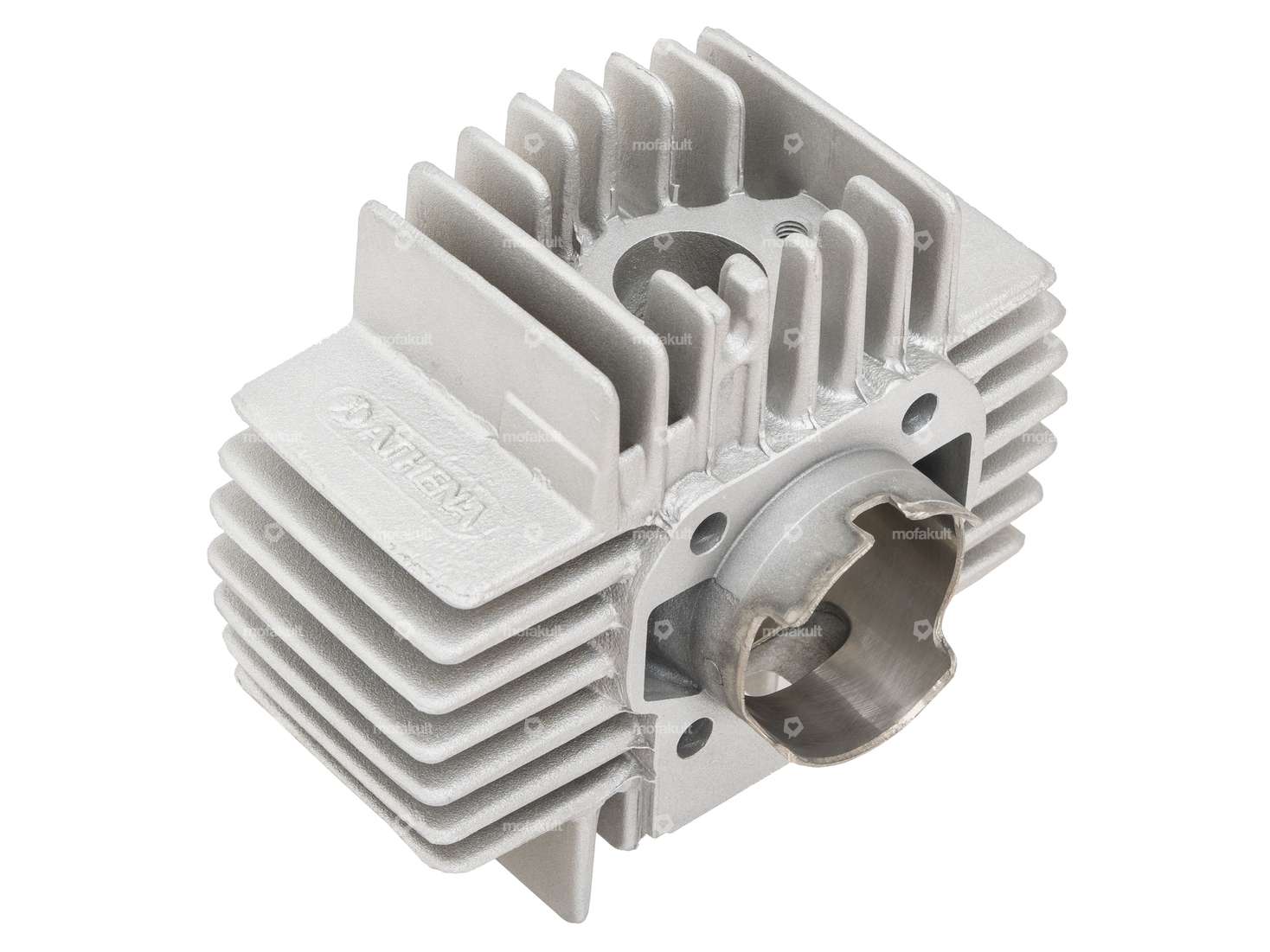

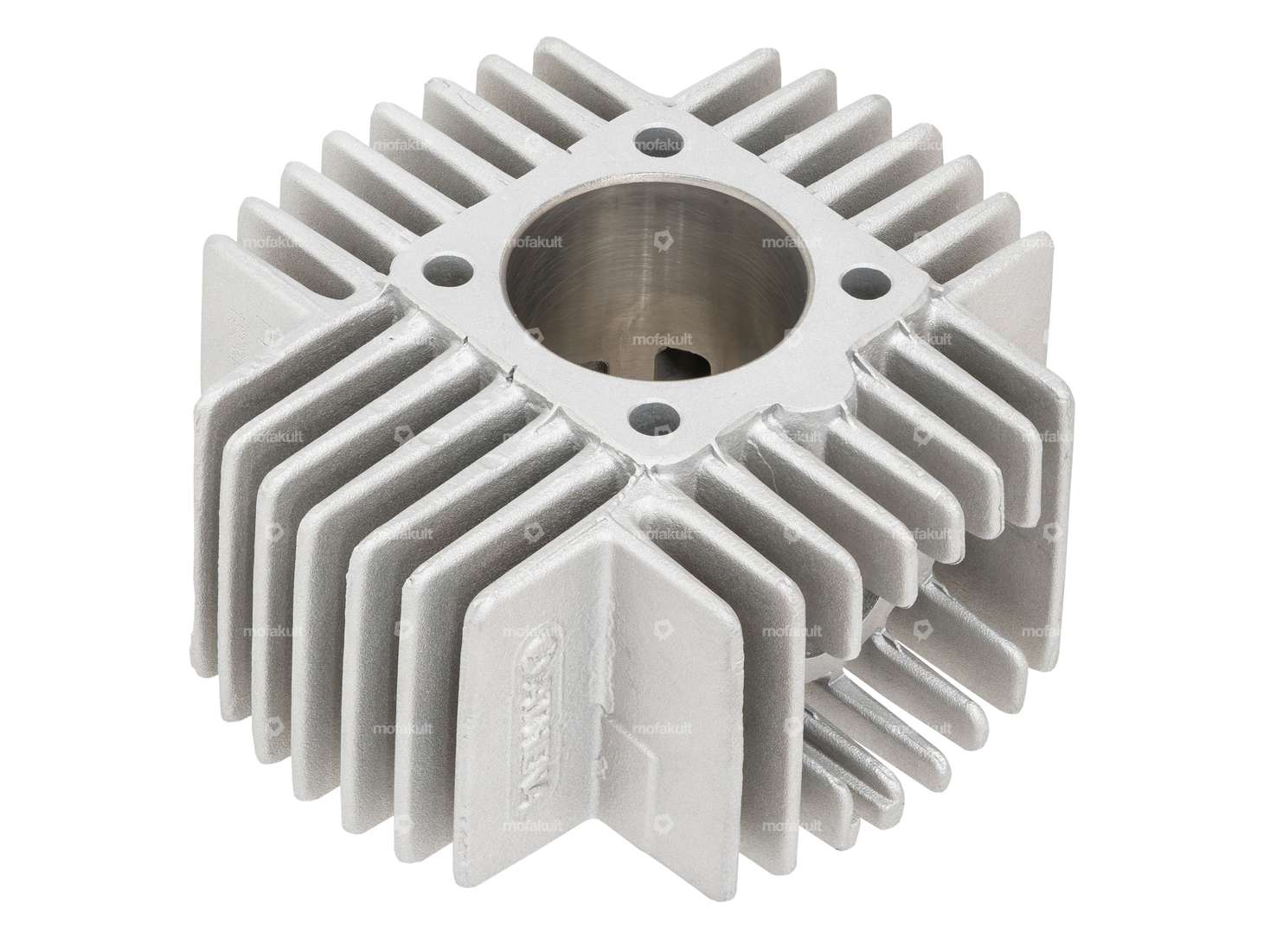

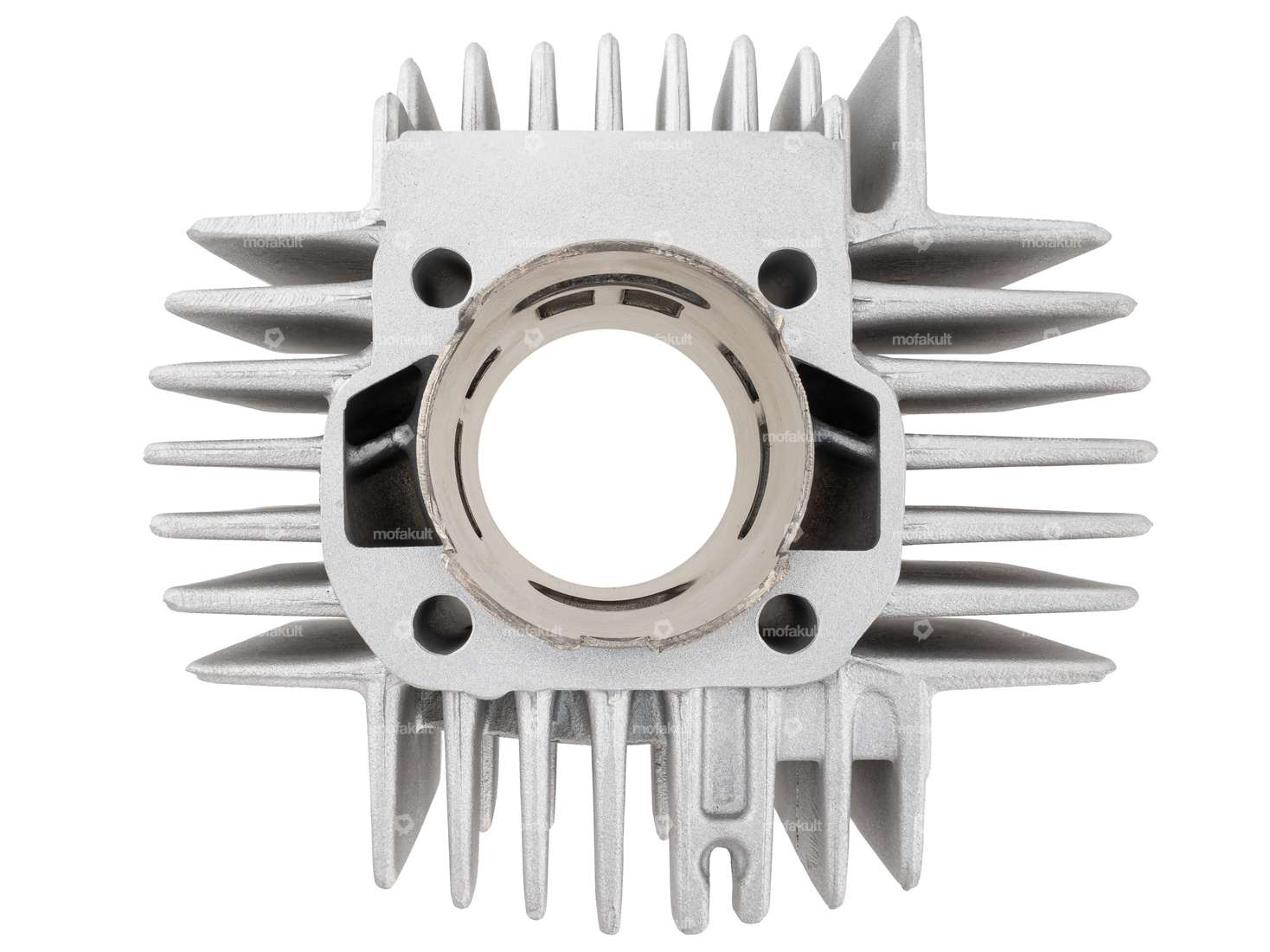

Athena 45 mm cylinder kit 70 ccm camouflaged | Puch

swiing® revival stud bolt M6 x 106 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Thread type: M6x1 (standard thread) · Surface: galvanized (blue) · Total length: 106 mm · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

Athena piston 45 mm #A | Puch

Manufacturer: Athena · Ø outside piston (A): 44.94 mm · Compression height (C): 22.4 mm · Curvature (D): 3.15 mm · Total piston height (E): 52.67 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Nominal diameter: 45 mm · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Piston weight: 98 g

Athena gasket set 45 / 47 mm slot

Manufacturer: Athena · Ø cylinder: 45 mm · Ø cylinder: 47 mm · Area of application: Tuning · Number of components: 4 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Hole spacing inlet: 38 mm

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Color: green · Area of application: Standard

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Ø inside: 12 mm · Bearing type: Needle roller and cage assembly · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Width: 14.2 mm · Alternative version of the Pony OEM number: A4222 · Alternative version of the Sachs OEM number: 0232 157 001 · Tomos OEM number: 035548

Large outlet seal with metal ring

Thickness: 2.1 mm · Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Area of application: Tuning · Reinforced: Yes · Ø outlet inside: 27 mm · Hole spacing outlet: 42.5 mm · Ø screw holder: 6.3 mm

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Ø nipple: 3 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Cable length: 2200 mm · Nipple length: 5 mm · Area of application: Standard · Number of components: 1 pcs

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Total length: 135 mm · Height: 55 mm · Number of fixing points: 4 pcs · Candle thread: short · Area of application: Tuning · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: Yes · Width: 125 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Ø Connecting rod eye: 15 mm · Thread length: 15 mm · Weight: 968 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning

swiing® ingenious air filter insert Ø 50 mm "Double Layer"

Manufacturer: swiing® ingenious parts · Material: Foam · Ø outside: 50 mm · Color: black · Color: red · Area of application: Tuning

GPO stud bolt special M6x106 mm galvanized (10.9 strength) | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Diameter: 7 mm · Total length: 106 mm · Thread length: 15 mm · Thread length: 19 mm · Strength class: 10.9 · Alternative version of the Puch OEM number: 360.1.10.034.1

swiing® ingenious 17 mm SRF carburetor tuning camouflaged | Puch Maxi, Supermaxi, X30 NS / NL

Manufacturer: swiing® ingenious parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Nominal diameter: 17 mm · Total length: 65 mm · Height: 89 mm · Height: 109 mm · Mounting type: Plug connection clamped · Ø Inside entrance: 17 mm · Ø Internal connection: 23 mm · Ø Output inside: 17.1 mm · Ø Air filter connection: 27.5 mm · Area of application: Tuning · Ø fuel hose connection: 5 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.2 · Camouflaged: Yes · Nozzle size: 74 · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m · Width: 47 mm

GPO 45 mm cylinder head Racing high-compression | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Total length: 135 mm · Ø screw holder: 7.4 mm · Candle thread: short · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Width: 125 mm · Height: 55 mm · Area of application: Tuning

swiing® ingenious intake manifold 17 mm SRF camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Total height: 53.5 mm · Ø inside: 17 mm · Total length: 38 mm · Mounting type: Stud bolts & nuts · Number of fixing points: 2 pcs · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Height flange center hole: 42 mm · Ø External connection: 23 mm · Camouflaged: Yes · Hole spacing inlet: 38 mm
