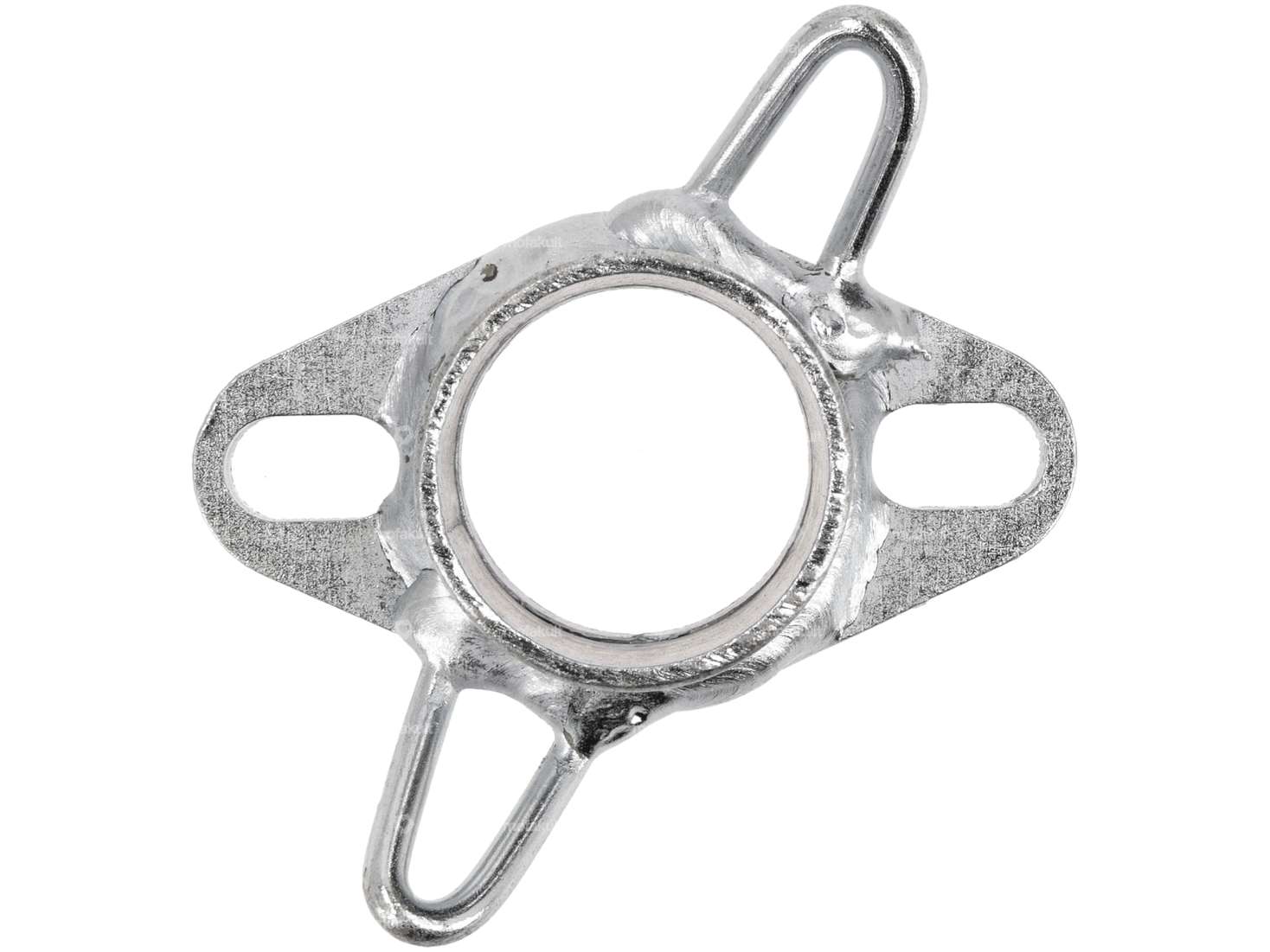

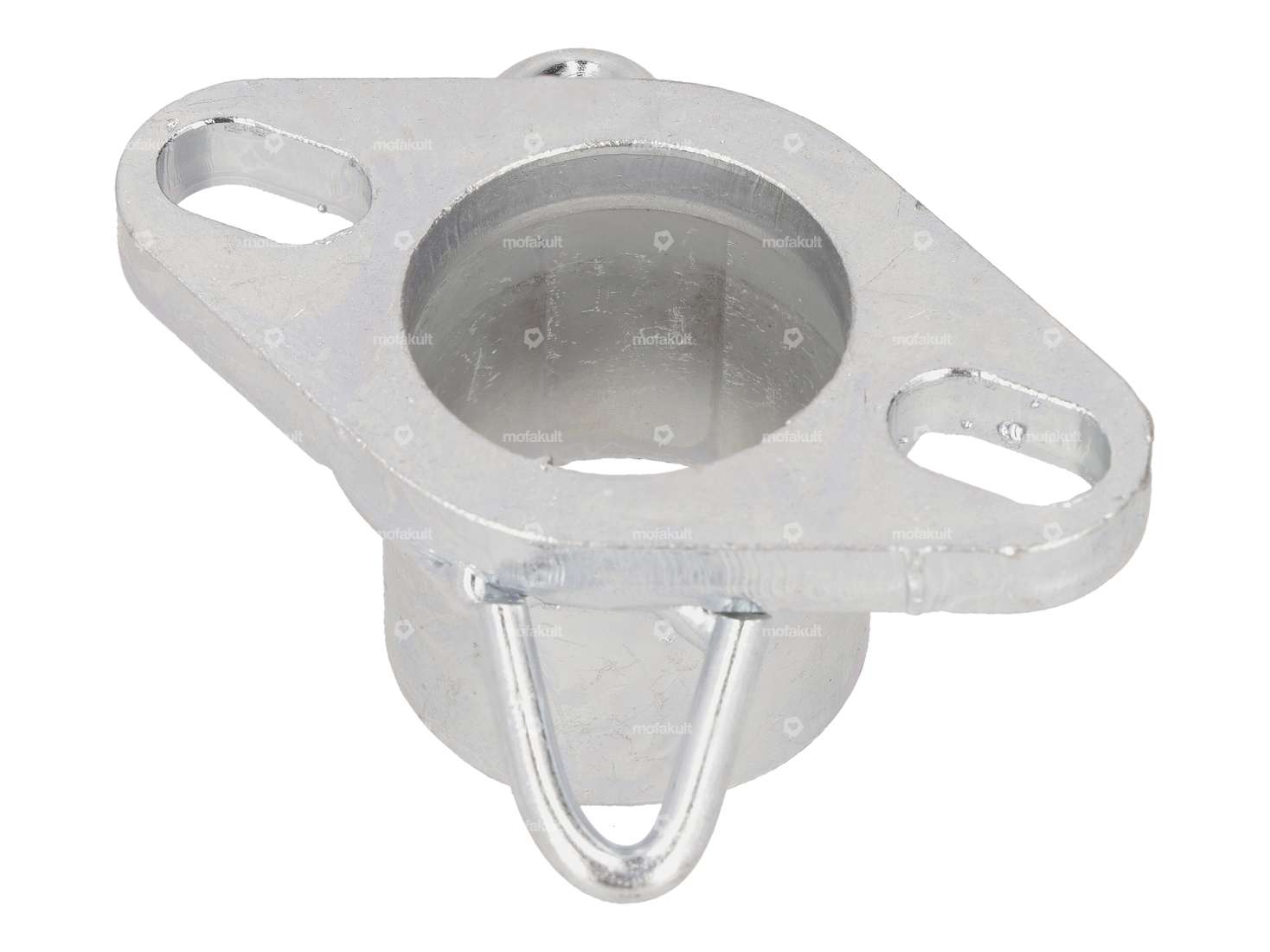

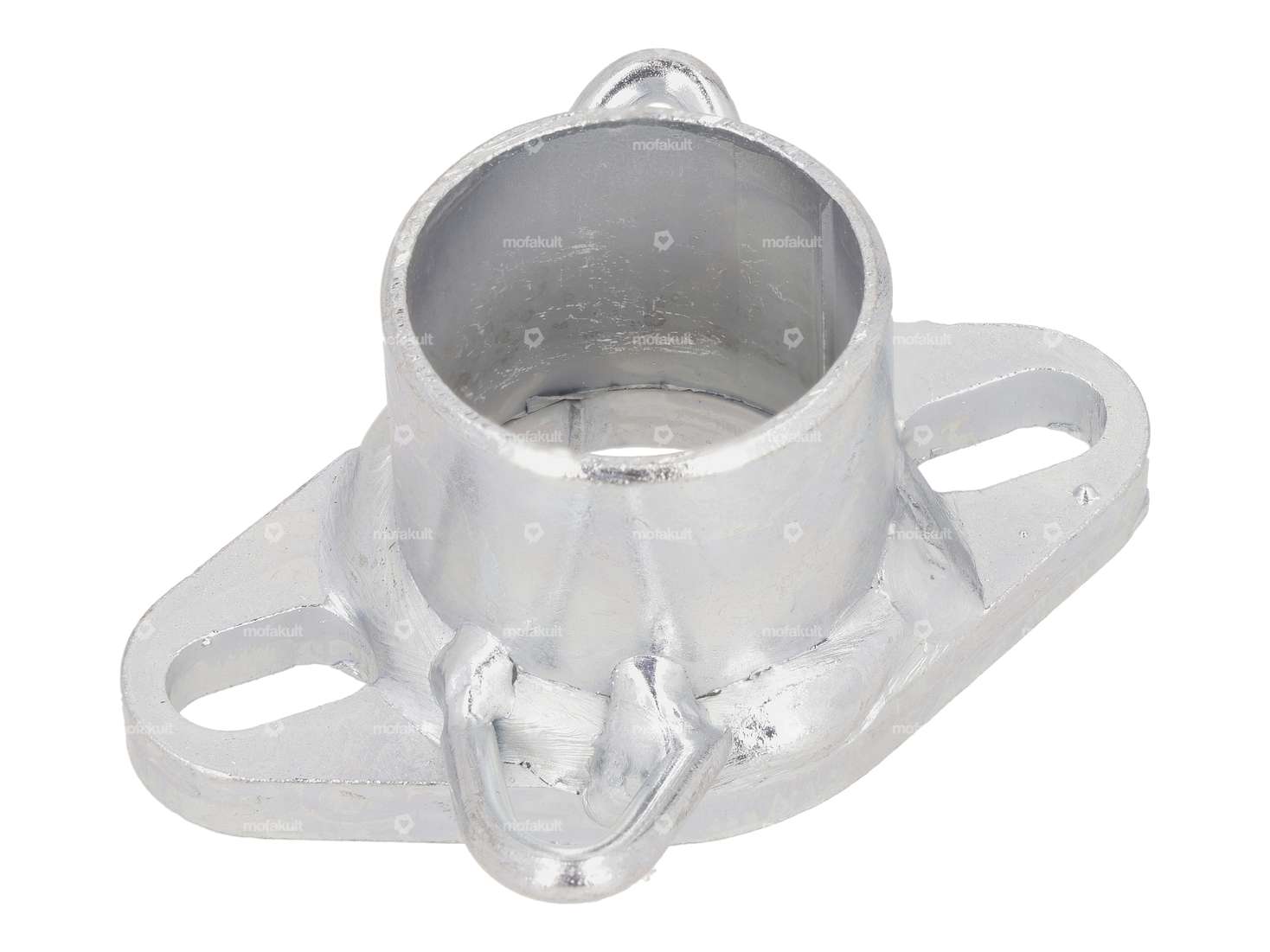

Exhaust adapter to attach a large 32 mm flame tube. The adapter has retaining tabs for springs to additionally secure the flame tube.
The matching Sachs cylinder kits from the Athena brand can be found in the accessories section.
Quality product from the Italian manufacturer Athena.
| Manufacturer | Athena |
| Hole spacing | 46 - 56 mm |
| Material | Steel |
| Surface | galvanized (blue) |
| Ø External connection | 32 mm |
| Ø mounting hole | 8.3 mm |
| Ø inside | 28.5 mm |
| Total length | 31 mm |
| Sachs | 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT) , 2A (HG) 508 - 1 A 535 |
Accessories & related products
Athena 38 mm cylinder kit without mounting parts | Sachs 504, 505, 508, 535
Nominal diameter: 38 mm · Manufacturer: Athena · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.7 mm · Ø outlet inside: 28.3 mm · Inlet window: 12.8 / 16.5 x 23.6 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Number of fixing points: 4 pcs · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Hole pattern [mm]: 56/61 x 56 · Decompressor: M10x1.5 · Camouflaged: No
EUR 337.60
Not in stock
Athena 45 mm cylinder kit incl. mounting parts | Sachs (504), 505, 508
Nominal diameter: 45 mm · Manufacturer: Athena · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.7 mm · Ø Outlet outside: 25.9 mm · Ø outlet inside: 19.5 mm · Ø Inlet inside: 14.3 mm · Inlet window: 23.4 x 12.6 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 31.5 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: straight · Number of fixing points: 4 pcs · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Hole pattern [mm]: 56 (61) x 56 · Decompressor: M10x1.5 · Camouflaged: No
EUR 361.70
Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508, 535
Nominal diameter: 48 mm · Manufacturer: Athena · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Inlet window: 31.9 x 36.2 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 32.5 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: straight · Number of fixing points: 4 pcs · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Hole pattern [mm]: 56/60 x 56 · Decompressor: M10x1.5 · Camouflaged: No
EUR 361.70

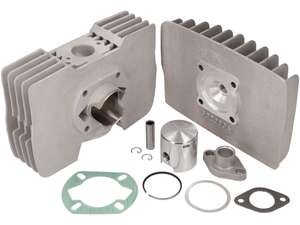

Athena 48 mm cylinder kit | Sachs 503 AB, AC, ADV
