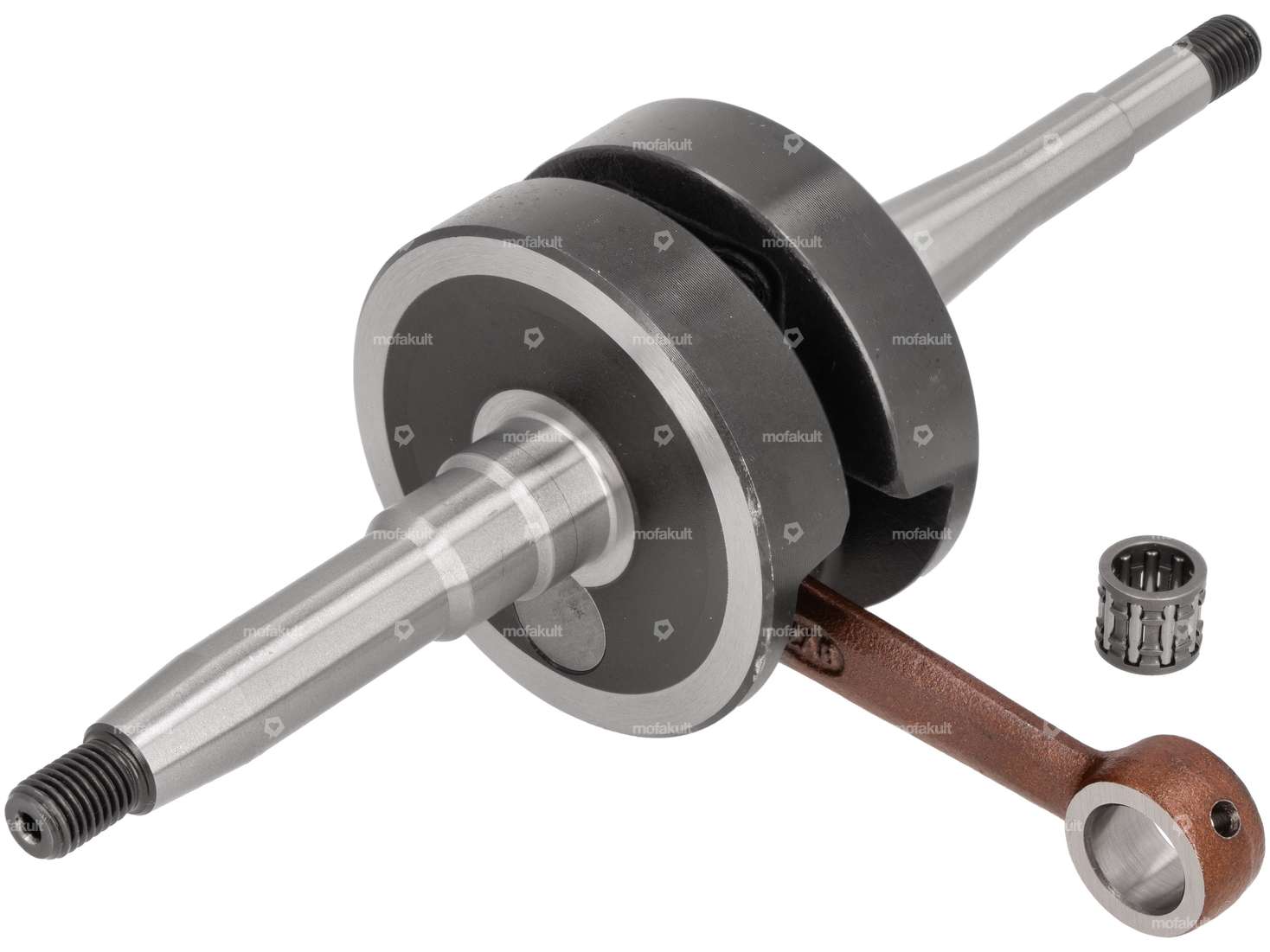

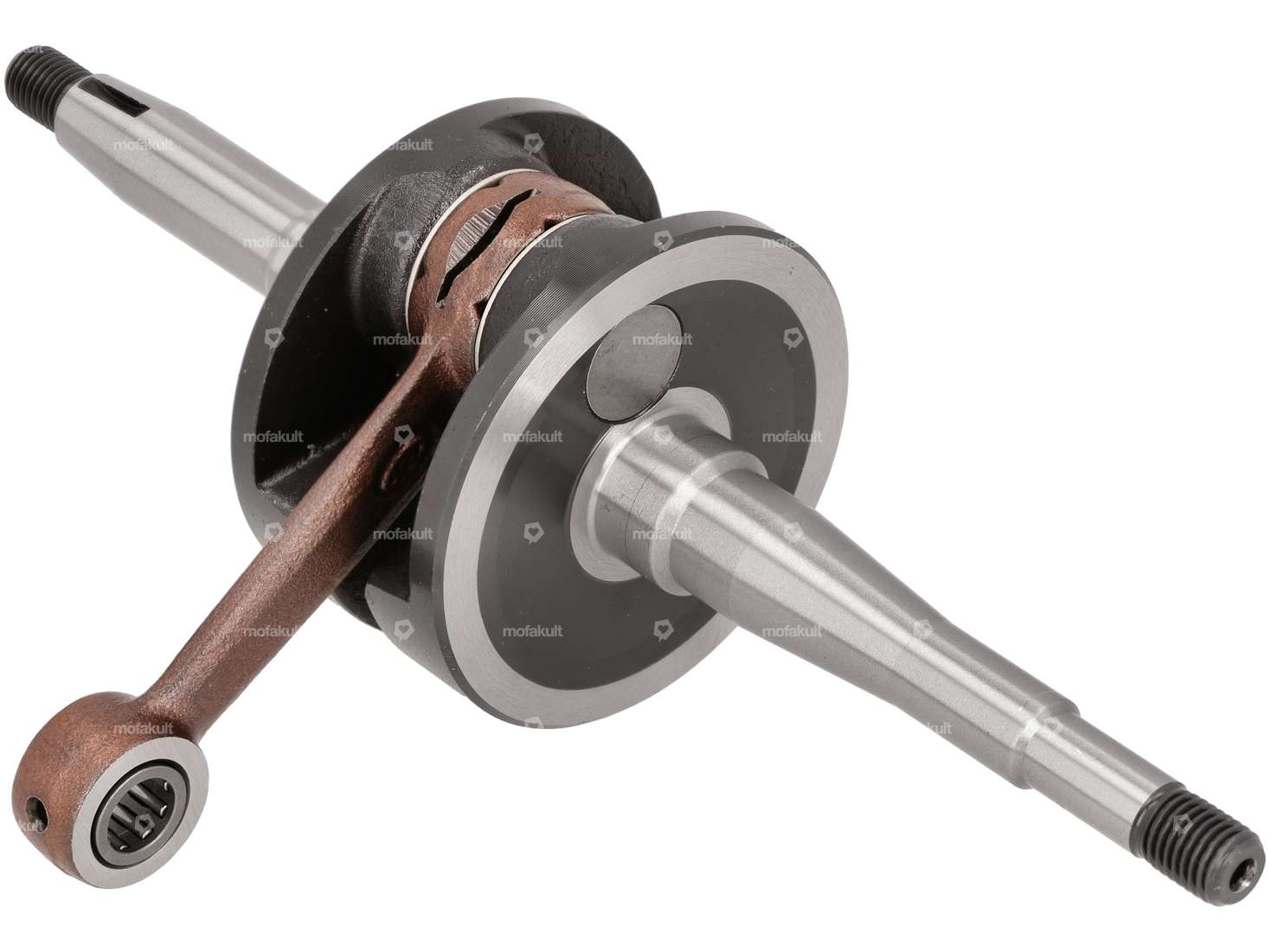

Crankshaft for Honda Camino mopeds / mopeds.
The needle bearing is included in the scope of delivery.
Branded product from the manufacturer DMP.
| Manufacturer | DMP |
| Thread length | 11 mm, 12 mm |
| Material | Steel |
| Area of application | Standard |
| Cheek type | standard |
| Crankshaft stroke | 42 mm |
| Ø piston pin (B) | 10 mm |
| Connecting rod length center-center | 80 mm |
| Total length of crankpin on clutch side | 100 mm |
| Weight | 1088 g |
| Total length crankpin ignition side | 80 mm |
| Ø crank webs | 69.9 mm |
| Thread type | MF10x1.25 (fine pitch thread) |
| Ø Connecting rod eye | 14 mm, 16 mm |
| Ø Bearing seat (clutch side) | 20 mm |
| Ø Bearing seat (ignition side) | 20 mm |
| Dimension needle bearing | 10 / 14 x 12.5 mm (axe 10) |
| Wide crank webs | 41 mm |
| Length 1st paragraph | 12.5 mm |
| Length 2nd paragraph | 57 mm |
| Length 3rd paragraph | 18 mm |
| Ø 1st step (on the coupling side) | 20 mm |
| Ø 2nd shoulder (on the clutch side) | 17 mm |
| Ø 3rd step (on the clutch side) | 10 mm |
| Length of shoulder (ignition side) | 12.5 mm |
| Honda |
