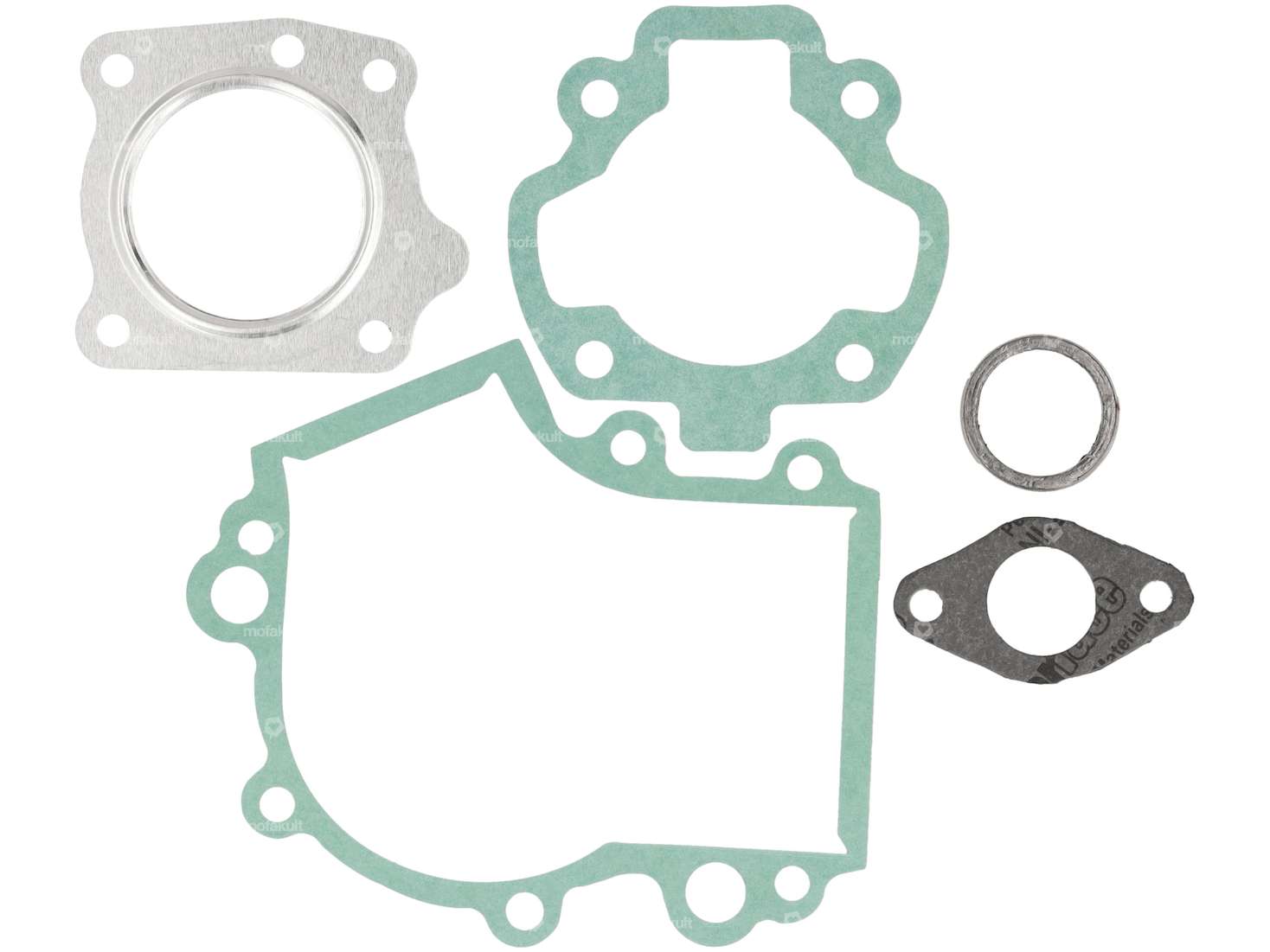

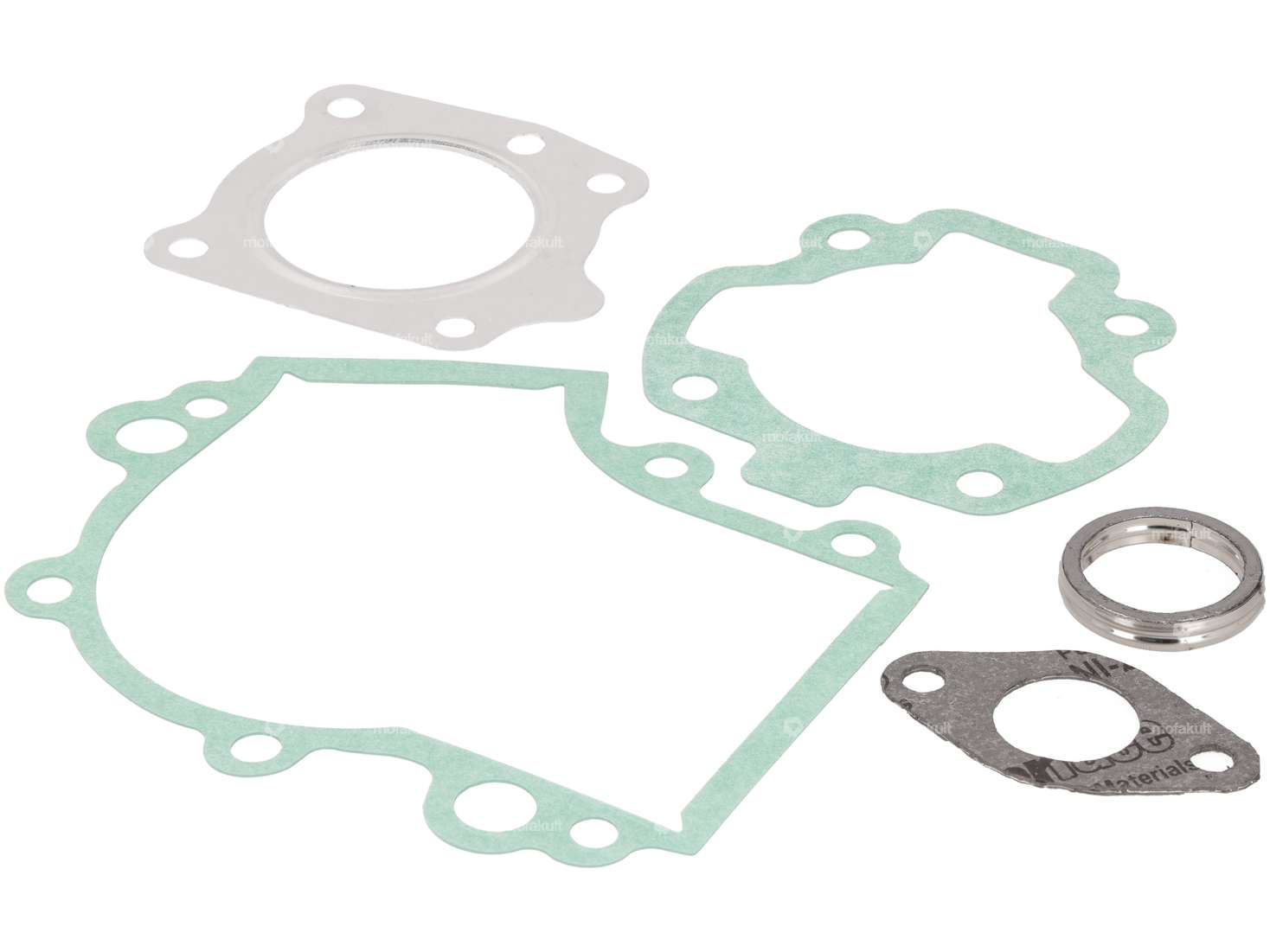

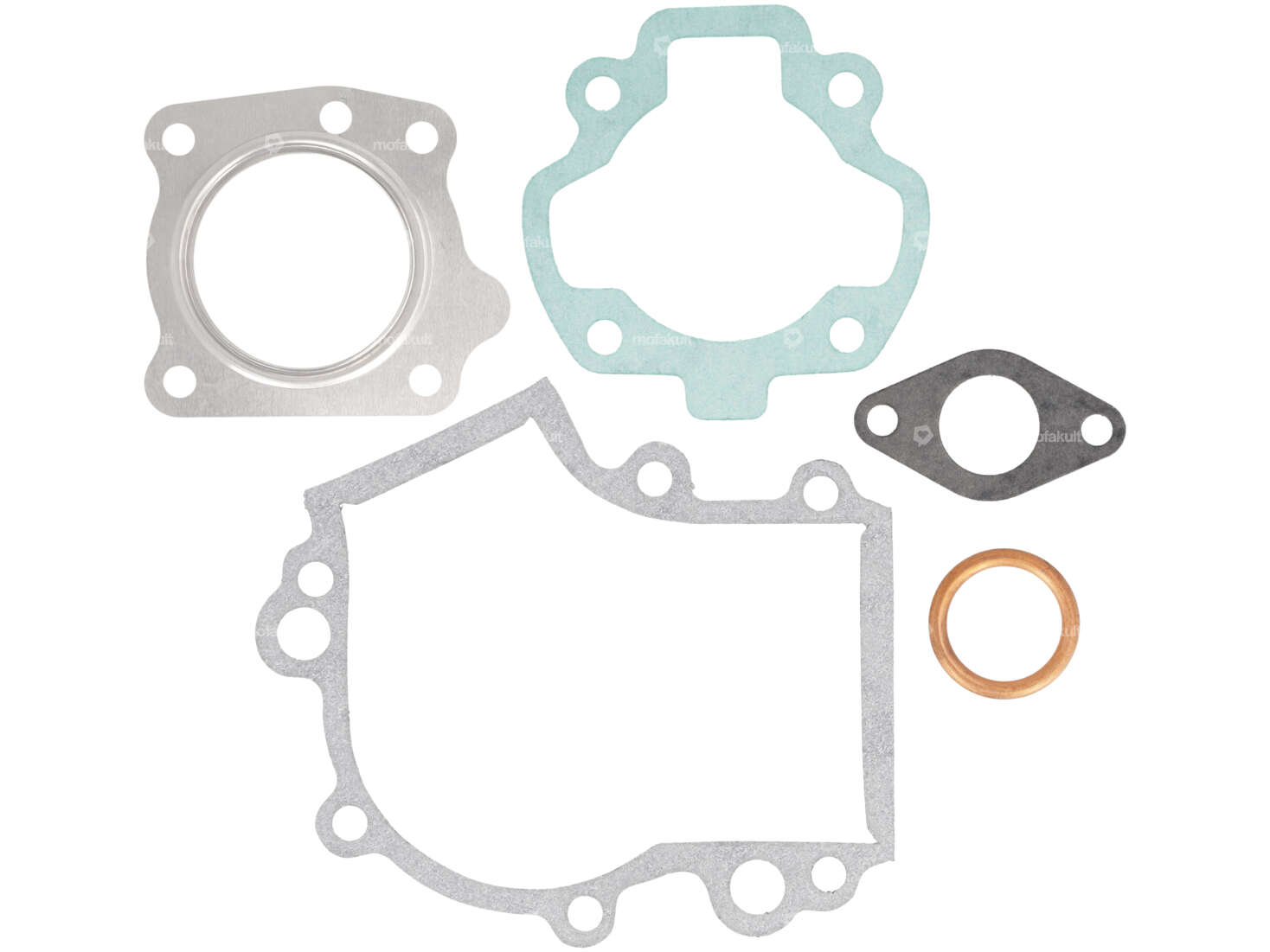

Complete seal kit for original 50 cc cylinders for your Honda Camino 50 moped.
The gasket set includes the following components:
1x cylinder base gasket (sealing paper) 0.5 mm
1x cylinder head gasket (aluminum) 0.5 mm
1x sealing ring (steel / graphite) 29.2/23.3/5 mm
1x housing gasket (sealing paper) 0.5 mm
1x exhaust gasket (sealing paper) 1.1 mm
You can find additional gaskets and the matching cylinder in the accessories section.
| Number of components | 5 pcs |
| Thickness | 0.5 mm, 5 mm, 1 mm |
| Material | Aluminum, Sealing paper, Graphite / Graphite |
| Area of application | Standard, Original |
| Hole spacing outlet | 42 - 42.5 mm |
| Honda |
