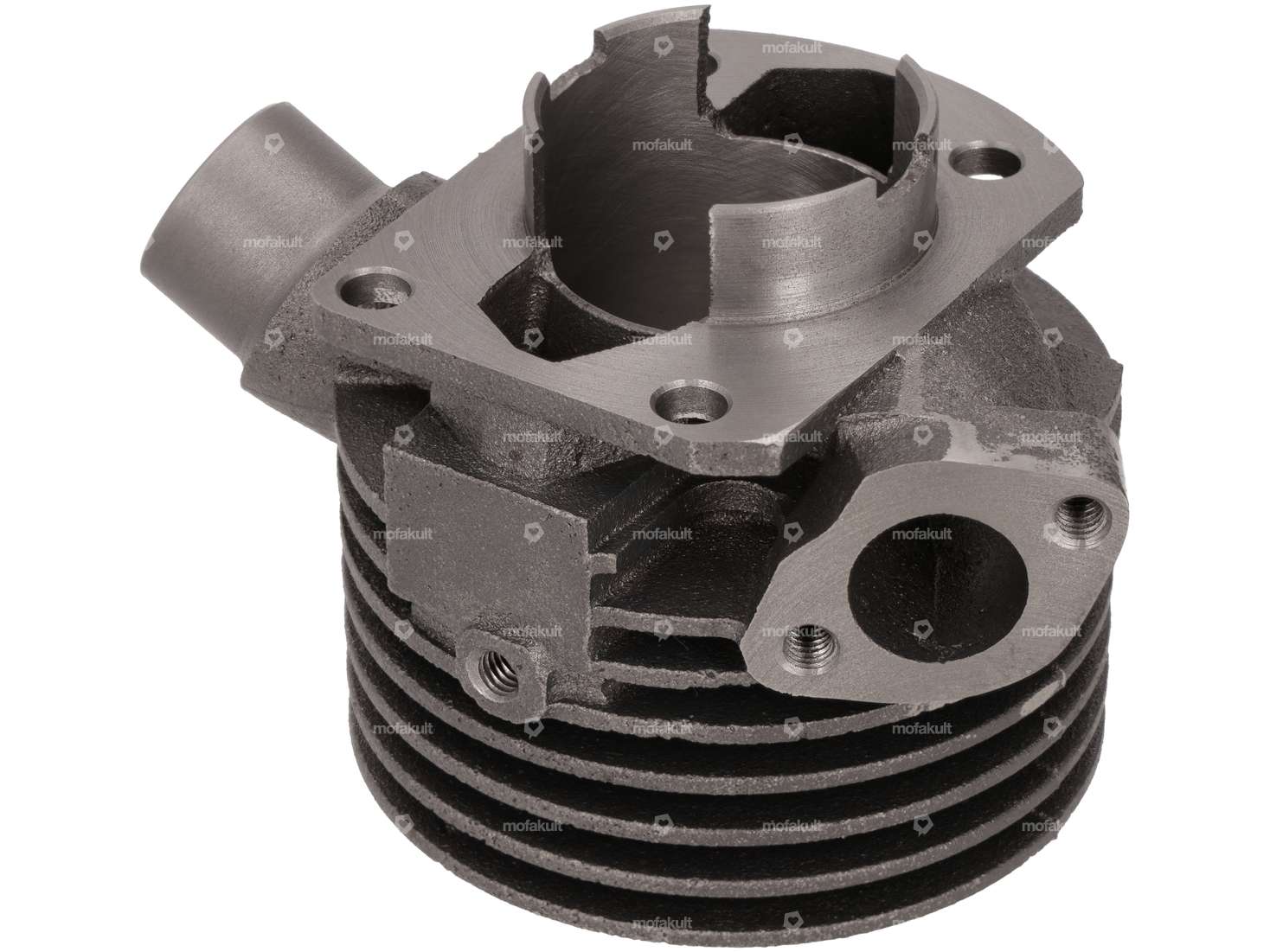

GPO 41 mm cylinder "Pomodoro" | Sachs 503

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Manufacturer: swiing® revival parts · Total length: 30 mm · Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Thread length: 12 mm · Strength class: 10.9

Exhaust set "Tuning" Ø 28 / 70 mm chrome | Sachs 503 2AL/2BL

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Ø outside: 70 mm · Total length: 700 mm · Color: Chrome · Ø Flame tube outside: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Flame tube attachment: Plug connection clamped

swiing® ingenious exhaust manifold 28 mm chrome | Sachs 503

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 410 mm · Ø outside: 28 mm · Ø inside: 26 mm · Flame tube attachment: inserted · Mounting type: Bride

swiing® ingenious reinforcement set clutch (+20%) | Sachs 503, 50/2 (502), 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Spring steel · Surface: coated · Number of springs: 9 pcs · Ø outside: 8.85 mm · Ø inside: 5.9 mm · Thickness: 1.4 mm · Area of application: Tuning

swiing® ingenious reinforcement set clutch (+40%) | Sachs 503, 50/2 (502), 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Spring steel · Surface: coated · Number of springs: 9 pcs · Ø outside: 8.75 mm · Ø inside: 5.6 mm · Thickness: 1.4 mm · Area of application: Tuning

swiing® ingenious resonance exhaust set Ø 28 / 70 mm | Sachs 503

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Ø outside: 70 mm · Total length: 730 mm · Color: Chrome · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Flame tube attachment: Plug connection clamped

swiing® revival silent blocks Alu Racing | Sachs 503 / 504 / 505 / 535

Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized · Nominal diameter inside: 8.5 mm · Total length: 13 mm · Ø Bundle: 26 mm · Ø outside: 21.95 mm · Ø inside: 8.3 mm · Alternative version of the Pony OEM number: A4286 · Alternative version of the Sachs OEM number: 0251 121 000

GPO 43 mm "Pomodoro" cylinder kit | Sachs 503 2AL, AAL, 2BL, ABL

Nominal diameter: 43 mm · Manufacturer: GPO · Material: Gray cast iron · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 22 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 40 x 60 / 37 x 37 · Area of application: Tuning · Alternative version of the Pony OEM number: A1087 · Alternative version of the Sachs OEM number: 0213 142 000

swiing® ingenious Cylinder Head Gasket 41 mm Copper | Sachs 503

Nominal diameter: 41 mm · Manufacturer: swiing® ingenious parts · Material: Copper · Ø cylinder: 41 mm · Place of use: Cylinder head · Ø inside: 41.5 mm · Hole pattern [mm]: 37 x 37 · Thickness: 0.5 mm

swiing® Revival Exhaust Clamp 26–28 mm Solid (Grade 12.9)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø inside: 26 - 28 mm · Ø outside: 39 mm · Material thickness: 1.5 mm · Mounting type: Nuts & bolts · Width: 42 mm

Exhaust clamp 70 mm chrome wide version.

Nominal diameter: 70 mm · Width: 28 mm · Manufacturer: Made in Portugal · Material: Steel · Color: Chrome · Surface: chrome-plated · Clamping diameter: 67 - 71 mm · Thickness: 2 mm · Number of fixing points: 1 pcs · Ø mounting hole: 8.2 mm

swiing® ingenious 15 mm carburetor camouflaged | Sachs 503

Total length: 66 mm · Nominal diameter: 15 mm · Height: 95 mm · Width: 50 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Mounting type: Plug connection clamped · Nozzle size: 62 · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Area of application: Tuning · Ø Air filter connection: 20 mm · Ø Internal connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Clamping screw torque (max.): 4 N/m

swiing® revival air filter Racing | Sachs 503

Total length: 165 mm · Height: 52 mm · Width: 68 mm · Manufacturer: swiing® revival parts · Camouflaged: No · Material: Plastic · Color: black · Filter type: Racing screen · Mounting type: Plug connection clamped · Area of application: Tuning · Ø Internal connection: 20 mm

swiing® ingenious exhaust manifold 28 mm chrome | Sachs 503

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 410 mm · Ø outside: 28 mm · Ø inside: 26 mm · Flame tube attachment: inserted · Mounting type: Bride

swiing® ingenious 15 mm intake manifold long version | Sachs 503 2AL, 2BL

Ø inside: 15 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: No · Number of fixing points: 2 pcs · Hole spacing inlet: 32 mm · Thread type: M6x1 (standard thread) · Total height: 80 mm · Height flange center hole: 70 mm · Ø External connection: 20 mm · Total length: 70 mm · Mounting type: Screws · Area of application: Tuning · Pony OEM number: A2176

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Nominal diameter: 41 mm · Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Ø piston pin (B): 12 mm · Weight piston kit: 86 g

AKOA 41 mm cylinder head | Sachs 503 2AL, AAL, 2BL, ABL

Height: 30 mm · Manufacturer: AKOA · Material: Aluminum · Ø cylinder: 41 mm · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: No · Hole pattern [mm]: 37 x 37 · Area of application: Tuning

GPO 41 mm "Pomodoro" cylinder kit | Sachs 503

Nominal diameter: 41 mm · Manufacturer: GPO · Material: Gray cast iron · Displacement: 57 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 22 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Area of application: Tuning · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 40 x 60 / 37 x 37

GPO gasket set 41 mm "Pomodoro" | Sachs 503

Manufacturer: GPO · Number of components: 3 pcs · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 41 mm · Thickness: 0.3 mm · Thickness: 1 mm · Hole spacing inlet: 0 - 32 mm
