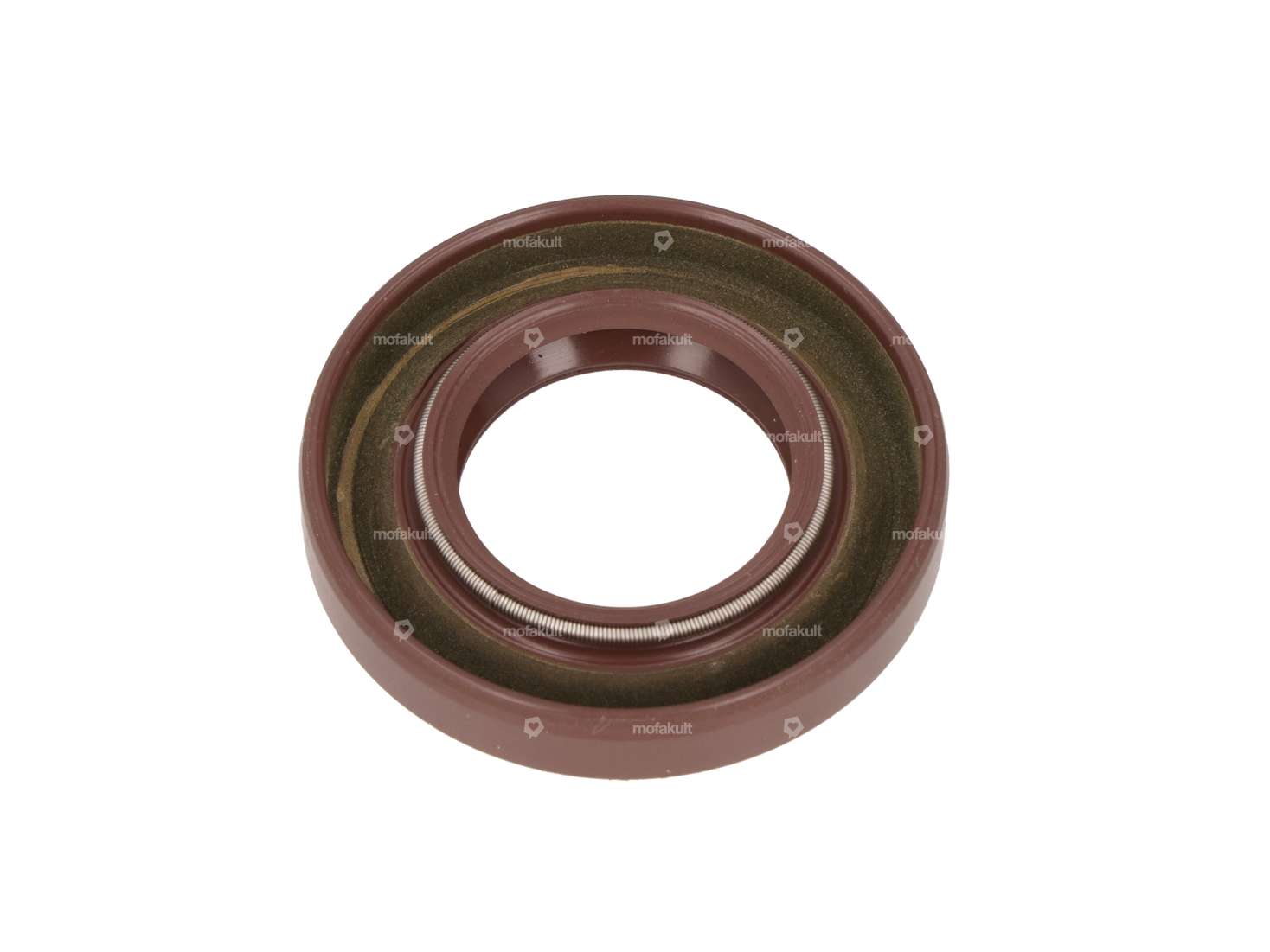

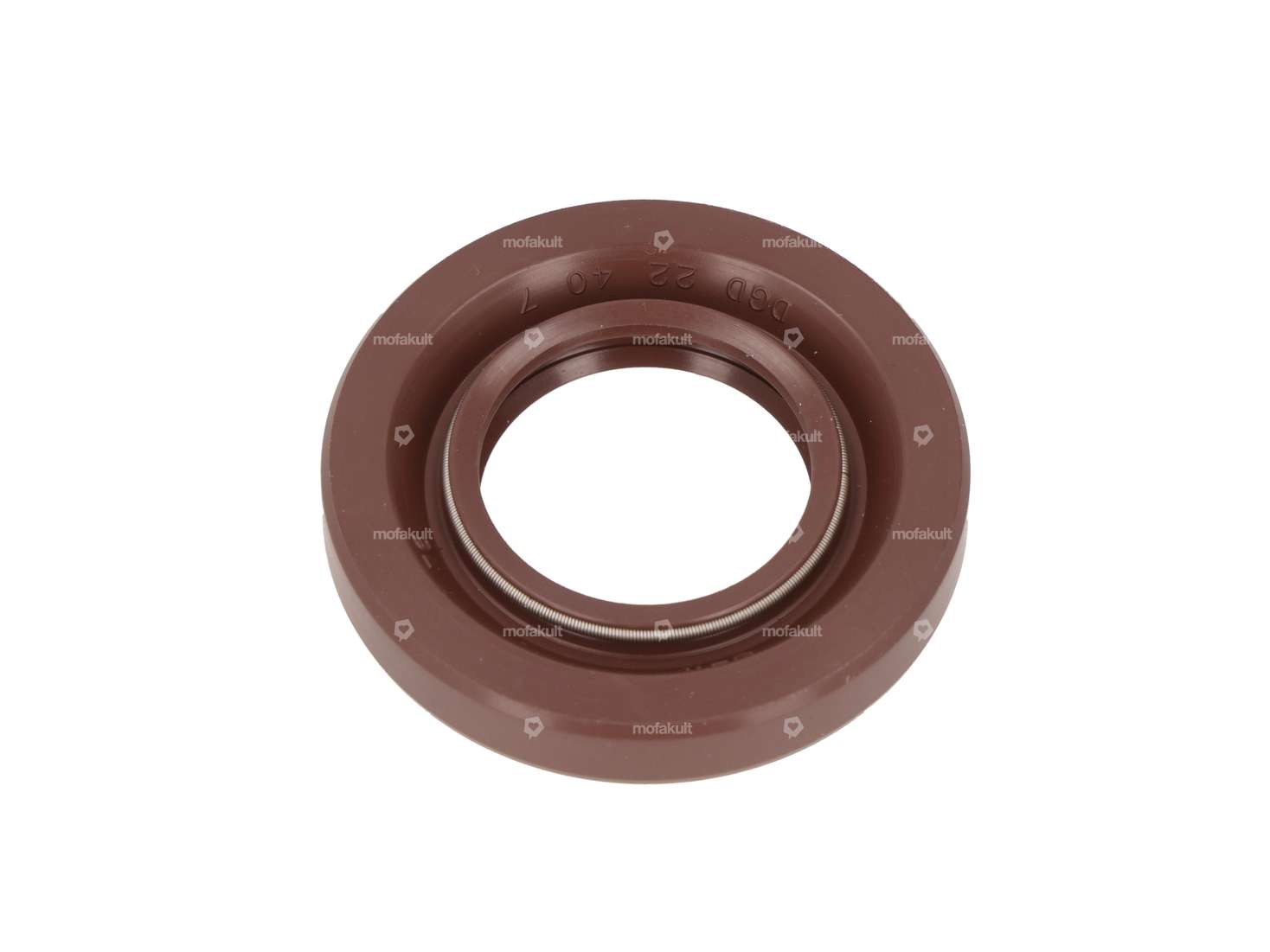

Shaft seal ring (colloquially known as a radial shaft seal) 22x40x7 mm for use on the clutch side of the crankshaft of your moped / moped with E50 engines with large
| Simmering type | A DUO - With rubberized outer casing / two sealing lips. |
| Manufacturer | Puch |
| Surface | rubberized |
| Place of use | Crankshaft |
| Material | FPM - Fluororubber |
| Width | 7 mm |
| Ø inside | 22 mm |
| Ø outside | 40 mm |
| Temperature resistance (min.) | -30 - 200 °C |
| Puch | E50 |
