Not so nice

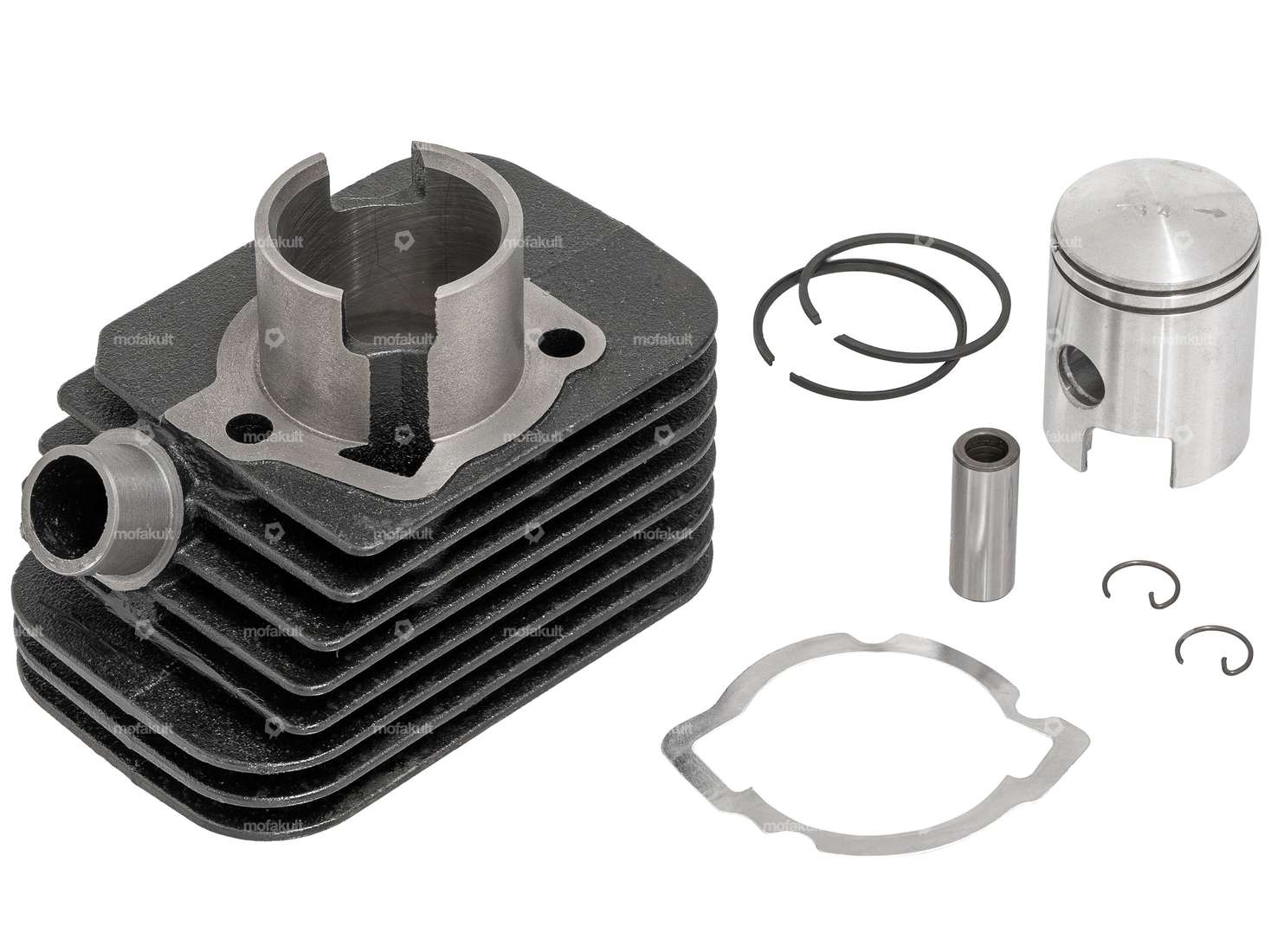

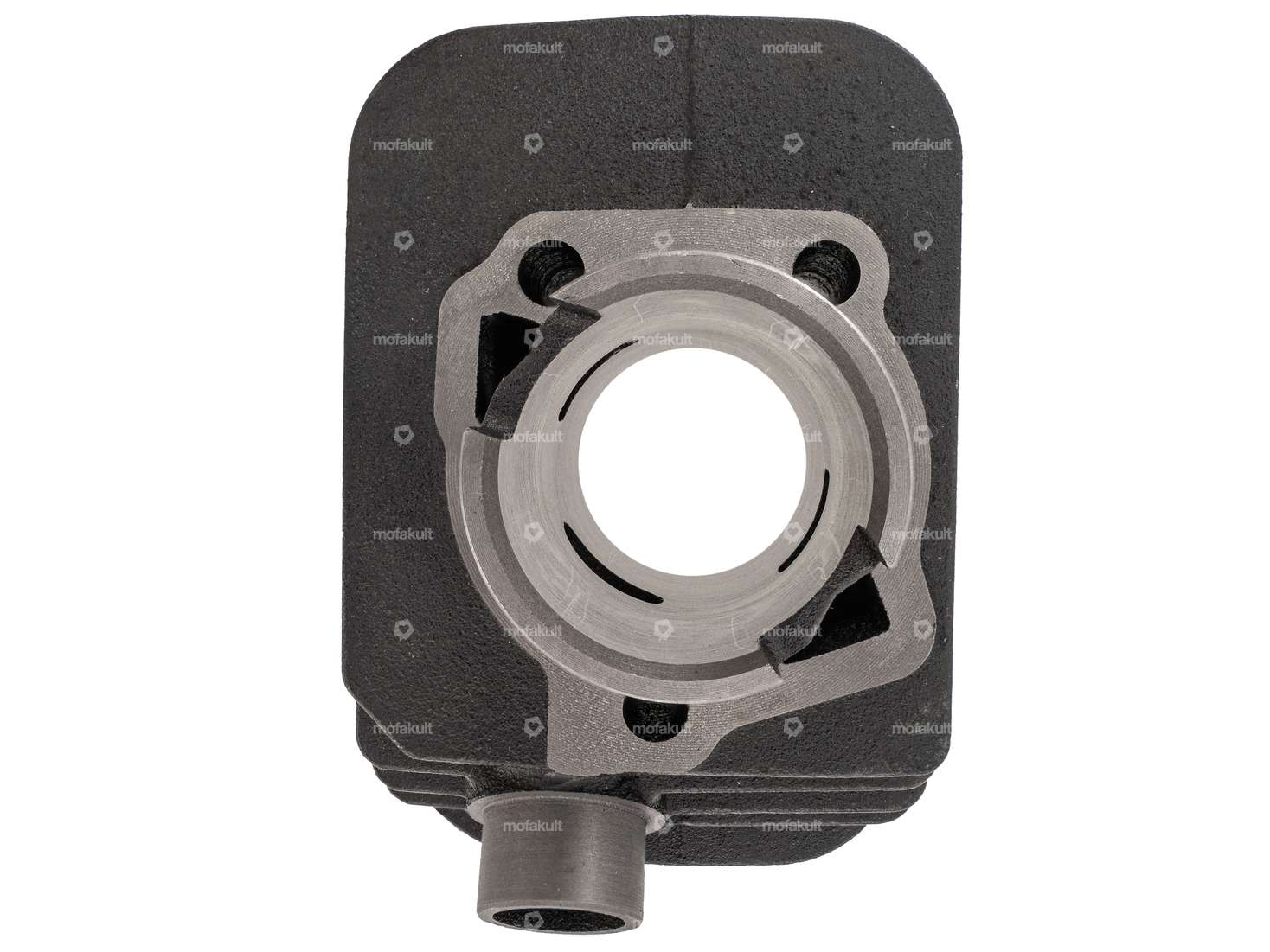

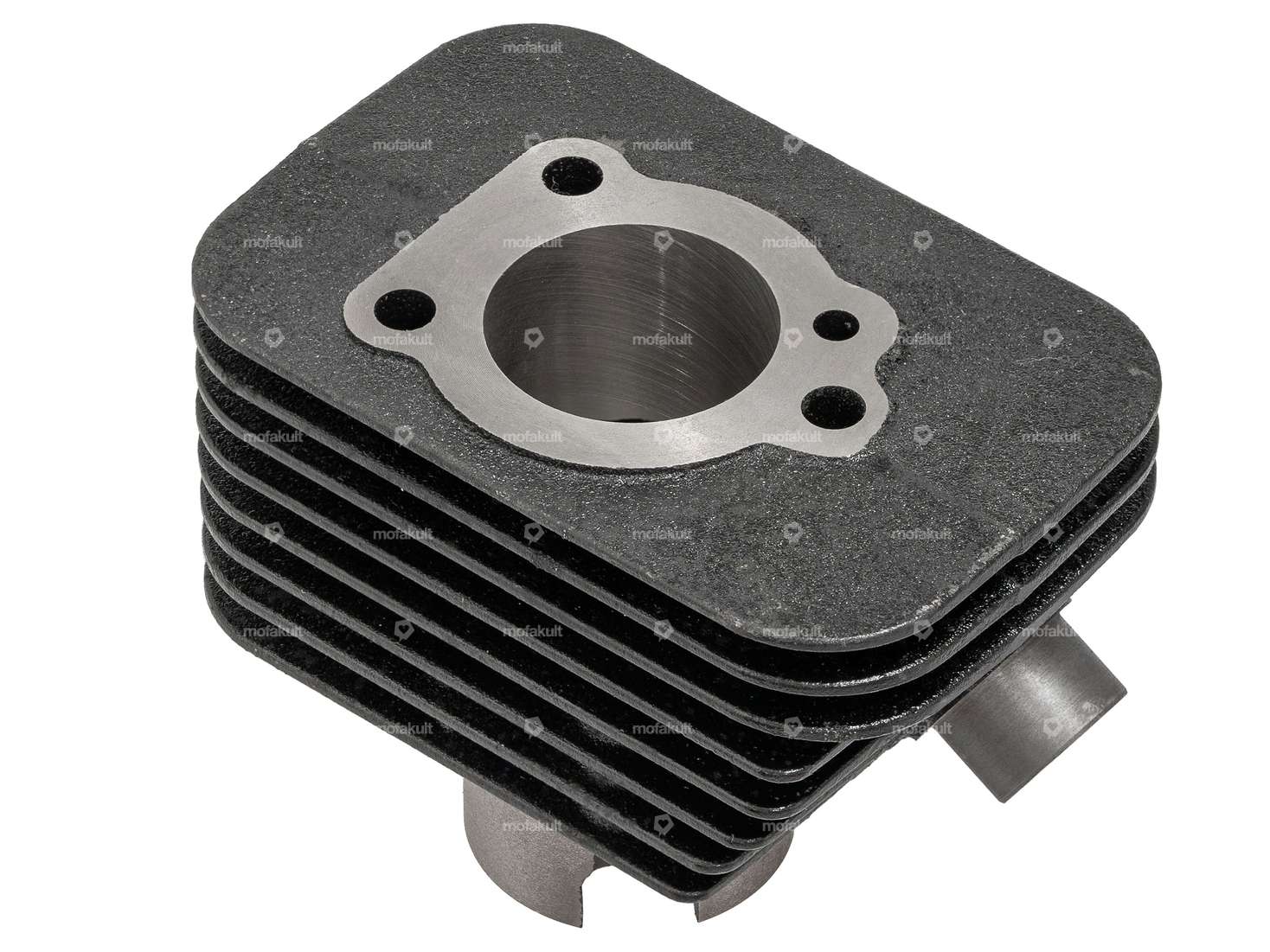

Cast iron cylinder with 50 cc displacement, suitable for your Piaggio Ciao, Si, Bravo and Boxer moped / moped with 10 mm piston pin.
Mäsig-läsig! – We strive to offer you the widest range of moped spare parts. However, this product is of rather poor quality and is not recommended by us. Should you nevertheless choose this item, we can understand you, but do not grant you any warranty or exchange.
The cylinder is not cleanly finished and has occasional chips and general manufacturing defects. In contrast to the original cylinder and other replicas, the exhaust and the overflow channels are significantly smaller and therefore the power output is correspondingly low.
Note: Check the piston ring joint before installation using a reed gauge. This should be between 0.15 - 0.4 mm to prevent the piston from jamming. Please observe the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.
| Nominal diameter | 38.4 mm |
| Manufacturer | Olympia |
| Material | Gray cast iron |
| Surface | varnished |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 46 mm |
| Ø Outlet outside | 22.4 mm |
| Ø outlet inside | 17.6 mm |
| Number of fixing points | 3 pcs |
| Ø piston pin (B) | 10 mm |
| Outlet type | clamped |
| Area of application | Tuning |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products

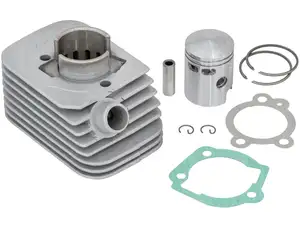

Athena 38.4 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 38.4 mm · Manufacturer: Athena · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Ø cylinder neck: 45.7 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 18 mm · Ø piston pin (B): 10 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Decompressor: Yes
EUR 192.90

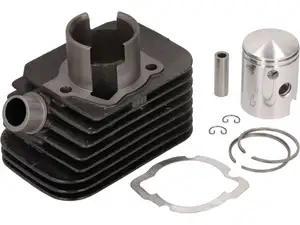

DR 38.4 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 38.4 mm · Manufacturer: DR Racing Parts · Camouflaged: No · Material: Gray cast iron · Surface: varnished · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 17 mm · Hole pattern [mm]: 35 x 55 · Number of fixing points: 3 pcs · Decompressor: Yes · Ø piston pin (B): 10 mm · Outlet type: clamped · Area of application: Tuning
EUR 156.70
Not in stock

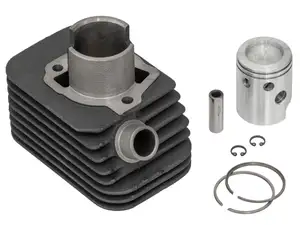

38.4 mm cylinder kit 10 mm KoBo NOS | Piaggio Ciao, SI Cat (IT)
