For: Puch

29059

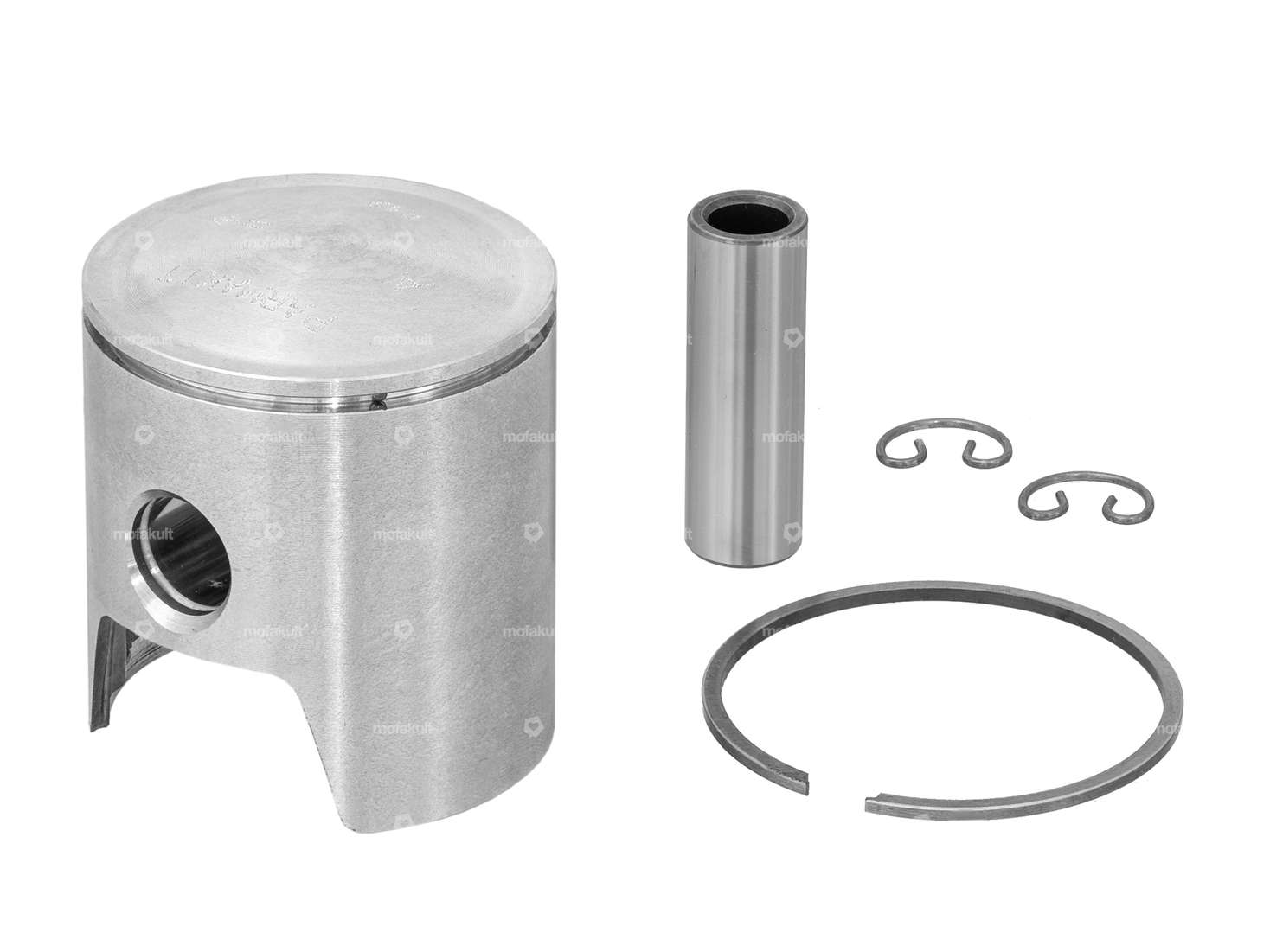

Parmakit piston 45 mm #A | Puch

EUR 88.80

Incl. 23% VAT.

Product description

45 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for the 45 mm cylinder kits for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their dimensions and locking types on the legend in the images.

Tolerance type: A

The piston kit contains piston pins, piston clips and piston rings.

You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories.

Product of the Italian manufacturer Parmakit.

ManufacturerParmakit
Nominal diameter45 mm
Ø outside piston (A)44.93 mm
Ø piston pin (B)12 mm
Compression height (C)21.5 mm
Curvature (D)3.83 mm
Total piston height (E)52.3 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Tolerance groupA
Piston weight98 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)

Accessories & related products

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH
undefined

For: Puch

10214

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Ø cylinder: 45 mm · Number of fixing points: 4 pcs · Total length: 135 mm · Width: 125 mm · Candle thread: short · Hole pattern [mm]: 44 x 44 · Area of application: Tuning · Height: 55 mm · Decompressor: No

EUR 39.50

- 23 %
Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L
undefined

Universal

10610

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents [ml]: 1000 ml · Color: red

EUR 24.00

EUR 31.30

Buzzetti pliers for piston ring assembly
undefined

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK · Miele · Motobecane · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

EUR 16.20

- 20 %
Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)
undefined

Universal

15357

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Color: green · Area of application: Standard

EUR 19.20

EUR 24.00

EUR 19.20/l

GPO piston pin extractor Ø 10, 12, 14 mm
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK · Miele · Motobecane · Monark · Peugeot · Victoria · Yamaha · Zündapp

17988

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Area of application: (Dis)assembly tool

EUR 23.90

Parmakit 45 mm cylinder kit 70 ccm large ribs | Puch
undefined

For: Puch

18067

Parmakit 45 mm cylinder kit 70 ccm large ribs | Puch

Manufacturer: Parmakit · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Number of fixing points: 4 pcs · Nominal diameter: 45 mm · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Area of application: Tuning

EUR 288.20

Parmakit 45 mm cylinder kit 70 ccm camouflaged | Puch
undefined

For: Puch

19496

Parmakit 45 mm cylinder kit 70 ccm camouflaged | Puch

Manufacturer: Parmakit · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Number of fixing points: 4 pcs · Hole spacing inlet: 38 mm · Ø cylinder neck: 47.8 mm · Nominal diameter: 45 mm · Ø outlet inside: 26.5 mm · Ø piston pin (B): 12 mm · Inlet window: 23.7 x 15 · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Area of application: Tuning · Decompressor: No

EUR 252.20

Parmakit piston 45 mm #C | Puch
undefined

For: Puch

19497

Parmakit piston 45 mm #C | Puch

Manufacturer: Parmakit · Ø outside piston (A): 44.95 mm · Compression height (C): 22.45 mm · Curvature (D): 4.5 mm · Total piston height (E): 53.98 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Tolerance group: C · Piston weight: 97 g

EUR 88.80

Parmakit piston ring 45 mm | Puch / Tomos
undefined

For: Puch

19498

Parmakit piston ring 45 mm | Puch / Tomos

Manufacturer: Parmakit · Nominal diameter: 45 mm · Piston ring impact: Internal fuse (IS)

EUR 23.90

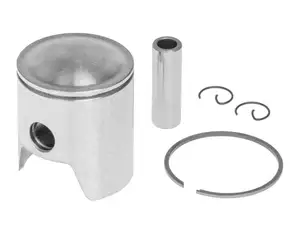

Parmakit piston 45 mm #B | Puch
undefined

For: Puch

23899

Parmakit piston 45 mm #B | Puch

Manufacturer: Parmakit · Ø outside piston (A): 44.94 mm · Compression height (C): 22.38 mm · Curvature (D): 4.5 mm · Total piston height (E): 53.9 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Tolerance group: B · Piston weight: 98 g

EUR 88.80

Moped fans also bought

Athena piston 45 mm #A | Puch
undefined

For: Puch

11196

Athena piston 45 mm #A | Puch

Manufacturer: Athena · Ø outside piston (A): 44.94 mm · Compression height (C): 22.4 mm · Curvature (D): 3.15 mm · Total piston height (E): 52.67 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Nominal diameter: 45 mm · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Tolerance group: A · Piston weight: 98 g

EUR 60.00

Athena piston 45 mm AJH #B | Puch
undefined

For: Puch

16170

Athena piston 45 mm AJH #B | Puch

Manufacturer: Athena · Nominal diameter: 45 mm · Ø outside piston (A): 44.93 mm · Ø piston pin (B): 12 mm · Compression height (C): 24.9 mm · Curvature (D): 2.82 mm · Total piston height (E): 50.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: B · Piston weight: 94 g

EUR 76.80

Parmakit piston ring 45 mm | Puch / Tomos
undefined

For: Puch

19498

Parmakit piston ring 45 mm | Puch / Tomos

Manufacturer: Parmakit · Nominal diameter: 45 mm · Piston ring impact: Internal fuse (IS)

EUR 23.90

O-ring cylinder head FPM (up to 200°C) 44 x 1.8 mm | Puch

For: Puch

28267

O-ring cylinder head FPM (up to 200°C) 44 x 1.8 mm | Puch

Place of use: Cylinder head · Temperature resistance (min.): 0 - 200 °C · Material: FPM - Fluororubber · Ø inside: 44 mm · Cord thickness: 1.8 mm

EUR 7.10

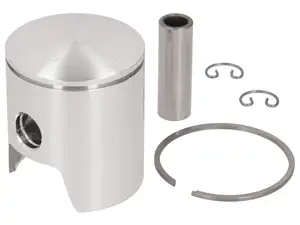

Meteor piston 44.94 mm type A | Puch Maxi
