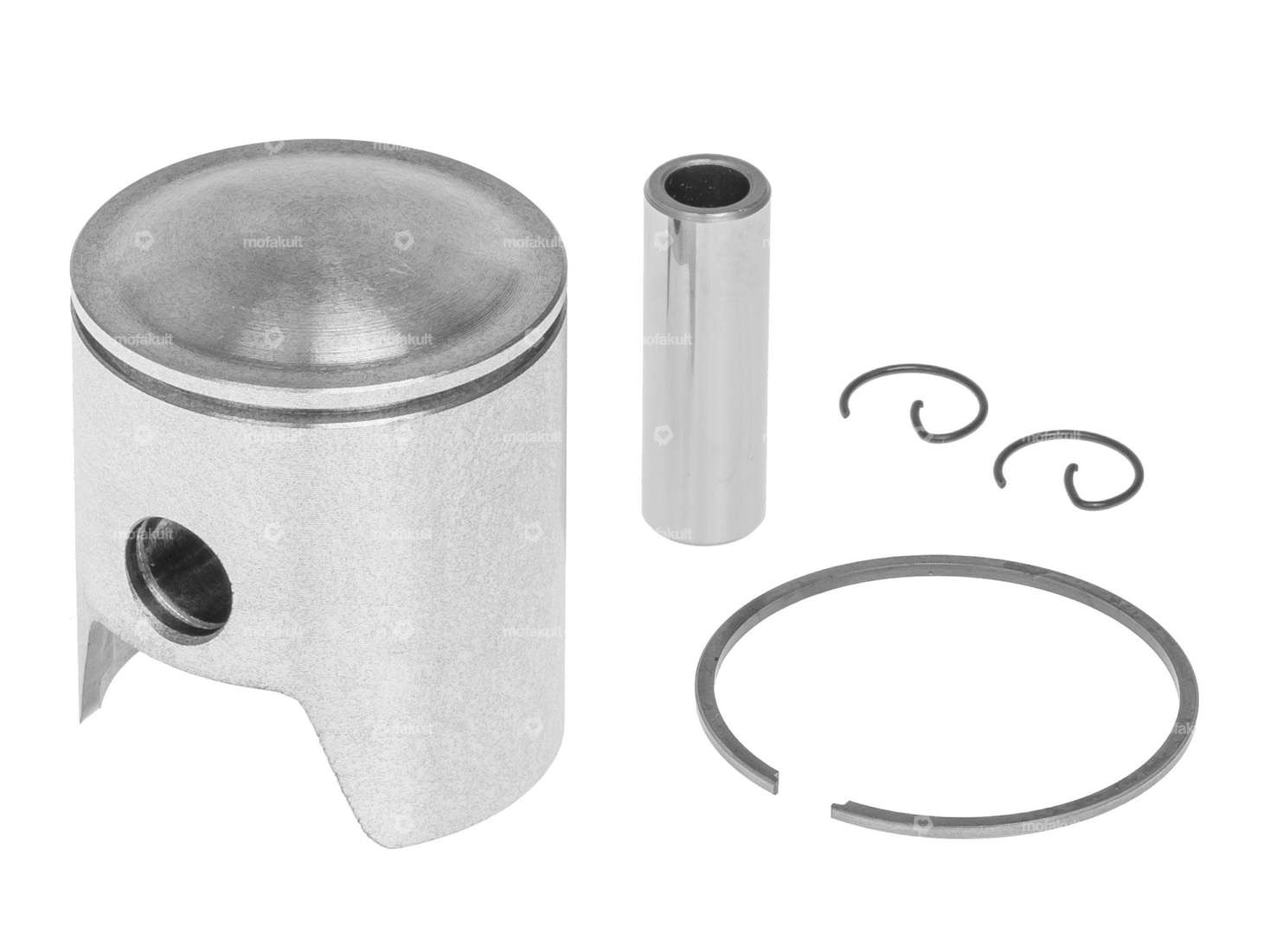

45 mm replacement piston with a 1.5 mm rectangular piston ring featuring an internal lock (IS) for the 45 mm cylinder kits for various Puch mopeds.
You can find the detailed dimensions of the piston, as shown in the technical drawing, in the product details. You can also find information about standard piston rings, their clearances, and retaining types in the legend accompanying the images.
Tolerance type: B
The piston kit includes a piston pin, piston clips, and piston rings.
Note: Please observe the installation direction during assembly. The piston is installed with the arrow pointing toward the exhaust on the exhaust side.
You’ll find the appropriate installation tools, piston pin retainers, and, if necessary, the corresponding cylinder among the accessories.
Product from the Italian manufacturer Parmakit.
| Nominal diameter | 45 mm |
| Manufacturer | Parmakit |
| Ø outside piston (A) | 44.94 mm |
| Compression height (C) | 22.38 mm |
| Curvature (D) | 4.5 mm |
| Total piston height (E) | 53.9 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | B |
| Weight piston kit | 98 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH
Total length: 135 mm · Width: 125 mm · Height: 55 mm · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Ø cylinder: 45 mm · Candle thread: short · Number of fixing points: 4 pcs · Decompressor: No · Camouflaged: Yes · Hole pattern [mm]: 44 x 44
EUR 39.70
GPO piston pin extractor Ø 10, 12, 14 mm
Total length: 130 mm · Manufacturer: GPO · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm · Number of components: 7 pcs
EUR 24.00
Parmakit 45 mm cylinder kit (large ribs) | Puch
Manufacturer: Parmakit · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Nominal diameter: 45 mm · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Camouflaged: No · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44
EUR 289.40
Parmakit 45 mm cylinder kit 70 ccm camouflaged | Puch
Manufacturer: Parmakit · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Nominal diameter: 45 mm · Ø cylinder neck: 47.8 mm · Ø piston pin (B): 12 mm · Inlet window: 23.7 x 15 mm · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 26.5 mm · Number of fixing points: 4 pcs · Decompressor: No · Hole spacing outlet: 42 mm · Camouflaged: No · Outlet type: straight · Hole spacing inlet: 38 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44
EUR 253.20
Parmakit piston 45 mm #C | Puch
Manufacturer: Parmakit · Ø outside piston (A): 44.95 mm · Compression height (C): 22.45 mm · Curvature (D): 4.5 mm · Total piston height (E): 53.98 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Nominal diameter: 45 mm · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Tolerance group: C · Weight piston kit: 97 g
EUR 89.10
EUR 71.00

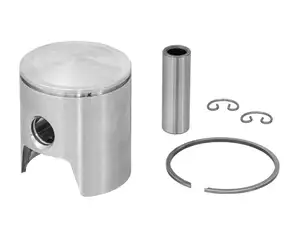

Parmakit piston 45 mm #A | Puch
