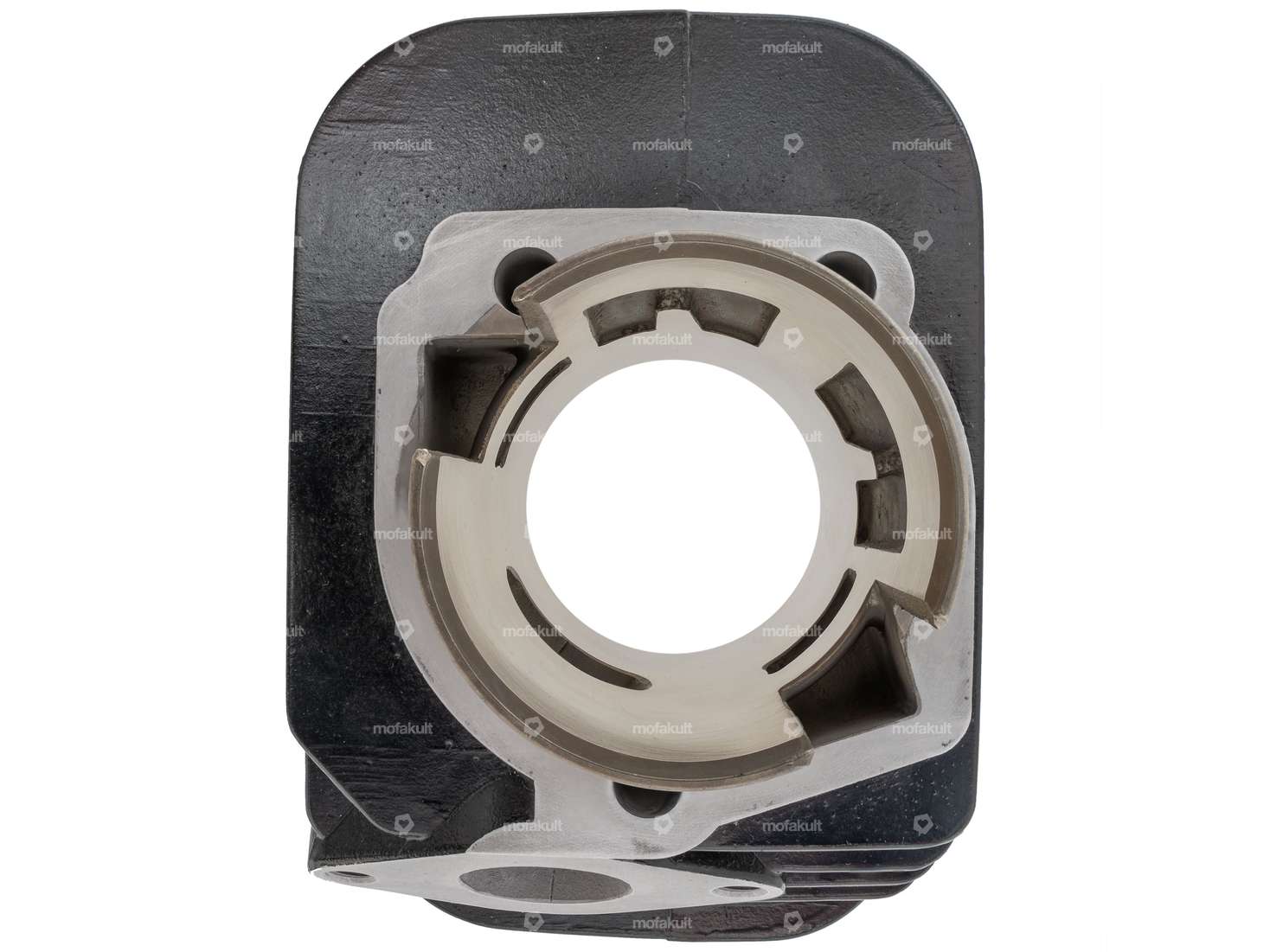

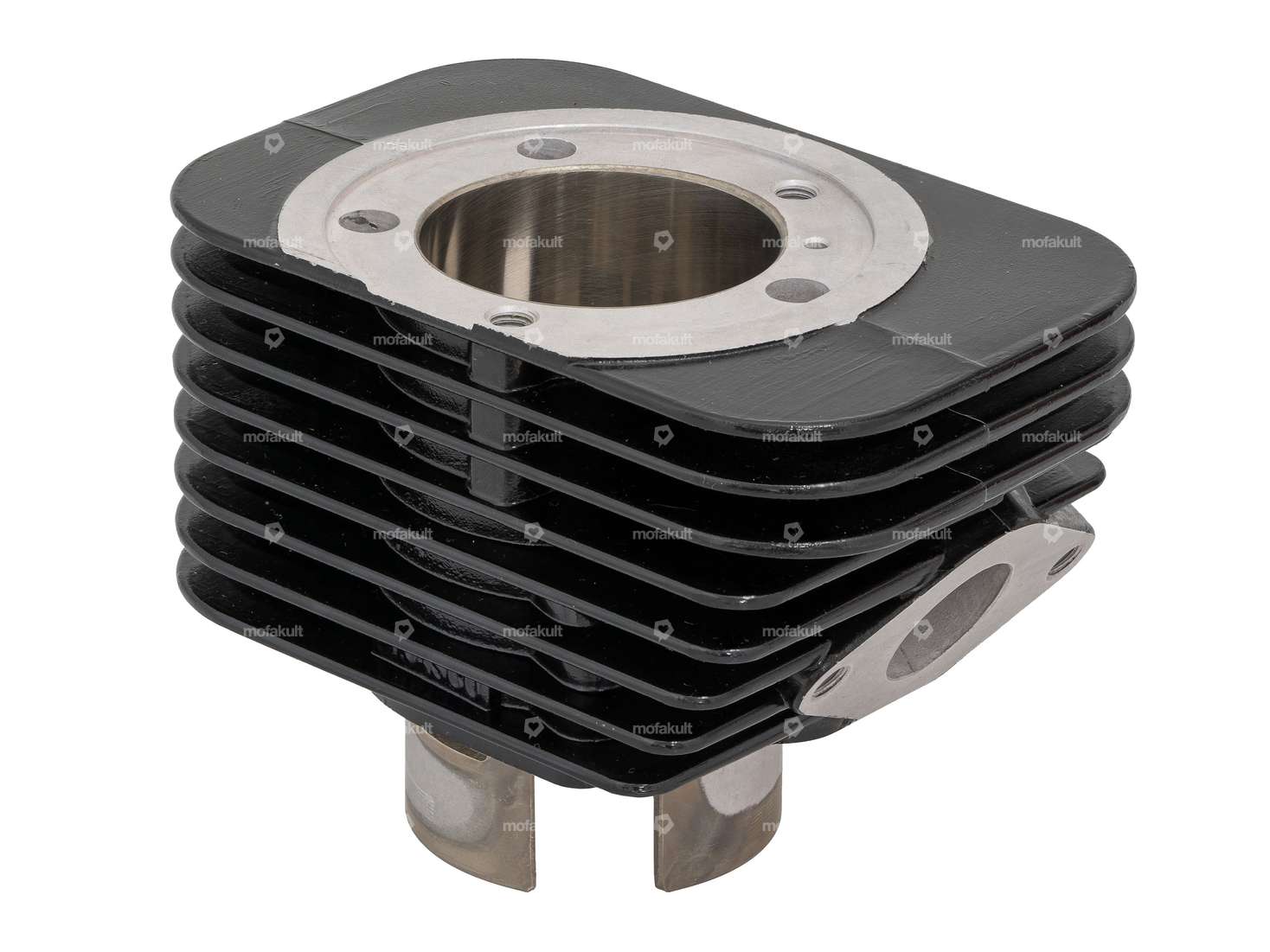

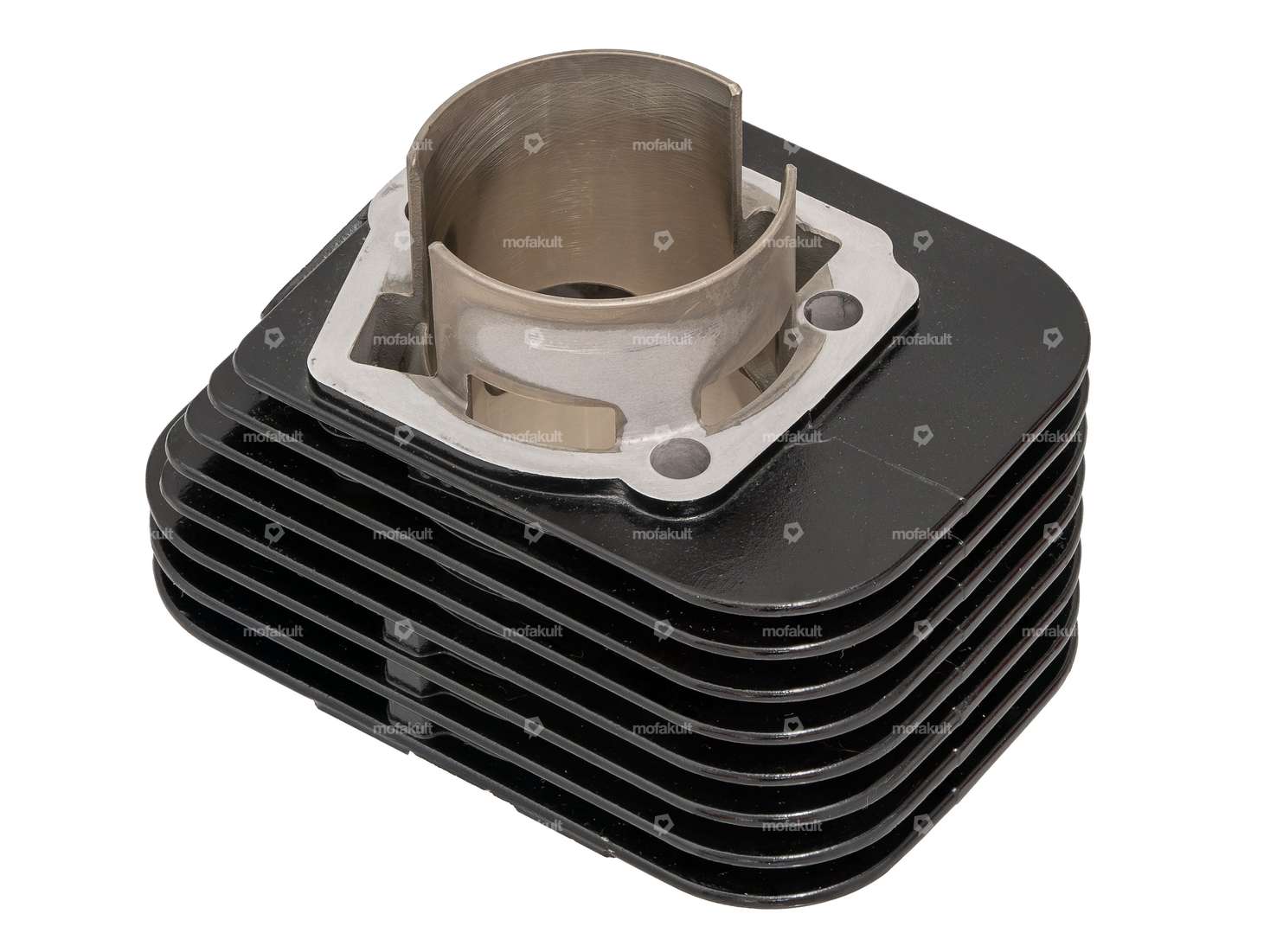

Pinasco «EVOTEN BIG BORE» cylinder with 46 mm bore and 71 cc for your Piaggio Ciao, Si, Bravo, Boxer, Grillo moped / moped.
The completely reworked 46 mm cylinder from Pinasco is now supplied with a 6-channel layout and the 5-bolt cylinder head manufactured for the highest loads.
Various racing exhausts can be fitted to the supplied exhaust flange with 22.5 mm outer connection diameter.
The cylinder head is fitted without gasket. For optimum sealing, the tightening torque of 10 Nm for the M6 screws and 14 Nm for the M7 stud bolts must therefore be observed.

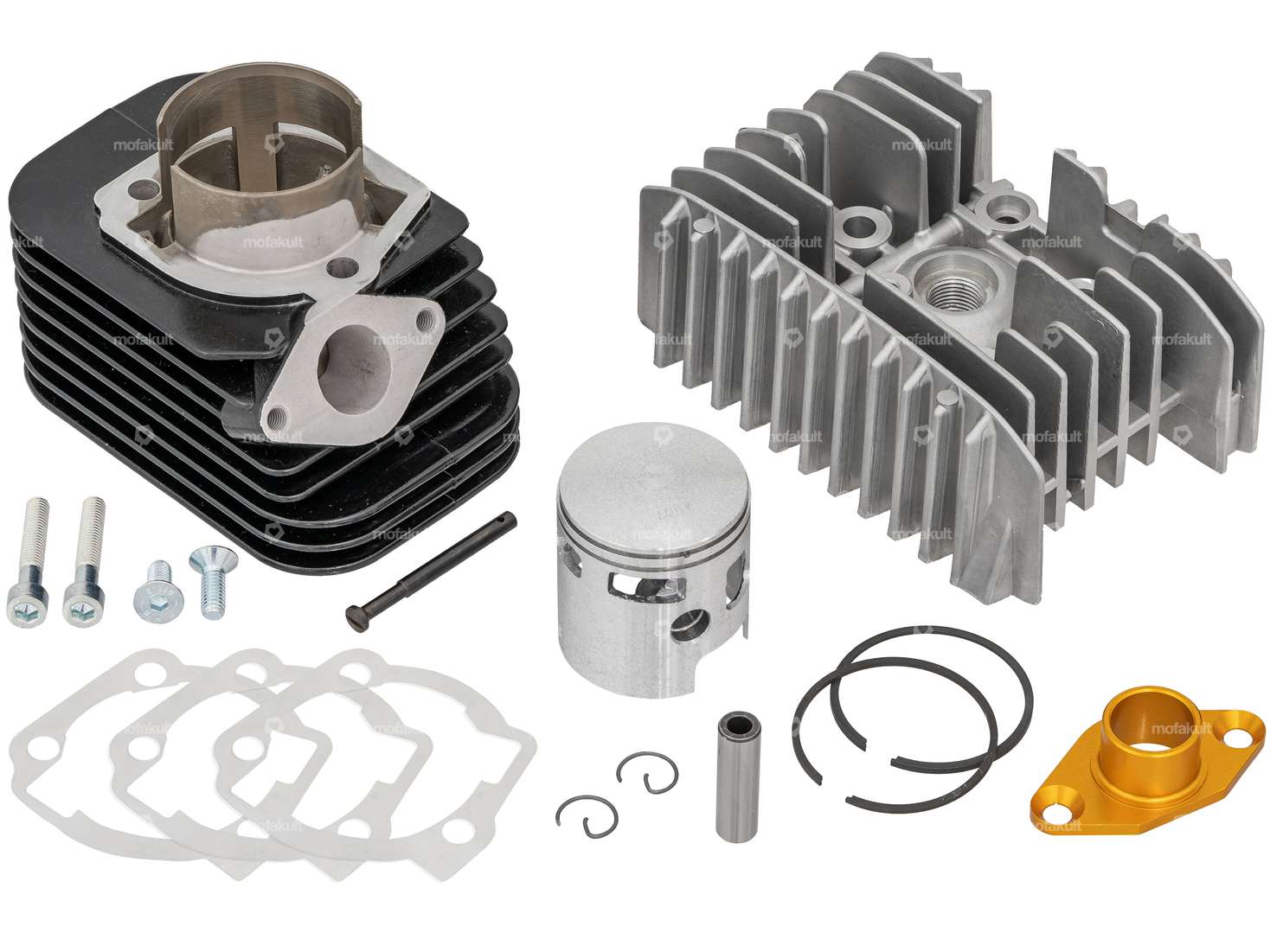

The following parts are included in the scope of delivery:
- Additional screws for the cylinder head
- Decompressor valve (actuation not included)
- Cylinder head empty
- Cylinder and accessories
- Piston with L-ring, rectangular ring and Ø 10 mm piston pin (axe 10)
- Various gaskets for the cylinder base
- Installation instructions in Italian
High-quality cast aluminum and durable Nikasil coating characterize this high-end tuning cylinder.
The cylinder kit develops maximum power in the mid to upper rev range. We recommend using the racing cylinder in combination with a variomatic drive.
Mounting on an original engine housing is only possible with rough adaptations. The cylinder kit can be fitted to the well-known Pinasco, Polini and Malossi racing cases without any adaptation work.
The piston is fitted with the arrow pointing towards the exhaust
Note: If the cylinder kit is fitted to a Piaggio Ciao, the cylinder must be ground down on the right-hand side of the piston fins. However, due to the cut-out for the Ciao's cable duct, the hook on the head for the decompression cable is also missing. As a result, the cylinder cover is only suitable to a limited extent for Piaggio Si, Bravo of the newer generations or Grillo. This can be remedied by connecting the decompression cable to the cylinder head from the front, as on the Ciao or Boxer.
| Nominal diameter | 46 mm |
| Manufacturer | Pinasco |
| Material | Aluminum |
| Area of application | Tuning |
| Surface | varnished |
| Displacement | 71 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 50 mm |
| Number of fixing points | 3 pcs |
| Ø Outlet outside | 22.5 mm |
| Ø outlet inside | 18.5 mm |
| Ø piston pin (B) | 10 mm |
| Outlet type | slanted, clamped |
| Hole spacing outlet | 48 mm |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 55 x 34 |
| Decompressor | Yes |
| Camouflaged | No |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Ratings
Accessories & related products
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing type: Needle roller and cage assembly · Width: 16.2 mm · Manufacturer: swiing® ingenious parts · Ø inside: 12 mm · Ø outside: 15 mm · Bearing cage: Silver cage · Dimension needle bearing: 12/15 x 16.2 · Tomos OEM number: 035548
EUR 16.80
Polini Speed Engine engine housing electronic ignition | Piaggio Ciao, SI, Bravo, Boxer
Surface: sandblasted · Color: silver · Stock number: 6202 · Total length: 215 mm · Width: 175 mm · Height: 104 mm · Manufacturer: Polini · Material: Aluminum · Crankshaft stroke: 43 mm · Ignition type: Electronic
EUR 253.20
Polini Speed Engine engine case breaker ignition | Piaggio Ciao, SI, Bravo, Boxer
Total length: 215 mm · Stock number: 6202 · Width: 175 mm · Height: 104 mm · Manufacturer: Polini · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Color: silver · Ignition type: Breaker
EUR 253.20
Pinasco flywheel "Flytech" Carbon | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Pinasco · Material: Aluminum · Material: Carbon · Surface: varnished · Direction of rotation: right · Weight: 650 g · Ø cone small inside: 12.4 mm · Ø cone large inside: 14.5 mm · Cone length: 12.5 mm · Cone ratio: 1:5 · Ø Internal flywheel: 106 mm · Ø Flywheel outside: 135 mm · Thread type: MF16x1 (fine pitch thread) · Thread length: 7.5 mm · Height: 38.7 mm
EUR 253.20
swiing® revival stud bolt set M7x120 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer
Width across flats: 11 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 6.2 mm · Thread length: 25 mm · Drive: External hexagon · Strength class: 8 · Strength class: 8.8 · Thread type: M7x1 (standard thread) · Total length: 120 mm
EUR 14.10
swiing® ingenious stud bolt M7x120 / Ø 7.3 shank (10.9 strength)
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Diameter: 7.3 mm · Thread length: 20 mm · Thread length: 30 mm · Strength class: 10.9 · Thread type: M7x1 (standard thread) · Total length: 120 mm
EUR 5.90
Explore categories from Cylinder
Moped fans also bought
Cuppini handlebar Ø 21 mm with stem 23.5 cm | Piaggio Ciao
Ø outside: 22 mm · Height: 260 mm · Width: 600 mm · Manufacturer: Cuppini · Material: Steel · Surface: chrome-plated · Color: Chrome · Mounting type: Front boom mounting · Ø Stem: 21 mm · Stem height: 160 mm · Length handlebar ends: 160 mm · Crossbar: No
EUR 84.30

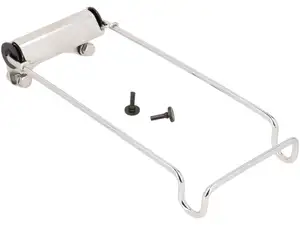

swiing® revival luggage carrier clamp set | Piaggio Ciao PX, C24
