Polini exhaust "EVO" (27 mm connection) | Piaggio Ciao, SI, Bravo, Boxer

Polini EVO REED engine case | Piaggio Ciao, SI, Bravo, Grillo

Stock number: 6202 · Manufacturer: Polini · Material: Aluminum · Crankshaft stroke: 43 mm · Ignition type: Electronic

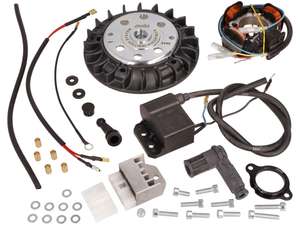

Polini EVO Electronic ignition | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Light coil voltage: 12 V · Direction of rotation: right · Performance: 90 W · Ø Internal flywheel: 80.5 mm · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 138.5 mm · Weight: 554 g · Number of fixing points: 2 pcs · Area of application: High End · Area of application: Racing · Area of application: Tuning

Polini EVO REED crankshaft 12 mm KoBo | Piaggio Ciao, SI, Bravo, Grillo

Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Manufacturer: Polini · Cheek type: Full cheeks · Thread type: MF10x1.25 (fine pitch thread) · Material: Steel · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Thread length: 14 mm · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Ø crank webs: 70 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Weight: 784 g · Ø Bearing seat (ignition side): 15 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Wide crank webs: 32.6 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44.7 mm · Length 3rd paragraph: 64 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm

Polini 47 mm cylinder kit EVO 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Camouflaged: No · Displacement: 75 ccm · Material: Gray cast iron · Crankshaft stroke: 43 mm · Nominal diameter: 47 mm · Ø cylinder neck: 49.8 mm · Ø Outlet outside: 22 mm · Ø Outlet outside: 27 mm · Hole spacing outlet: 23 mm · Hole spacing outlet: 38 mm · Hole pattern [mm]: 43 x 52 · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Area of application: High End · Area of application: Tuning · Thread outlet: M5x0.8 (standard thread) · Decompressor: Yes

Polini EVO clutch bell (torque converter) Vario CNC | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Gearbox type: Vario · Surface: burnished · Weight: 532 g · Ø inside: 93 mm · Material: Steel · Ø outside: 103 mm

Polini gearbox housing EVO Variomatic | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Surface: varnished · Material: Aluminum · Gearbox type: Vario · Area of application: High End · Area of application: Racing · Area of application: Tuning

Polini 47 mm EVO cylinder head | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Camouflaged: No · Material: Aluminum · Ø cylinder: 47 mm · Hole pattern [mm]: 43 x 52 · Candle thread: long · Number of fixing points: 4 pcs

BERU Spark Plug Connector, 1 kΩ, Noise-Suppressed, NOS

Ø cable: 5 mm · Ø cable: 7 mm · Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Subcategory: Spark plug connector · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

Dell'Orto 19 mm PHBG CS carburetor hand choke

Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Color: black · Material: Aluminum · Carburetor type: PHBG CS · Nominal diameter: 19 mm · Total length: 82 mm · Width: 70 mm · Ø without reducing sleeve: 26 mm · Nozzle size: 75 · Height: 124 mm · Ø Inside entrance: 19 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Mounting type: Plug connection clamped · Ø Internal connection: 24 mm · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Area of application: Racing · Area of application: Tuning · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Size of secondary nozzle: 45

Malossi MP-One engine case electronic ignition | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Surface: sandblasted · Color: silver · Material: Aluminum · Total length: 220 mm · Ignition type: Electronic · Width: 104 mm · Height: 174 mm · Ø inside: 24 mm · Ø outside: 140 mm

Polini clutch spring set Mono | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Tension spring · Manufacturer: Polini · Color: blue · Surface: varnished · Material: Spring steel · Total length: 23.4 mm · Area of application: Tuning

GPO footrests aluminum red anodized

Ø inside: 16.1 mm · Manufacturer: GPO · Surface: anodized · Total length: 110 mm · Depth: 29 mm · Ø outside: 34 mm · Reflectors: No · Material: Aluminum · Color: red

Malossi crankshaft 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Manufacturer: Malossi · Cheek type: Full cheeks · Thread type: M10x1.5 (standard thread) · Material: Steel · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Thread length: 15 mm · Total length crankpin ignition side: 91 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.95 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Weight: 813 g · Ø Bearing seat (ignition side): 15 mm · Area of application: Racing · Wide crank webs: 32.4 mm · Length 1st paragraph: 21.3 mm · Length 2nd paragraph: 43.7 mm · Length 3rd paragraph: 63 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm

Malossi racing ignition 12V | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Light coil voltage: 12 V · Material: Steel · Performance: 90 W · Direction of rotation: right · Ø Internal flywheel: 80.5 mm · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 139.5 mm · Ø cable: 7 mm · Mounting type: Screws · Weight: 804 g · Weight: 890 g · Number of fixing points: 2 pcs · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning

AKOA 19 mm intake flange engine case Malossi MP-One | Piaggio

Manufacturer: AKOA · Material: Aluminum · Ø External connection: 24 mm · Ø inside: 19 mm · Mounting type: Screws · Number of fixing points: 3 pcs · Area of application: Tuning
