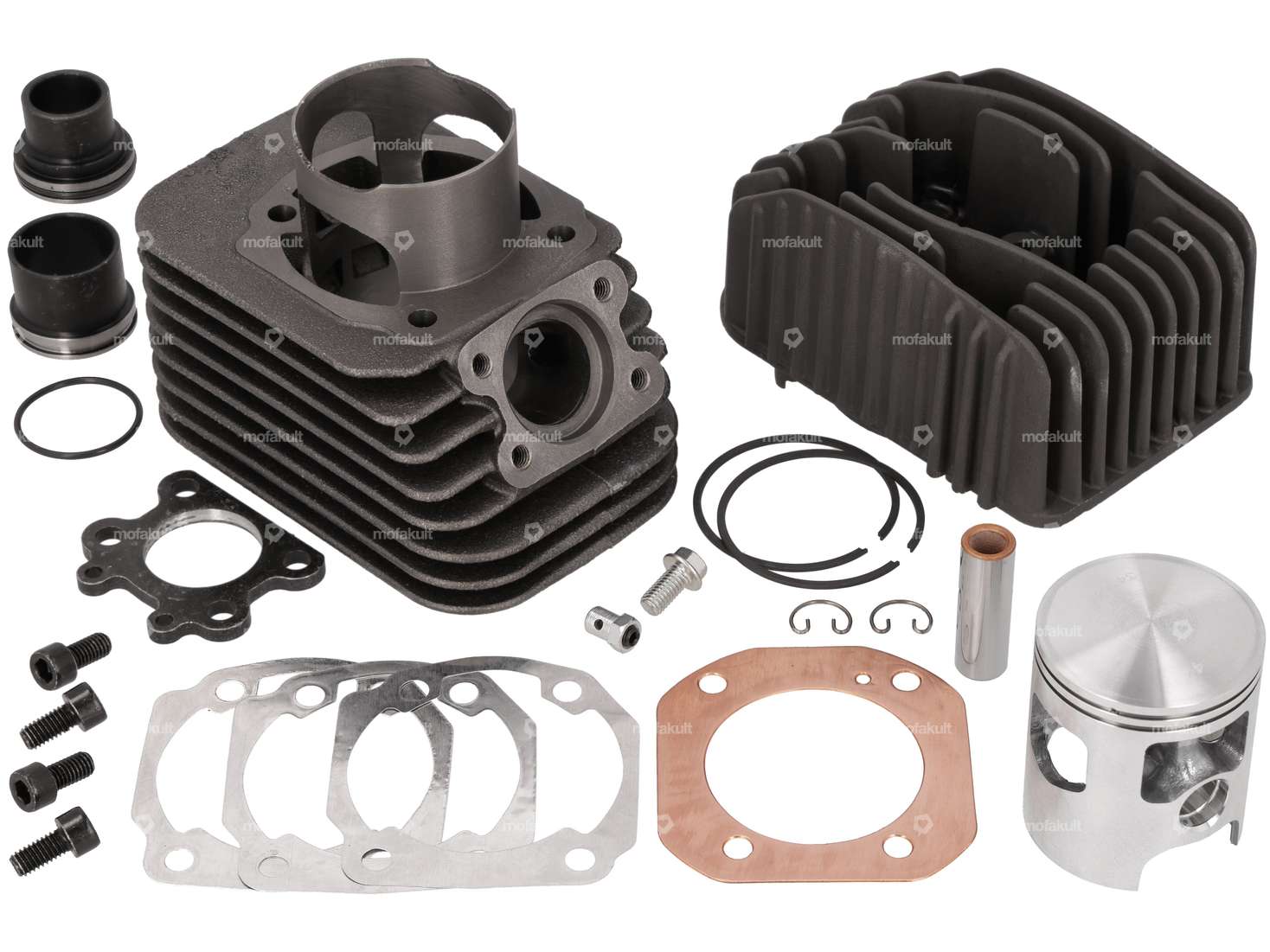

Polini racing kit with 47 mm diameter and approx. 75 cc displacement for your Piaggio Ciao, Si, Bravo and Grillo moped / moped with corresponding Polini EVO REED engine housing.

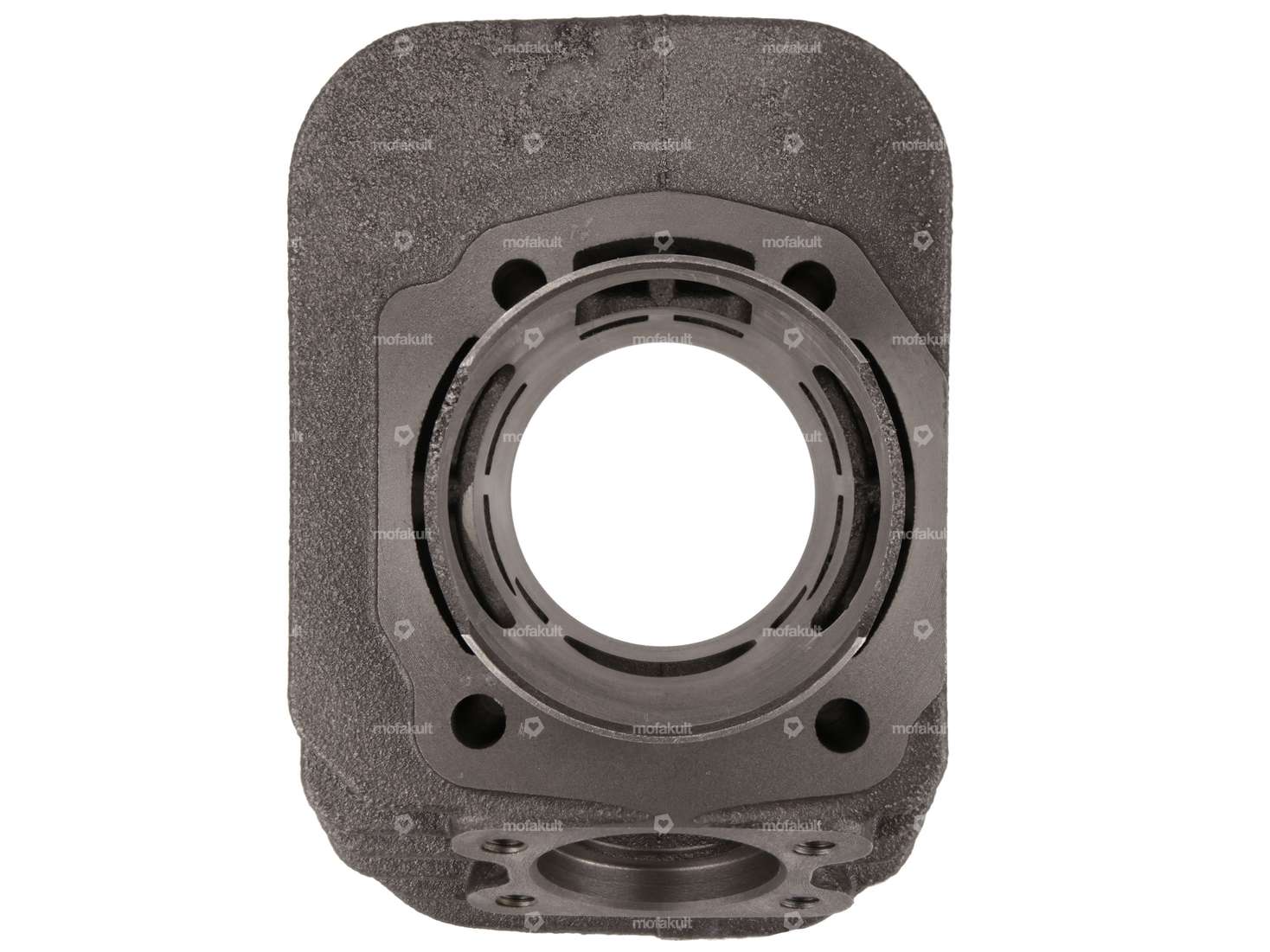

The generously dimensioned, symmetrical overflow ducts and the open boost ports ensure maximum power delivery. The exhaust is attached via a 4-fold bolted exhaust flange plate. Two different sleeves are included in the scope of delivery, which are suitable for exhaust pipes with connection diameters of 22 mm or 27 mm.

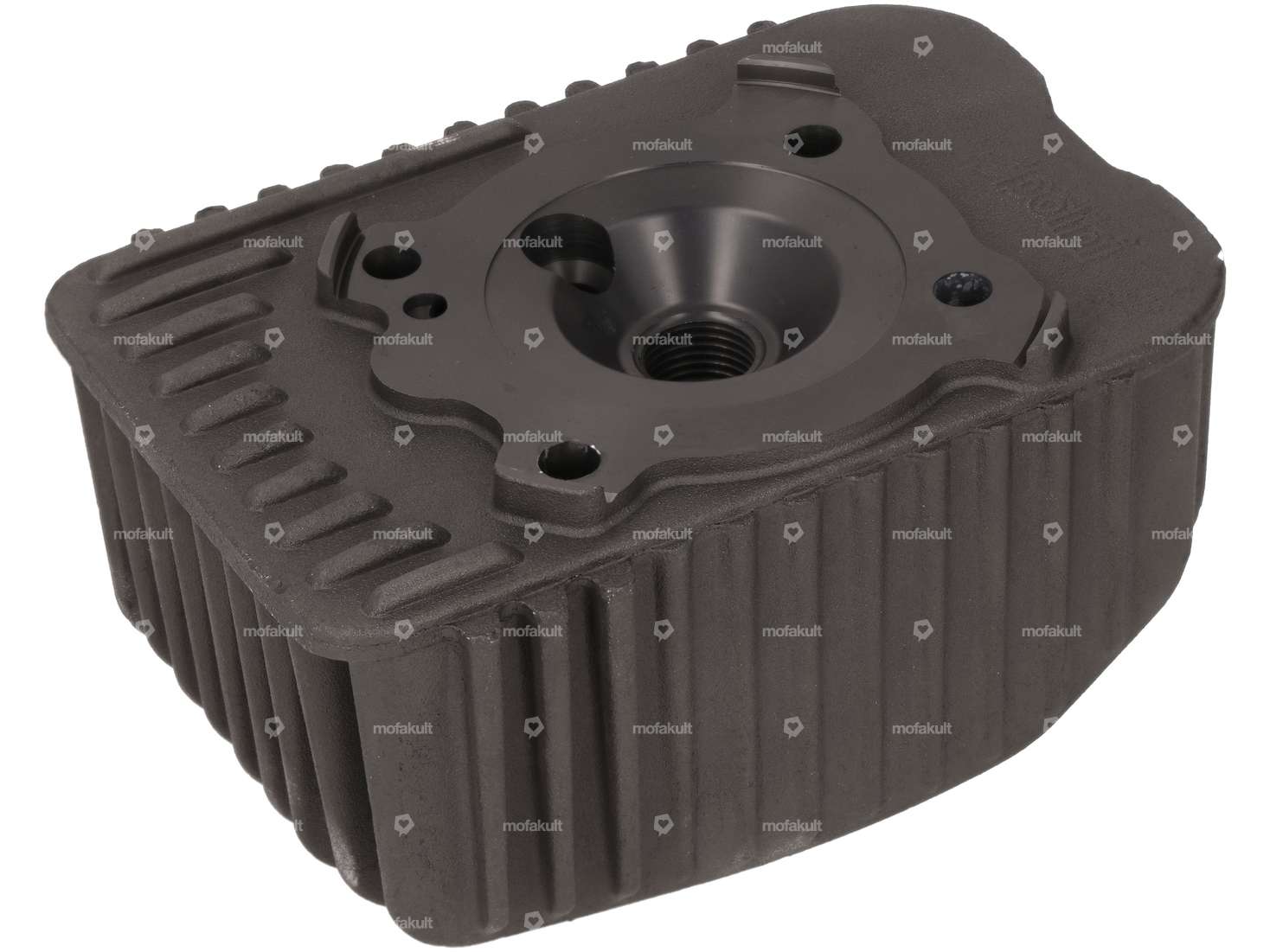

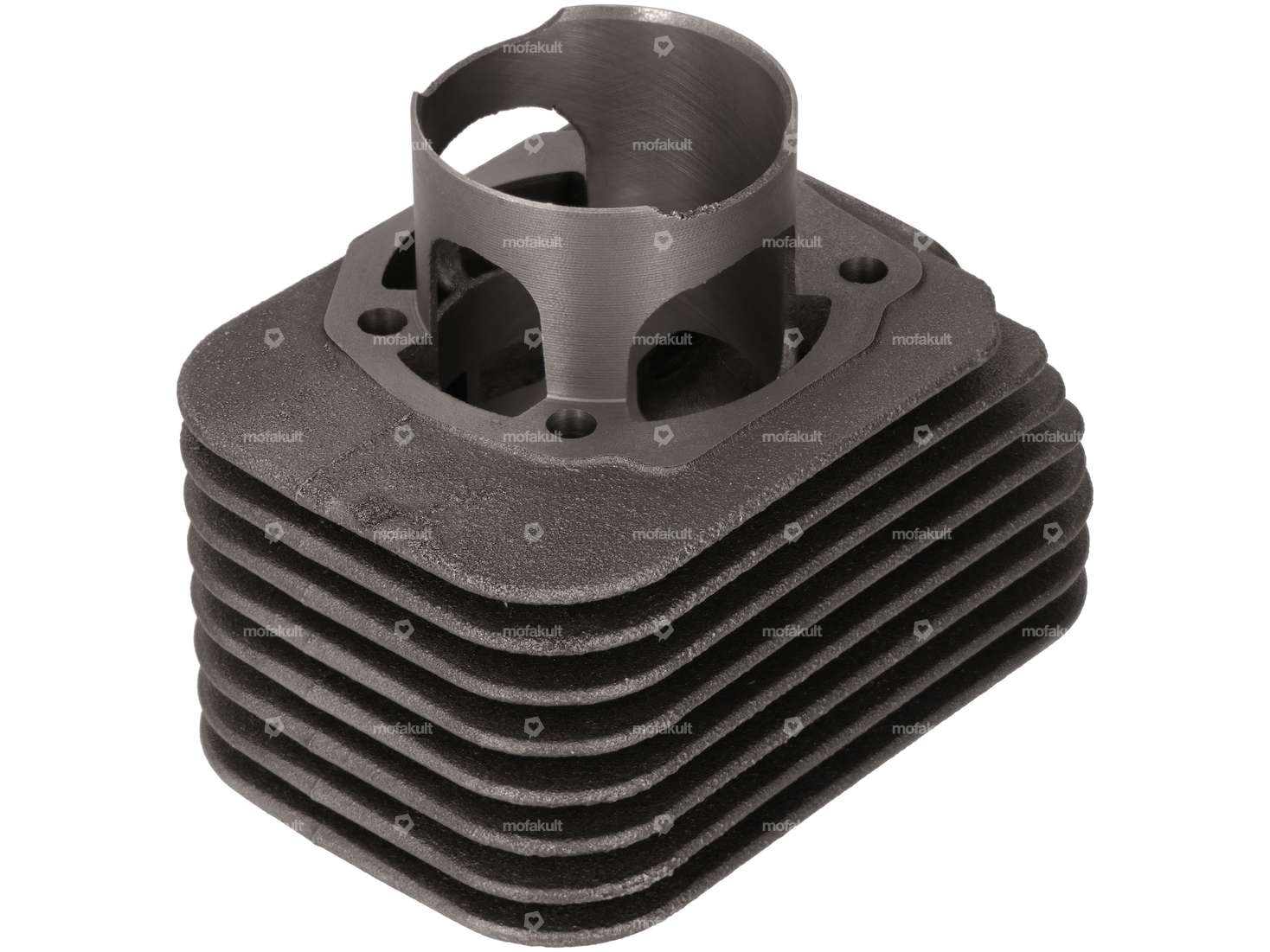

The cast iron tuning cylinder is equipped with four stud bolts and an exhaust with two secondary exhaust ports. In combination with the newly developed cylinder head and a piston with two piston rings, impressive compression and power are generated.
| Nominal diameter | 47 mm |
| Manufacturer | Polini |
| Material | Gray cast iron |
| Displacement | 75 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 49.8 mm |
| Ø Outlet outside | 22 mm, 27 mm |
| Ø piston pin (B) | 12 mm |
| Hole spacing outlet | 23 mm, 38 mm |
| Thread outlet | M5x0.8 (standard thread) |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 43 x 52 |
| Decompressor | Yes |
| Camouflaged | No |
| Area of application | Tuning, High End |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Grillo |
Accessories & related products
Polini EVO Electronic ignition | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Light coil voltage: 12 V · Weight: 554 g · Direction of rotation: right · Number of fixing points: 2 pcs · Ø Internal flywheel: 80.5 mm · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 138.5 mm · Performance: 90 W · Area of application: High End · Area of application: Racing · Area of application: Tuning
EUR 602.90
Polini EVO REED crankshaft 12 mm KoBo | Piaggio Ciao, SI, Bravo, Grillo
Manufacturer: Polini · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Weight: 784 g · Thread type: MF10x1.25 (fine pitch thread) · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 14 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.6 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44.7 mm · Length 3rd paragraph: 64 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Number of gears: 1 pcs
EUR 349.70
Polini CP 21 mm carburetor & air filter (hand choke) | Piaggio Ciao, SI, Bravo, Boxer
Width: 66 mm · Height: 122 mm · Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Carburetor type: CP · Nominal diameter: 21 mm · Ø Inside entrance: 42 mm · Area of application: Racing · Area of application: Tuning · Ø Output inside: 22.5 mm · Ø Air filter connection: 47 mm · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Total length: 71 mm · Mixed oil connection: Yes · Mounting type: Rubber sleeve · Vacuum connection: Yes · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle block: 35-12 · Nozzle size: 82 · Nozzle size: 84 · Nozzle size: 86 · Size of secondary nozzle: 40
EUR 204.90
Hot
Polini exhaust "EVO" (27 mm connection) | Piaggio Ciao, SI, Bravo, Boxer
Ø outside: 83 mm · Manufacturer: Polini · Material: Aluminum · Material: Steel · Color: black-matt · Surface: blank · Color: graphite colors · Surface: varnished · Number of fixing points: 2 pcs · Ø Silencer: 60 mm · Ø Flame tube outside: 27 mm · Exhaust type: Cone / double cone · Ø Internal connection: 27 mm · Total length: 750 mm · Mounting type: Tab for screwing · Flame tube attachment: Plug connection
EUR 301.40

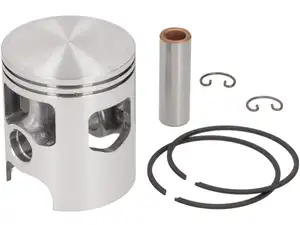

Polini piston 47 mm EVO cylinder (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer, Grillo
Manufacturer: Polini · Ø outside piston (A): 46.92 mm · Compression height (C): 31.6 mm · Curvature (D): 2 mm · Total piston height (E): 55.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 47 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.2 mm · Weight piston kit: 101 g
EUR 106.00

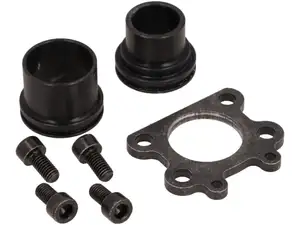

Polini exhaust flange EVO cylinder kit | Piaggio Ciao, Si, Bravo, Boxer
