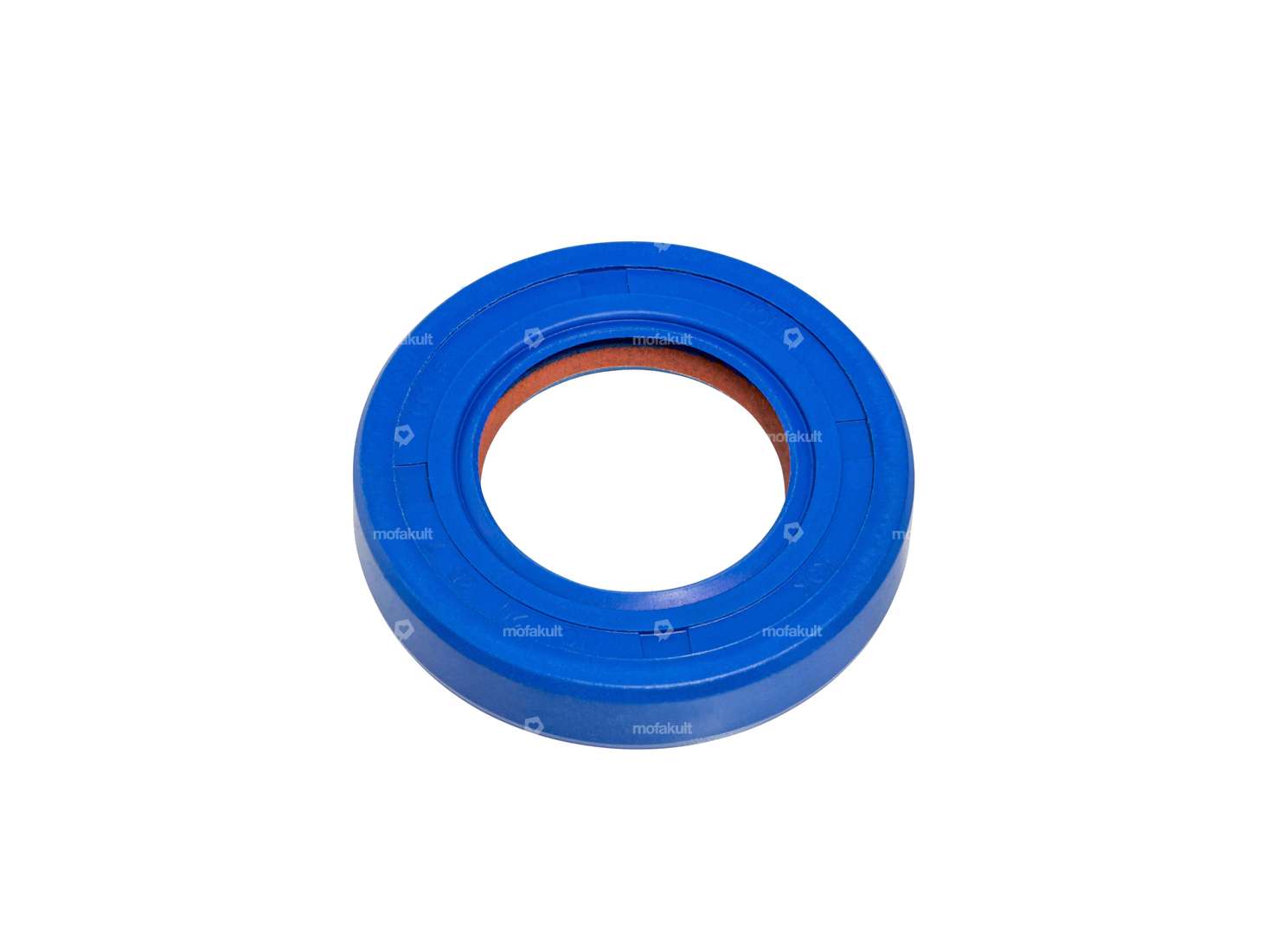

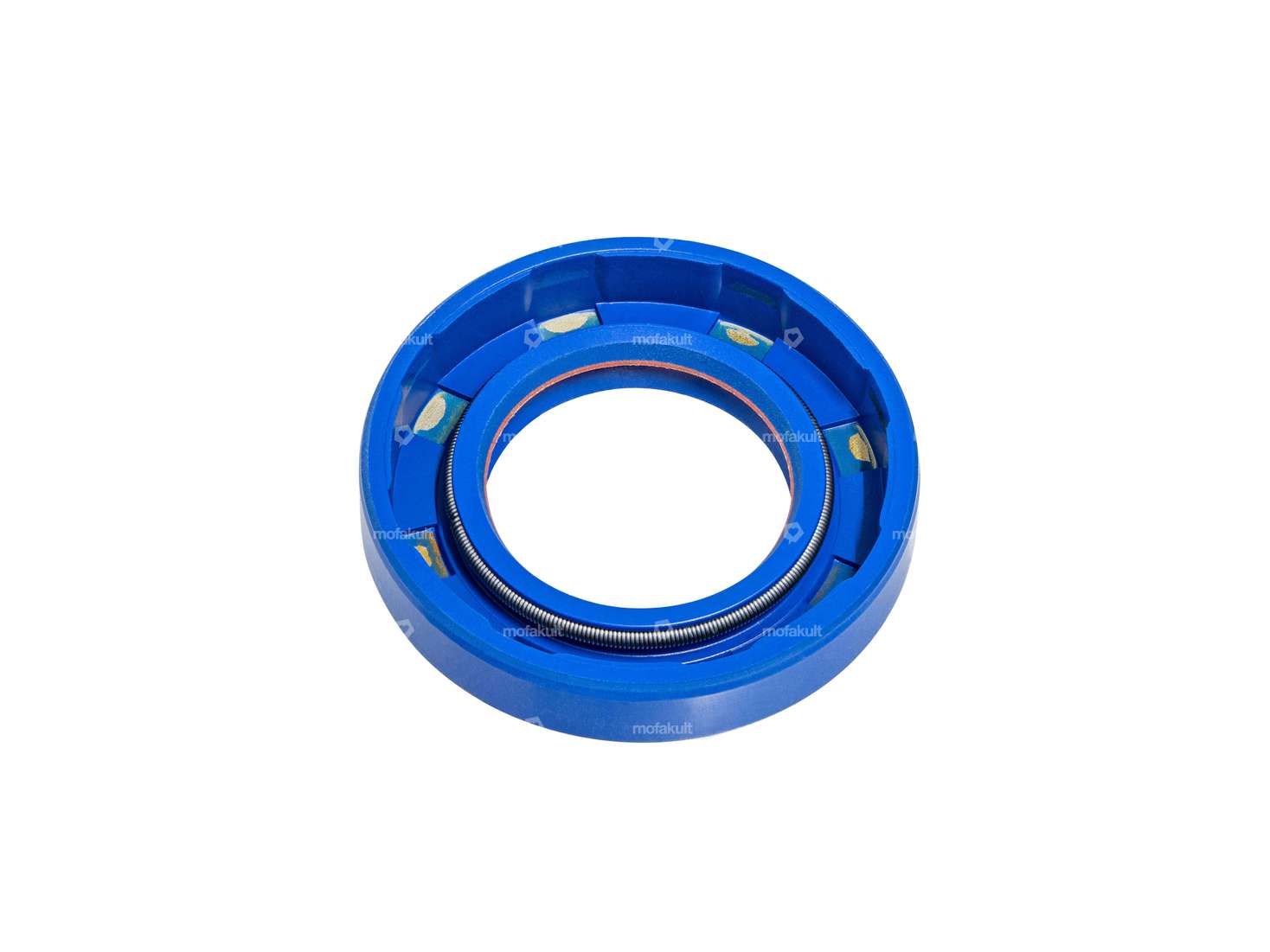

Shaft seal ring with sealing lip made of PTFE (colloquially known as Teflon) with the dimensions 20x35x7 mm for use in the ZA50 engine of your Puch moped / moped.
This seal ring fits the ZA50 engine of Puch Maxi S / N, as well as Puch Supermaxi LG2 mopeds.
This radial shaft seal ring with fluorine rubber outer jacket is resistant up to a temperature of 200°C.
Conventional NBR oil seals are temperature-resistant up to 100 °C.
FPM or FKM oil seals (colloquially known as Viton) are particularly suitable for racing, as they are designed for higher speeds and can therefore withstand higher temperatures.
This shaft seal made of FPM / FKM (commonly known as Viton) has an additional sealing lip made of PTFE, a thermally highly resilient material that does not interact with the lubricant and can therefore withstand the highest loads.
Ø inner: 20 mm
Ø outer: 35 mm
Width: 7 mm
Material: Fluorocarbon rubber FPM / FKM
Temperature resistant: -30 to +200 °C, briefly up to 220 °C
Type AS - With rubberized outer jacket, one sealing lip and one dust lip.
Other useful parts for your Puch moped can be found in the accessories section.
Quality product from the Italian manufacturer Polini.
| Temperature resistance (min.) | -30 - 200 °C |
| Shaft seal type | AS - With rubberized outer casing / one sealing lip / one dust lip. |
| Ø inside | 20 mm |
| Manufacturer | Polini |
| Ø outside | 35 mm |
| Material | FPM / FKM (colloquially known as Viton) |
| Surface | rubberized |
| Place of use | Crankshaft, Universal |
| Width | 7 mm |
| Puch | ZA50 (air-cooled) ZA50 (fan-cooled) |
Ratings
Accessories & related products
Loctite 243 medium-strength threadlocker 10 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Temperature resistance (min.): -75 - 200 °C · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m · Area of application: Chemistry
EUR 26.60
EUR 2’660.00/l

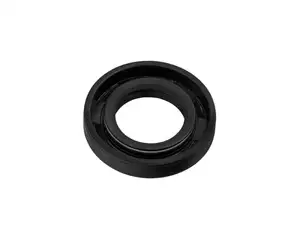

Oil seal NBR 20/35/7 AS crankshaft | Puch ZA50
