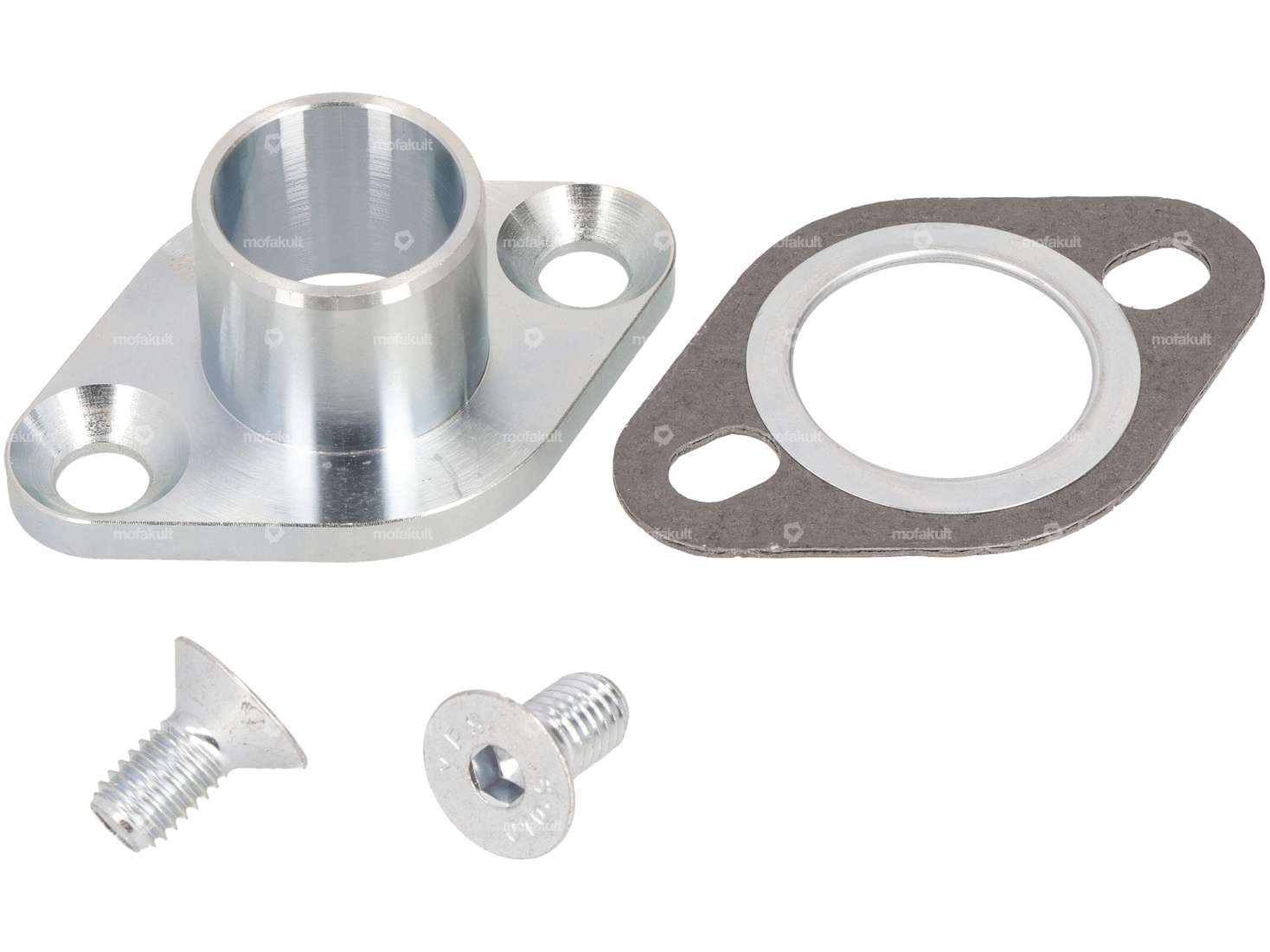

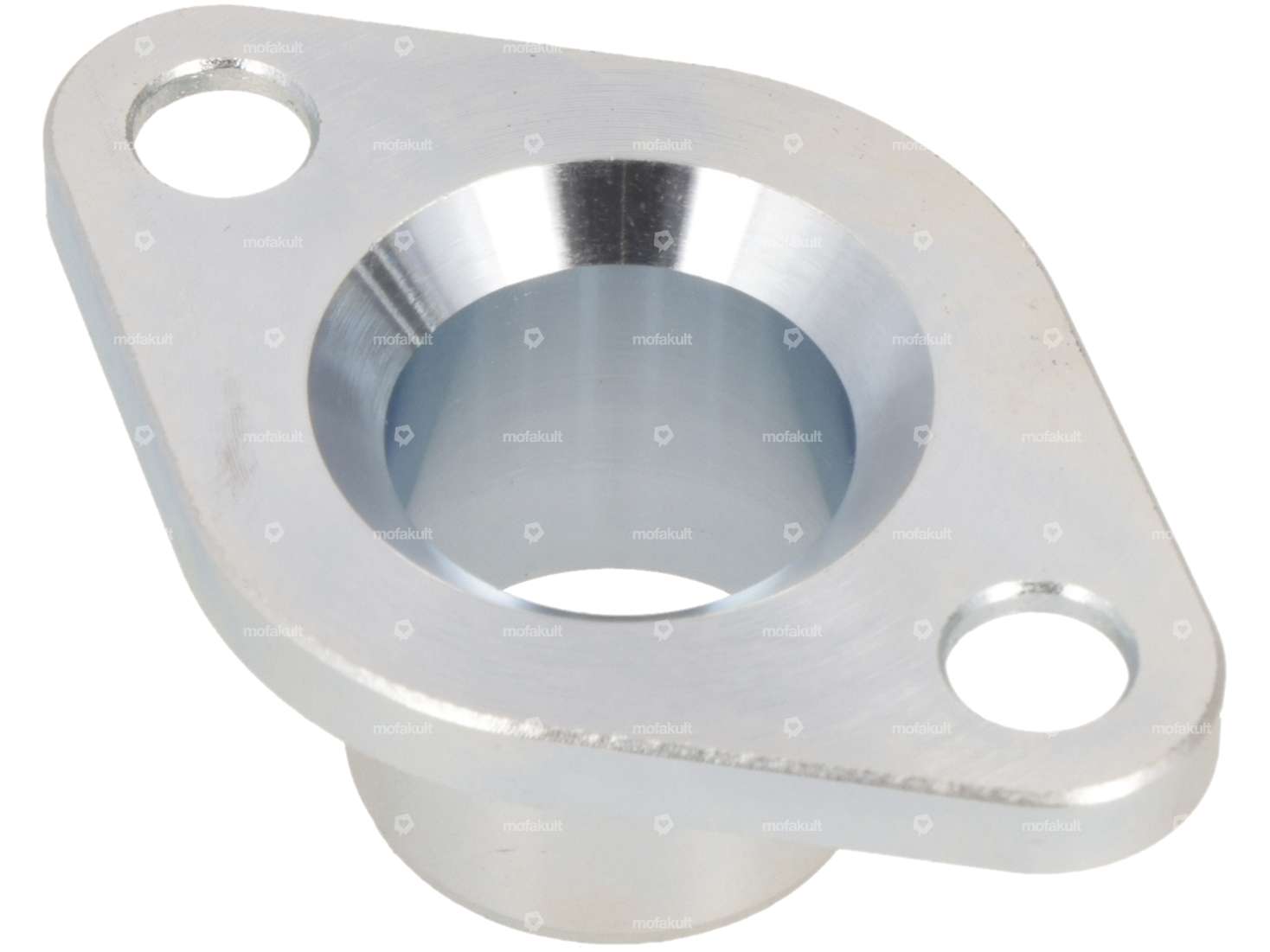

CNC machined exhaust adapter made of galvanized steel, suitable for the Athena cylinder on your moped / moped with Sachs 504, 505 or 508 engine.
As is well known, the Athena exhaust flange included in the cylinder set can only be fitted with laborious adjustments due to incorrect holes and a missing seal. The swiing® exhaust adapter is supplied with a gasket and the matching countersunk screws and solves this problem without any adjustment work.
Details
| Width | 43 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Surface | galvanized (blue) |
| Ø inside | 22 mm |
| Total length | 67 mm |
| Ø outside | 26 mm |
| Ø mounting hole | 8.3 mm |
| Height | 25.5 mm |
| Hole spacing | 50 mm |
Suitable for the following models
| Sachs | 50/4 505 (with pedal shaft) - 1A (AT), 2A (HG) 508 - 1 A 535 |
| Hercules |
Accessories & related products
Athena 38 mm cylinder kit without mounting parts | Sachs (504), 505, 508
Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 50 ccm · Crankshaft stroke: 44 mm · Nominal diameter: 38 mm · Ø cylinder neck: 51.7 mm · Number of fixing points: 4 pcs · Inlet window: 23.6 x 12.8 / 16.5 · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 28.3 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 50 mm · Outlet type: straight · Hole spacing inlet: 32 mm · Thread outlet: M8x1.25 (standard thread) · Hole pattern [mm]: 56/61 x 56 · Decompressor: M10x1.5 · Camouflaged: No
EUR 336.90
Athena 45 mm cylinder kit incl. mounting parts | Sachs (504), 505, 508
Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 44 mm · Nominal diameter: 45 mm · Ø cylinder neck: 51.7 mm · Ø Outlet outside: 25.9 mm · Number of fixing points: 4 pcs · Ø Inlet inside: 14.3 mm · Inlet window: 23.4 x 12.6 · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 19.5 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 50 mm · Outlet type: clamped · Outlet type: straight · Hole spacing inlet: 31.5 mm · Thread outlet: M8x1.25 (standard thread) · Hole pattern [mm]: 56 (61) x 56 · Decompressor: M10x1.5 · Camouflaged: No
EUR 360.90
Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508
Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 44 mm · Nominal diameter: 48 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Number of fixing points: 4 pcs · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Ø outlet inside: 19.4 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 50 mm · Outlet type: clamped · Outlet type: straight · Hole spacing inlet: 32.5 mm · Thread outlet: M8x1.25 (standard thread) · Hole pattern [mm]: 56/60 x 56 · Decompressor: M10x1.5 · Camouflaged: No
EUR 360.90
Athena piston 45 mm #A | Sachs 504, 505
Manufacturer: Athena · Ø outside piston (A): 44.92 mm · Compression height (C): 28.2 mm · Total piston height (E): 45.2 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Piston weight: 98 g
EUR 71.60
EUR 84.10

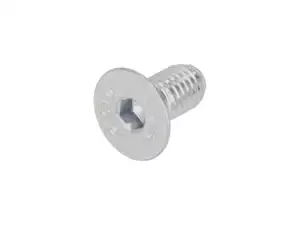

Screw M8x16 countersunk head hexagon socket, galvanized (strength 10.9)
