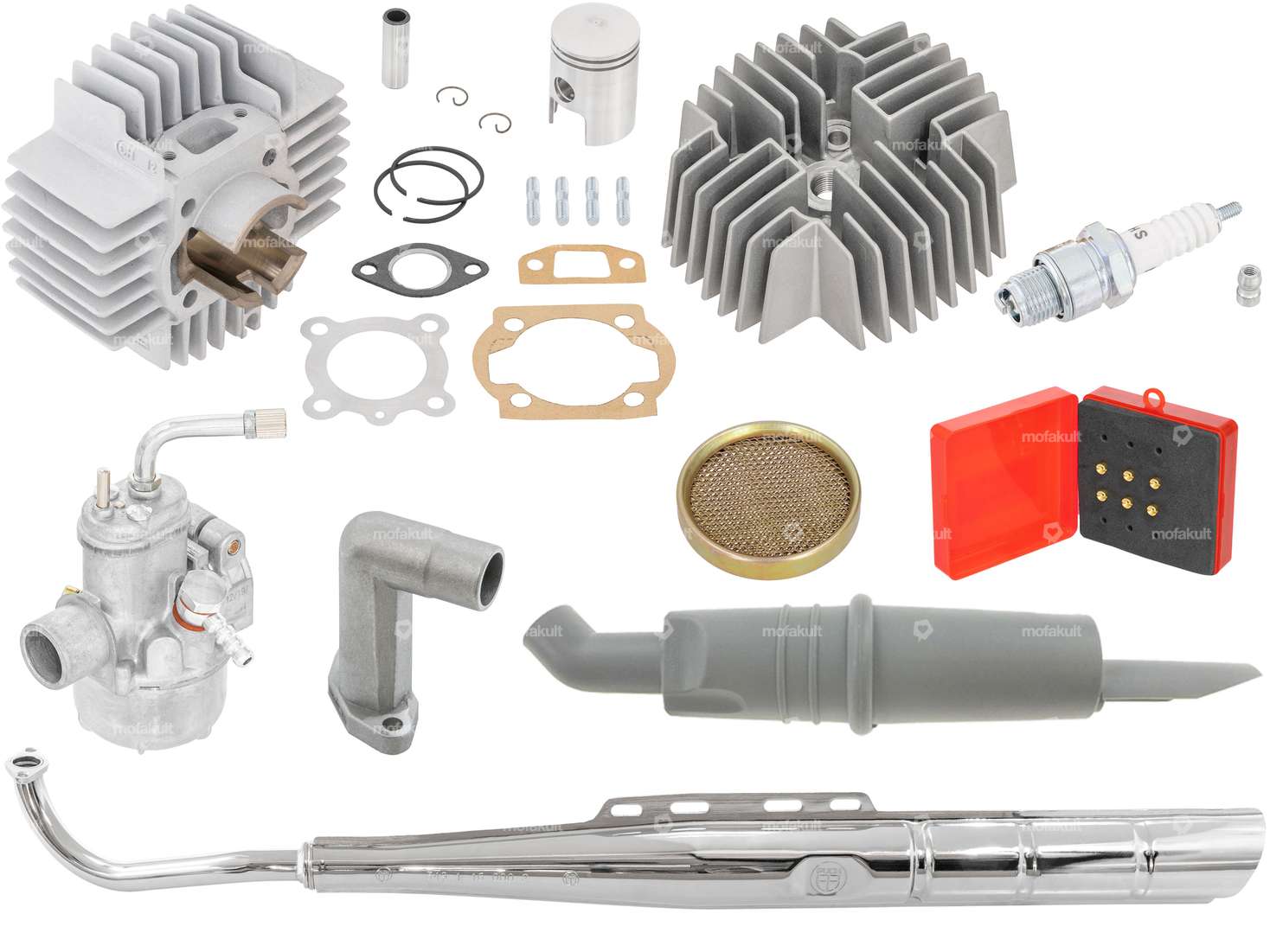

38 mm tuning set suitable for your Puch X30 Sport, Turbo and Sprinter moped / moped with 2-speed Z50 engine
.The individual components are finely tuned to each other and guarantee optimum power delivery.
With the exception of the intake manifold, all parts bear the original cast or stamped numbers.
The 50 cc cylinder is marked with a CH12, the carburettor with the code number «1/12/197» and the 2-piece exhaust with the Puch logo and engraved number 349.1.16.000.2.
A düsenset is included for perfect tuning of the tuning carburettor.
Hole pattern [mm]: 44 x 44 · Inlet window: 23.4 x 14.7 · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 38 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 20 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Decompressor: Yes · Camouflaged: Yes · Area of application: Tuning
Hole pattern [mm]: 44 x 44 · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 38 mm · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: No · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Area of application: Standard
Nozzle block: 2.17 · Nozzle size: 62 · Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete · Puch OEM number: 349.9.15.300.0, 349.6.15.400.0, 349.7.15.700.0, 349.4.15.500.0, 349.4.15.000.0, 349.4.15.300.0, 349.1.15.100.0, 349.8.15.400.0, 349.2.15.800.0
Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø inside: 16 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 70 mm · Total length: 48 mm · Area of application: Tuning
Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 59 mm · Total length: 890 mm · Ø Silencer: 54.5 mm · Ø Flame tube outside: 22 mm · Exhaust type: Flute · Mounting type: Welded lug, Stud bolts & nuts · Number of fixing points: 4 pcs · Flame tube attachment: Flange · Puch OEM number: 321.1.16.100.0
Manufacturer: swiing® revival parts · Camouflaged: Yes · Color: gray · Material: Plastic · Filter type: Racing screen · Ø Internal connection: 20 mm · Mounting type: Plug connection clamped · Area of application: Tuning, Standard
Manufacturer: GPO · Camouflaged: No · Color: yellow · Material: Steel · Surface: galvanized (yellow) · Height: 9.7 mm · Ø outside: 52 mm · Area of application: Tuning
Nozzle size: 64, 66, 68, 70, 72, 74 · Manufacturer: swiing® revival parts · Material: Brass · Quantity: 6 pcs · Carburetor type: SRE, SRF, SRA (1/11/35) Velux, SRA (1/11/31) Velux, SRC · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Total length: 6 mm · Drive: Slot · Component group Carburetor: Spraying
| Nominal diameter | 38 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Displacement | 50 ccm |
| Area of application | Tuning |
| Ø piston pin (B) | 12 mm |
| Puch | Z50 (X30 Sport) |
