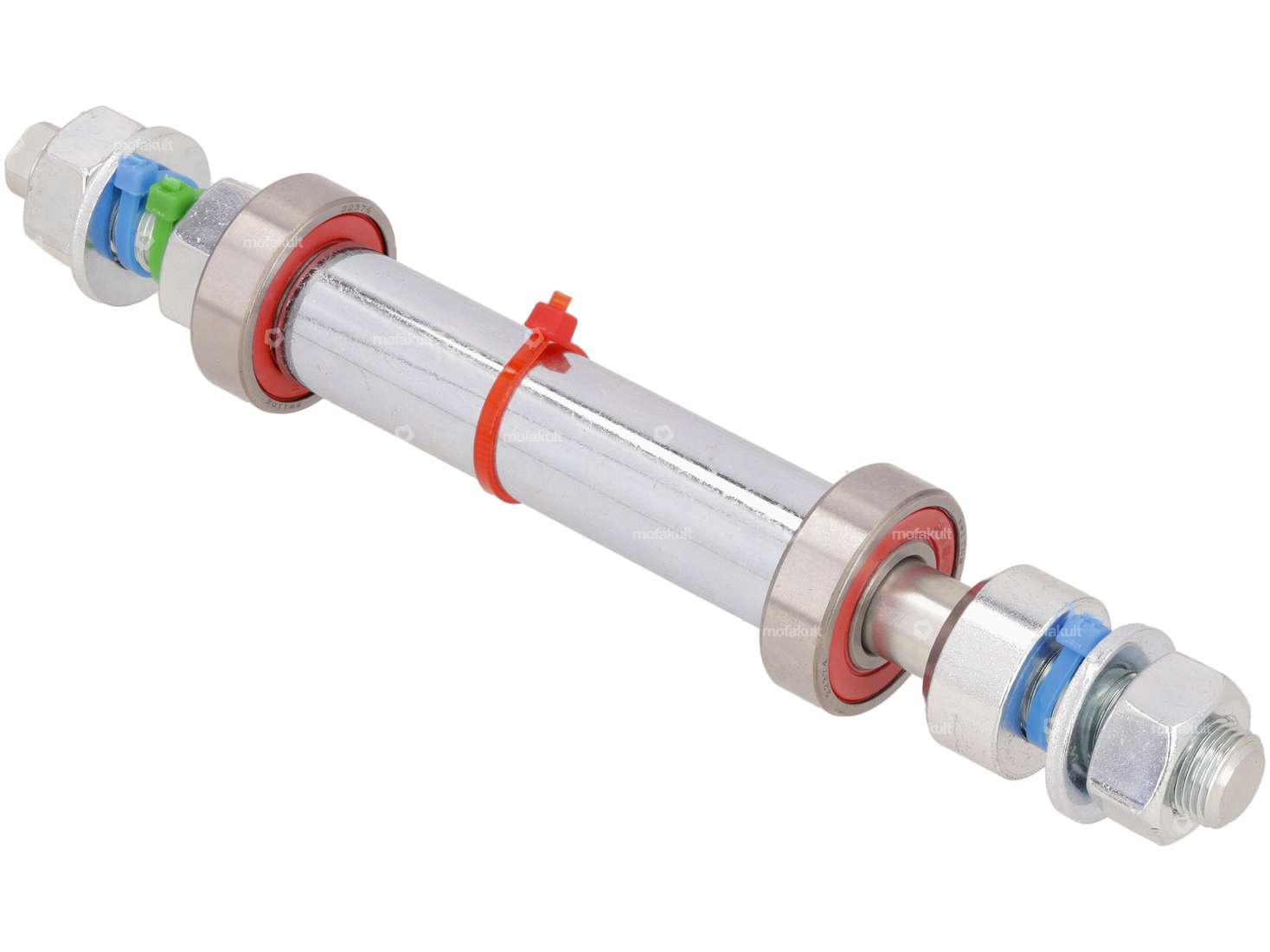

Wheel axle with closed groove ball bearings (Ø 29 mm) for the rear spoke wheel on your Puch moped / moped.
The rear wheel axle includes all required washers, nuts and spacer bushes.
The dimension of the long spacer sleeve is 78.5 mm.

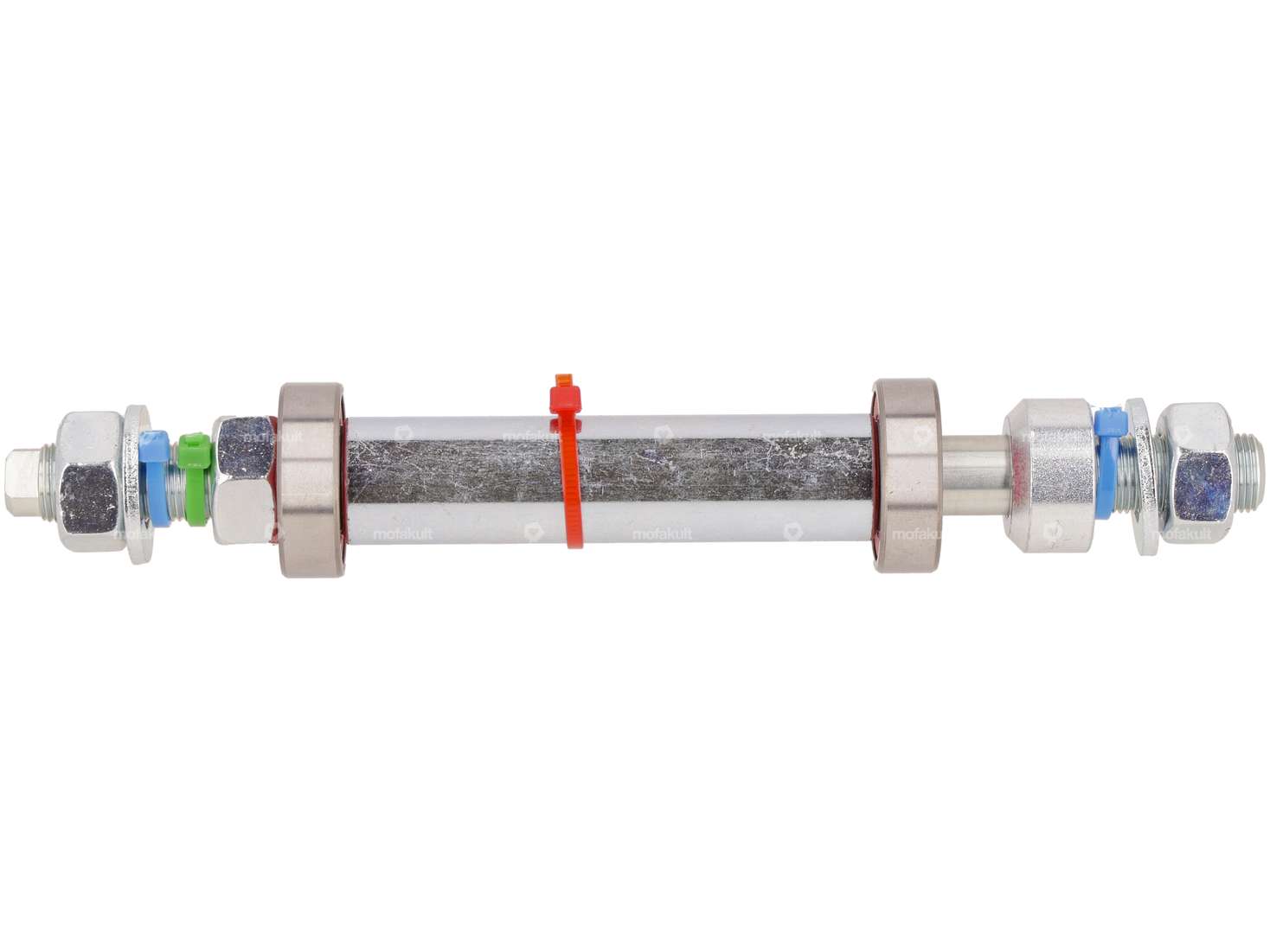

The colored markings clearly show you which component is mounted in which position:
- Green marking brake anchor plate
- Blue marking: swing arm
- Red marking: wheel hub
Note: When mounting the ball bearings, make sure that the long spacer bushing is clamped between the two bearings without any play. This is the only way to ensure that the inner rings of the bearings press correctly onto the bushing. If this is not observed, the bearings will inevitably become distorted.
| Manufacturer | swiing® ingenious parts |
| Ball bearing closed | Yes |
| Thread type | MF12x1 (fine pitch thread) |
| Material | Steel |
| Surface | galvanized (blue) |
| Diameter | 29 mm |
| Total length | 190 mm |
| Ø inside | 12 mm |
| Ø outside | 29 mm |
| Thread length | 29 mm, 53 mm |
| Ø shaft | 19 mm |
| Width across flats | 19 mm |
| Shank length | 100 mm |
| Puch |
