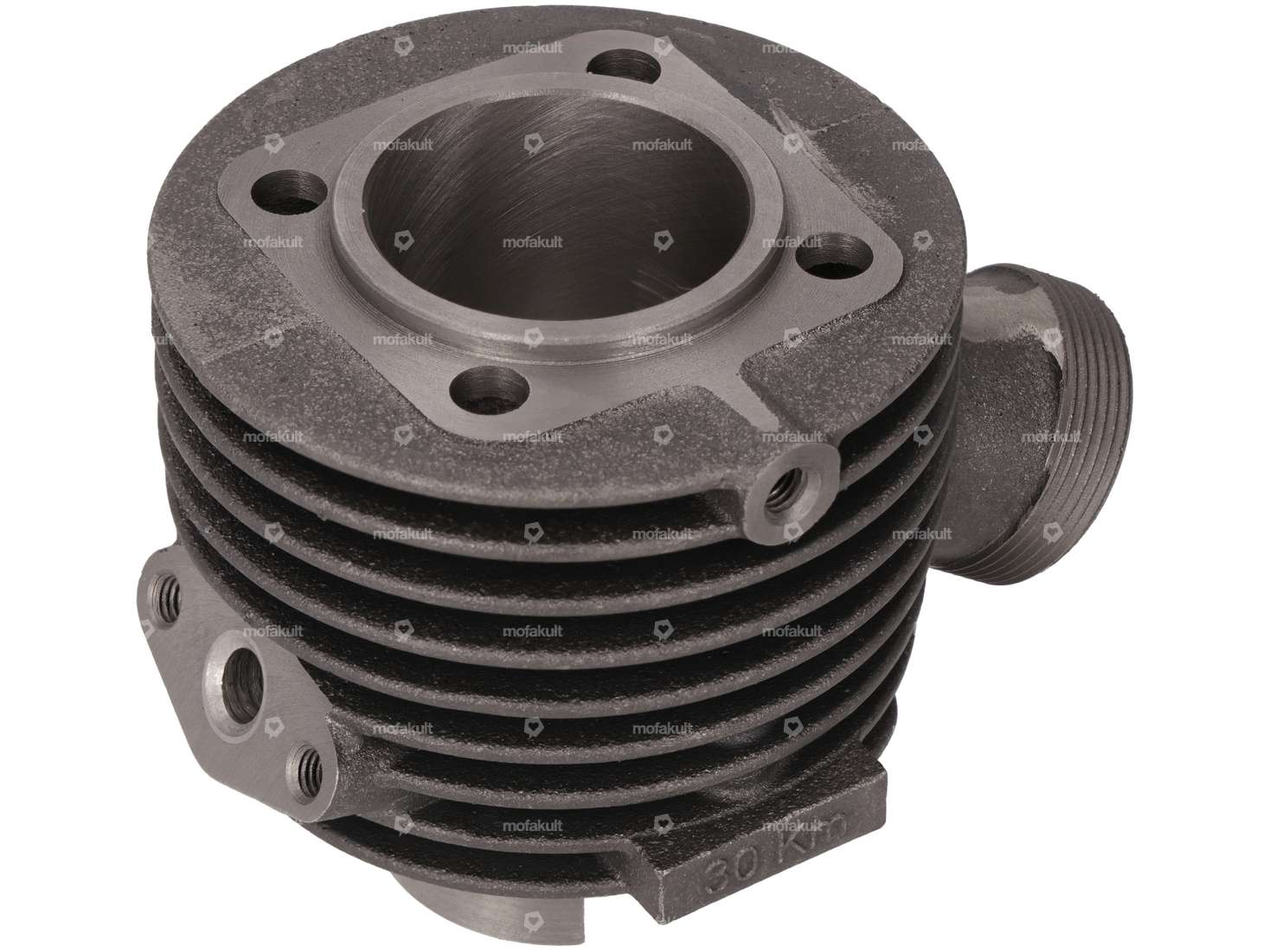

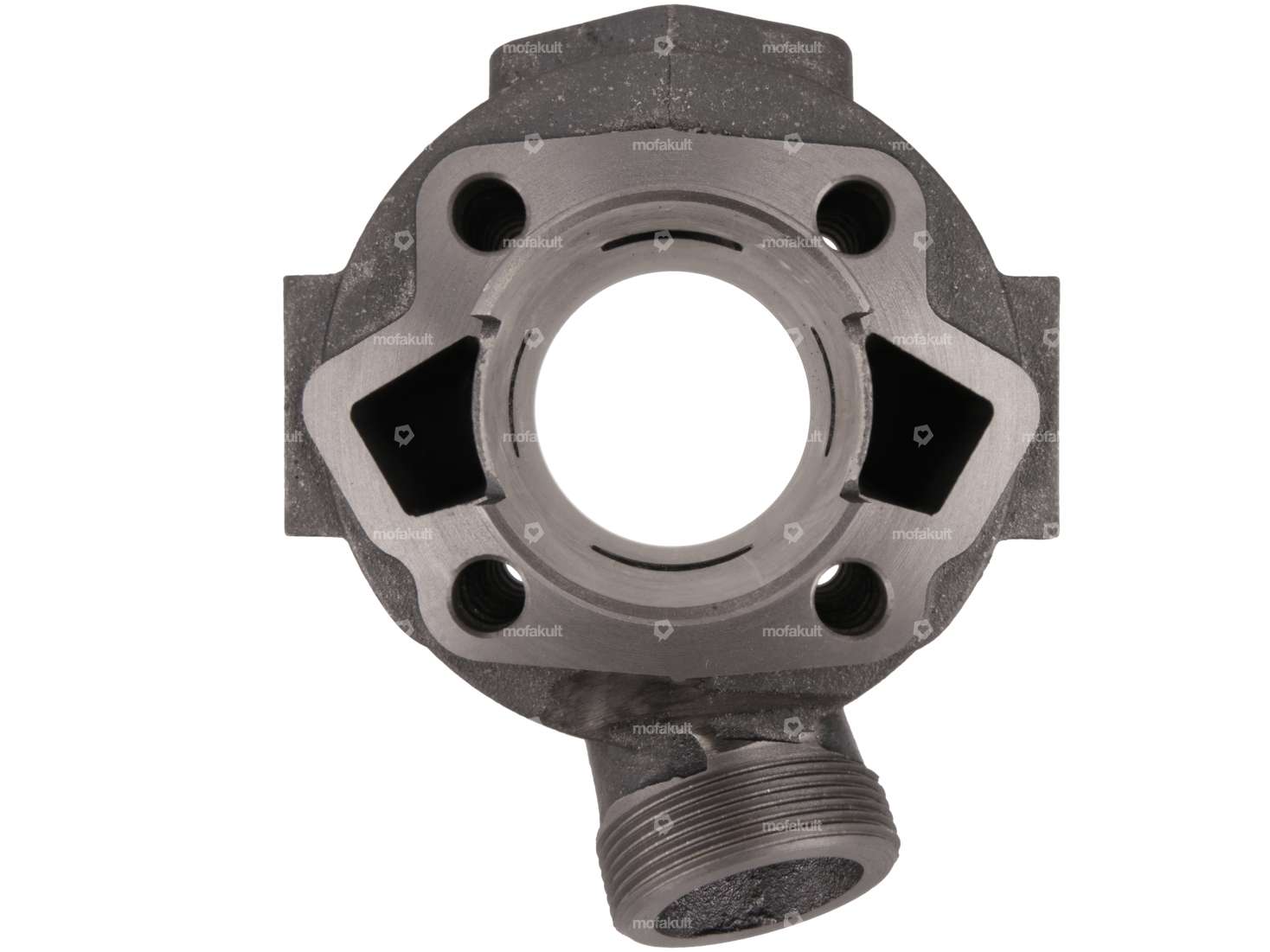

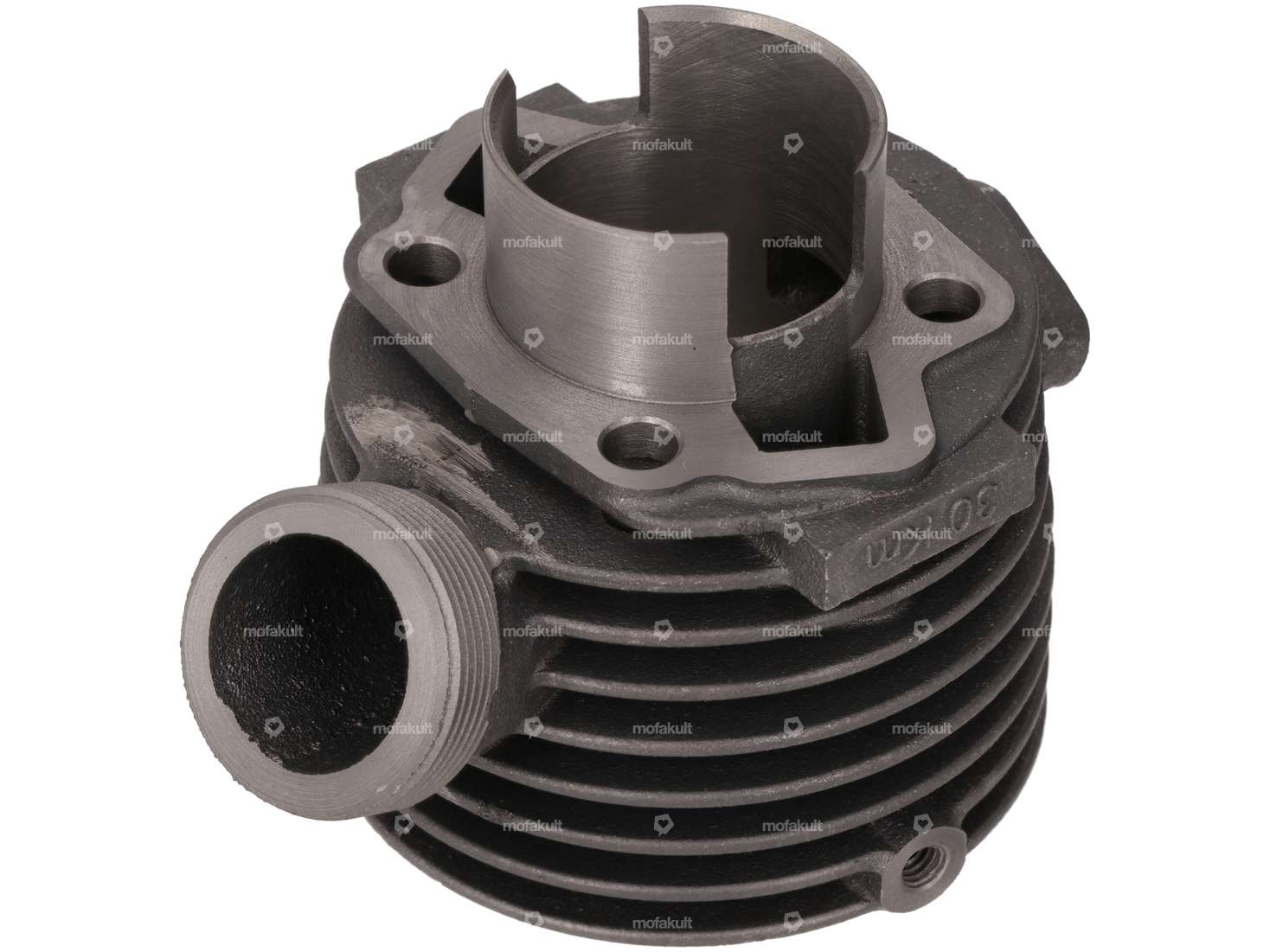

First 40 mm tuning cylinder kit suitable for the manual Cilo 502 mopeds / mopeds.
This 40 mm racing kit is visually indistinguishable from the original cylinder when fitted.
Due to the larger displacement and slightly improved timing, an increase in power was tested in all engine speed ranges.
This 40 mm racing kit is visually indistinguishable from the original cylinder when fitted.
The piston is fitted with the arrow pointing towards the exhaust.

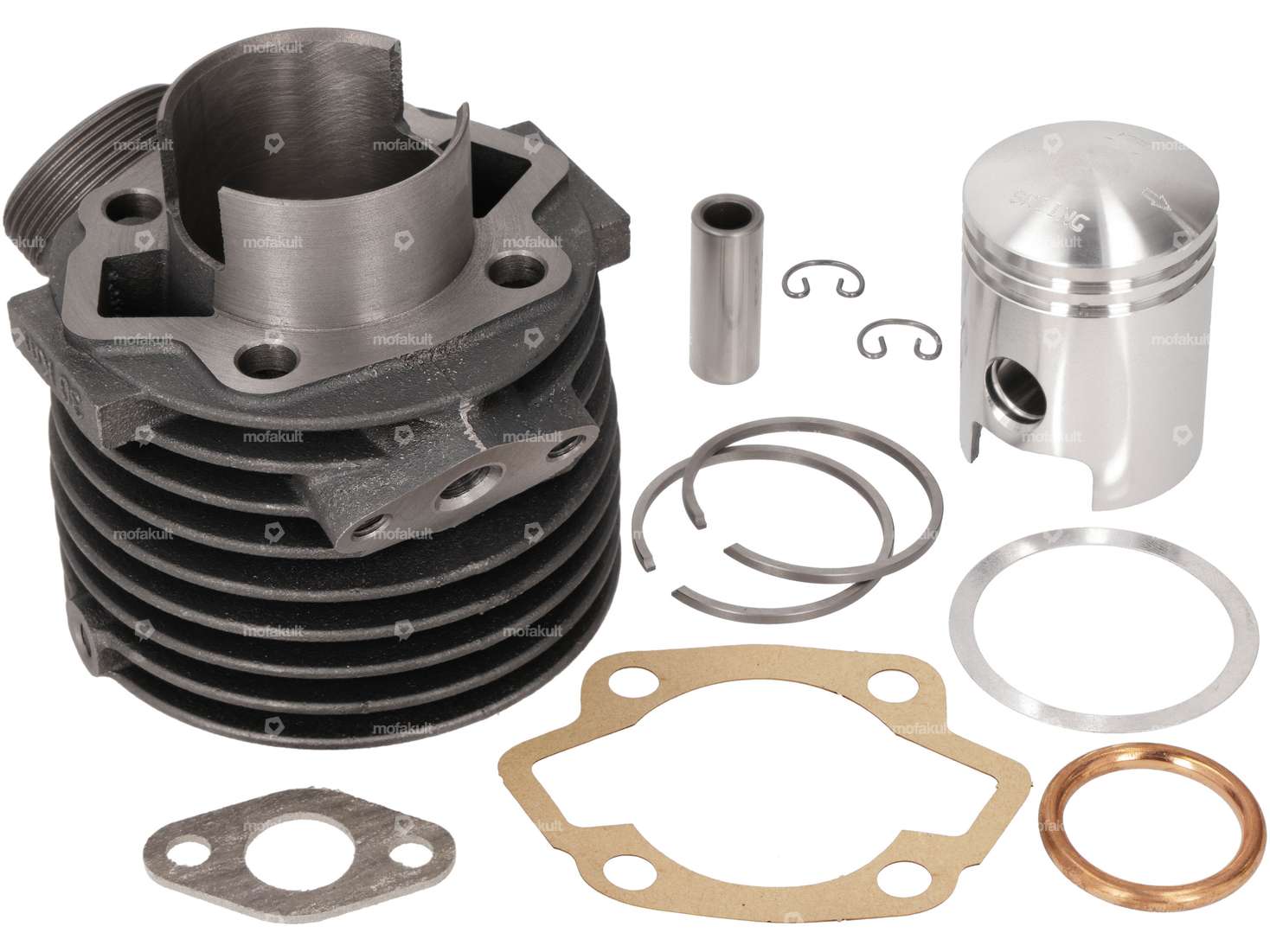

The set includes cylinder, piston kit and gasket set. The matching stud bolts are listed under accessories.
Manufacturer: swiing® revival parts · Number of components: 4 pcs · Ø cylinder: 40 mm · Hole spacing inlet: 32 mm · Ø outlet inside: 28 mm · Area of application: Tuning
Manufacturer: swiing® ingenious parts · Material: Gray cast iron · Surface: sandblasted · Displacement: 55 ccm · Nominal diameter: 40 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Outlet type: Union nut · Number of fixing points: 4 pcs · Camouflaged: No · Area of application: Tuning
Manufacturer: swiing® ingenious parts · Nominal diameter: 40 mm · Ø outside piston (A): 39.93 mm · Ø piston pin (B): 12 mm · Compression height (C): 27.9 mm · Curvature (D): 5.1 mm · Total piston height (E): 54 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Thick piston ring: 1.65 mm · Weight piston kit: 93 g
| Manufacturer | swiing® ingenious parts |
| Material | Gray cast iron |
| Surface | sandblasted |
| Nominal diameter | 40 mm |
| Ø piston pin (B) | 12 mm |
| Area of application | Tuning |
| Thread inlet | M6x1 (standard thread) |
| Number of fixing points | 4 pcs |
| Outlet type | Union nut |
| Camouflaged | Yes |
| Cilo | 502 / 502t |
