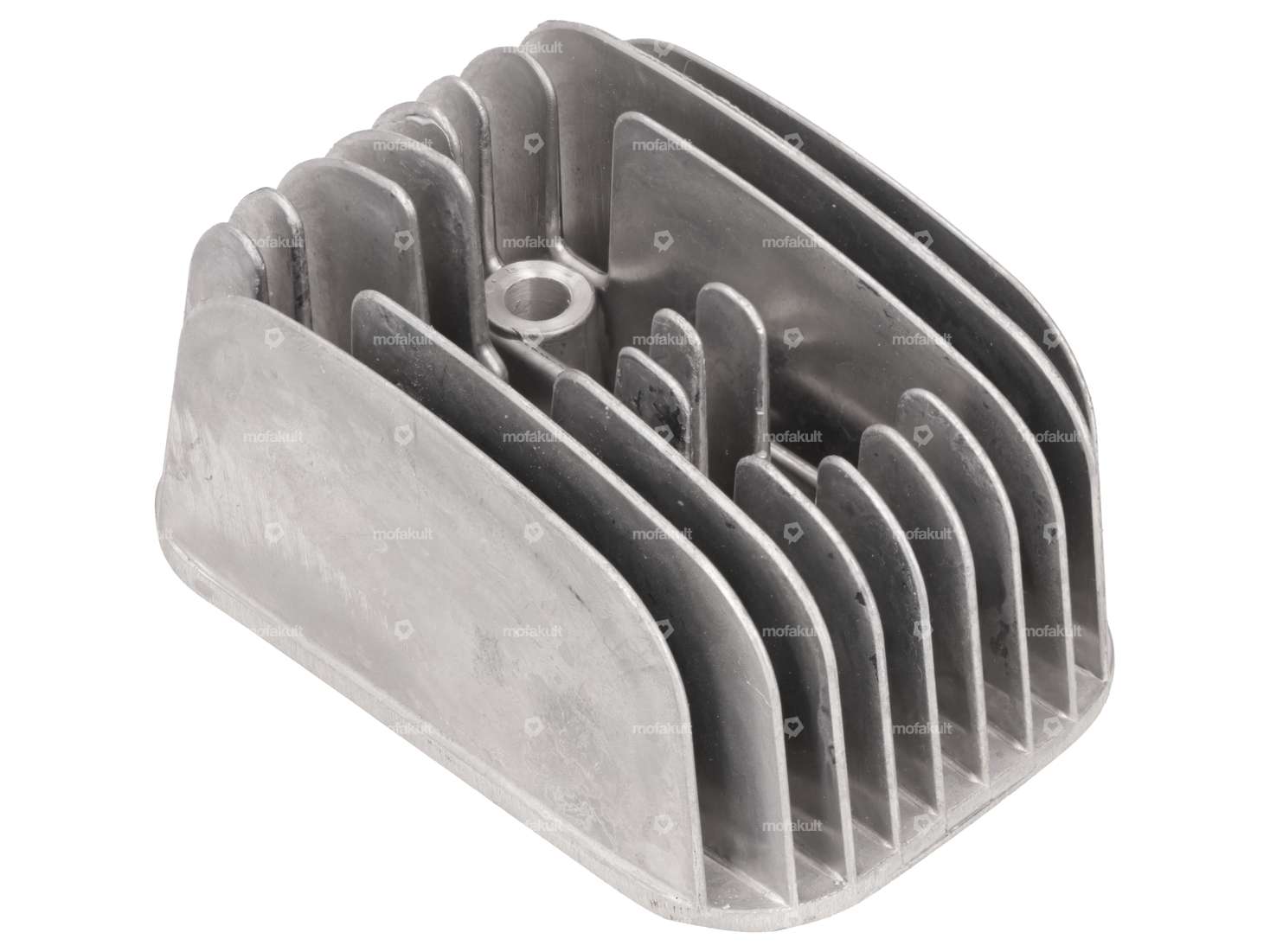

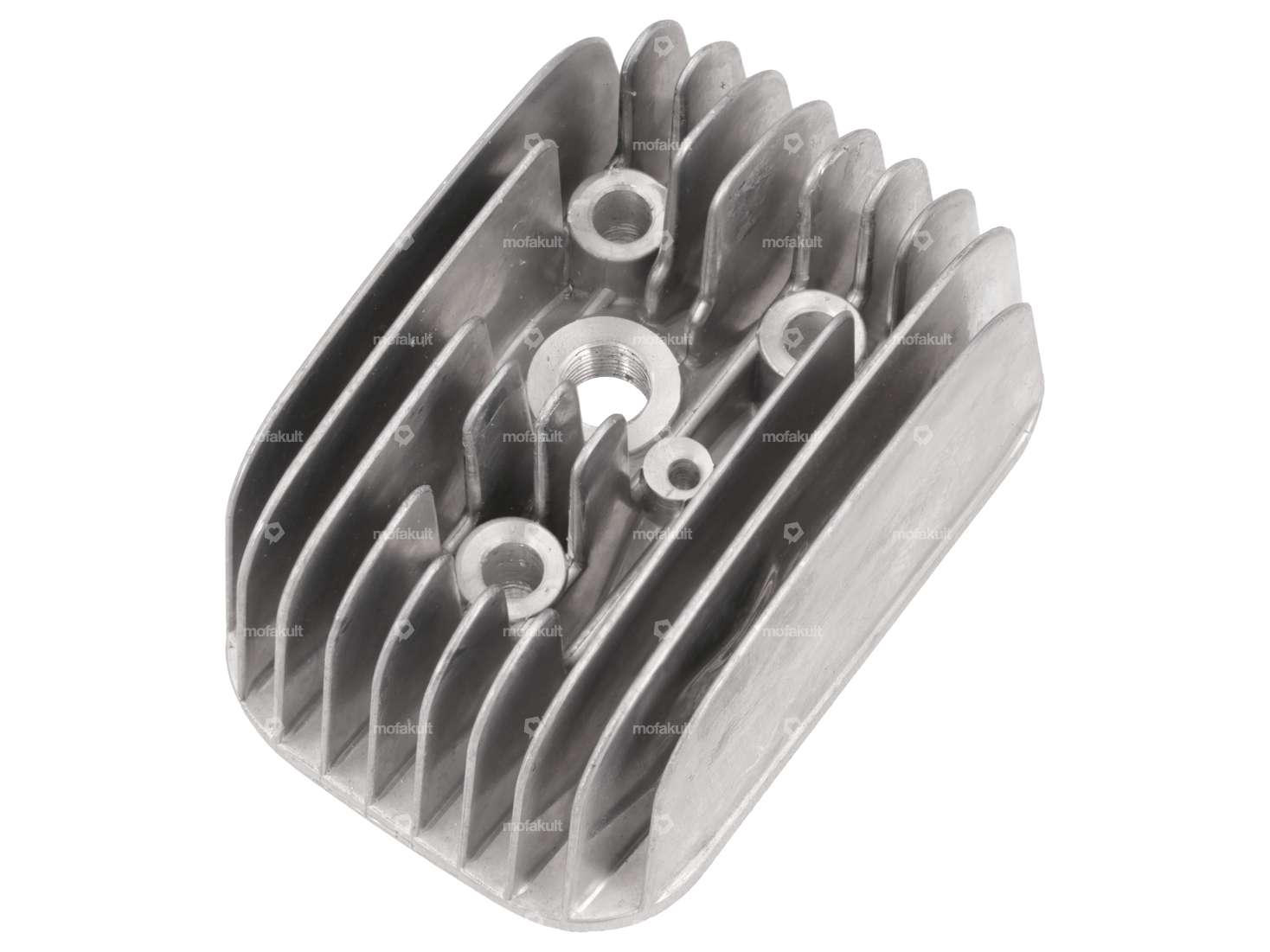

38 mm cylinder head (reproduction) | Piaggio Ciao, Bravo, Boxer

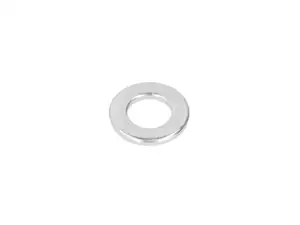

Washer M7 galvanized

Material: Steel · Surface: galvanized (blue) · Thread size: M7 · Nominal diameter (thread): 7 mm

Decompressor cable Ø 1.5 mm x 180 cm (pear-shaped nipple)

Ø nipple: 3.3 mm · Ø nipple: 5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Ø Stranded wire: 1.5 mm · Cable length: 1800 mm · Nipple shape: Pears · Nipple length: 7 mm · Pony OEM number: P0919

Athena cylinder base gasket oil paper | Piaggio Ciao, SI, Bravo, Boxer

Material: Oiled paper · Manufacturer: Athena · Place of use: Cylinder base

Gasket cylinder base aluminum original | Piaggio Ciao, SI, Bravo, Boxer

Material: Aluminum · Thickness: 0.25 mm · Place of use: Cylinder base · Area of application: Original

GPO 40 mm gasket cylinder head 0.4 mm aluminum | Piaggio Ciao, SI, Bravo Boxer

Material: Aluminum · Thickness: 0.4 mm · Place of use: Cylinder head · Manufacturer: GPO · Ø cylinder: 38 - 40 mm

swiing® revival bracket cable decompressor Inox | Piaggio Ciao

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Area of application: Original

NGK B6HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread) · Width across flats SW: 21 mm

Nut M7 galvanized

Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Nut type: Hexagon nut · Drive: External hexagon · Thread type: M7x1 (standard thread) · Strength class: 8 · Height: 5.3 mm · Width across flats SW: 11 mm

swiing® revival stud bolt M7x120 - 10.9 strength | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Total length: 120 mm · Thread length: 25 mm · Strength class: 10.9

Grinding compound valve 10 g

Manufacturer: Made in Germany · Area of application: Workshop accessories

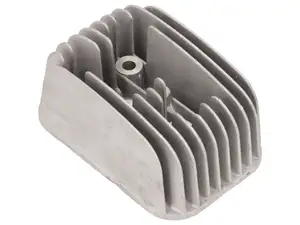

Cylinder head TC04 NOS | Piaggio Ciao

Width: 79 mm · Height: 60 mm · Manufacturer: Piaggio · Total length: 120 mm · Number of fixing points: 3 pcs · Material: Aluminum · Ø cylinder: 38 mm · Area of application: Original · Candle thread: short · Alternative version of the Piaggio OEM number: 113237 · Piaggio OEM number: 159998

swiing® revival 0.3 mm cylinder base gasket | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Cylinder base · Ø inside: 46 mm · Thickness: 0.3 mm · Ø cylinder: 38 - 43 mm · Piaggio OEM number: 182519

SITO exhaust Ø 20 mm | Piaggio Ciao, Bravo

Manufacturer: SITO · Material: Steel · Surface: varnished · Ø Internal connection: 22.5 mm · Ø Silencer: 65 mm · Number of fixing points: 1 pcs · Color: black · Ø Flame tube outside: 20 mm · Exhaust type: Cylindrical · Flame tube attachment: Plug connection clamped · Mounting type: Welded lug · Total length: 605 mm

GPO control bearing set | Piaggio Ciao

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Ø inside: 27 mm · Bearing type: Bearing ring · Ø outside: 41.4 mm · Ø outside: 42 mm · Ø mounting frame: 30.05 mm · Color: silver · Thread type: FG25.4 (1" 24G) · Height: 10.5 mm · Height: 17 mm · Ø ball [inch] / [mm]: 5/32" (4.00 mm)

Decompressor set | Piaggio Ciao, Bravo, Boxer

Material: Spring steel · Material: Steel · Surface: blank · Surface: galvanized (blue) · Total length: 75 mm · Area of application: Standard

Connecting rod bushing crankshaft 12 mm | Piaggio Ciao, SI, Bravo, Boxer

Material: Brass · Dimension needle bearing: 12 / 14 x 12 mm (axe 12) · Manufacturer: Made in Italy · Area of application: Standard · Ø piston pin (B): 12 mm

Athena gasket set 38.4 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Number of components: 2 pcs · Ø cylinder: 38.4 mm · Area of application: Tuning · Decompressor: Yes

DR 38.4 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Camouflaged: No · Material: Gray cast iron · Surface: varnished · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 38.4 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 17 mm · Ø piston pin (B): 10 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Area of application: Tuning

Dell'Orto 12/10 SHA carburetor hand choke

Nominal diameter: 10 mm · Nominal diameter: 12 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Original · Area of application: Tuning · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Total length: 55 mm · Color: black · Ø without reducing sleeve: 19 mm · Ø Inside entrance: 10 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Width: 60 mm · Mounting type: Plug connection clamped · Height: 111 mm · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 37

Dell'Orto 12/10 SHA carburetor hand choke | Piaggio Ciao PX

Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Carburetor type: SHA (Piaggio) · Nominal diameter: 12 mm · Width: 60 mm · Ø without reducing sleeve: 19 mm · Ø Inside entrance: 10 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Total length: 45 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Mounting type: Plug connection clamped · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 37 · Height: 96 mm · Area of application: Tuning
