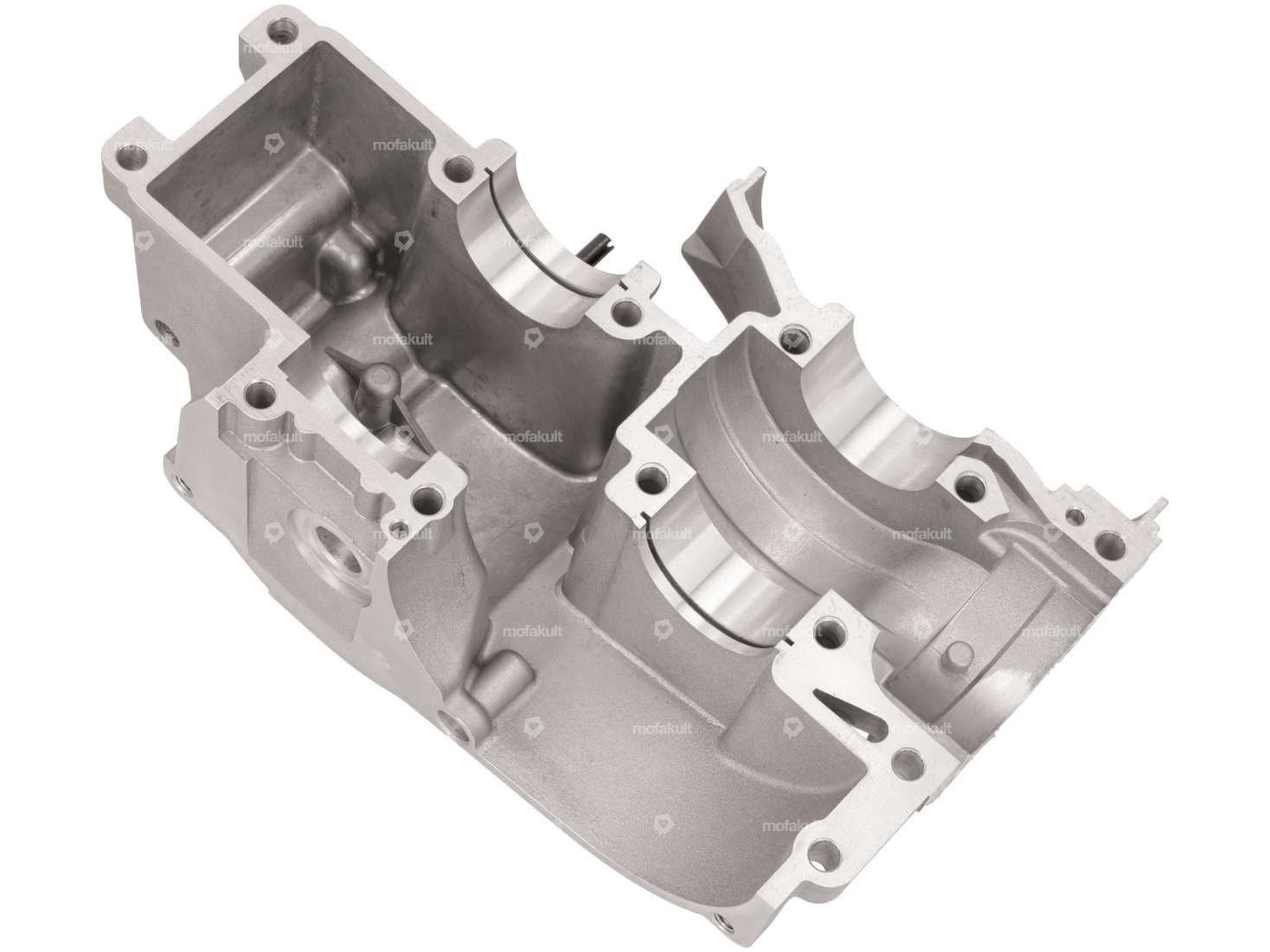

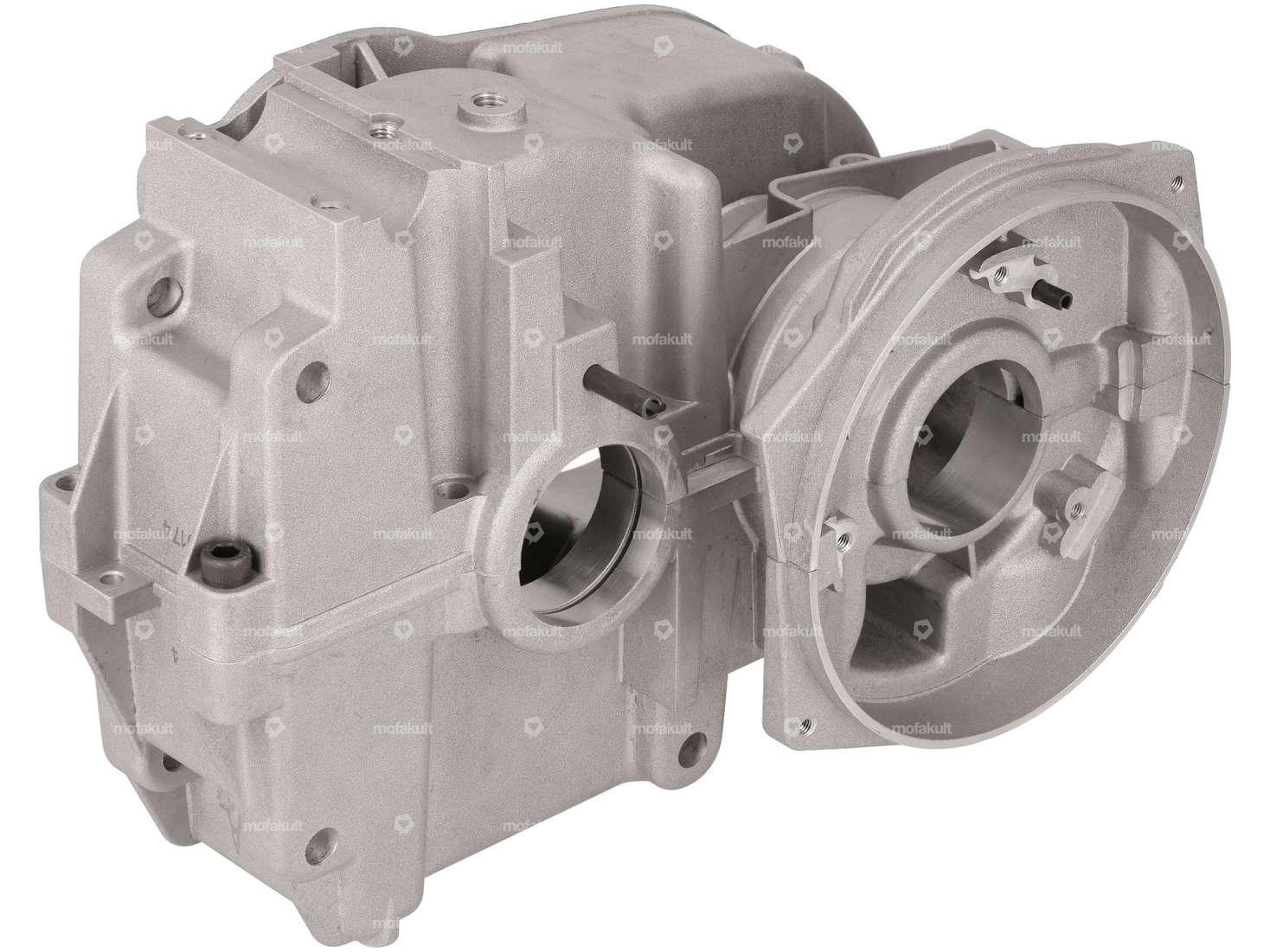

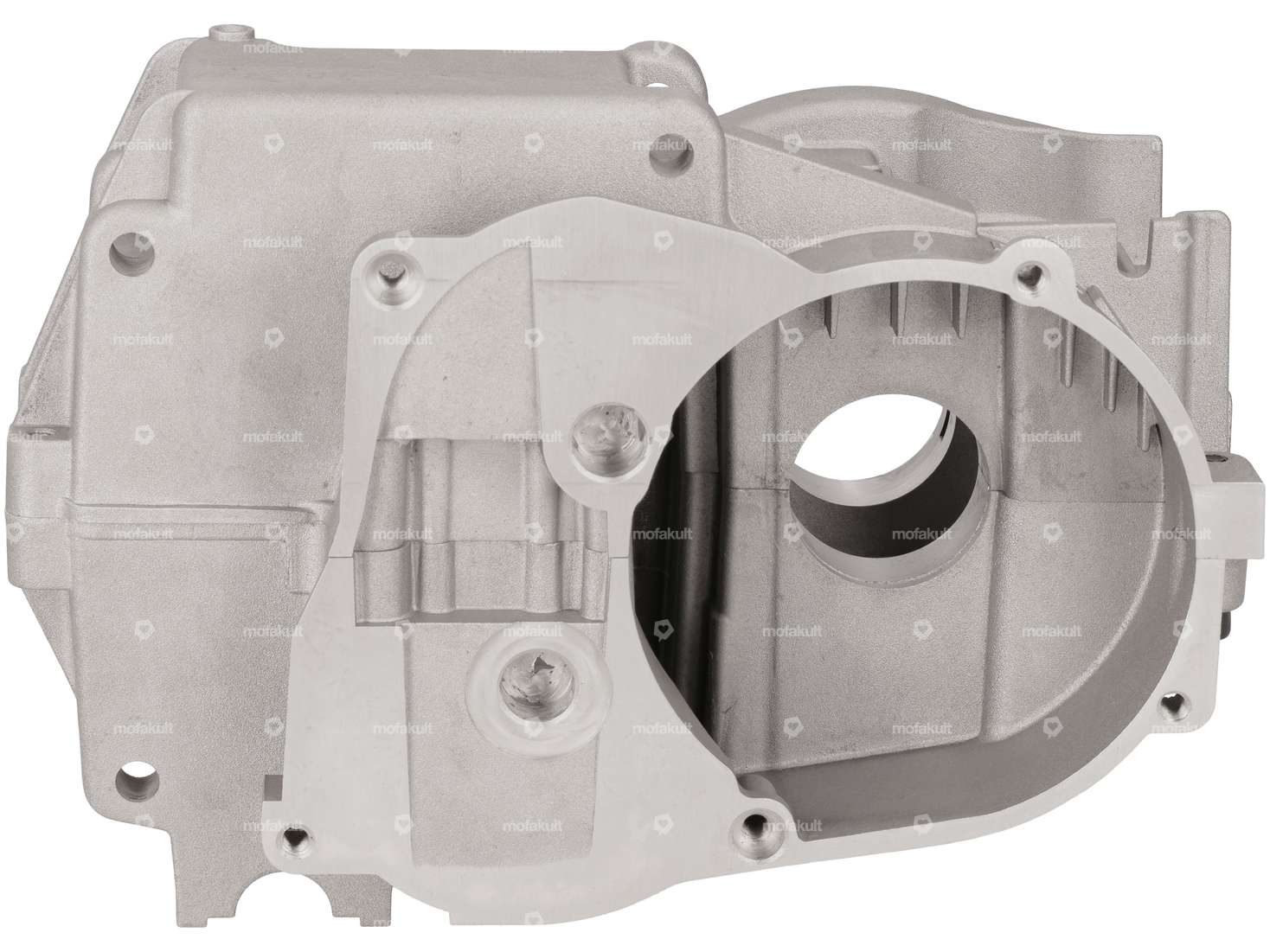

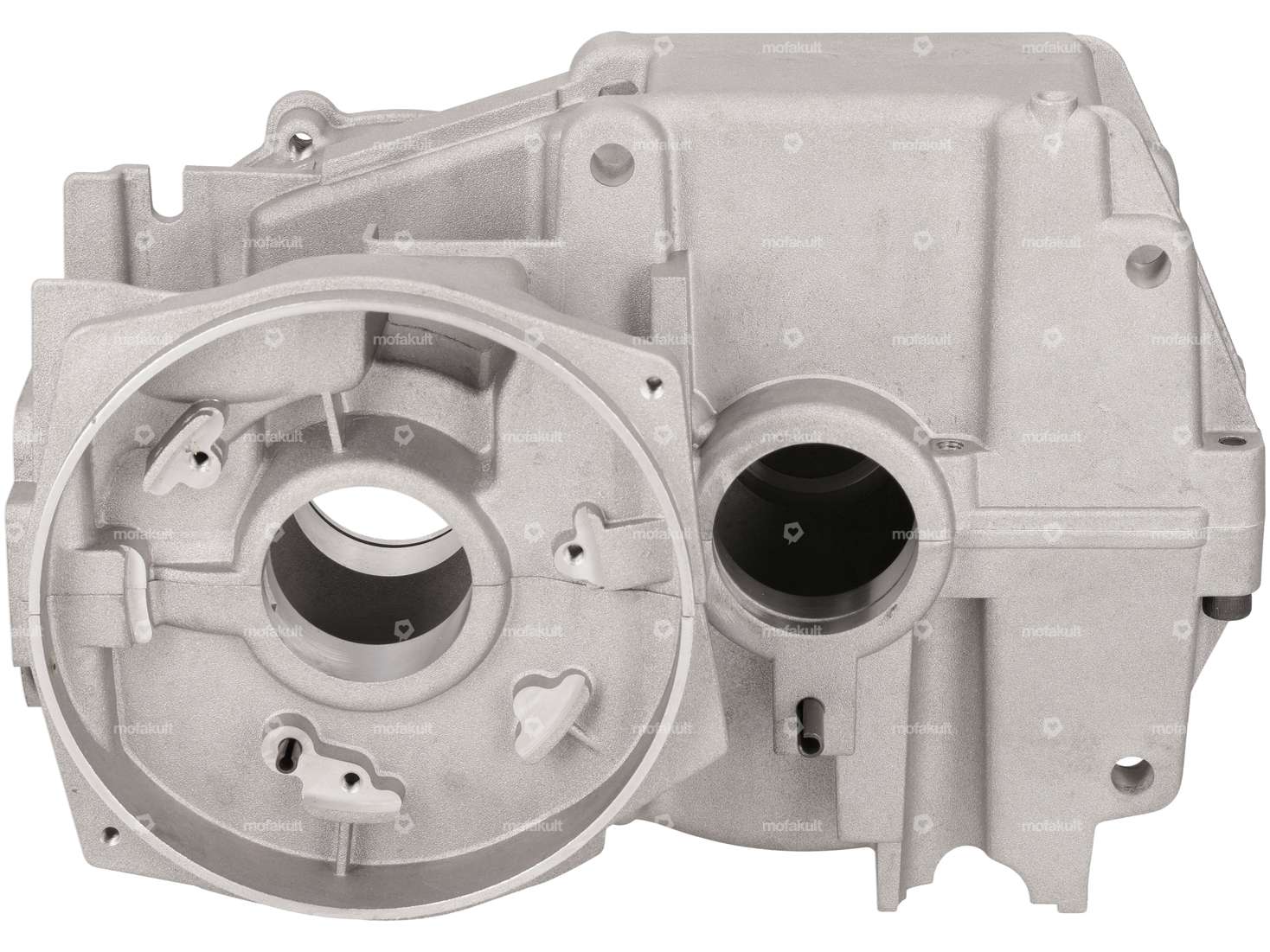

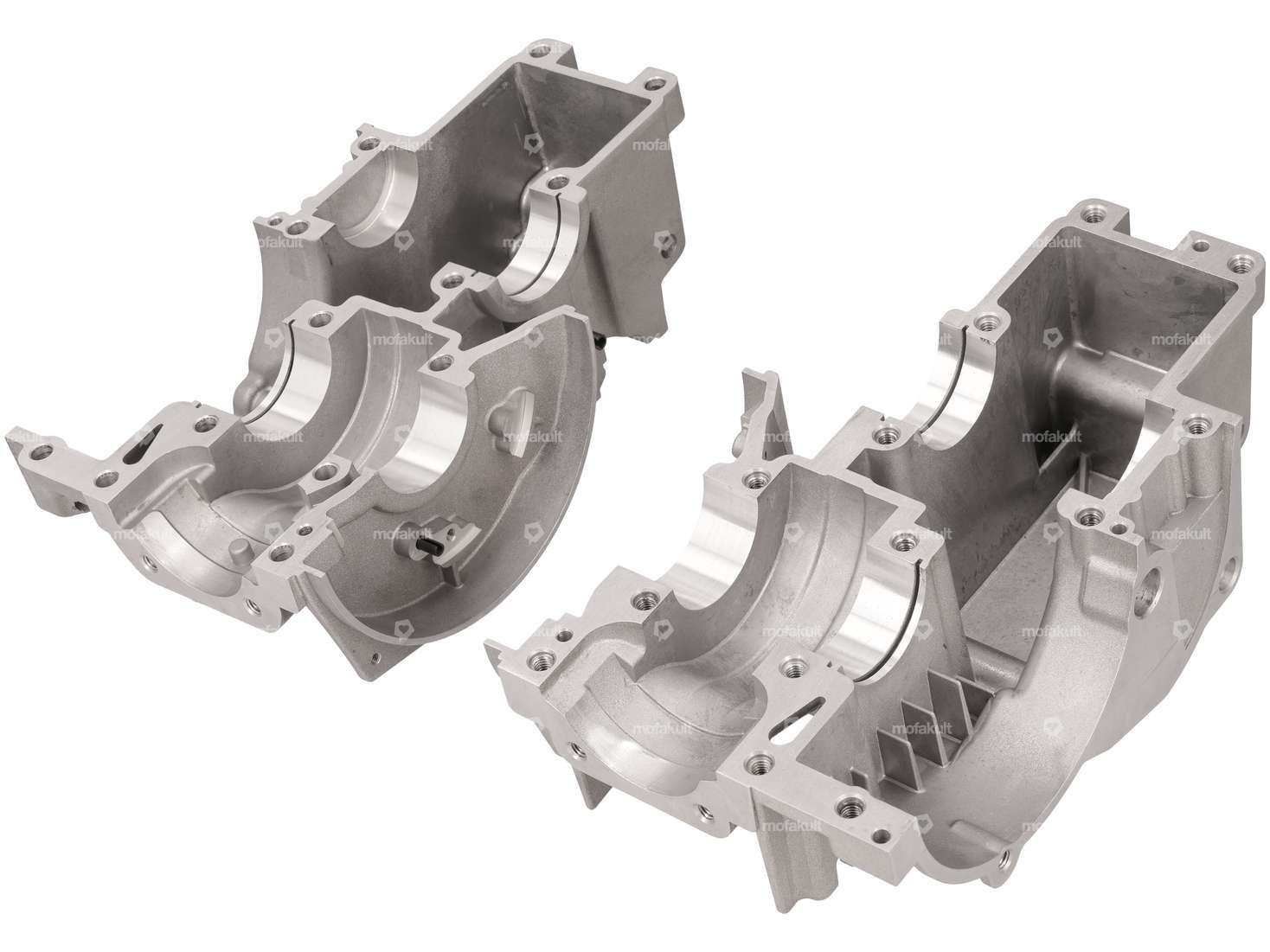

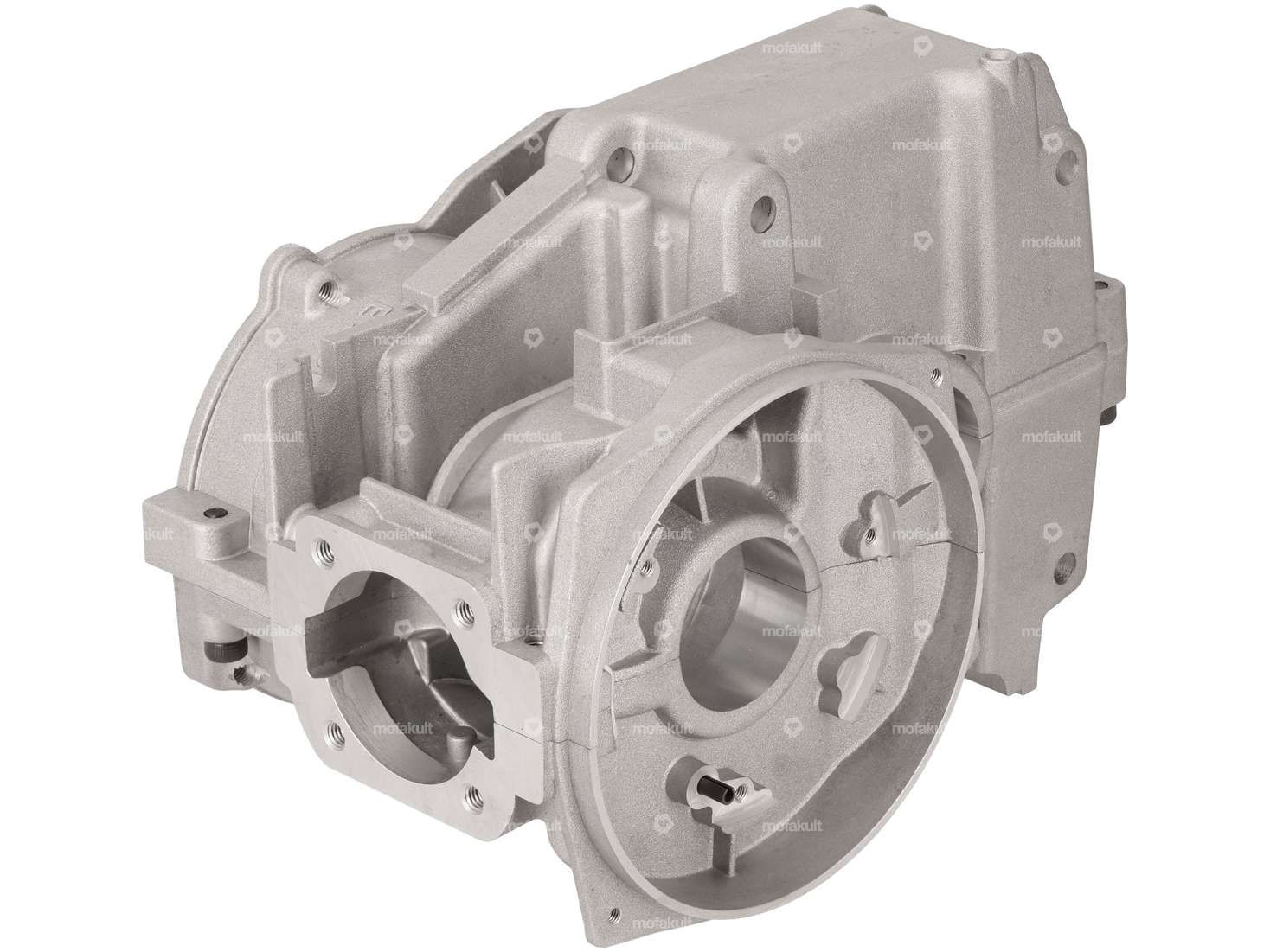

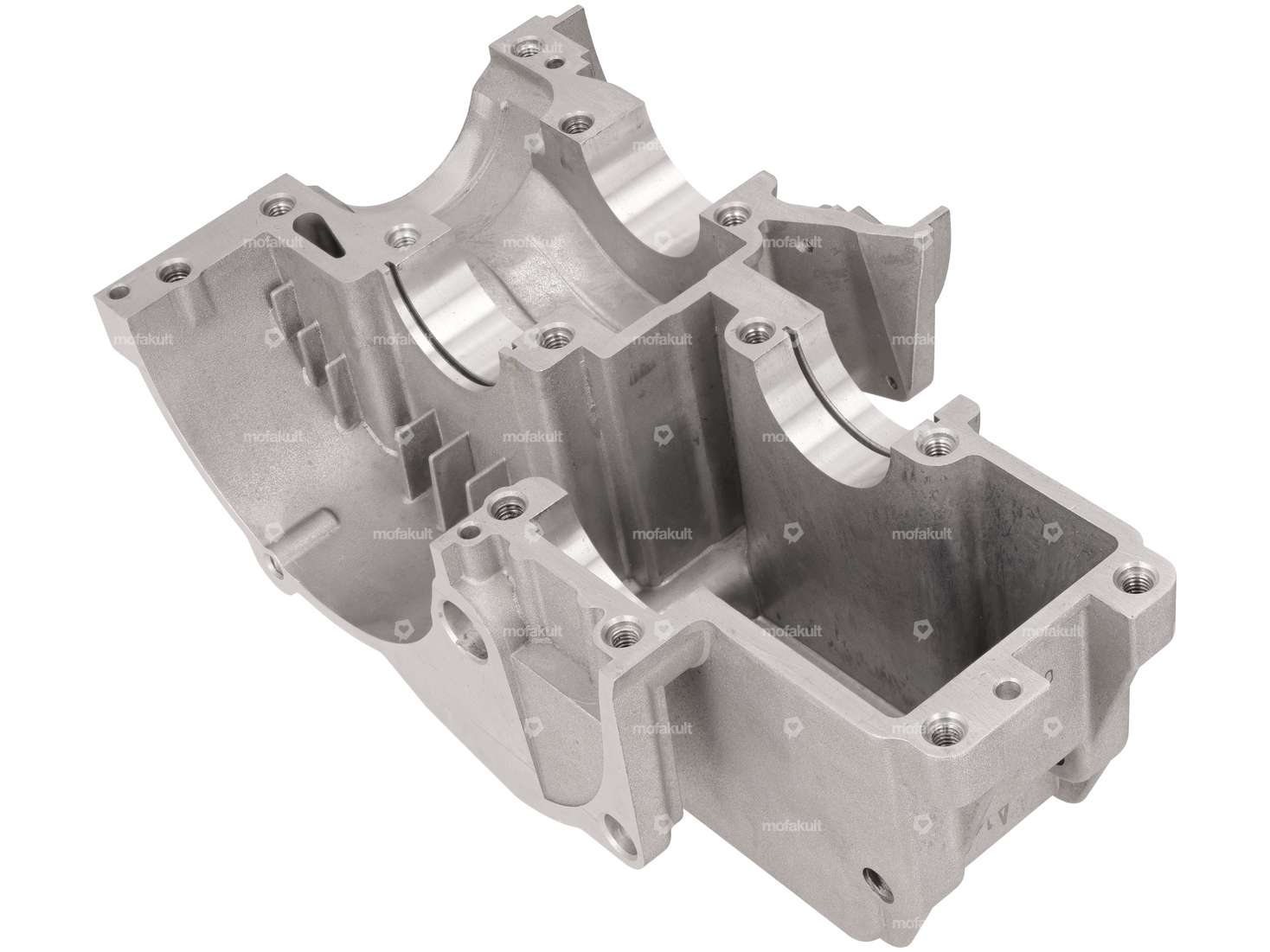

Reproduction of the original E50 engine housing with 4 bearings and kick starter for your Puch moped / moped.
The dimensions correspond to the original housing. This means that all add-on parts such as rods, end plates, crankshafts or cylinders can be used.
As with the original, a cylinder and pinion lock has been installed, which must be removed when fitting tuning parts.
The housing parts are numbered. The engine number can be stamped in by the owner if required.
Threaded stud bolt: M6x1 mm
Matching attachments as well as a racing gear for your Puch Maxi can be found in the accessories section.
Branded product from the manufacturer AKOA.
| Manufacturer | AKOA |
| Material | Aluminum |
| Puch | E50 |
Accessories & related products
GPO Gasket Set for E50 Engine | Puch Maxi S, N
Manufacturer: GPO · Number of components: 7 pcs · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 19.9 mm · Hole spacing inlet: 32 - 38 mm · Decompressor: Yes · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Area of application: Standard
EUR 11.90
swiing® revival Stud Bolt Set M6x106 | Puch
Manufacturer: swiing® revival parts · Material: Steel · Diameter: 5.9 mm · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Drive: External hexagon · Thread type: M6x1 (standard thread) · Width across flats: 10 mm · Total length: 106 mm · Thread length: 13 mm · Thread length: 18.5 mm · Alternative version of the Puch OEM number: 360.1.10.034.1
EUR 8.95
swiing® revival crankshaft "original" with mounted bearings | Puch E50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Thread type: MF10x1 (fine pitch thread) · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 873 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Area of application: Standard · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Thread length: 11 mm · Thread length: 15 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Puch OEM number: 349.1.10.115.0 · Puch OEM number: 900.6203 · Puch OEM number: 900.6233 · Puch OEM number: 901.3801 · Puch OEM number: 902.3835
EUR 168.70
Hot
swiing® revival 38 mm cylinder kit 1.6 hp CH12 "original" | Puch
Manufacturer: swiing® revival parts · Camouflaged: Yes · Surface: sandblasted · Displacement: 50 ccm · Material: Aluminum · Crankshaft stroke: 43 mm · Nominal diameter: 38 mm · Ø cylinder neck: 48 mm · Ø Inlet inside: 9 mm · Ø outlet inside: 19 mm · Hole spacing inlet: 38 mm · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Area of application: Standard · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Decompressor: Yes · Alternative version of the Puch OEM number: 349.7.10.105.0
EUR 156.70
Hot
swiing® revival 38 mm cylinder kit 1.6 PS CH12 (Vertex-Edition) Original | Puch
Manufacturer: swiing® revival parts · Camouflaged: Yes · Surface: sandblasted · Displacement: 50 ccm · Material: Aluminum · Crankshaft stroke: 43 mm · Nominal diameter: 38 mm · Ø cylinder neck: 48 mm · Ø Inlet inside: 9 mm · Ø outlet inside: 20 mm · Hole spacing inlet: 38 mm · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Area of application: Standard · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Decompressor: Yes
EUR 180.80
Explore categories from Gearbox & housing (motor)
Moped fans also bought
swiing® ingenious clutch springs reinforced (+20%) | Puch E50
Spring design: Pressure spring · Ø wire: 1.7 mm · Manufacturer: swiing® ingenious parts · Number of components: 3 pcs · Material: Spring steel · Surface: coated · Color: blue · Ø inside: 4.8 mm · Ø outside: 8.3 mm · Total length: 28 mm · Area of application: Tuning
EUR 21.60
- 16 %
Hot
swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)
Manufacturer: swiing® revival parts · Material: Steel · Diameter: 5.95 mm · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Thread type: M6x1 (standard thread) · Strength class: 10.9 · Total length: 30 mm · Thread length: 12 mm
EUR 2.20
EUR 1.80
Hot
Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing
Ø nipple: 3 mm · Manufacturer: Made in Germany · Number of components: 1 pcs · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder · Nipple length: 5 mm · Area of application: Standard
EUR 2.90
NGK CR6 Racing ignition cable & plug High End red / 5 kΩ interference suppressed
Manufacturer: NGK · Color: red · Material: Rubber · Cable available: Yes · Suppressed: Yes · Resistance: 5000 Ω · Subcategory: Ignition cable · Subcategory: Spark plug connector · Ø cable: 7 mm · Cable length: 1000 mm
EUR 48.10
Hot
swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Material: Aluminum · Material: Steel · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Weight: 968 g · Ø Bearing seat (ignition side): 17 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm
EUR 223.00
