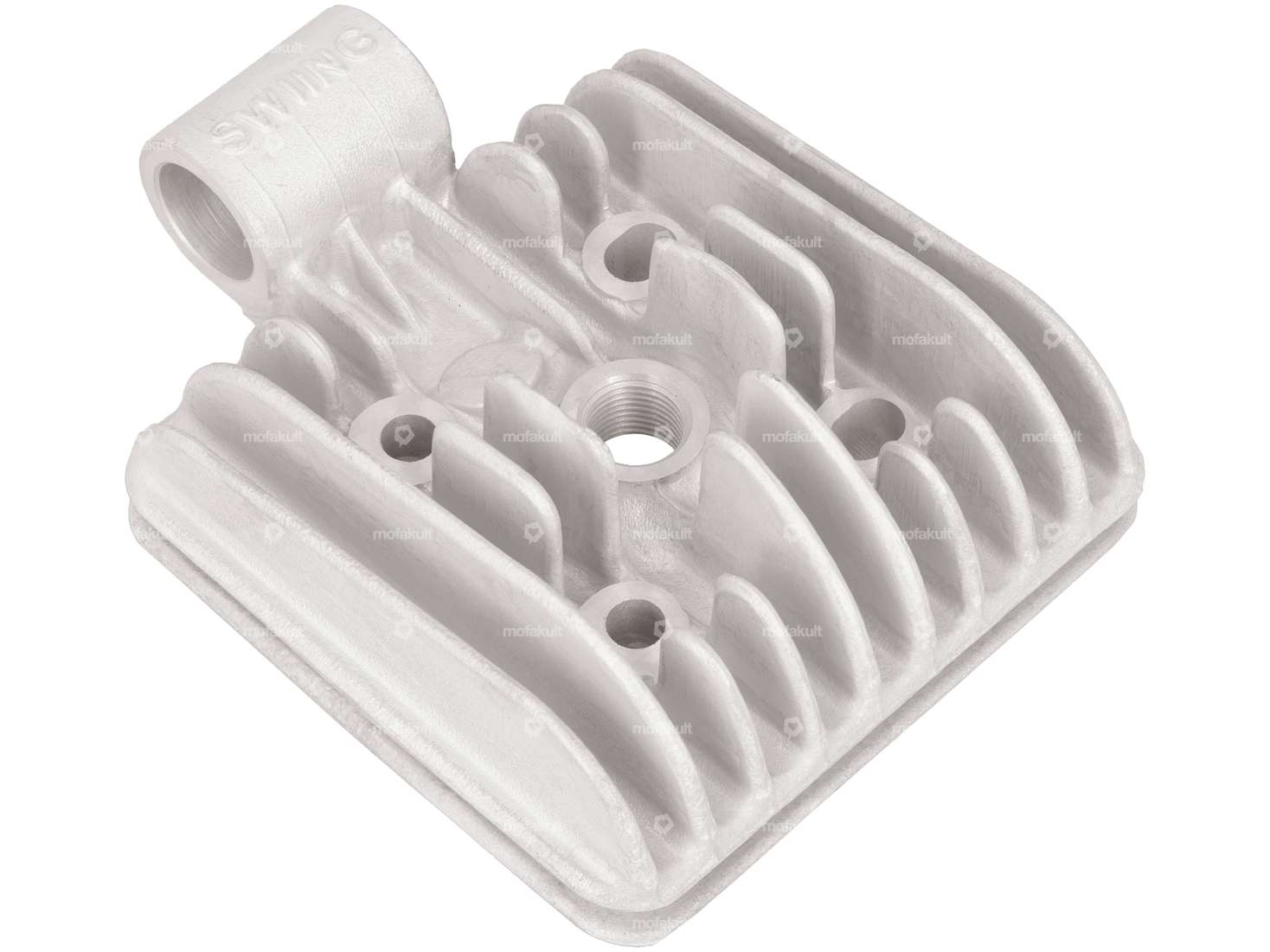

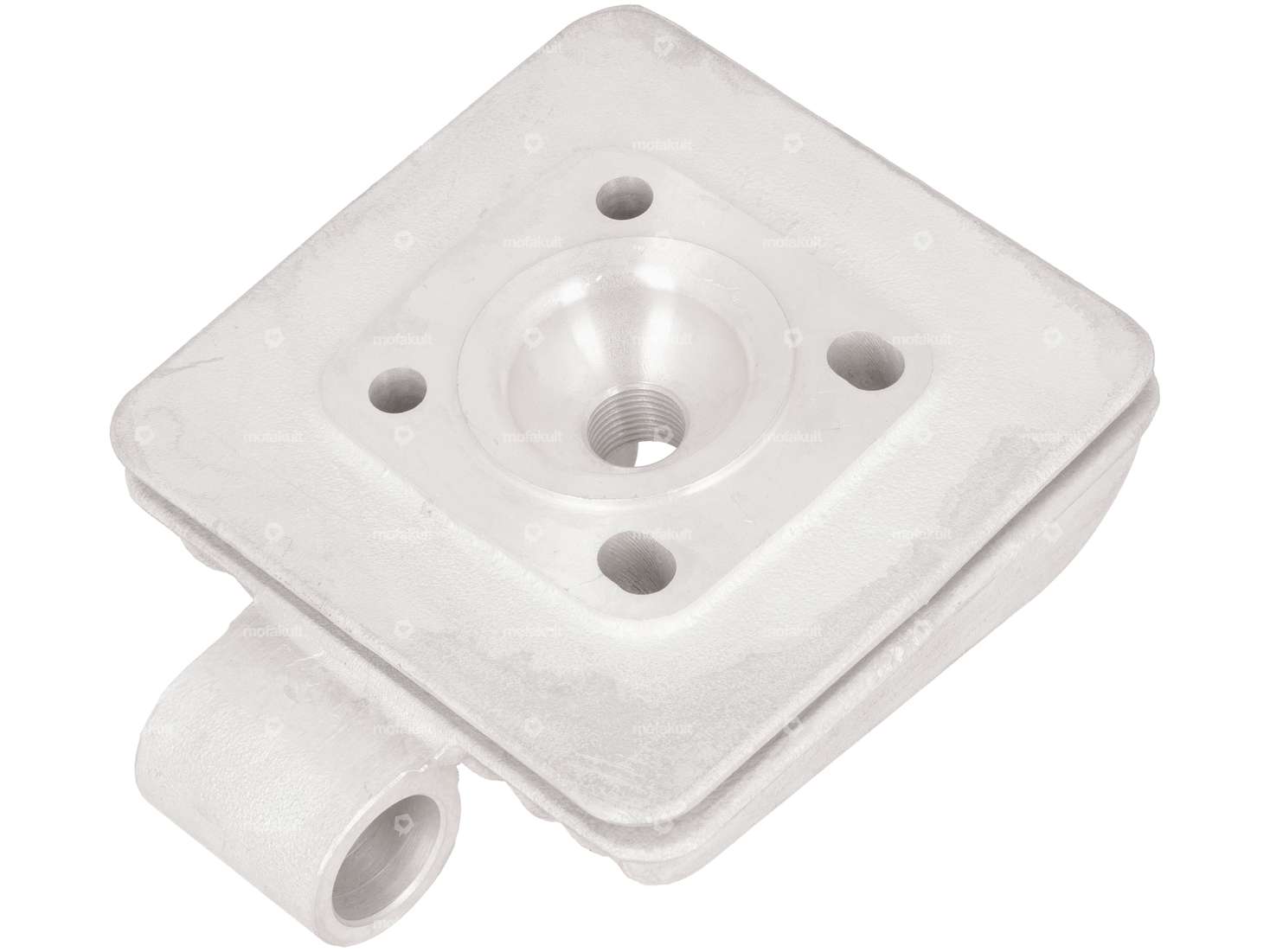

swiing® ingenious 44 mm cylinder head without decoration | Zündapp Belmondo, Bergsteiger

Elring Curil T2 sealing compound 70 ml (polyurethane) non-hardening green

Color: green · Manufacturer: Elring · Contents: 70 ml · Area of application: Chemistry · Temperature resistance (min.): -55 - 250 °C · Gap dimension (max.): 0.2 mm

Loctite 638 Joining shaft-hub high-strength 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents: 10 ml · Color: green · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Temperature resistance (min.): -75 - 150 °C · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m · Area of application: Chemistry

Bikeservice M6 stud bolt assembly/disassembly tool

Manufacturer: Bike service · Thread type: M6x1 (standard thread) · Area of application: Special tool

Stud bolt M6 x 145 mm black

Thread length: 25.3 mm · Material: Steel · Diameter: 5.2 mm · Surface: blackened · Thread type: M6x1 (standard thread) · Total length: 145 mm

swiing® ingenious 44 mm gasket set cylinder | Zündapp Belmondo (Type 247)

Manufacturer: swiing® ingenious parts · Ø cylinder: 44 mm · Number of components: 4 pcs · Area of application: Tuning

swiing® ingenious piston 44 mm Vertex | Zündapp Belmondo, Bergsteiger

Nominal diameter: 44 mm · Manufacturer: swiing® ingenious parts · Ø outside piston (A): 43.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 25.05 mm · Curvature (D): 2.45 mm · Total piston height (E): 51.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Weight piston kit: 92 g

17 mm Bing SRF carburetor (replica)

Material: Aluminum · Area of application: Tuning · Component group Carburetor: Carburetor complete · Width: 64 mm · Choke control: Hand choke · Carburetor type: SRF · Height: 117 mm · Nominal diameter: 17 mm · Total length: 78 mm · Ø Internal connection: 23 mm · Ø Air filter connection: 60 mm · Ø Air filter connection: 64 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle thread: M4x0.7 (standard thread) · Mounting type: Plug connection clamped · Nozzle block: 2.xx · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m

Exhaust clamp 70 mm chrome wide version.

Nominal diameter: 70 mm · Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Width: 28 mm · Clamping diameter: 67 - 71 mm · Number of fixing points: 1 pcs · Thickness: 2 mm · Ø mounting hole: 8.2 mm

swiing® ingenious 16 mm intake manifold Bing SRF | Zündapp Belmondo (Type 247)

Ø inside: 16 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Total length: 35 mm · Number of fixing points: 2 pcs · Total height: 42 mm · Height flange center hole: 35 mm · Ø External connection: 23 mm · Mounting type: Screws · Hole spacing inlet: 40 mm

swiing® ingenious Clutch Reinforcement Set (+50%) | Zündapp Belmondo 247

Manufacturer: swiing® ingenious parts · Area of application: Tuning · Number of springs: 10 pcs

swiing® revival Silentblock engine / cylinder head | Zündapp Belmondo (Type 247)

Ø inside: 8.2 mm · Ø outside: 19 mm · Manufacturer: swiing® revival parts · Material: Rubber · Material: Steel · Total length: 21 mm · Ø Bundle: 25.5 mm

swiing® ingenious exhaust manifold 28 mm left chrome | Zündapp Belmondo

Ø inside: 25 mm · Ø outside: 28 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Color: Chrome · Surface: chrome-plated · Total length: 360 mm · Number of fixing points: 2 pcs · Hole spacing outlet: 40 mm · Mounting type: Stud bolts & nuts

Stud bolt M6 x 145 mm black

Thread length: 25.3 mm · Material: Steel · Diameter: 5.2 mm · Surface: blackened · Thread type: M6x1 (standard thread) · Total length: 145 mm

swiing® ingenious 44 mm cylinder kit tuning with head | Zündapp Bergsteiger

Nominal diameter: 44 mm · Manufacturer: Vertex · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 42 mm · Thread inlet: M6x1 (standard thread) · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Decompressor: No · Camouflaged: No · Area of application: Tuning

swiing® ingenious 44 mm cylinder kit tuning with head | Zündapp Belmondo

Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Crankshaft stroke: 42 mm · Displacement: 65 ccm · Surface: sandblasted · Ø piston pin (B): 12 mm · Nominal diameter: 44 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 21.3 mm · Inlet window: 22.3 x 15.5 · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm
